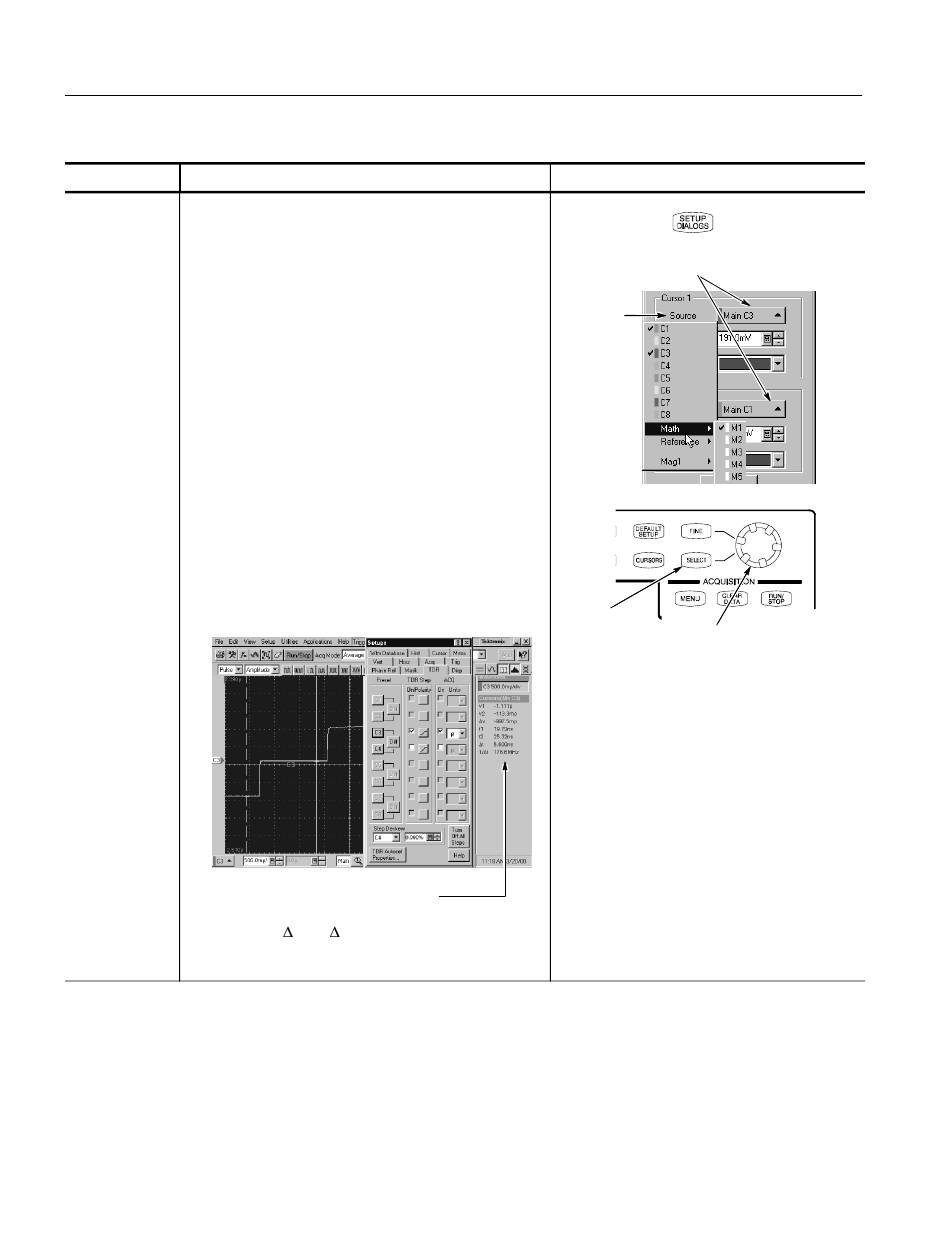

Overview To take a TDR measurement (cont.)
Take cursor 23. Press the SETUP DIALOGS button and select the
measurements
Cursor tab.
24. Select the Waveform cursor type.
25. From the pop-up list for each of Cursor 1 and Cursor 2,
select your TDR source.
26. Press the SELECT button to toggle selection between
the two cursors. The active cursor is the solid cursor.
27. Turn the Adjust knob to position each cursor on the
TDR waveform to measure the feature that interests
you.
22. Read the results in the cursor readout.
In the figure shown above, waveform cursors are used
to measure v and t of the waveform, which could be
used to compute its slope (dv/dt).
26
