Connection Diagram - Linak TECHLINE IO-Link LA25 Quick Start Manual

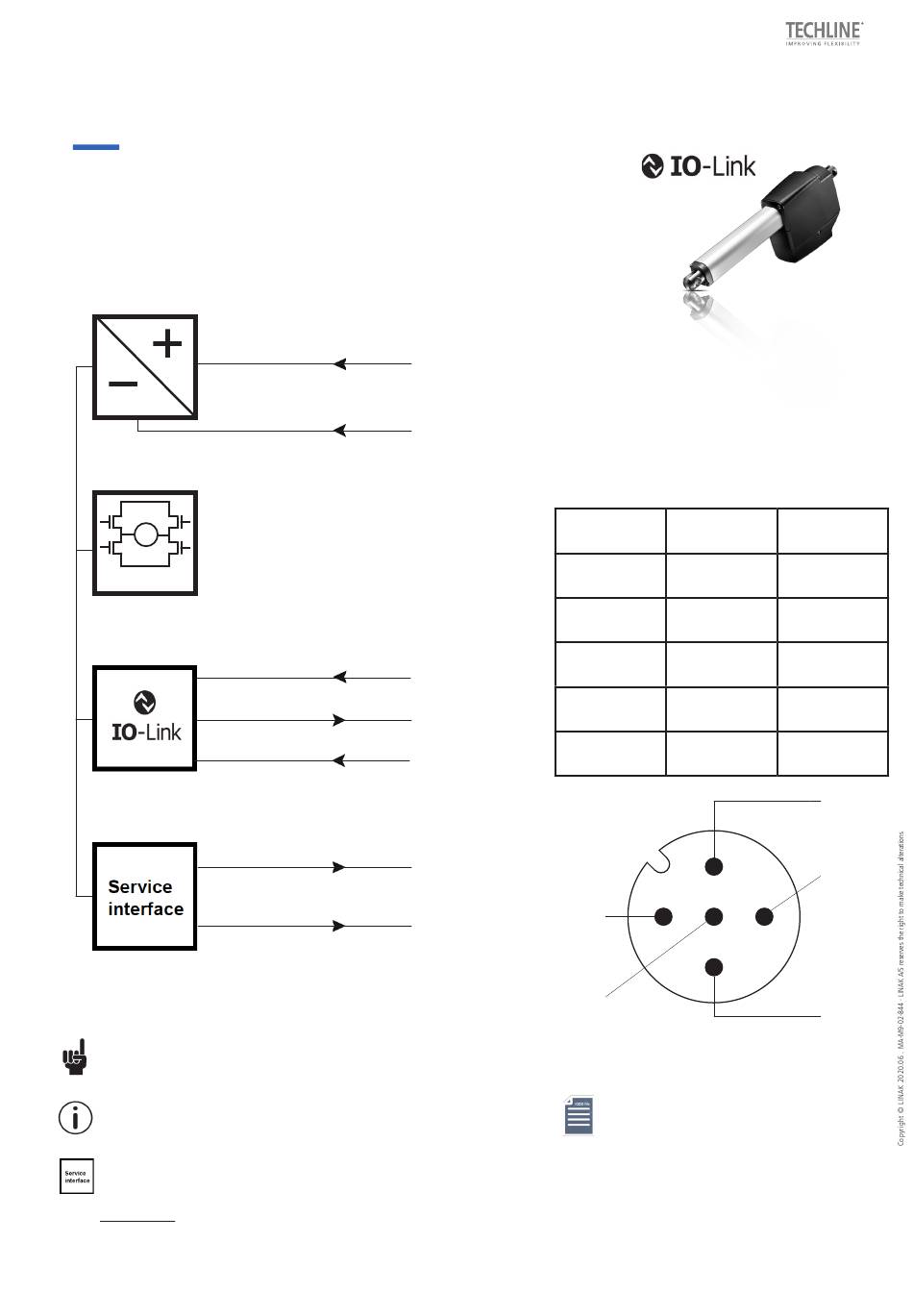

Connection diagram

IO Link (November 2020)
25XXXXXXXXXXAB1X=XXXXXXXXXXXXX
2L+
2M
M
H-Bridge
L+
C/Q
L-
DATA
DATA GND
Please be aware that if the power supply is not properly connected, you might damage
the actuator!
An IODD file describes the IO-Link parameters for
The newest version is available online at the offi cial IO-Link IODDfi nder:
We offer a service interface called BusLink with features like e.g. diagnostics, manual run and confi guration
The newest version is available online at LINAK.COM/TECHLINE
Please note: The BusLink confi guration cable must be purchased seperately
Item number for BusLink cable kit: 0965348-A (adapter + USB2Lin)
F O R M O U N T I N G I N S T R U C T I O N S A N D G U I D A N C E I N U S A G E , P L E A S E S E E T H E R E L E V A N T U S E R M A N U A L S
(motor +)
(motor -)
M12 CONNECTOR
BROWN
The LA25 with IO-Link and M12 connector is a plug-and-
play solution. If flying leads is the preferred option, please be
aware that the LINAK cable colours differ from the IO-Link
standard. The cable colours from the actuator and the M12
BLUE
port numbers are specified in the table below. In a setup
where the violet and white wires are not used, we strongly
recommend insulating these to avoid short circuits and even-
tually damaging the actuator.
Connects to:
2L+
2M
L+
RED
C/Q
GREEN
L-
BLACK
VIOLET
2L+
WHITE
2M
easy PLC configuration.
20
2019 © LINAK A/S
Actuator M12 Port
Flying leads: Class B
Brown 2
Blue 5
Red 1
Green 4
Black 3
1
2 5 4
3
M12 Plug on device
Version B
L+
C/Q
L-
