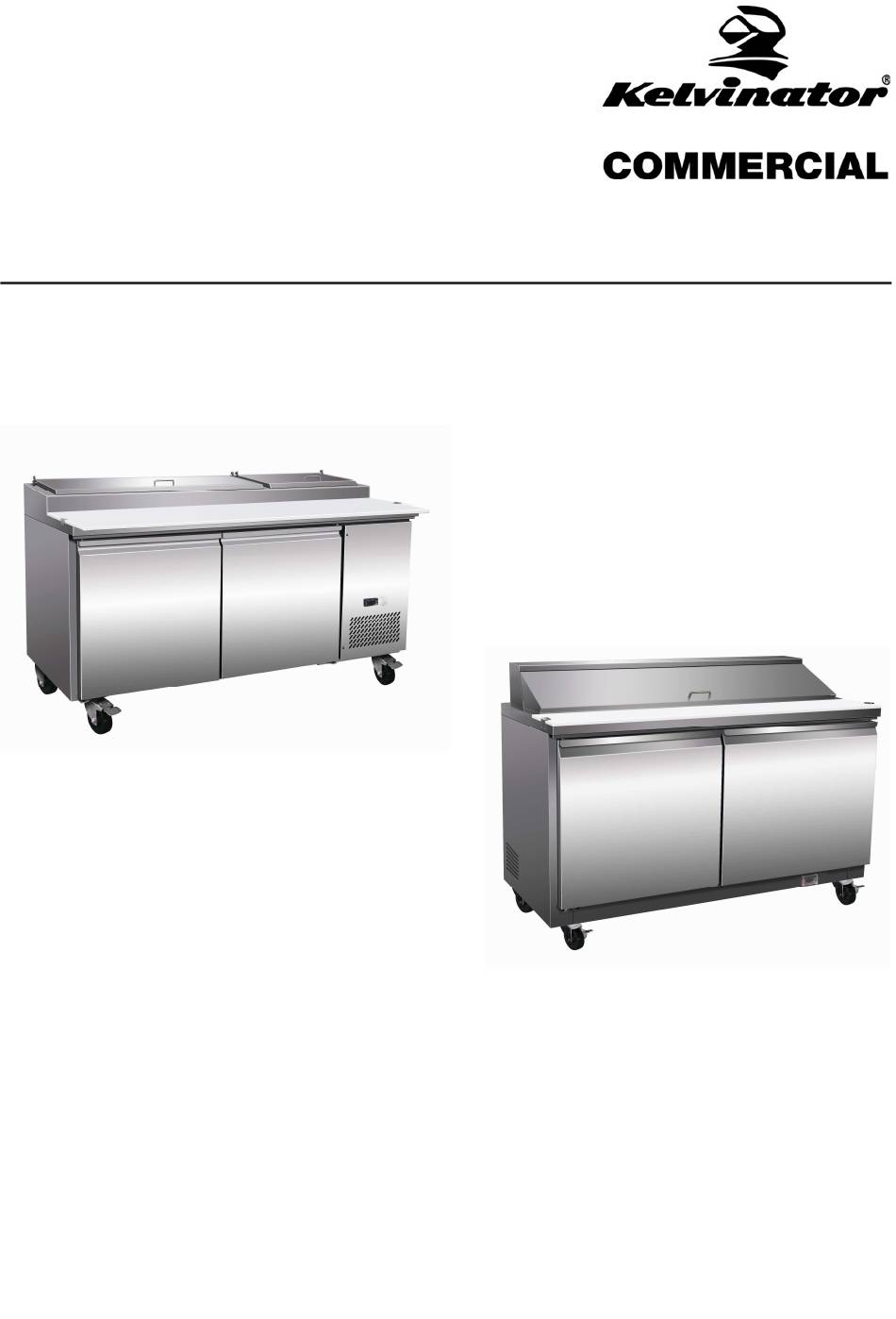

Pizza Prep Tables Sandwich/Salad Units Under-counter Refrigerators and Freezers Worktop Refrigerators and Freezers Service, Installation and Care Manual Please read this manual completely before attempting to install or operate this equipment. Notify carrier of damage! Inspect all components immediately. IMPORTANT INFORMATION READ BEFORE USE PLEASE SAVE THESE INSTRUCTIONS!
Page 2
Service and Installation Manual COMMECIAL REFRIGERATOR SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. Our product instructions will be uploaded on our company official website. This is the Safety Alert Symbol.
Page 3
Service and Installation Manual The key for appliance electric box should be safe kept by qualified persons in order to avoid a hazard WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
Service and Installation Manual CONTENTS RECEIVING & INSPECTING EQUIPMENTGGGGGGGGGGGGGGG..GGGGGGG4 SPECIFICATIONSGGGGGGGGGGGGGGGGGGGG.GGGGGGGGG.GGG5 INSTALLATIONGGGGGGGGGGGGGGGGGGGGGGGGGGGG.GGGG..G.6 OPERATIONGGG..GGGGGGGGGGGGGGGGGGGGGGGGGG..GGGGG7 MAINTENANCEGGGGGGGGGGGGGGGGGGGGGGGGGGG.GGGGGG.9 WIRING DIAGRAMGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGG11 All rights reserved. Reproduction without written permission is prohibited. SERIAL NUMBER INFORMATION The serial number of all self-contained refrigerators and freezers is located inside the unit on the left hand side near the top on the wall.
Service and Installation Manual INSTALLATION Location Units represented in this manual are intended for indoor use only. Be sure the location chosen has a floor strong enough to support the total weight of the cabinet and contents. A fully loaded unit can weigh as much as 1500 pounds.
Service and Installation Manual OPERATION Do not throw items into the storage area. Failure to heed these recommendations could result in damage to the interior of the cabinet. CAUTION Refrigerated cabinets Temperature range for the internal cabinets is 34°to 38°F for all food prep units, undercounter and worktop refrigerators, and -7°F to -3°F for undercounter and worktop freezers.
Page 8
Service and Installation Manual 1.1 Function of LEDS 2. MAIN FUNCTIONS 2.1 HOW TO SEE THE SETPOINT 1. Push and immediately release the SET key: the display will show the set point value. 2. Push and immediately release the SET key or wait for 5 seconds to display the sensor value again.
Service and Installation Manual MAINTENANCE The power switch must be turned OFF and the unit disconnected from the power source whenever performing service, maintenance functions or cleaning the refrigerated area. DANGER Refrigerators and Freezers The interior and exterior can be cleaned using soap and warm water. If this isn't sufficient, try ammonia and water or a nonabrasive liquid cleaner.
Page 10
Service and Installation Manual MAINTENANCE Cleaning solutions need to be alkaline based or non-chloride based. Any cleaner containing chlorides will damage the protective film of the stainless steel. Chlorides are commonly found in hard water, salts, and household and industrial cleaners. If cleaners containing chlorides are used, be sure to rinse and dry thoroughly.
Service and Installation Manual WIRING DIAGRAM MODEL: KCHUC27R / KCHUCWT27R / KCHUC27.2DR PLUG OVERLOAD DOOR PROTECTOR SWITCH CONDENSEN COMPRESSOR THERMOSTAT DISPLAY POWER STARTER EVAP ROOM EVAP SENSOR MODEL: KCHUC48R / KCHUCWT48R / KCHUC60R / KCHUCWT60R PLUG OVERLOAD PROTECTOR DOOR SWITCH CONDENSEN COMPRESSOR THERMOSTAT DISPLAY...
Page 12
Service and Installation Manual WIRING DIAGRAM MODEL: KCHUC72R / KCHUCWT72R PLUG OVERLOAD PROTECTOR COMPRESSOR CONDENSEN THERMOSTAT DISPLAY DOOR SWITCH ROOM EVAP POWER SENSOR CURRENT RELAY STARTING EVAP CAPACITOR MODEL: KCHPT50.6 THERMOSTAT DISPLAY PLUG OVERLOAD PROTECTOR EVAP CIRCUITALION ROOM CONDENSER FAN MOTOR SENSOR FAN MOTOR COMPRESSOR...
Page 13
Service and Installation Manual WIRING DIAGRAM MODEL: KCHPT60.9 THERMOSTAT DISPLAY OVERLOAD PLUG PROTECTOR EVAP ROOM SENSOR CIRCUITALION CONDENSER COMPRESSOR FAN MOTOR FAN MOTOR CURRENT RELAY STARTING CAPACITOR MODEL: KCHPT70.12 THERMOSTAT DISPLAY OVERLOAD PLUG PROTECTOR EVAP ROOM SENSOR COMPRESSOR CIRCUITALION CONDENSER FAN MOTOR FAN MOTOR CURRENT...
Page 14
Service and Installation Manual WIRING DIAGRAM MODEL: KCHST27.8 / KCHMT29.12 / KCHMT29.12.2D THERMOSTAT DISPLAY OVERLOAD PLUG PROTECTOR EVAP ROOM CIRCUITALION SENSOR CONDENSER FAN MOTOR FAN MOTOR COMPRESSOR t ℃ PTC STARTER MODEL: KCHST48.12 / KCHMT48.18 / KCHMT48.18.2D / KCHST60.16 / KCHMT60.24 / KCHMT60.24.2D...
Page 15
Service and Installation Manual WIRING DIAGRAM MODEL: KCHST70.18 / KCHMT70.30 THERMOSTAT DISPLAY OVERLOAD PLUG PROTECTOR EVAP ROOM CONDENSER CIRCUITALION SENSOR FAN MOTOR FAN MOTOR COMPRESSOR t ℃ PTC STARTER MODEL: KCHUC27F / KCHUCWT27F THERMAL PLUG CUT-OFF OVERLOAD PROTECTOR DOOR SWITCH CONDENSEN COMPRESSOR POWER...
Page 16
Service and Installation Manual WIRING DIAGRAM MODEL: KCHUC48F / KCHUCWT48F PLUG THERMAL OVERLOAD CUT-OFF PROTECTOR DOOR COMPRESSOR CONDENSEN SWITCH POWER THERMOSTAT DISPLAY CURRENT EVAP STARTING RELAY CAPACITOR ROOM EVAP SENSOR...
Page 17
Service and Installation Manual WIRING DIAGRAM MODEL: KCHUC27R / KCHUCWT27R / KCHUC27.2DR...
Page 18
Service and Installation Manual WIRING DIAGRAM MODEL: KCHUC48R / KCHUCWT48R / KCHUC60R / KCHUCWT60R...
Page 19
Service and Installation Manual WIRING DIAGRAM MODEL: KCHUC72R / KCHUCWT72R...
Page 20
Service and Installation Manual WIRING DIAGRAM MODEL: KCHST27.8 / KCHMT29.12 / KCHMT29.12.2D...
Page 21
Service and Installation Manual WIRING DIAGRAM MODEL: KCHST48.12 / KCHMT48.18 / KCHMT48.18.2D / KCHST60.16 / KCHMT60.24 / KCHMT60.24.2D...
Page 22
Service and Installation Manual WIRING DIAGRAM MODEL: KCHST70.18 / KCHMT70.30...
Page 23
Service and Installation Manual WIRING DIAGRAM MODEL: KCHPT50.6...
Page 24
Service and Installation Manual WIRING DIAGRAM MODEL: KCHPT60.9...
Page 25
Service and Installation Manual WIRING DIAGRAM MODEL: KCHPT70.12...
Page 26
Service and Installation Manual WIRING DIAGRAM MODEL: KCHUC27F / KCHUCWT27F...
Page 27
Service and Installation Manual WIRING DIAGRAM MODEL: KCHUC48F / KCHUCWT48F...
Page 28
Kelvinator Commercial Appliance Warranty Information Your appliance is covered by a three (3) year limited warranty. For three (3) years from your original date of purchase, Electrolux will pay all costs, except as set forth below, for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used, and maintained in accordance with the provided instructions.
