Summary of Contents for Kelvinator KCHGF24

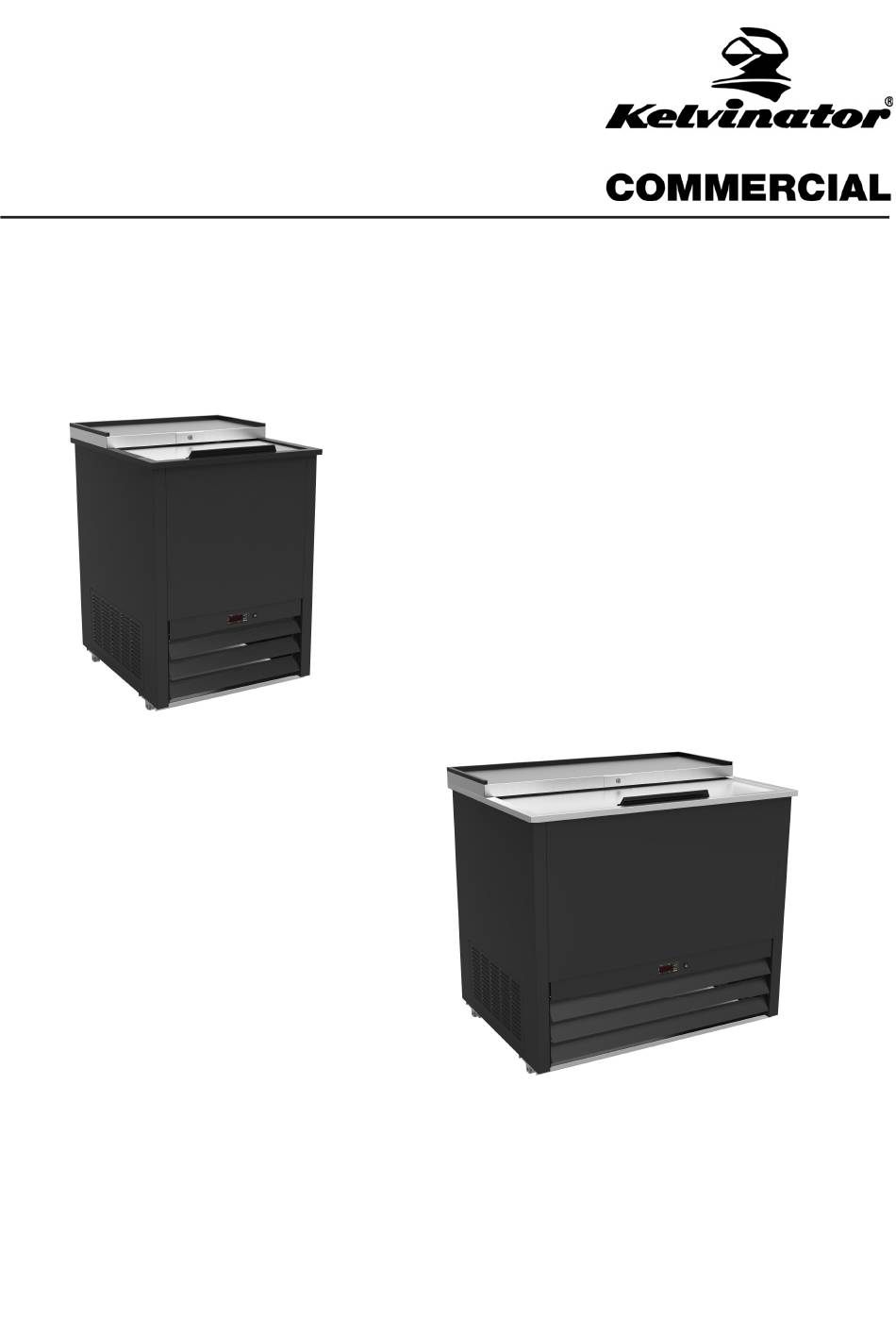

- Page 1 Glass Froster Service, Installation and Care Manual Please read this manual completely before attempting to install or operate this equipment. Notify carrier of damage! Inspect all components immediately. IMPORTANT INFORMATION READ BEFORE USE PLEASE SAVE THESE INSTRUCTIONS!
- Page 2 Service and Installation Manual COMMECIAL REFRIGERATOR SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. Our product instructions will be uploaded on our company official website. This is the Safety Alert Symbol.
- Page 3 Service and Installation Manual he key for appliance electric box should be safe kept by qualified persons in order to avoid a hazard ARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. ARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
-
Page 4: Serial Number Information
Service and Installation Manual CONTENTS RECEIVING & INSPECTING EQUIPMENTGGGGGGGGGGGGGGG..GGGGGGG4 SPECIFICATIONSGGGGGGGGGGGGGGGGGGGG.GGGGGGGGG.GGG5 INSTALLATIONGGGGGGGGGGGGGGGGGGGGGGGGGGGG.GGGG..G.6 OPERATIONGGG..GGGGGGGGGGGGGGGGGGGGGGGGGG..GGGGG7 MAINTENANCEGGGGGGGGGGGGGGGGGGGGGGGGGGG.GGGGGG.9 WIRING DIAGRAMGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGG11 All rights reserved. Reproduction without written permission is prohibited. SERIAL NUMBER INFORMATION The serial number of all self-contained refrigerators and freezers is located inside the unit on the left hand side near the top on the wall. -
Page 5: Specification
Service and Installation Manual SPECIFICATION STORAGE SHELF SHIP CAPACITY CAPACITY CHARGE WEIGHT NEMA MODEL# V/Hz/Ph AMPS Cu-ft PLUG Sq-ft KCHGF24 115/60/1 2.67 3.53 5-15P KCHGF36 115/60/1 4.50 4.06 5-15P... -
Page 6: Installation
Service and Installation Manual INSTALLATION Utility requirements and Electrical Connections Electrical: 115 Volt AC, 1 Phase, 60 Hz, A separate 15 Amp circuit is recommended. A 9-foot grounded cord is included. All Glass Frosters models are shipped in one carton. These steps should be followed 1. -
Page 7: Operation
Service and Installation Manual OPERATION Do not throw items into the storage area. Failure to heed these recommendations could result in damage to the interior of the cabinet. Refrigerated cabinets Temperature range for the glass froster for all food prep units, -4 to 5 °F for glass froster.. Continuous opening and closing of the door will prevent the unit’s ability to maintain optimum refrigeration temperature. - Page 8 Service and Installation Manual 1.1 Function of LEDS 2. MAIN FUNCTIONS 2.1 HOW TO SEE THE SETPOINT 1. Push and immediately release the SET key: the display will show the set point value. 2. Push and immediately release the SET key or wait for 5 seconds to display the sensor value again.
-
Page 9: Maintenance
Service and Installation Manual MAINTENANCE The power switch must be turned OFF and the unit disconnected from the power source whenever performing service, maintenance functions or cleaning the refrigerated area. Refrigerators and Freezers The interior and exterior can be cleaned using soap and warm water. If this isn't sufficient, try ammonia and water or a nonabrasive liquid cleaner. - Page 10 Service and Installation Manual MAINTENANCE Cleaning solutions need to be alkaline based or non-chloride based. Any cleaner containing chlorides will damage the protective film of the stainless steel. Chlorides are commonly found in hard water, salts, and household and industrial cleaners. If cleaners containing chlorides are used, be sure to rinse and dry thoroughly.
-
Page 11: Wiring Diagram
Service and Installation Manual WIRING DIAGRAM MODEL: KCHGF24/KCHGF36 PLUG THERMAL OVERLOAD CUT-OFF PROTECTOR CONDENSEN COMPRESSOR POWER THERMOSTAT DISPLAY EVAP CURRENT STARTING RELAY CAPACITOR ROOM EVAP SENSOR... - Page 12 Service and Installation Manual WIRING DIAGRAM MODEL: KCHGF24/KCHGF36...
- Page 13 Kelvinator Commercial Appliance Warranty Information Your appliance is covered by a three (3) year limited warranty. For three (3) years from your original date of purchase, Electrolux will pay all costs, except as set forth below, for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used, and maintained in accordance with the provided instructions.
- Page 14 Información sobre la garantía del electrodoméstico de Kelvinator Commercial Su electrodoméstico cuenta con tres (3) años de garantía limitada. Por tres (3) años desde la fecha original de compra, Electrolux pagará todos los costos de reparación o el reemplazo de cualquier pieza de este electrodoméstico, excepto según se estipula a continuación, cuando se compruebe que los materiales o la mano de obra estén defectuosos siempre que se instale, utilice y...
- Page 15 Informations concernant la garantie des électroménagers commerciaux Kelvinator Votre appareil est couvert par une garantie limitée de trois (3) ans. Pendant trois (3) ans à partir de la date d'achat d'origine, Electrolux assumera les coûts, sauf dans les cas cités ci-dessous, pour toute réparation ou remplacement de pièce de cet appareil si ce dernier présente un défaut de fabrication ou un vice de matériau, à...
