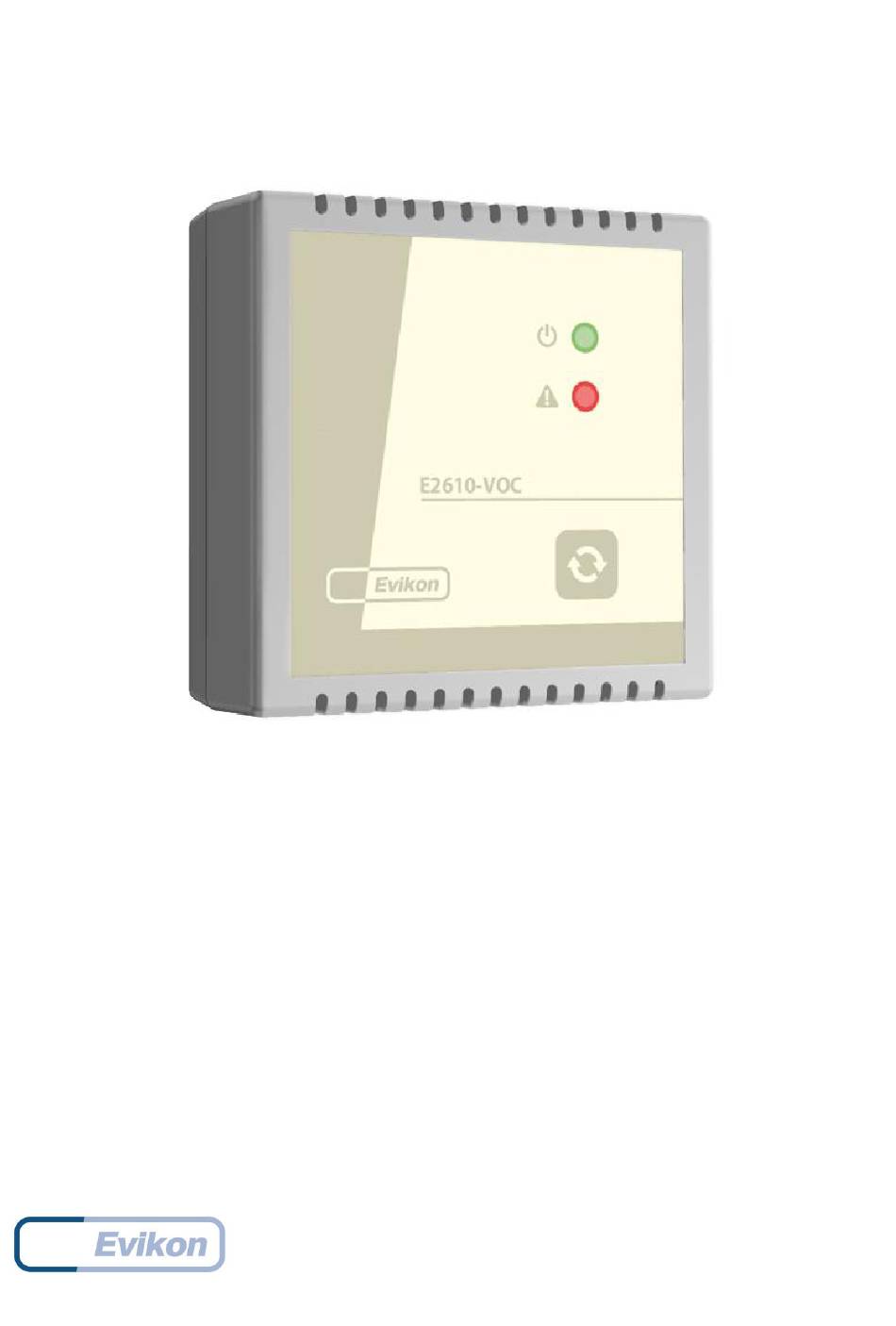

- Page 1 Solvent Vapor Detector E2610-VOC User Manual...
-
Page 2: Table Of Contents
E2610-VOC Rev 24.03.2021 Table of contents Acetone Benzene Ethanol Ethyl acetate Toluene Xylene Specifications Product description Safety requirements Operating conditions Installation guidelines Connections Operation Maintenance Calibration Delivery set Order code for E2610-VOC options Warranty Manufacturer contacts... -
Page 3: Acetone
E2610-VOC Rev 24.03.2021 Acetone A colorless organic solvent with a characteristic pungent odor that is volatile and flammable with the chemical formula (CH Synonyms/Trade Names: Dimethyl ketone, Ketone propane, 2-Propanone. Chemical formula Molar weight Relative gas density (to air) Conversion* 1 ppm = 2.38 mg/m... -
Page 4: Benzene
E2610-VOC Rev 24.03.2021 Benzene A colorless liquid with an aromatic odor that is highly flammable with the molecular formula C Synonyms/Trade Names: Benzol, Phenyl hydride. Chemical formula Molar weight Relative gas density (to air) 2.69 Conversion* 1 ppm = 3.19 mg/m Boiling point 80 °C... -
Page 5: Ethanol
E2610-VOC Rev 24.03.2021 Ethanol A clear colorless liquid with a faintly sweet odor and pungent taste. Synonyms/Trade Names: ethyl, alcohol. Chemical formula Molar weight Relative gas density (to air) 1,59 Conversion* 1 ppm = 1.89 mg/m Boiling point 78.37°C Low explosive limit (LEL), % vol. in air 3 - 3.3... -
Page 6: Ethyl Acetate
E2610-VOC Rev 24.03.2021 Ethyl acetate A colorless organic compound with a sweet pear-like smell that is highly flammable. Synonyms/Trade Names: ethyl ester, acetic ester, EA, EtOAc. Chemical formula Molar weight Conversion* 1 ppm = 3.60 mg/m Boiling point 77.1 °C Low explosive limit (LEL), % vol. -
Page 7: Toluene
E2610-VOC Rev 24.03.2021 Toluene A clear, colorless liquid with a sweet smell that is highly flammable. Synonyms/Trade Names: methylbenzene, phenylmethane. Chemical formula Molar weight Conversion* 1 ppm = 3.77 mg/m Boiling point 110.7°C Low explosive limit (LEL), % vol. 1.1 - 1.27... -
Page 8: Xylene
E2610-VOC Rev 24.03.2021 Xylene A colorless, flammable liquid with a chemical smell. Xylenes are produced by the methylation of toluene and benzene. The term is used for any of three isomers of dimethylbenzene, or a combination thereof. Synonyms/Trade Names: xylol, dimethylbenzene. -
Page 9: Specifications
E2610-VOC Rev 24.03.2021 Specifications Detected gas Acetone, Benzene, Ethanol, Ethyl Acetate, Toluene, Xylenes, etc Default calibration Toluene Sensor type Metal oxide semiconductor Sampling method Diffusion Detection range 0...100% LEL 0...500 ppm Alarm setpoints 7 - 10 - 25 %LEL 70 - 100 - 300 ppm... -
Page 10: Product Description
E2610-VOC Rev 24.03.2021 Product description E2610 series gas detectors are compact and easy-to-use instruments. The devices utilize novel fully calibrated and temperature compensated gas sensors with excellent repeatability, stability, and long lifetime. Two relays with switch-over contact may be used for remote signaling or ventilation control. -
Page 11: Installation Guidelines
E2610-VOC Rev 24.03.2021 Installation guidelines There are no precise rules or standards to follow when installing gas detectors. The following points must be taken into account: ● Application (the instrument is intended for leakage control.) Properties of the space under investigation (room geometry, direction, and ●... -
Page 12: Connections
E2610-VOC Rev 24.03.2021 Connections 1. Detach the base of the enclosure by gently pulling along four guiding pins. 2. Attach the base to the wall with two screws. (see drawings below). 3. Use rounded cutouts on the side of the base to let in the cables from the power supply... - Page 13 E2610-VOC Rev 24.03.2021 For easier connection, terminal blocks of E2610 series devices are removable. To dismount the terminal block, pull it off from the PCB. Connect the power terminals N and L to the 24 V power source if you are using detector version -24 or to 230 V AC mains if you are using detector version -230 (see diagram below).
-
Page 14: Operation
Calibration E2610-VOC detectors have been calibrated by the Manufacturer with standard gas mixtures before delivery. Provided that the sensor is used under moderate conditions, field recalibration is recommended every 12 months Please contact your dealer for more... -
Page 15: Delivery Set
● Solvent Vapors Detector E2610-VOC ● Mounting accessories: 2 screws and 2 plastic dowel plugs ○ Order code for E2610-VOC options E2610 options Order code Integrated 90...265 V mains power supply module E2610-VOC-230 Integrated 24 VAC power supply module E2610-VOC-24VAC... -
Page 16: Warranty
Manufacturer or damaged by customer error or negligence or if there has been an unauthorized modification. Manufacturer contacts Evikon MCI OÜ Teaduspargi 7/9, Tartu 50411 Estonia info@evikon.eu...
