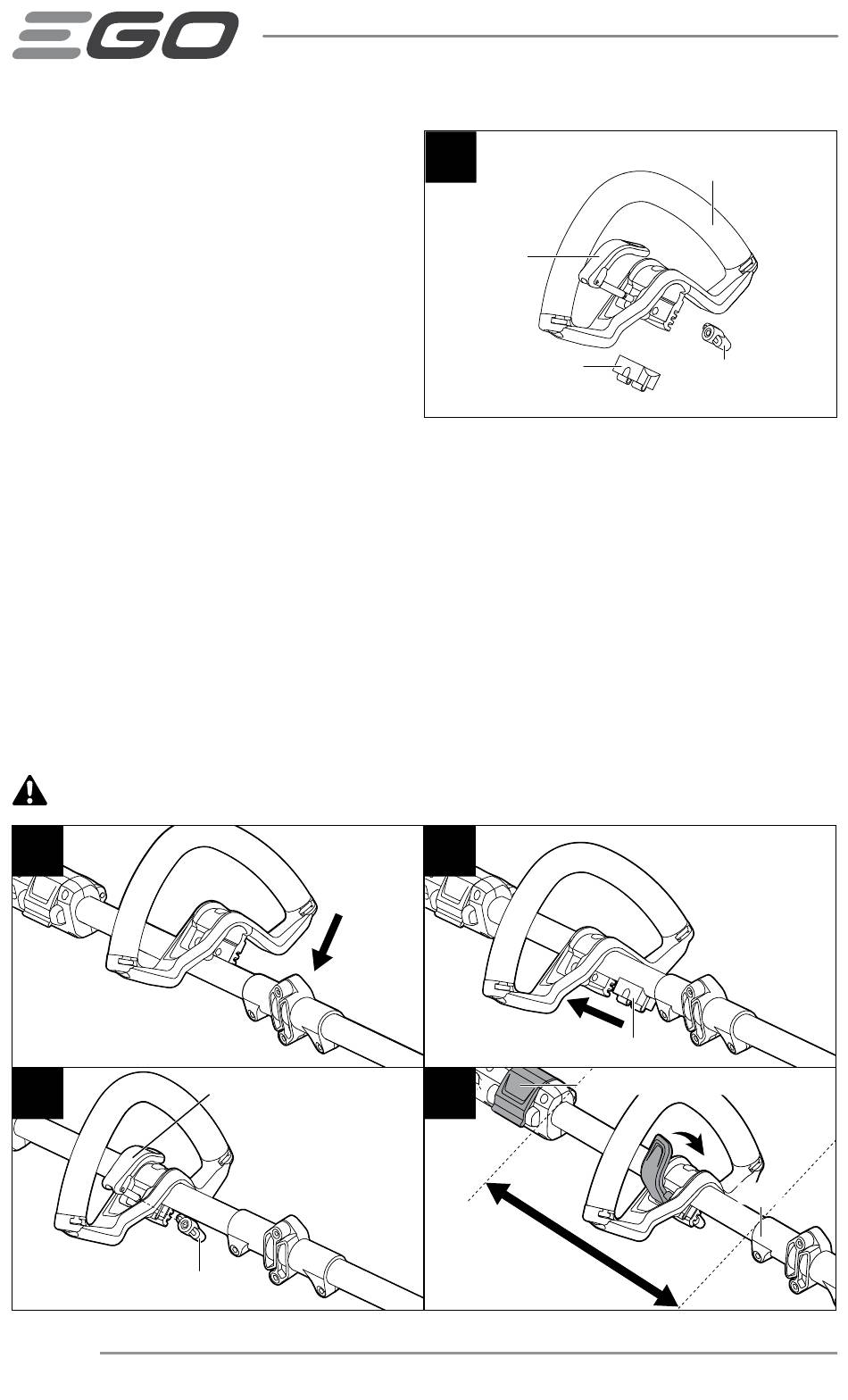

MOUNTING AND ADJUSTING THE
LOOP HANDLE
1. Loosen and remove the lock-pole
lever and wing nut from the loop
handle (Fig.6).
2. Push the loop handle onto the shaft
between the Height Locking Collar
and hinge(Fig.7).
3. Insert the clamping block into the
handle slot (Fig.8).
4. Mount the lock pole lever and pre-tighten the wing nut. Make sure that the loop
handle is positioned upwards and points toward the top of the rear handle (Fig.9).
5. Pull up the level of the lock pole so that you can easily move/rotate the loop
handle to where you feel comfortable. (Fig.10).
NOTICE: The loop handle must be only positioned between the height locking clamp
and hinge on the shaft.
6. Engage the lock-pole lever to secure the loop handle in place.
WARNING:
7
9
Wing Nut
16
56-VOLT LITHIUM-ION CORDLESS BRUSHLESS STRING TRIMMER — ST1510/ST1510-FC
The tool cannot be used without the loop handle securely attached.
Lock-Pole Lever
6
Lock-Pole
Lever
Clamping Block
8
Clamping Block
Height-Locking Clamp
10
Loop Handle
Wing Nut
Hinge
