» Specifications
Material
Heavy-duty steel
Keyboard and touch pad
88 key keyboard and touch pad
LCD Panel
Size: 17"
Max. Resolution: 1280x1024
Brightness (cd/m^): 300nit
Contrast Ratio: 500:1
Response Time: 5mS (Rising), 20mS (Falling)
Display Mode:
SXGA 1280x1024
Viewing Angle: +140°(L/R),120°(U/D)
Colors: 16M colors
MTBF: 20,000hours
KVM Switch
16 set female connectors for 8-platform connection
(VGA, PS/2 keyboard, and male PS/2 mouse connectors)
Scan intervals: 5-99 seconds
VGA resolution (Max.): 1920 x 1440
Bandwidth: 200MHz
Cascade Level (Max.): 8 Levels
On screen display control: Yes
PC Selection: On screen display menu, Hot key, Push button
Connectors
8 x D-Sub 15 pin (female) ports for VGA, keyboard and touch pad
1 x Cascade KVM port for daisy-link (1 x VGA, X PS/2)
KVM Cables
8 x 6' proprietary KVM cable
Optional for 10'/ 15' KVM cable
Security Lock
2 x thumb locks for system security
20957 Currier Road Suite #D
Walnut, CA 91789
tel: 909.598.7388, fax: 909.598.0218

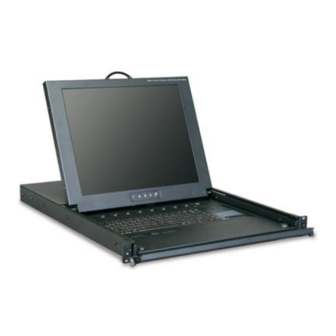

KD 8178
17" 1280 x 1024 LCD
Built-in keyboard / touch pad
8 ports KVM switch
» Features
» 1U rackmount compact design, only 20.0 " depth
» 17" 300 nit 1280 x 1024 LCD display
» OSD (On Screen Display) function
» Built-in 8 ports KVM switch
» 88-keys keyboard with touch pad
» External 110/220VAC power adapter
Drawer Design
High load-rating slide rail with angle bracket extension up to 31"
depth
Remote Power supply Adapter
Industrial level
Auto-switching power supply for 85V~264V AC input
Optional for -48VDC input
Color
Black
Operation Temperature
0 to 55 degree C (32 to 131 degree F)
Gross Weight
45lb
Dimension
19"(W) x 23.6"(D) x 1.75"(H)
» Ordering Guide
KD 8178:
1U 17" 1280 x 1024 8 ports kVM switch rackmount monitor
keyboard drawer
» Options
CD-6: 6' proprietary KVM cable
CD-10: 10' proprietary KVM cable
CD-15: 15' proprietary KVM cable
© Copyright 2005 Acnodes, Inc.
All rights reserved. Product description and product specifications
are subject to change without notice. For latest product information,
please visit Acnodes' web site at www.acnodes.com.
