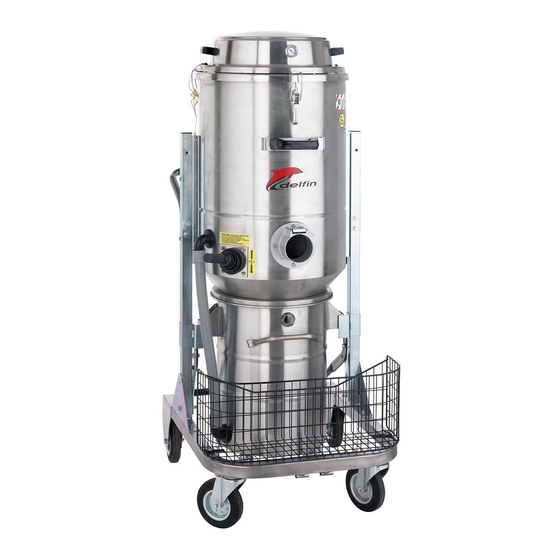

Summary of Contents for Delfin DM3 ENTRY-LEVEL
- Page 1 Delfin S.r.l. Strada della Merla, 49/a 10036 Settimo Torinese (TO) Italy Tel. 0039.011.8005500 Fax 0039.011.8005506 www.delfinvacuums.it delfin@delfinvacuums.it Industrial vacuum cleaners DM3 ENTRY-LEVEL Operator's and maintenance manual Read this manual carefully before using the vacuum cleaner...
- Page 2 In case of loss of or damage to the manual, ask DELFIN for a new copy. The technical details contained in this manual are the property of DELFIN and should be deemed of a confidential nature.
-
Page 3: Table Of Contents
Contents Information section Identification of main parts Accessories provided 1.2.1 Optional accessories Identification details of manufacturer Marking plate Intended uses Allowed environmental conditions Noise levels Storage Scrapping 1.10 Technical details 1.11 Warranty Safety section Safety details Safety precautions Safety plates and symbols Outstanding risks Applied directives Installation section... -
Page 5: Identification Of Main Parts
IDENTIFICATION OF MAIN PARTS Suction unit Release fastening Push handle Filter chamber Filter shaking lever Removable vacuumed material container Fixed castors Castors Fixed accessory coupling Suction pipe coupling point DM3 ENTRY-LEVEL... -
Page 6: Accessories Provided
ACCESSORIES PROVIDED POLYESTER FILTER: AR3050 – Kit polyester filter cat. “G” Ø500 14T AR3024 – Polyester filter cat. “G” Ø500 H400 14T (only replacing filter) DM3 ENTRY-LEVEL... -
Page 7: Optional Accessories
Besides the absolute filter, depending on the dust to be vacuumed, the following filters are available: ANTISTATIC FILTER For electrostatic dusts NOMEX FILTER For hot dusts up to 240° POLYESTER FILTER CAT. M For very fine dusts The polyester filters are BIA institute certified. DM3 ENTRY-LEVEL... - Page 8 This optional can be requested when the vacuumed material is to be collected in a disposable nylon bag fitted in the container. It allows keeping open the nylon bag, which is subject to vacuum, for correct use. (cod. AA 1098) DM3 ENTRY-LEVEL...
- Page 9 (cod. AA 1003) A container featuring a special liquid draining valve can be ordered separately or else the valve only can be ordered before contacting our technical department to have the valve fitted on the container. DM3 ENTRY-LEVEL...
-
Page 10: Identification Details Of Manufacturer
Fax. 0039.011.800.55.06 www.delfinvacuums.it delfin@delfinvacuums.it 1.4 MARKING PLATE In compliance with the Machine Directive on vacuum cleaners, the machine is fitted with CE plates. When contacting the manufacturer or dealer, always quote the details shown on the vacuum cleaner plate. DM3 ENTRY-LEVEL... -
Page 11: Intended Uses
Before scrapping, all plastic and rubber parts will have to be separated from the electrical material. Parts made of plastic, aluminium and steel only may be recycled if collected by special centres. DM3 ENTRY-LEVEL... -
Page 12: Technical Details
1.10 TECHNICAL DETAILS DM3 ENTRY-LEVEL Power 3.450 Voltage Volts 230 - 50/60 Vacuum rate mm H 2.500 Max. air flow Noise level dB(A) Filter Polyester 20.000/ Filtering surface 30.000 Capacity Vacuum diameter Ø Dimensions 70 x 70 Height Weight DM3 ENTRY-LEVEL... -
Page 13: Warranty
1.11 WARRANTY Delfin guarantees this vacuum cleaner model for a period of 24 months from the date of purchase indicated on the tax document at the time of delivery of the vacuum cleaner by the seller. The warranty shall be invalidated in the event of the vacuum cleaner having been repaired... -
Page 15: Safety Details
They should also have the tools necessary to perform these duties properly. Delfin shall under no circumstances be deemed liable for accidents or damage caused by use of the vacuum cleaner by personnel not properly trained or who use it in an improper manner, as well as by even partial failure to comply with the safety regulations and intervention procedures indicated in this manual. -
Page 16: Safety Precautions
The machine casing containing moving parts must not be removed by the user. When using the machine, mind other people, especially children. Use the machine cautiously on slopes and ramps. Do not change direction on gradients. Make sure the parked machine remains stable by operating the braked wheel. DM3 ENTRY-LEVEL... - Page 17 The machine is supplied with: instruction manual, Exploded Spare Parts drawing, Test Sheet, Warranty Slip, Approval Certificate. In the event of Customers fitting a tool to the machine not supplied by DELFIN , make sure the safety conditions required by Machine Directive 2006/42/CE are complied with and in any event, DELFIN is unable to accept liability for any problems arising from use of such tool.
- Page 18 The manual should always be kept handy for reference so the operating cycle can be checked every time there are doubts. In the event of this manual being lost or damaged, ask DELFIN for a new copy. Structural damage and improper alterations or repairs could change the protection capacity of the vacuum cleaner and therefore cancel this certification.
-
Page 19: Safety Plates And Symbols
Clean these with a cloth, soap and water. Do not use solvents, diesel fuel or petrol. Replace the damaged plates with new ones supplied by Delfin. If a plate is affixed to a replaced part, make sure a new plate is affixed to the new part. -
Page 20: Outstanding Risks
The manufacturer declines all liability in relation to vacuum cleaner safety in the event of failure to comply with the above indications. APPLIED DIRECTIVES The following directives apply to the vacuum cleaner described in this manual: • 2006/42/CE Machine directive • 2004/108/CE Electromagnetic compatibility directive • 2006/95/CE Low-voltage directive DM3 ENTRY-LEVEL... -
Page 22: Handling
If for any reason the need arises to lift and transport the vacuum cleaner, this operation must be performed under the responsibility of the user. The user is therefore invited to secure the load as he best thinks fit to ensure the operation is performed in total safety. DM3 ENTRY-LEVEL... -
Page 23: Installation
Note: No standard accessories (reductors, hoses, nozzles) are included with the vacuum; accessories must be specified and ordered separately. Contact your dealer for information relating to the different types of OPTIONAL accessories available for this specific vacuum cleaner model. Fit the supplied connector on the pipe union. DM3 ENTRY-LEVEL... - Page 24 Do not fit the plug in the power socket with wet hands. In the event of an extension being used, make sure this is in perfect condition, in compliance with EC standards and with cable cross section suitable for the power input of the vacuum cleaner. DM3 ENTRY-LEVEL...
-
Page 26: Description Of Controls
DESCRPTION OF CONTROLS 1) START/STOP switch motor 1 2) START/STOP switch motor 2 3) START/STOP switch motor 3 4) Green light POWER ON 5) Vacuum meter DM3 ENTRY-LEVEL... -
Page 27: Work Cycle
To stop the vacuum cleaner, press the STOP button. Caution! Before switching the vacuum cleaner back on, make sure the motors have come to a complete halt. • After finishing work, disconnect the vacuum cleaner from the power socket. DM3 ENTRY-LEVEL... - Page 28 The vacuum can be moved only on flat ground ! If the vacuum is moved on inclined grounds, you can risk to lose the control, because of the weight and to damage persons or things.________________________ Caution! During vacuuming, avoid rolling up or bending the flexible hose.__________________ DM3 ENTRY-LEVEL...
-
Page 29: Releasing And Removing The Removable Container
Important! __________________________________ Perform the container release operation by means of the levers located on the sides or on the handle with BOTH HANDS! Danger of crushing upper limbs when fitting and locking the container on the vacuum cleaner. DM3 ENTRY-LEVEL... -
Page 30: Using The Filter Shaking System
Never use the machine with the filter blocked. Caution! _________________________________________________________________ If the arrow of the vacuum meter stays in the red area even after cleaning the filter, the hose or suction accessory could be blocked. In this case, clean and remove the blockage. DM3 ENTRY-LEVEL... -
Page 31: Maintenance Section
Caution! ___________ Special maintenance jobs on the vacuum cleaner must only be done by the manufacturer's skilled technicians.____________... -
Page 32: Informative Notes
Safety Manager. Always use tools that are in perfect condition and specifically made for the operation to be done. The use of unsuitable tools or tools not in good condition could cause serious damage. DM3 ENTRY-LEVEL... -
Page 33: Maintenance Operations
If the flexible hose is perforated, the power of the cleaner will be reduced and dust and liquids will leak into the environment. Caution! All maintenance and repair jobs must be performed directly by DELFIN or its authorised dealers.________________________________________________________ DM3 ENTRY-LEVEL... -
Page 34: Replacing The Filters
Turn off the vacuum cleaner by pressing the motor STOP buttons. Disconnect the vacuum cleaner plug from the power socket. Important! Wear individual protection devices. Block the vacuum cleaner by means of the stop Simultaneously, lift the two levers that lock the container Remove the container DM3 ENTRY-LEVEL... - Page 35 When resting the head on the support, be careful not to damage the power cable. Remove from underneath the vacuum cleaner the pin (A) and spring pin (B) that fasten the filter to the shaking lever Lift the filter complete with support. DM3 ENTRY-LEVEL...
- Page 36 All the material trapped by the filter and the filter itself must be disposed of through authorised channels in the country where the vacuum cleaner is used. The container locking operation must be performed by one person only, who must lower the back side lever with both hands. Caution!_________________________________________________________________ Hand crushing hazard DM3 ENTRY-LEVEL...
-
Page 37: Troubleshooting
The vacuum cleaner does not work as it should. Check for any air leaks out of Air leak. closing fasteners, tightening screws, container or filter chamber. Motor very noisy. Contact DELFIN after-sales. Caution!_____________________________________________________________________ For any other problems, contact the DELFIN after-sales service. DM3 ENTRY-LEVEL... -
Page 38: Spare Parts Section
Spare parts orders can be sent by fax, by photocopying the attached form, via e-mail or ordinary mail. 0039.011.8005506 E-Mail delfin@delfinvacuums.it Strada della Merla, 49/a 10036 Settimo Torinese (TO) Italy... - Page 39 DATE _____________ Delfin srl Strada della Merla, 49/a Page………of………. 10036 Settimo Torinese (TO) – Italy Tel. 0039.011.8005500 IMPORTANT: Type or complete in block capitals Fax 0039.011.8005506 Spare parts order form SENT BY ADDRESS LOCALITY PROV. NATIONALITY TEL. MODEL PART NO.
-
Page 40: Recommended Spare Parts
FILTER CLAMP Ø 500 AR2018 CONTAINER/CHAMBER SEAL Ø 500 AR4274 W1150 V240 50/60 HZ BP MOTOR AA2783 SINGLE-PHASE COVER NOISE BUFFERING MATERIAL AR2030 3 HOLES MOTOR FASTENER NOISE BUFFERING MATERIAL AR2042 3 HOLES BASE PLATE NOISE BUFFERING MATERIAL AR2044 DM3 ENTRY-LEVEL... - Page 41 MACHINE BODY DM3 ENTRY-LEVEL...
- Page 42 PERNO AGGANCIO GABBIA AR2457 GABBIA SCUOTIFILTRO H=195 14R. AR3024 FILTRO POL.G D500 H400 14T AR3043PTFE FILTRO POL.PTFE D500 H400 20T (A RICHIESTA) AR2456 GABBIA TENDIF.14R AR2018 FASCETTA FERMAFILTRO D500 (14MM/1510) AR2580 ANELLO REGGIFILTRO D500 H70 AR2013 GUARN.REGGIFILTRO D500 DM3 ENTRY-LEVEL...
- Page 43 HEAD DM3 ENTRY-LEVEL...
- Page 44 Basamento 3 fori n.t. AR2393 Rondella filtro 10 PPI spess. 15 mm AR4181 Kit filatura testata monofase 3 motori MASTER AR2501 Cappuccio nero coprifusibile AR3533 Manicotto F/F 1/8" AR3342 Raccordo rapido a gomito girev. G1/8 M - D6 DM3 ENTRY-LEVEL...
