iNode Energy Meter – instruction manual

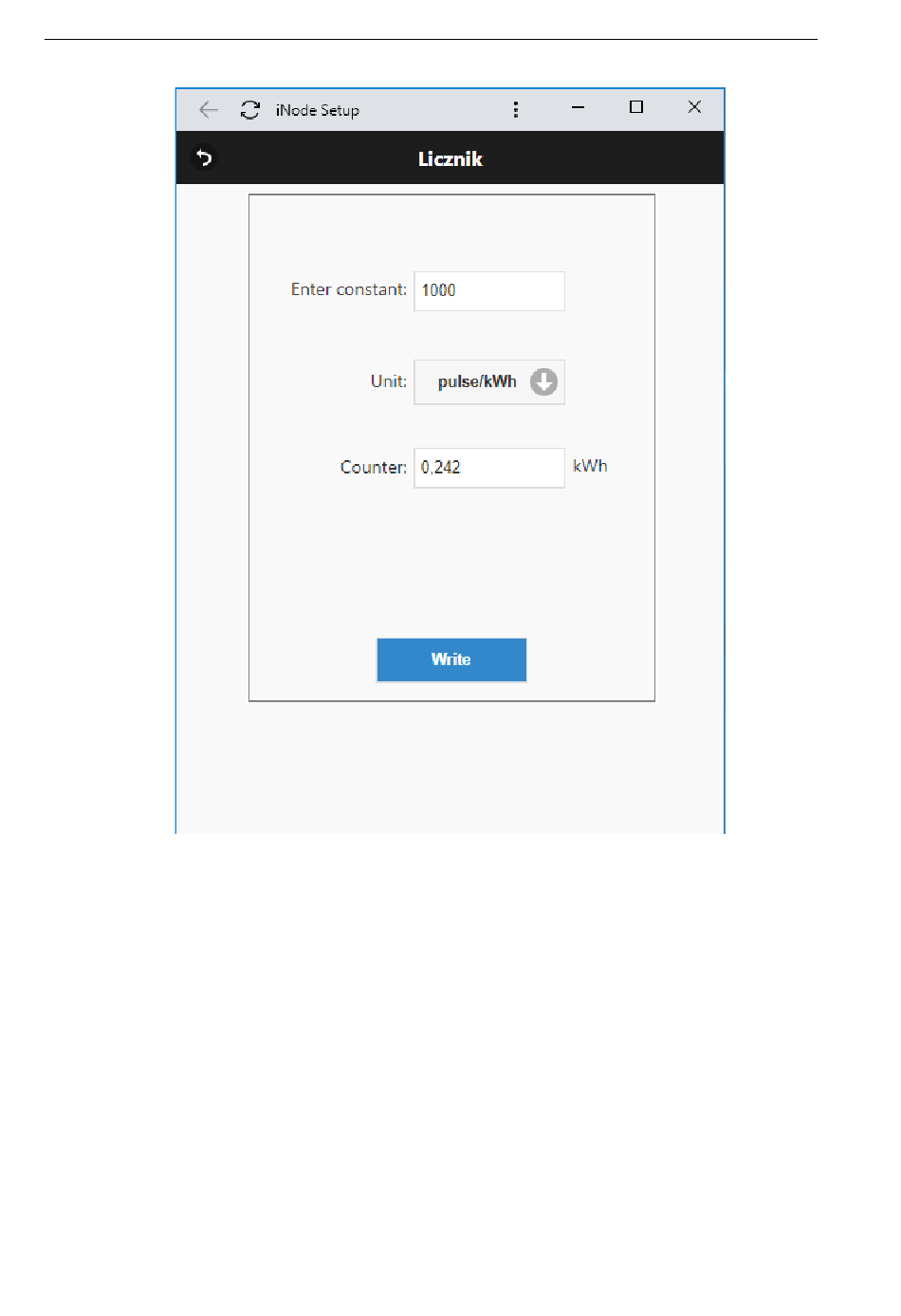

After selecting the Counter tab the following window will appear:
W polu:
Enter constant: enter the number of flashes with the LED per selected counting unit (1kWh or

1 m³) here. This value can be read from the meter nameplate. It is used to automatically convert
the number of pulses to the amount of measured energy in iNode Monitor or iNode Energy
programs.
Units: here you can choose in which units the counting result in iNode Monitor or iNode

Energy programs should be displayed: kWh, m³ or pulses.
Counter: you can enter the initial meter reading - integer here. This value is converted into

pulses according to the meter constant given above.
Pressing the Write button will save the modified settings to your device.
