- Page 1 Energy Meter instruction manual © 2014-2020 ELSAT ®...
- Page 2 BT4.0 - LAN or BT4.0 - GSM gateways connect iNode sensors with the Internet. iNode can also help control the movement of people or goods, saving the time of appearance and disappearance from the range of the recorder (active RFID® with a long range). New functionalities related to product development are also not a problem - it enables remote firmware exchange from a PC or smartphone with Bluetooth 4.0®...
- Page 3 Energy Meter – instruction manual ELSAT s.c. All trademarks are property of their respective owners. Page 3...
- Page 4 USB adapter. On Windows 10 it is iNode Hub Server while on Android OS it is iNode Service. To search for BLE devices, press the blue button with the magnifying glass.
- Page 5 Beacon this is the first image from the left in the first row in the window below. To configure the iNode Energy Meter device, left-click the image. The program will connect to it and read the configuration parameters set in it. If a password has been set in the device with which we want to connect, enter it in the window with the key.
- Page 6 Energy Meter – instruction manual ELSAT s.c. Page 6...
- Page 7 powers are given. With a second more power, the device transmits every 10th frame. Advertisement: we define the channels on which iNode Energy Meter is broadcast, which in some applications may reduce battery consumption, however, the device may be less well detected.
- Page 8 The connection only from this computer: we can secure ourselves against connecting to iNode Energy Meter from a different computer or smartphone than the one we are using now (in fact, the unique identifier of the BT4.0 adapter is remembered). You can only reset this setting by removing the battery from the device.
- Page 9 1 m³) here. This value can be read from the meter nameplate. It is used to automatically convert the number of pulses to the amount of measured energy in iNode Monitor or iNode Energy programs. Units: here you can choose in which units the counting result in iNode Monitor or iNode ...
- Page 10 8192 records - standard version or 7680 records, Long Range version. One record is a time stamp and each entry with iNode Energy Meter. The data is compressed, i.e. if the instantaneous (in a given minute) energy consumption differs from that in the previous period by more than +/- 1 then the record is saved.
- Page 11 This avoids the situation that we enter, for example, firmware from the iNode device that requires pressing the button to make it broadcast to a device that does not have such a button (then we will lose the opportunity to communicate with such reprogrammed iNode).
- Page 12 EM application - https://support.inode.pl/apps/new/iNodeEM/, which works only in the Chrome browser, allows you to configure the iNode Energy Meter from an Android phone. After starting it, we see a message saying that it can be added to the desktop.
- Page 13 Energy Meter – instruction manual ELSAT s.c. Page 13...
- Page 14 Energy Meter – instruction manual ELSAT s.c. Page 14...
- Page 15 Energy Meter – instruction manual ELSAT s.c. After closing the message, we see a screen with three options to choose from: Page 15...
- Page 16 ELSAT s.c. Visualization and data reading If any data has already been read from the iNode Energy Meter, it can be displayed here. The data is saved in the Chrome browser file system. The Read data from iNode button allows you to read data from an iNode Energy Meter.
- Page 17 Energy Meter – instruction manual ELSAT s.c. After selecting the device and pressing the Pair button, the application will connect to it and read the data. Page 17...
- Page 18 There are two options to choose from: Read data from sensor memory - reads data from the sensor. Free up space in the sensor's memory - deleting data in the sensor's memory. The Follow button will connect the application to the iNode Energy Meter. Page 18...
- Page 19 Energy Meter – instruction manual ELSAT s.c. On-line measurement Data received from the iNode Energy Meter are displayed on an ongoing basis. Data on registered daily consumption for the last 7 days are also provided. Page 19...
- Page 20 - kWh, m³ or pulses. Meter reading - we can change the current meter status here. The displayed settings are saved in the iNode Energy Meter after pressing the Save button. Page 20...
-
Page 21: Battery Replacement
Open the housing: The iNode case can be opened without using tools. It is most convenient to do it just like a nut shell opens. That is, insert your thumb nails into the gap between the two parts of the housing and open it. -
Page 22: Software Parameters

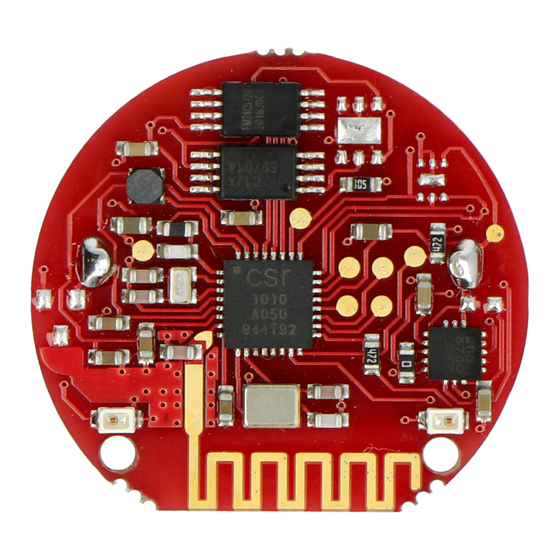

Energy Meter – instruction manual ELSAT s.c. Technical information Radio parameters: • RX / TX: ◦ BLE: 2402-2480 MHz • output power (maximum): ◦ BLE: + 8dBm or + 20dBm • modulation: ◦ BLE: GFSK • antenna: ◦ internal PCB Software parameters: •... - Page 23 Energy Meter – instruction manual ELSAT s.c. CSR1010 or EFR32; • THE MANUFACTURER RESERVES THE RIGHT TO MAKE CHANGES AND/OR IMPROVEMENTS IN DESIGNS, FEATURES & DIMENSIONS WITHOUT NOTICE AND WITHOUT INCURRING OBLIGATION Page 23...
- Page 24 Energy Meter – instruction manual ELSAT s.c. Correct disposal of the product (waste electrical and electronic equipment) The packaging materials are 100% suitable for use as a secondary raw material. The packaging should be disposed of in accordance with local regulations. Keep packaging materials out of the reach of children as they pose a source of danger.
- Page 25 Energy Meter – instruction manual ELSAT s.c. Numer Deklaracji 4/02/2019 Data wystawienia Deklaracji 08.02.2019 r. Number of declaration of Conformity Date of issue of declaration DEKLARACJA ZGODNOŚCI WE EC DECLARATION OF CONFORMITY My/We: ELSAT s.c. (nazwa producenta / producer’s name) ul.Warszawska 32E/1, 05-500 Piaseczno k/Warszawy...
