Secure the tower cover to the front of the enclosure using:
– 2 off M5 x 16 pan head POZI screws
– 2 off M5 plain washer
– 2 off lock washer
through the two holes at the top of the enclosure.
(refer to Figure 5)
7
Secure the tower cover to the rear of the enclosure using:
– 2 off M5 x 8 pan head POZI screws with patchlock
(refer to Figure 5)

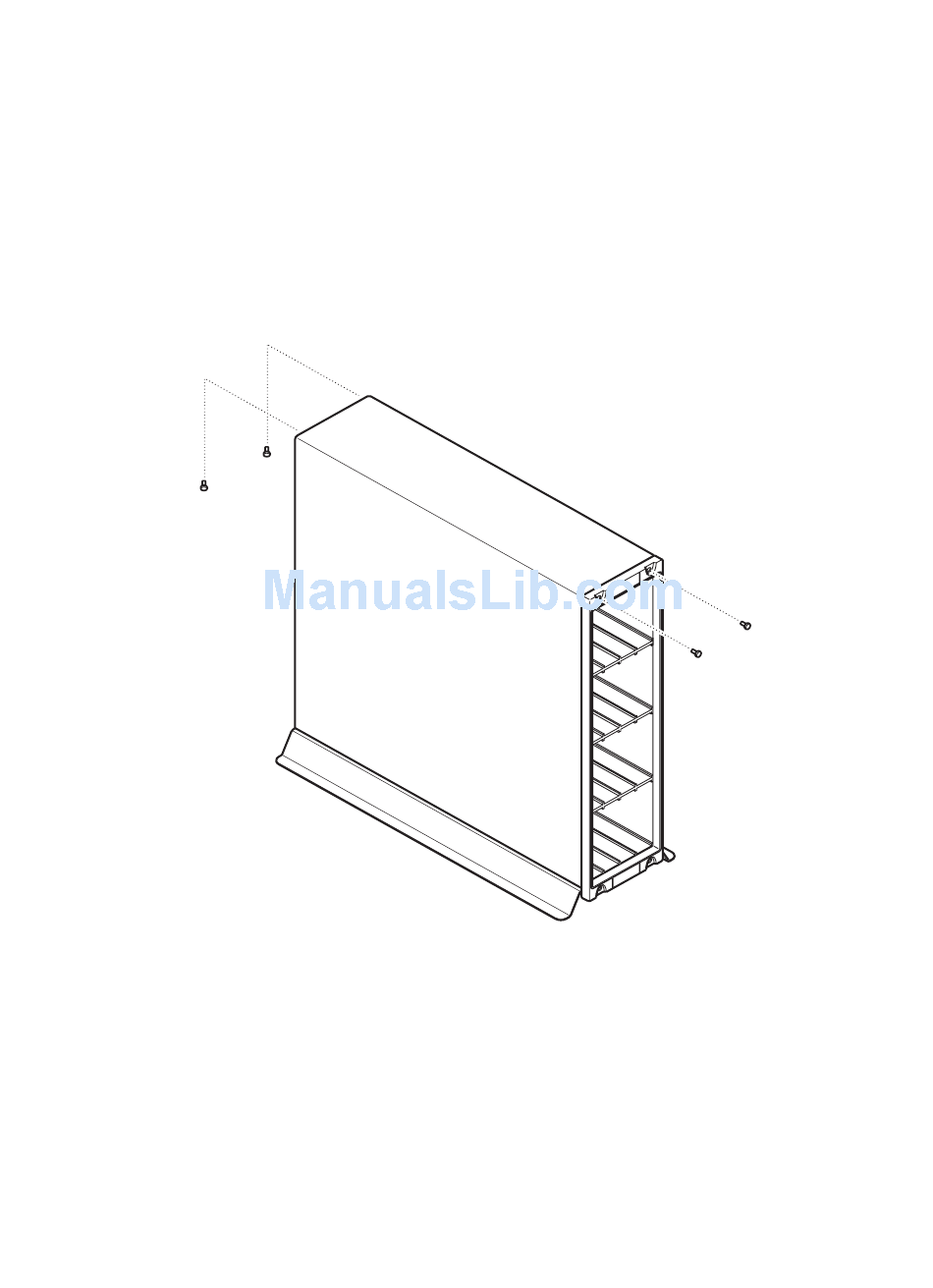

Figure 5: Securing the Cover
8
Refit the bezel covers over the four securing screws at the front of the enclosure chassis
9
Refit the modules in the enclosure in accordance with the instructions in Altos S205F / S200F User's
Manual.
Altos S205F / S200F Tower Kit Installation Procedure
5
