Tower kit
Hide thumbs


Advertisement

3
Secure the front of the enclosure to the tower foot using:
– 2 off M5 x 16 pan head POZI screws
– 2 off M5 plain washer
– 2 off lock washer
(refer to Figure 3)
4
Secure the rear of the enclosure to the tower foot using:
– 2 off M5 x 8 pan head POZI screws with patchlock
(refer to Figure 3)

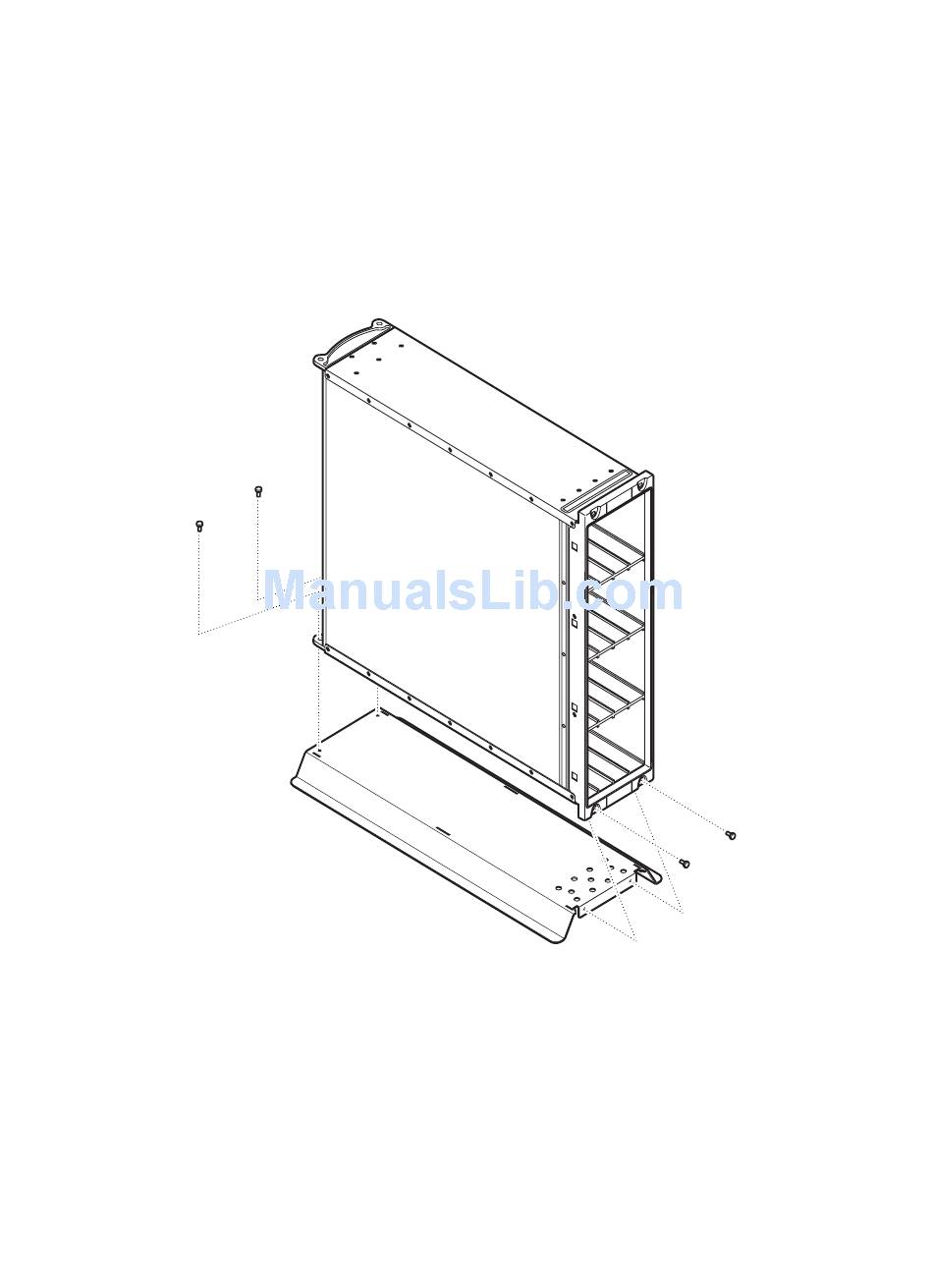

Figure 3: Securing the Enclosure to the Foot
Altos S205F / S200F Tower Kit Installation Procedure
