Altos S205F / S200F Tower Kit Installation Procedure

Procedure

Important
The enclosure must be unpopulated before you begin the tower installation. Please refer to Altos
S205F / S200F User's Manual for details of module removal/replacement procedures.
1
Remove the four bezel screw covers from the front of the enclosure chassis (if fitted).
2
Place the unpopulated enclosure on the tower foot, ensuring that the drive carrier connectors are
on the left hand side of the drive bay when viewed from the front of the enclosure, see Figure 2.

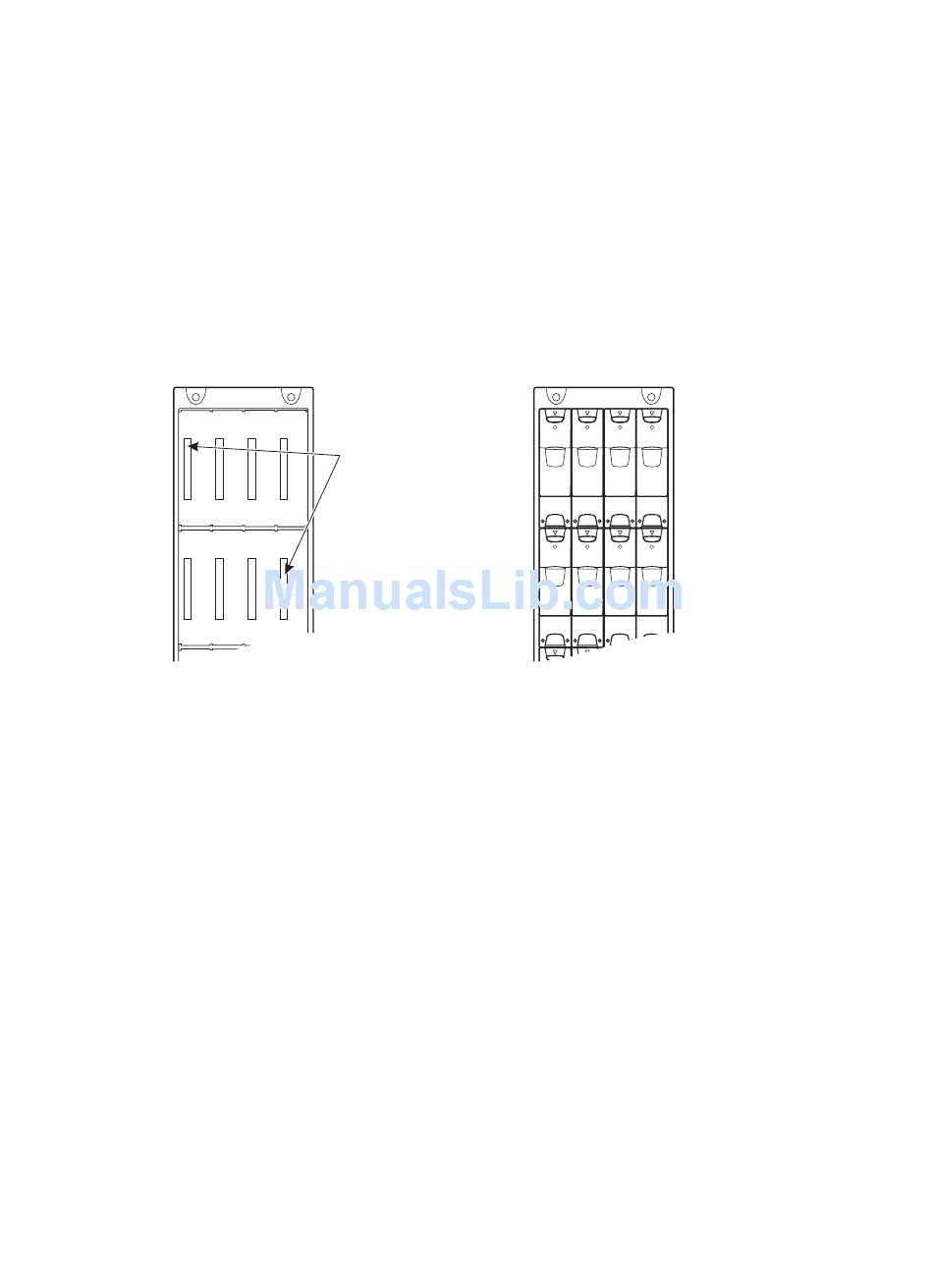

Figure 2: Drive Connector Locations
2
Note: The drive carrier handle will open from the top when the drive carrier is inserted
correctly.
TOP
Drive carrier connectors
on left side of Bay
TOP
