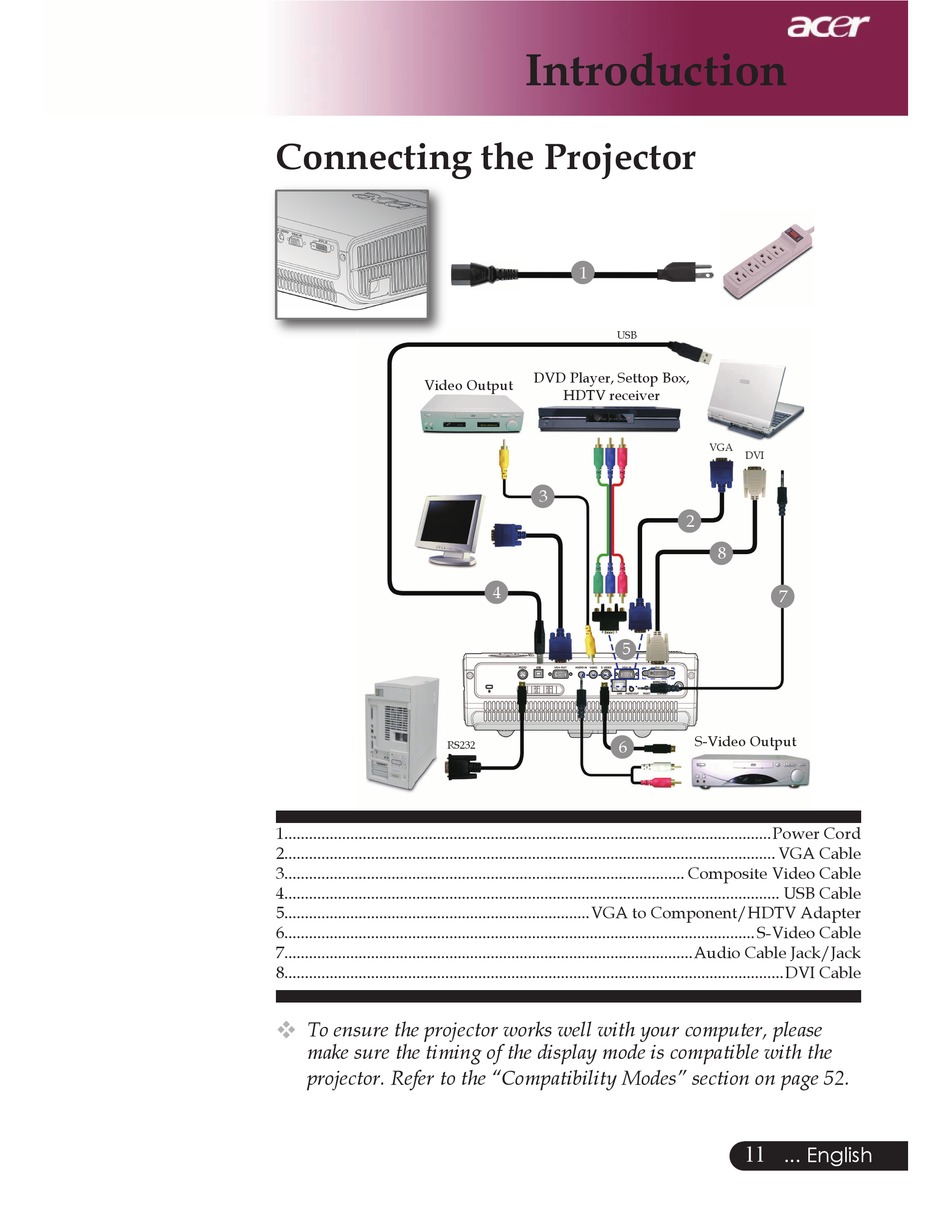

Connecting the Projector
Video Output
1......................................................................................................................Power Cord
2....................................................................................................................... VGA Cable
3................................................................................................. Composite Video Cable
4........................................................................................................................ USB Cable
5..........................................................................VGA to Component/HDTV Adapter
6.................................................................................................................. S-Video Cable
7...................................................................................................Audio Cable Jack/Jack
8.........................................................................................................................DVI Cable
To ensure the projector works well with your computer, please
make sure the timing of the display mode is compatible with the
projector. Refer to the "Compatibility Modes" section on page 52.
Introduction
1
DVD Player, Settop Box,
HDTV receiver
3
4
RS232
USB
VGA
DVI
2
8
7
5
S-Video Output
6
... English
