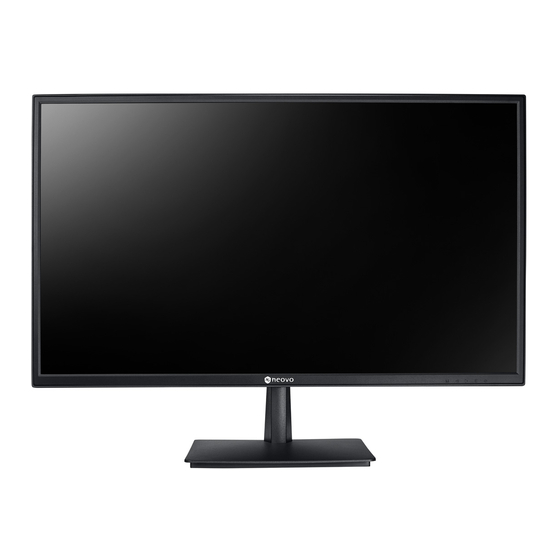

- Page 1 CD-2201, CD-2401 & CD-2701 LCD Monitor User Manual www.agneovo.com...
-
Page 2: Table Of Contents
Contents TABLE OF CONTENTS SAFETY INFORMATION Federal Communications Commission (FCC) Notice (U.S. Only) ..............3 WEEE ................................3 PRECAUTIONS Notice ................................4 Cautions When Setting Up ........................... 4 Cautions When Using ........................... 5 Cleaning and Maintenance ........................... 6 Notice for the LCD Monitor ........................... 7 CHAPTER 1: PRODUCT DESCRIPTION 1.1 Package Contents .......................... -
Page 3: Safety Information
Safety Information SAFETY INFORMATION Federal Communications Commission (FCC) Notice (U.S. Only) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 4: Precautions
Precautions PRECAUTIONS PRECAUTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Symbols used in this manual This icon indicates the existence of a potential hazard that could result in personal injury or damage to the product. This icon indicates important operating and servicing information. Notice •... -
Page 5: Cautions When Using
Users who have already mounted the monitor on the ceiling or any other horizontal surface overhead are strongly advised to contact AG Neovo for consultations and solutions to help ensure a most pleasurable and fulfilling monitor experience. -
Page 6: Cleaning And Maintenance
PRECAUTIONS Cleaning and Maintenance The LCD monitor comes with a protective glass. Use a soft cloth to clean the glass surface and the housing. The monitor can be cleaned using a cloth moistened with 95% ethyl alcohol. Follow these instructions to clean and disinfect the screen without damaging its anti-glare coating or other product components. -
Page 7: Notice For The Lcd Monitor
PRECAUTIONS Notice for the LCD Monitor In order to maintain the stable luminous performance, it is recommended to use low brightness setting. Due to the lifespan of the lamp, it is normal that the brightness quality of the LCD monitor may decrease with time. -
Page 8: Chapter 1: Product Description
When unpacking, check if the following items are included in the package. If any of them is missing or damaged, contact your dealer. LCD Monitor CD-2201 CD-2401 CD-2701 Base Quick Start Guide CD-2201, CD-2401 & CD-2701 Quick Start Guide CD-2201, CD-2401 & CD-2701 LCD Monitor CD-2201/CD-2401/CD-2701_Quick Guide_V010 CD-2201 CD-2401/CD-2701 Stand Power Cord Adapter CD-2401/CD-2701 HDMI Cable Warranty Card Note: •... -
Page 9: Installation
1.2 Installation 1.2.1 Installing the Stand For CD-2201: 1. Lay the LCD monitor face down on a flat even surface. 2. Align and install the stand to the base mount. 3. Rotate the stand clockwise until it snaps into place. -
Page 10: Adjusting The Tilt
Adjusting the Tilt For comfort viewing, tilt the LCD monitor up to an angle of -13° to 18° (CD-2201), -11° to 17° (CD-2401), or -11° to 16° (CD-2701). Hold the stand with one hand and use the other to adjust the LCD monitor to the desired angle. - Page 11 Note: Take measures to prevent the LCD monitor from falling down and lessen possible injury and damage to the monitor in case of earthquakes or other disasters. • Use only the 100 x 100 mm wall mount kit recommended by AG Neovo. All AG Neovo wall mount kits comply with VESA standard.
-
Page 12: Overview
PRODUCT DESCRIPTION 1.3 Overview 1.3.1 Front View CD-2201 CD-2401 CD-2701 Display screen Control buttons Press the button to perform its function. For more information about each button, refer to pages 13-14. -
Page 13: Control Buttons
PRODUCT DESCRIPTION 1.3.2 Control Buttons LED Indicator LED Indicator CD-2201/CD-2401 CD-2701 Button Description OSD Locked Function Menu/Exit Button • Long press to lock the four buttons except the Power button. Then long press again to unlock the four buttons. O S D L O CK E D During OSD menu •... - Page 14 PRODUCT DESCRIPTION Button Description Right Button Volume Adjustment • Press the u button to call out the volume bar. Then press again to increase the volume. V OL U M E Brightness Adjustment • When the brightness bar appears, press the u button to increase the brightness. During OSD menu •...
-
Page 15: Rear View
PRODUCT DESCRIPTION 1.3.3 Rear View POWER AUTO DOWN MENU CD-2701 CD-2201 CD-2401 HDMI Connect HDMI signals input. Connect VGA signals input. AUDIO Connect audio signals input (3.5 mm Stereo Audio Jack). Connect with the supplied power adaptor. -
Page 16: Chapter 2: Making Connections
Chapter 2: Making Connections CHAPTER 2: MAKING CONNECTIONS CAUTION: Make sure that the LCD monitor is not connected to the power outlet before making any connections. Connecting cables while the power is ON may cause possible electric shock or personal injury. 2.1 Connecting the AC Power 1. -
Page 17: Connecting Input Source Signals
MAKING CONNECTIONS 2.2 Connecting Input Source Signals Input source signals can be connected with either of the following cables: • HDMI Connect one end of an HDMI cable to the HDMI connector of the LCD monitor and the other end to the HDMI connector of the computer. -
Page 18: Chapter 3: On Screen Display Menu
Chapter 3: On Screen Display Menu CHAPTER 3: ON SCREEN DISPLAY MENU 3.1 Using the OSD Menu 1. Press the M button to call out the OSD window. BRI G HTNE SS Submenu BRI G HT NE SS CO NT RA ST PI CTU RE M O DE STANDAR D Settings... -
Page 19: Osd Menu Tree
ON SCREEN DISPLAY MENU 3.2 OSD Menu Tree Main Menu Submenu Reference BRIGHTNESS BRIGHTNESS 0 - 100 Refer to page 21. CONTRAST 0 - 100 PICTURE MODE STANDARD MOVIE GAME TEXT OVERDRIVE IMAGE SETTINGS H. POSITION 0 - 100 Refer to page 22. V. - Page 20 ON SCREEN DISPLAY MENU Main Menu Submenu Reference MISCELLANEOUS INPUT SELECT HDMI Refer to page 26. VOLUME 0 - 100 AUDIO IN DIGITAL ANALOG Note: Availability of some menu items depend on the input source signal. If the menu is not available, it is disabled and greyed out.
-
Page 21: Chapter 4: Adjusting The Lcd Monitor
Chapter 4: Adjusting the LCD Monitor CHAPTER 4: ADJUSTING THE LCD MONITOR 4.1 BRIGHTNESS 1. Press the M button to call out the OSD window. 2. Press the t or u button to select and press the E button to enter the BRIGHTNESS menu. B R IG H TN E SS B R I G H T N ES S BR IG H TN E S S... -
Page 22: Image Settings
ADJUSTING THE LCD MONITOR 4.2 IMAGE SETTINGS 1. Press the M button to call out the OSD window. 2. Press the t or u button to select and press the E button to enter the IMAGE SETTINGS menu. I M A G E S E T TI N G S I M A G E S ET T I N G S H. -
Page 23: Colour Temperature
ADJUSTING THE LCD MONITOR 4.3 COLOUR TEMPERATURE 1. Press the M button to call out the OSD window. 2. Press the t or u button to select and press the E button to enter the COLOUR TEMP. menu. C O L O U R T EM P. C O L O U R T EM P. -
Page 24: Osd Settings
ADJUSTING THE LCD MONITOR 4.4 OSD SETTINGS 1. Press the M button to call out the OSD window. 2. Press the t or u button to select and press the E button to enter the OSD SETTINGS menu. O S D SE T T IN GS O SD S ET T I N GS L AN G U AG E L A N G U A G E... -
Page 25: Reset
ADJUSTING THE LCD MONITOR 4.5 RESET 1. Press the M button to call out the OSD window. 2. Press the t or u button to select and press the E button to enter the RESET menu. R E S ET R ESE T I MA G E AU TO A D J U S T I M A GE A U TO A D J U S T... -
Page 26: Miscellaneous
ADJUSTING THE LCD MONITOR 4.6 MISCELLANEOUS 1. Press the M button to call out the OSD window. 2. Press the t or u button to select and press the E button to enter the MISCELLANEOUS menu. M I SC EL L A N EO U S M I SC E L L A N EO U S I NP UT S E LE C T H D M I... -
Page 27: Chapter 5: Appendix
Chapter 5: Appendix CHAPTER 5: APPENDIX 5.1 Warning Messages When any of these warning messages appear, check the following items. Warning Message Cause Solution The resolution or the refresh rate of √ Change the resolution or the the graphics card of the computer refresh rate of the graphics Ou t of range is set too high. -
Page 28: Troubleshooting
APPENDIX 5.2 Troubleshooting Problems Possible Cause and Solution No picture. • Check if the LCD monitor is turned ON. • Check if the power cord is properly connected to the adapter and LCD • LED indicator is OFF. monitor. • Check if the power cord is plugged into the power outlet. •... -
Page 29: Transporting The Lcd Monitor
To transport the LCD monitor for repair or shipment, place the monitor in its original packaging box. 1. Remove the base mount. a. Place the LCD monitor with the screen side down on a cushioned surface. For CD-2201 b. Rotate the base and pull the base out of the base mount. For CD-2401/CD-2701 b. - Page 30 APPENDIX CD-2201 CD-2401 CD-2701 Note: • It is recommended to use the original packaging box. • When repacking, carefully place the LCD monitor in its box and protect the glass panel from touching any object.
-
Page 31: Chapter 6: Specifications
Chapter 6: Specifications CHAPTER 6: SPECIFICATIONS 6.1 Monitor Specifications CD-2201 CD-2401 CD-2701 Panel Panel Type LED-Backlit TFT LCD LED-Backlit TFT LCD LED-Backlit TFT LCD (VA Technology) (VA Technology) (VA Technology) Panel Size 21.5” 23.8” 27.0” Max. Resolution FHD 1920 x 1080... -
Page 32: Monitor Dimensions
SPECIFICATIONS 6.2 Monitor Dimensions CD-2201 5 0 7 .0 ( o u tlin e d im e n s io n ) 4 4 .8 2 0 3 .5 1 0 0 .0 1 4 .5 4 7 7 .8 ( O p e n in g d im e n s io n ) 1 4 .5... - Page 33 M 4 x 8 2 3 0 .0 9 2 .8 4 3 8 .2 9 2 .8 AG Neovo Company Address: 5F-1, No. 3-1, Park Street, Nangang District, Taipei, 11503, Taiwan. Copyright © 2020 AG Neovo. All rights reserved. CD2710/CD2410/CD2210_UM_V010...
