Installation

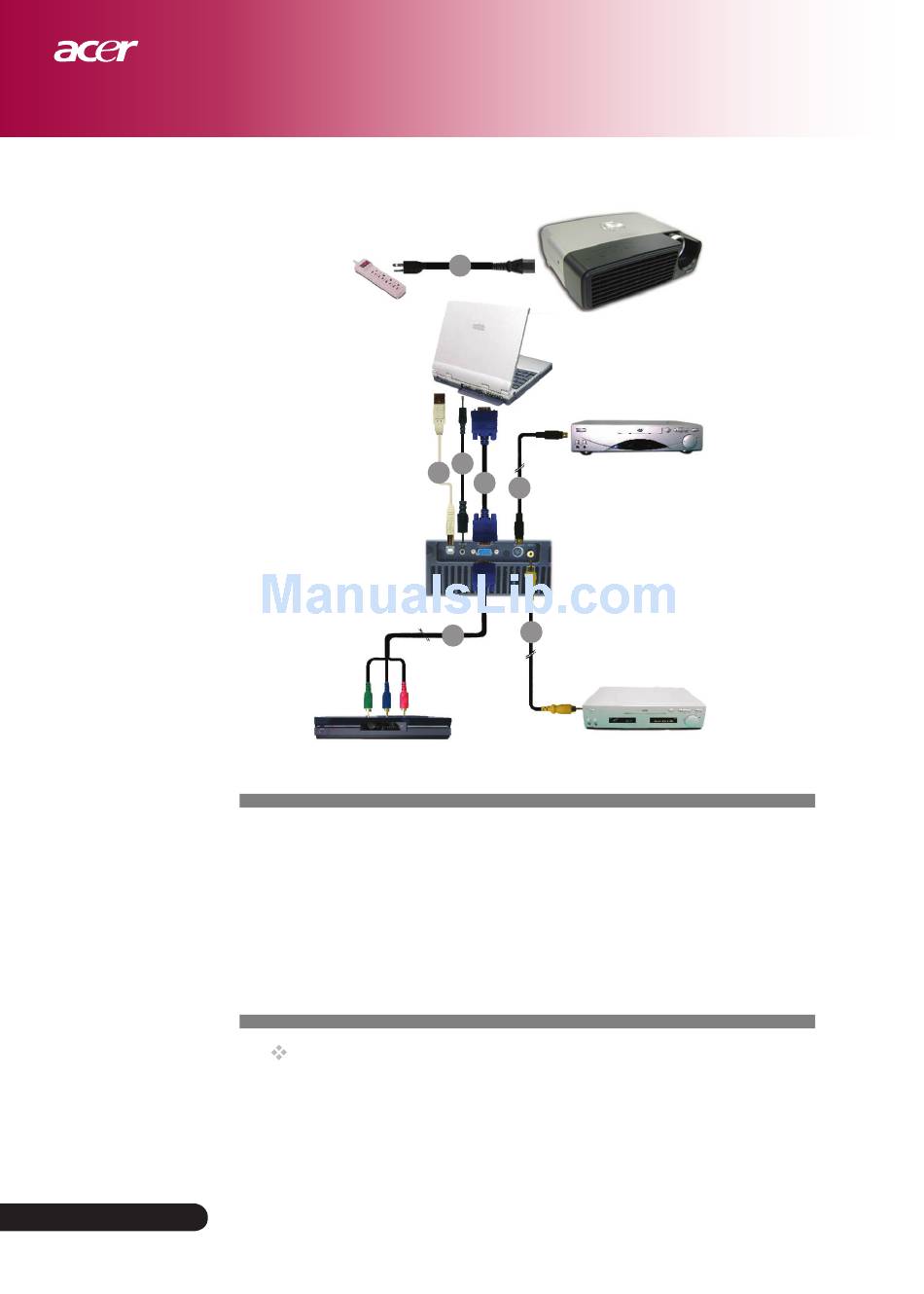

Connecting the Projector

1.............................................................................................. Power Cord
2. ..................................................................................................... USB Cable
3. ............................................................................................ Audio Cable
4. .................................................................................................... VGA Cable
5. ............................................................................................... S-Video Cable
6................................................................. VGA to Component / HDTV
7. .............................................................................. Composite Video Cable
English...10
1
USB
RGB
3
2
6
Video Output
To ensure the projector works well with your computer, please
set the display mode of your graphic card less than or equal to
800 x 600 resolution. Make sure the timing of the display mode
is compatible with the projector. Refer to the "Compatibility
Modes" section on page 35.
S-Video Output
4
5
7
HDTV receiver
DVD Player,
Settop Box,
