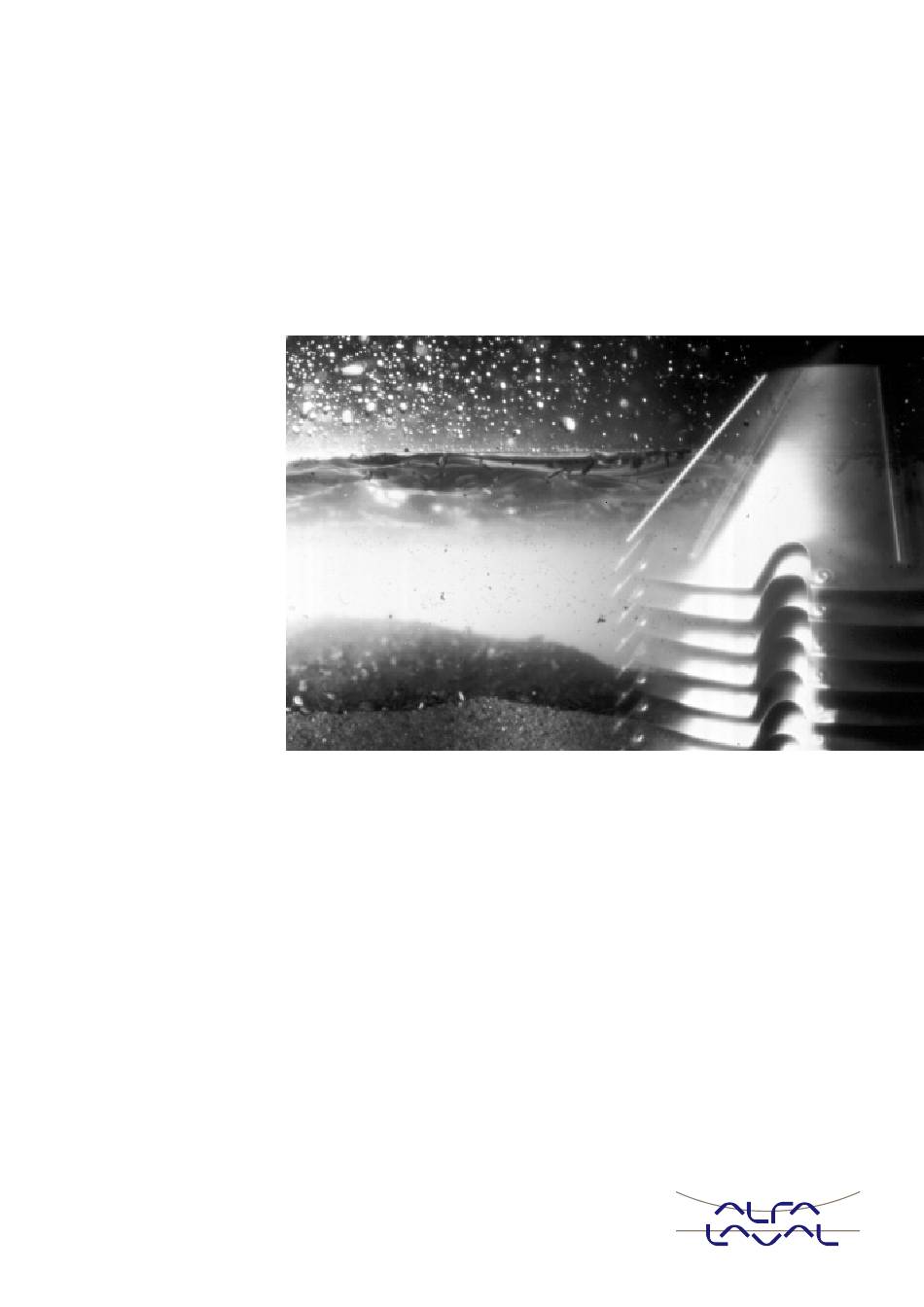

  • Page 1 MAB 206S-24 Separator Manual Product No. 881240-22-12 Book No. 1270282-02 V3 ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe whatsapp:959440045...
  • Page 2 Telephone: +46 8 530 650 00 Telefax: +46 8 530 310 40 © Alfa Laval Tumba AB May 2008 This publication or any part there of may not be reproduced or transmitted by any process or means without prior written permission of Alfa Laval Tumba AB.

  • Page 3: Table Of Contents

    Contents Read this first Safety Instructions 2.1 Warning signs in text 2.2 Environmental issues 2.3 Requirements of personnel Separator Basics 3.1 Basic principles of separation 3.2 Design 3.3 Separating function 3.4 Definitions Operating Instructions 4.1 Operating routine 4.2 Cleaning the bowl Service Instructions 5.1 Periodic maintenance 5.2 Maintenance logs...
  • Page 4 6.4 Horizontal driving device (MS) 6.5 Feed pump (option) Trouble-tracing 7.1 Mechanical function 7.2 Purification faults 7.3 Clarification faults Technical Reference 8.1 Technical data 8.2 Basic size drawing, without pump 8.3 Connection list, without pump 8.4 Basic size drawing, with pump 8.5 Connection list, with pump 8.6 Interface description 8.7 Lubricants...
  • Page 5 Read and understand instruction manuals and observe the warnings before installation, operation, service and maintenance. Not following the instructions can result in serious accidents. In order to make the information clear only foreseeable conditions have been considered. No warnings are given, therefore, for situations arising from the unintended usage of the machine and its tools.
  • Page 6 ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe whatsapp:959440045...

  • Page 7: Read This First

    ‘‘4 Operating Instructions” on page 29. If the separator has been delivered and installed by Alfa Laval as part of a processing system, this manual is a part of the System Manual. In this case, study carefully all the instructions in the System Manual.
  • Page 8 1 Read this first Service Instructions This chapter gives instructions for daily checks, cleaning, oil changes, servicing and check points. Dismantling / Assembly This chapter contains step-by-step instructions for dismantling and assembly of the separator for service and repair. Trouble-tracing Refer to this chapter if the separator functions abnormally.

  • Page 9: Safety Instructions

    • Ensure that personnel are competent and have sufficient knowledge of maintenance and operation, especially concerning emergency stopping procedures. • Use only Alfa Laval genuine spare parts and the special tools supplied. ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe whatsapp:959440045...
  • Page 10 • Use the separator only for the purpose and parameter range specified by Alfa Laval. • Check that the gear ratio is correct for power frequency used. If incorrect, subsequent overspeed may result in a serious break down.
  • Page 11 2 Safety Instructions Entrapment hazards • Make sure that rotating parts have come to a complete standstill before starting any dismantling work. • To avoid accidental start, switch off and lock power supply before starting any dismantling work. Assemble the machine completely before start.
  • Page 12 2 Safety Instructions Noise hazards • Use ear protection in noisy environments. Burn hazards • Lubrication oil and various machine surfaces can be hot and cause burns. Skin irritation hazards • When using chemical cleaning agents, make sure you follow the general rules and suppliers recommendation regarding ventilation, personnel protection etc.
  • Page 13 2 Safety Instructions Cut hazards • Sharp edges on bowl discs and threads can cause cuts. Flying objects • Risk for accidental release of snap rings and springs when dismantling and assembly. Health hazard • Risk for unhealthy dust when handling friction blocks/pads.

  • Page 14: Warning Signs In Text

    2 Safety Instructions Warning signs in text Pay attention to the safety instructions in this manual. Below are definitions of the three grades of warning signs used in the text where there is a risk for injury to personnel. DANGER Type of hazard DANGER indicates an imminently hazardous situation which, if not avoided,...

  • Page 15: Environmental Issues

    2 Safety Instructions Environmental issues Unpacking Packing material consists of wood, plastics, cardboard boxes and in some cases metal straps. Wood and cardboard boxes can be reused, recycled or used for energy recovery. Plastics should be recycled or burnt at a licensed waste incineration plant.

  • Page 16: Requirements Of Personnel

    2 Safety Instructions Requirements of personnel Only skilled or instructed persons are allowed to operate the machine, e.g. operating and maintenance staff. • Skilled person: A person with technical knowledge or sufficient experience to enable him or her to perceive risks and to avoid hazards which electricity/mechanics can create.

  • Page 17: Separator Basics

    3 Separator Basics Contents 3.1 Basic principles of separation 3.1.1 Introduction 3.1.2 Factors influencing the separation result 3.2 Design 3.2.1 Overview 3.2.2 Bowl disc stack 3.2.3 Power transmission 3.2.4 Brake 3.2.5 Inlet pump (option) 3.2.6 Paring disc 3.2.7 Sensors and indicators 3.3 Separating function 3.3.1 Bowl...

  • Page 18: Basic Principles Of Separation

    3.1 Basic principles of separation 3 Separator Basics Basic principles of separation 3.1.1 Introduction The purpose of separation can be: • to free a liquid of solid particles, • to separate two mutually insoluble liquids with different densities while removing any solids presents at the same time, •...

  • Page 19: Factors Influencing The Separation Result

    3 Separator Basics 3.1 Basic principles of separation 3.1.2 Factors influencing the separation result Separating temperature For some types of process liquids (e.g. mineral oils) a high separating temperature will normally increase the separation capacity. The temperature influences oil viscosity and density and should be kept constant throughout the separation.
  • Page 20 3.1 Basic principles of separation 3 Separator Basics Phase proportions An increased quantity of water in oil will influence the separating result through the optimum transporting capacity of the disc stack. An increased water content in the oil can be compensated by reducing the throughput in order to restore the optimum separating efficiency.

  • Page 21: Design

    3 Separator Basics 3.1 Design Design 3.2.1 Overview The separator comprises a processing part and a driving part. It is driven by an electric motor (6). Mechanically, the separator machine frame is composed of a bottom part, a top part and a collecting cover.

  • Page 22: Bowl Disc Stack

    3.1 Design 3 Separator Basics 3.2.2 Bowl disc stack The large lock ring (4) is holding the bowl parts together. It also compresses the disc stack (3). The disc stack pressure is important for bowl balance. Too low pressure can cause out of balance vibration.

  • Page 23: Brake

    3 Separator Basics 3.1 Design 3.2.4 Brake The separator is equipped with a hand operated brake to be used when stopping the separator. The use of the brake reduces the retardation time of the bowl and critical speeds will therefore be quickly passed.

  • Page 24: Sensors And Indicators

    3.1 Design 3 Separator Basics 3.2.7 Sensors and indicators Revolution counter A revolution counter indicates the speed of the separator and is driven from the worm wheel shaft. The correct speed is needed to achieve the best separating results and for reasons of safety. The number of revolutions on the revolution counter for correct speed is shown in chapter ‘‘8 Technical Reference”...

  • Page 25: Separating Function

    3 Separator Basics 3.1 Separating function Separating function 3.3.1 Bowl The bowl body (10) and bowl hood (2) constituting the bowl casing are held together by the large lock ring (4). In the bowl are the distributor (5) and the disc stack (9) through which the process liquid (oil/water) is passed and where the separation takes place.
  • Page 26 3.1 Separating function 3 Separator Basics Process flow Unseparated oil (201) is fed into the bowl through the inlet pipe and is pumped via the distributor (1) towards the periphery of the bowl. When the oil reaches the holes in the distributor, it rises through the channels formed by the disc stack (2) where it is evenly distributed.

  • Page 27: Clarifier Bowl

    3 Separator Basics 3.1 Separating function Position of interface In a purifier bowl the position of the interface should be located between the disc stack edge and the outer edge of the top disc. The position of the interface is adjusted by altering the pressure balance of the liquid phases oil and water inside the separator.
  • Page 28 3.1 Separating function 3 Separator Basics Process flow The process liquid (201) flows through the distributor (1) to the interspaces between the bowl discs in the disc stack (2). Through the action of the centrifugal force the heavy particles move along the underside of the discs towards the bowl periphery, where they settle on the bowl wall (3).

  • Page 29: Definitions

    3 Separator Basics 3.4 Definitions Definitions Back pressure Pressure in the separator outlet. Clarification Liquid/solids separation with the intention of separating particles, normally solids, from a liquid (oil) having a lower density than the particles. Clarifier disc An optional disc, which replaces the gravity disc in the separator bowl, in the case of clarifier operation.
  • Page 30 3.4 Definitions 3 Separator Basics ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe whatsapp:959440045...

  • Page 31: Operating Instructions

    4 Operating Instructions Contents 4.1 Operating routine 4.1.1 Before first start 4.1.2 Selection of gravity disc 4.1.3 Before normal start 4.1.4 Starting and running-up procedure 4.1.5 At full speed 4.1.6 During operation 4.1.7 Stopping procedure 4.1.8 Safety stop 4.2 Cleaning the bowl 4.2.1 Removal of separated sludge 4.2.2...

  • Page 32: Operating Routine

    4.1 Operating routine 4 Operating Instructions Operating routine These instructions is related only to the separator itself. If the separator is a part of a system or module follow also the instructions for the system. 4.1.1 Before first start Technical demands for connections and logical limitations for the separator is described in the chapter ‘‘8 Technical Reference”...

  • Page 33: Selection Of Gravity Disc

    4 Operating Instructions 4.1 Operating routine 4.1.2 Selection of gravity disc The separator is delivered with a set of gravity discs. Clarification When running the separator as a clarifier, select the gravity disc with the smallest hole diameter. See the Spare Parts Catalogue for correct hole diameter.

  • Page 34: Before Normal Start

    4.1 Operating routine 4 Operating Instructions As an aid, use the nomogram below to find the correct gravity disc. However, note that the nomogram is purely theoretical. In practical operation the general rule is the above mentioned. Nomogram for MAB 206 Example: Oil density = 0,92 (ref.
  • Page 35 4 Operating Instructions 4.1 Operating routine 2. Make sure that all inlet and outlet couplings and connections have been correctly made and are properly tightened to prevent leakage. CAUTION Burn hazards Check for leakages (not admitted) Make sure that hose connections and flange couplings are properly assembled and tightened.

  • Page 36: Starting And Running-Up Procedure

    4.1 Operating routine 4 Operating Instructions 6. Make sure the direction of rotation of the motor corresponds to the sign on the motor, see ‘‘8.9 Machine plates and safety labels” on page 182. DANGER Disintegration hazards When power cables have been connected, always check direction of rotation.
  • Page 37 4 Operating Instructions 4.1 Operating routine 4. Check the separator for vibration. Some vibration can occur for short periods during the starting cycle when the separator passes through its critical speeds. This is normal and passes over without danger. Try to learn the vibration characteristics of the critical speed pattern.

  • Page 38: At Full Speed

    4.1 Operating routine 4 Operating Instructions 4.1.5 At full speed 1. Circulate process liquid through heater until desired temperature is obtained. Heat up the process liquid to separation temperature by circulation through a heater 2. For purification mode: a. Supply water (206) to form the liquid seal. Continue until water flows out through the water outlet (221).

  • Page 39: During Operation

    4 Operating Instructions 4.1 Operating routine 4.1.6 During operation Do regular checks on: • oil inlet temperature (if applicable) • water collecting tank level • sound/vibration of the separator • back pressure • oil level in worm gear housing • leakages •...

  • Page 40: Safety Stop

    CAUTION Disintegration hazards After a safety stop the cause of the fault must be identified. If all parts have been checked and the cause remains unclear, contact Alfa Laval for advice. ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe whatsapp:959440045...

  • Page 41: Cleaning The Bowl

    4 Operating Instructions 4.2 Cleaning the bowl Cleaning the bowl The separated sludge is accumulating on the inside surface of the separator bowl. How often the separator needs to be cleaned, depends on the amount of sediment entering the separator. High solids content or high throughput has the consequence that the cleaning need to be done more often.
  • Page 42 4.2 Cleaning the bowl 4 Operating Instructions 1. Stop the separator. DANGER Entrapment hazards • Make sure that rotating parts have come to a complete standstill before starting any dismantling work. The revolution counter and the motor fan Check that the separator has stopped completely indicate if the separator is rotating or not.
  • Page 43 4 Operating Instructions 4.2 Cleaning the bowl 5. Unscrew the large lock ring. Left-hand thread! 6. Lift up the bowl hood, disc stack and distributor by using the lifting device. 7. Lift out the sludge basket using the special lifting tool. ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe...
  • Page 44 4.2 Cleaning the bowl 4 Operating Instructions 8. Remove deposits and clean all parts thoroughly in a suitable cleaning agent. See chapter ‘‘5.5 Cleaning” on page 80. When removing sludge, preferably use the sludge knife and sludge scoop included in the tool kit.

  • Page 45: Assembling The Bowl

    4 Operating Instructions 4.2 Cleaning the bowl 4.2.2 Assembling the bowl Each bowl constitutes a balanced unit. Exchange of any major part necessitates rebalancing of the bowl. To prevent mixing of parts, e.g. in an installation comprising of several machines of the same type, the major bowl parts carry the machine manufacturing number or its last three digits.
  • Page 46 4.2 Cleaning the bowl 4 Operating Instructions 1. Fit the cleaned sludge basket. 2. During the assembly, bring the bowl parts into positions defined by the guides. 3. If the discs have been removed from the distributor, assemble them one by one onto the distributor.
  • Page 47 4 Operating Instructions 4.2 Cleaning the bowl 4. Place the top disc and bowl hood upon the disc stack. 5. Lubricate the O-ring in bowl hood with silicone grease. 6. Lower the parts down into the bowl body using the lifting device. Make sure that the guides for bowl hood and bowl body are in correct position.
  • Page 48 4.2 Cleaning the bowl 4 Operating Instructions 10. Slacken the two lock screws. NOTE The two lock screws must be fully released to prevent risk for damage to bowl body. 11. Lower the collecting cover (1) and tighten it with the clamp bolts (2). 12.

  • Page 49: Service Instructions

    5 Service Instructions Contents 5.1 Periodic maintenance 5.4.7 Radial wobble of bowl spindle 5.4.8 Inlet pipe and oil paring disc 5.1.1 Introduction 5.4.9 Inlet device 5.1.2 Maintenance intervals 5.4.10 Height position of oil paring disc 5.1.3 Maintenance procedure 5.4.11 Flexible plate in coupling 5.1.4 Service kits 5.4.12 Coupling friction pads...

  • Page 50: Periodic Maintenance

    5.1 Periodic maintenance 5 Service Instructions Periodic maintenance 5.1.1 Introduction Periodic (preventive) maintenance reduces the risk of unexpected stoppages and breakdowns. Maintenance schedules are shown on the following pages in order to facilitate periodic maintenance. DANGER Disintegration hazards Periodic maintenance prevent stoppages Separator parts that are either worn beyond their safe limits or incorrectly assembled may cause severe damage or fatal injury.
  • Page 51 5 Service Instructions 5.1 Periodic maintenance Intermediate Service (IS) Intermediate Service consists of an overhaul of the separator bowl, inlet/outlet and operating device every 3 months or 2000 operating hours. Seals in bowl and gaskets in inlet/outlet device are renewed. Major Service (MS) Major Service consists of an overhaul of the complete separator and includes an Intermediate...

  • Page 52: Maintenance Procedure

    5.1 Periodic maintenance 5 Service Instructions 5.1.3 Maintenance procedure At each Intermediate and Major Service, take a copy of the maintenance log and use it for notations during the service. An Intermediate and Major Service should be carried out in the following manner: 1.

  • Page 53: Service Kits

    The contents of the service kits are described in the Spare Parts Catalogue. NOTE Always use Alfa Laval genuine parts as otherwise the warranty will become invalid. Alfa Laval takes no responsibility for the safe operation of the equipment if non-genuine spare parts are used. DANGER Disintegration hazards Use of imitation parts may cause severe damage.

  • Page 54: Maintenance Logs

    Discuss your problems with an Alfa Laval representative and, when necessary, request a visit by an Alfa Laval service engineer. Rate of corrosion and erosion and notification of cracks should also be a part of this log. Note the extent of damage and date the log entries so that the rate of deterioration can be observed.

  • Page 55: Oil Change

    5 Service Instructions 5.1 Maintenance logs 5.2.2 Oil change The oil change and check of worm gear should be carried out every 1500 hours of operation. When the separator is running for short periods, the lubricating oil must be changed every 12 months even if the total number of operating hours is less than 1500 hours (2000 h).

  • Page 56: Intermediate Service (Is)

    5.1 Maintenance logs 5 Service Instructions 5.2.3 Intermediate Service (IS) Name of plant: Local identification: Separator: MAB 206S-24 Manufacture No./Year: Total running hours: Product No: 881240-22-12 Date: Signature: Main component and activity Part Page Notes Inlet and outlet Clean and inspect...
  • Page 57 5 Service Instructions 5.1 Maintenance logs Main component and activity Part Page Notes Worm wheel shaft and gear housing Clean and check Worm wheel and worm Renew Oil in gear housing Electrical motor Lubrication (if nipples are fitted) See sign on motor Signs and labels on separator Check attachment and readability, Safety label on collecting...

  • Page 58: Major Service (Ms)

    5.1 Maintenance logs 5 Service Instructions 5.2.4 Major Service (MS) Name of plant: Local identification: Separator: MAB 206S-24 Manufacture No./Year: Total running hours: Product No: 881240-22-12 Date: Signature: Main component and activity Part Page Notes Inlet and outlet Clean and inspect...
  • Page 59 5 Service Instructions 5.1 Maintenance logs Main component and activity Part Page Notes Vertical driving device Clean and check Bowl spindle Check Buffers Ball bearing housing indentations Radial wobble of bowl spindle Renew Ball bearings and top bearing springs Worm wheel shaft and gear housing Clean and check Worm wheel and worm Check...

  • Page 60: 3-Year Service (3S)

    5.1 Maintenance logs 5 Service Instructions Main component and activity Part Page Notes Pump (option) Clean and check Bushings, wear gaskets, flexible coupling, relief/safety valve and impeller shaft Renew Lipseal rings Monitoring equipment (option) Function check Cover interlocking switch Note: Renew all parts included in the Intermediate Service kit (IS) and Major Service kit (MS).
  • Page 61 5 Service Instructions 5.1 Maintenance logs Frame feet, renewal 1. Disconnect pipes, hoses and cables connected to the separator. 2. Remove the nuts (3, 4). 3. Lift the separator. NOTE When lifting a separator it must always hang securely. See separate instruction in chapter ‘‘5.8 Lifting instructions”...

  • Page 62: Check Points At Intermediate Service (Is)

    Inspect regularly for corrosion damage. Inspect frequently if the process liquid is corrosive. Always contact your Alfa Laval representative if you suspect that the largest depth of the corrosion damage exceeds 1,0 mm or if cracks Main bowl parts to check for corrosion have been found.
  • Page 63 5 Service Instructions 5.3 Check points at Intermediate Service (IS) Stainless steel Stainless steel parts corrode when in contact with either chlorides or acidic solutions. Acidic solutions causes a general corrosion. The chloride corrosion is characterised by local damage such as pitting, grooves or cracks. The risk of chloride corrosion is higher if the surface is: •...

  • Page 64: Erosion

    Disintegration hazard Inspect regularly for erosion damage. Inspect frequently if the process liquid is erosive. Always contact your Alfa Laval representative if the largest depth of any erosion damage exceeds 1,0 mm. Valuable information as to the nature of the damage can be recorded using photographs, plaster impressions or hammered-in lead.

  • Page 65: Cracks

    Always replace a part if cracks are present. It is particularly important to inspect for cracks in rotating parts. Always contact your Alfa Laval representative if you suspect that the largest depth of the damage exceeds 1,0 mm. Do not continue to use the separator until it has been inspected and cleared for operation by Alfa Laval.

  • Page 66: Disc Stack Pressure

    5.3 Check points at Intermediate Service (IS) 5 Service Instructions 5.3.4 Disc stack pressure The lock ring (1) should press the bowl hood (2) firmly against the bowl body (3). The hood in turn should exert a pressure on the disc stack (4), clamping it in place.

  • Page 67: Lock Ring; Wear And Damage

    If thread wear is observed, mark the bowl body at the new position of the alignment mark on the lock ring by punching in a new alignment mark. Contact Your Alfa Laval representative • If the original mark on the lock ring passes the corresponding mark on the bowl body by more than 25°...

  • Page 68: Inlet Pipe And Oil Paring Disc

    5.3 Check points at Intermediate Service (IS) 5 Service Instructions 5.3.6 Inlet pipe and oil paring disc 1. Check treads of inlet pipe (1) and of oil paring disc (2) for damage and wear. Check the seal rings. Location of inlet pipe (1) and oil paring disc (2) 5.3.7 Inlet device 1.

  • Page 69: Worm Wheel And Worm

    5 Service Instructions 5.3 Check points at Intermediate Service (IS) 5.3.8 Worm wheel and worm; wear of teeth Check the teeth of worm wheel and worm for wear. To allow inspection when further dismantling is not intended, remove the bearing shield or pump (if fitted) to uncover the worm gear.
  • Page 70 5.3 Check points at Intermediate Service (IS) 5 Service Instructions When replacing the gear, always make sure that the new worm wheel and worm have the same number of teeth as the old ones. See chapter ‘‘8.1 Technical data” on page 148 for correct number of teeth.

  • Page 71: Cover Interlocking Switch (Option)

    5 Service Instructions 5.3 Check points at Intermediate Service (IS) Worn teeth: Permissible wear is as a rule 1/3 of the thickness of the upper part of a tooth, provided that • the wear is uniform over the whole of the flank of a tooth •...

  • Page 72: Check Points At Major Service (Ms)

    5.4 Check points at Major Service (MS) 5 Service Instructions Check points at Major Service (MS) 5.4.1 Corrosion Same as described in ‘‘5.3.1 Corrosion” on page 5.4.2 Erosion Same as described in ‘‘5.3.2 Erosion” on page 62. 5.4.3 Cracks Same as described in ‘‘5.3.3 Cracks” on page 63. 5.4.4 Disc stack pressure Same as described in ‘‘5.3.4 Disc stack pressure”...

  • Page 73: Bowl Spindle Cone And Bowl Body Nave

    5 Service Instructions 5.4 Check points at Major Service (MS) 5.4.6 Bowl spindle cone and bowl body nave Impact marks on the spindle cone or in the bowl body nave may cause poor fit and out-of-balance vibrations. The bowl spindle and the nave should also be checked if the bowl spindle has been dismantled or if the bowl runs roughly.

  • Page 74: Inlet Pipe And Oil Paring Disc

    Rotate the spindle by hand Measure wobble after assembly. If it is still excessive, the spindle is probably damaged and must be replaced, contact your Alfa Laval representative. 5.4.8 Inlet pipe and oil paring disc Same as described in ‘‘5.3.6 Inlet pipe and oil paring disc”...

  • Page 75: Height Position Of Oil Paring Disc

    5 Service Instructions 5.4 Check points at Major Service (MS) 5.4.10 Height position of oil paring disc Incorrect height position may cause the oil paring disc to scrape against the paring chamber. Check up after replacing or mounting parts that may affect the height position.

  • Page 76: 5.4.11 Flexible Plate In Coupling

    5.4 Check points at Major Service (MS) 5 Service Instructions 5.4.11 Flexible plate in coupling The axial play (1) of the flexible plate should be approximately 2 mm. Location of the axial play (1) in the flexible coupling Check the play as follows: Fit the elastic plate in its place in the coupling disc of the separator.

  • Page 77: 5.4.12 Coupling Friction Pads

    5 Service Instructions 5.4 Check points at Major Service (MS) Measure the distance from the motor coupling disc to the motor flange. X mm - Y mm = 2 mm. If required, adjust the position of the motor coupling disc. Measure of distance for coupling on motor 5.4.12 Coupling friction pads Worn or oily pads in the coupling will cause a long...
  • Page 78 5.4 Check points at Major Service (MS) 5 Service Instructions • Remove the screws and renew the pads. NOTE The screws are slotted in both ends. Replace all pads even if only one is worn. DANGER Three screws fix the friction pad to the friction block Disintegration hazards When power cables have been connected, always check direction of rotation.

  • Page 79: 5.4.13 Brake

    5 Service Instructions 5.4 Check points at Major Service (MS) 5.4.13 Brake A worn or oily friction pad will lengthen the braking period. If the friction pad is worn: • Remove the screws and exchange the friction pad. NOTE The screws are slotted in both ends. Friction pad is fastened with screws If the friction pad is oily: •...

  • Page 80: Buffer Springs And Ball Bearing Housing

    5.4 Check points at Major Service (MS) 5 Service Instructions 5.4.14 Buffer springs and ball bearing housing Weakened or broken buffer springs or defective contact surfaces for the buffers on the ball bearing housing may give rise to separator vibration (rough bowl run).

  • Page 81: Worm Wheel And Worm; Wear Of Teeth

    5 Service Instructions 5.4 Check points at Major Service (MS) 5.4.15 Worm wheel and worm; wear of teeth Same as described in ‘‘5.3.8 Worm wheel and worm; wear of teeth” on page 67. 5.4.16 Cover interlocking switch (option) Same as described in ‘‘5.3.9 Cover interlocking switch (option)”...

  • Page 82: Cleaning

    5.5 Cleaning 5 Service Instructions Cleaning 5.5.1 External cleaning The external cleaning of the frame and motor should be restricted to brushing, sponging or wiping while the motor is running or is still hot. Use a sponge or cloth and a brush when cleaning Never wash down a separator with a direct water stream.

  • Page 83: Cleaning Agents

    It should also act as a dispersant and Alfa Laval cleaning liquid for separators emulsifier for oil. It is recommended to use Alfa Laval cleaning liquid for lube oil separators which has the above mentioned qualities. Note that carbon steel parts can be damaged by the cleaning agent if submerged for a long time.
  • Page 84 5.5 Cleaning 5 Service Instructions For parts of the driving devices Use white spirit, cleaning-grade kerosene or diesel oil. Oiling (protect surfaces against corrosion) Protect cleaned carbon steel parts against corrosion by oiling. Separator parts that are not assembled after cleaning must be wiped and coated with a thin layer of clean oil and protected from dust and dirt.

  • Page 85: Cleaning Of Bowl Discs

    5 Service Instructions 5.5 Cleaning 5.5.3 Cleaning of bowl discs Bowl discs Handle the bowl discs carefully so as to avoid damage to the surfaces during cleaning. NOTE Mechanical cleaning is likely to scratch the disc surfaces causing deposits to form quicker and adhere more firmly.

  • Page 86: When Changing Oil

    5.6 When changing oil 5 Service Instructions When changing oil Check at each oil change Check the teeth of both the worm wheel and worm for wear. Compare with the illustrations in ‘‘5.3.8 Worm wheel and worm; wear of teeth” on page 67.

  • Page 87: Common Maintenance Directions

    5 Service Instructions 5.7 Common maintenance directions Common maintenance directions 5.7.1 Vibration Vibration or noise often indicates that something is incorrect. Use vibration analysis instrument to periodically check and record the level of vibration. The level of vibration should not exceed maximum for separator in use.

  • Page 88: Ball And Roller Bearings

    The bearings used for the bowl spindle are special to withstand the speed, vibration, temperature and load characteristics of high- speed separators. Only Alfa Laval genuine spare parts should be used. 1. Outer race A bearing that in appearance looks equivalent to 2.
  • Page 89 5 Service Instructions 5.7 Common maintenance directions Cleaning and inspection Check shaft (spindle) end and/or bearing seat in the housing for damage indicating that the bearing has rotated on the shaft (spindle) and/or in the housing respectively. Replace the damaged part(s), if the faults cannot be remedied by polishing or in some other way.
  • Page 90 5.7 Common maintenance directions 5 Service Instructions • There are several basic rules for assembling cylindrical bore bearings: − Never directly strike a bearing’s rings, cage or rolling elements while assembling. A ring may crack or metal fragments break off. −...

  • Page 91: Shutdowns

    5 Service Instructions 5.7 Common maintenance directions 5.7.3 Shutdowns If the separator is shut down for a period of time, the following must be carried out: • Remove the bowl, according to instructions in chapter ‘‘6 Dismantling/Assembly” on page NOTE The bowl must not be left on the spindle during standstill for more than one week.

  • Page 92: Lifting Instructions

    5.8 Lifting instructions 5 Service Instructions Lifting instructions Attach two endless slings or cables to the separator frame as illustrated. NOTE Machine weight without bowl is approx. 425 kg. Do not lift the separator unless the bowl has been removed. WARNING Crush hazards Lift the separator in no other way than...

  • Page 93: Dismantling/Assembly

    6 Dismantling/Assembly Contents 6.1 General 6.1.1 General directions 6.1.2 References to check points 6.1.3 Tools 6.2 Inlet/outlet, collecting cover and bowl (IS) 6.2.1 Exploded view, inlet/outlet and collecting cover 6.2.2 Exploded view, bowl 6.2.3 Dismantling 6.2.4 Assembly 6.3 Vertical driving device (MS) 6.3.1 Exploded view 6.3.2...

  • Page 94: General

    6.1 General 6 Dismantling/Assembly General 6.1.1 General directions The separator must be dismantled regularly for cleaning and inspection. The recommended intervals are stated in chapter ‘‘5.1.2 Maintenance intervals” on page 48. DANGER Entrapment hazards Make sure that rotating parts have come to a complete standstill before starting any dismantling work.

  • Page 95: References To Check Points

    6 Dismantling/Assembly 6.1 General 6.1.2 References to check points In the text you will find references to the Check Point instructions in chapter 5. The references appear in the text as in the following example: ✔ Check point ‘‘5.3.4 Disc stack pressure” on page 64. In this example, look up check point Disc stack pressure in chapter 5 for further instructions.

  • Page 96: Inlet/Outlet, Collecting Cover And Bowl (Is)

    6.2 Inlet/outlet, collecting cover and bowl (IS) 6 Dismantling/Assembly Inlet/outlet, collecting cover and bowl (IS) 6.2.1 Exploded view, inlet/outlet and collecting cover ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe whatsapp:959440045...
  • Page 97 6 Dismantling/Assembly 6.2 Inlet/outlet, collecting cover and bowl (IS) Cover Seal ring Glass tube Seal ring Knob Spring Sleeve Inlet pipe Washer 10. Seal ring 11. Screw 12. Packing 13. Housing 14. Seal ring 15. Seal ring 16. Ball 17. Nut 18.

  • Page 98: Exploded View, Bowl

    6.2 Inlet/outlet, collecting cover and bowl (IS) 6 Dismantling/Assembly 6.2.2 Exploded view, bowl Lock ring, small Level ring Gravity disc 10. Seal ring Seal ring 11. Bowl disc Lock ring, large 12. Distributor Bowl hood 13. Sludge basket Top disc 14.

  • Page 99: Dismantling

    6 Dismantling/Assembly 6.2 Inlet/outlet, collecting cover and bowl (IS) 6.2.3 Dismantling 1. Be sure the bowl has stopped rotating. If starting to dismantle before complete standstill the oil paring disc and the top of the bowl will probably be damaged. 2.
  • Page 100 6.2 Inlet/outlet, collecting cover and bowl (IS) 6 Dismantling/Assembly 6. Unscrew the large lock ring by using the special spanner and a tin hammer. Left-hand thread! 7. Lift up the bowl hood, disc stack and distributor by using the lifting device. 8.
  • Page 101 6 Dismantling/Assembly 6.2 Inlet/outlet, collecting cover and bowl (IS) 9. Unscrew the cap nut (1). Left-hand thread! 10. Release the lock screws (2). 11. Lift out the bowl body using the special lifting tool (3). Unscrew the cap nut Release the lock screw Lift the bowl body from the spindle 12.

  • Page 102: Assembly

    6.2 Inlet/outlet, collecting cover and bowl (IS) 6 Dismantling/Assembly 6.2.4 Assembly Each bowl constitutes a balanced unit. Exchange of any major part necessitates rebalancing of the bowl. To prevent mixing of parts, e.g. in an installation comprising of several machines of the same type, the major bowl parts carry the machine manufacturing number or its last three digits.
  • Page 103 6 Dismantling/Assembly 6.2 Inlet/outlet, collecting cover and bowl (IS) ✔ Check point ‘‘5.3.1 Corrosion” on page 60, ‘‘5.3.2 Erosion” on page 62, ‘‘5.3.3 Cracks” on page 63, ‘‘5.3.5 Lock ring; wear and damage” on page ‘‘5.3.6 Inlet pipe and oil paring disc” on page ‘‘5.3.7 Inlet device”...
  • Page 104 6.2 Inlet/outlet, collecting cover and bowl (IS) 6 Dismantling/Assembly 5. During the assembly, bring the bowl parts into positions defined by the guides. 6. If the discs have been removed from the distributor, assemble them one by one onto the distributor. The distributor has one guide rib for the correct positioning of the discs.
  • Page 105 6 Dismantling/Assembly 6.2 Inlet/outlet, collecting cover and bowl (IS) 8. Place the top disc and bowl hood upon the disc stack. 9. Lubricate the O-ring in bowl hood with silicone grease. 10. Lower the parts down into the bowl body using the lifting device.
  • Page 106 6.2 Inlet/outlet, collecting cover and bowl (IS) 6 Dismantling/Assembly 14. Fit the gravity disc/clarifier disc and tighten the lock ring using the special spanner. Left-hand thread! 15. Slacken the two lock screws holding the bowl body. NOTE The two lock screws must be fully released to prevent risk for damage to the bowl body.
  • Page 107 6 Dismantling/Assembly 6.2 Inlet/outlet, collecting cover and bowl (IS) ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe whatsapp:959440045...

  • Page 108: Vertical Driving Device (Ms)

    6.3 Vertical driving device (MS) 6 Dismantling/Assembly Vertical driving device (MS) 6.3.1 Exploded view ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe whatsapp:959440045...
  • Page 109 6 Dismantling/Assembly 6.3 Vertical driving device (MS) Screw Protecting plate Screw Protecting guard O-ring Protecting collar Screw Spring washer Spring casing Deflector Ball bearing Ball bearing housing Axial buffer 13A. Split pin 13B. Wear ring 13C. Spring 13D. Spring support Buffer Screw plug Spring...

  • Page 110: Dismantling

    6.3 Vertical driving device (MS) 6 Dismantling/Assembly 6.3.2 Dismantling NOTE Clean the space in the bowl casing thoroughly before starting to dismantle the bowl spindle to prevent contaminations falling down into the oil gear housing. 1. Drain the oil from the worm gear housing. CAUTION Burn hazards Lubricating oil and various machine surfaces...
  • Page 111 6 Dismantling/Assembly 6.3 Vertical driving device (MS) 5. Unscrew the screws of the spring casing. 6. Remove the bearing shield/built-on pump. Separator with no built-on pump a. Remove the bearing shield and gasket. Separator with built-on pump a. Remove the pipe connections from the pump.
  • Page 112 6.3 Vertical driving device (MS) 6 Dismantling/Assembly d. Remove the pump assembly and gasket. 7. Remove the revolution counter (1). Apply the brake (2). 8. Remove the round nut and lock washer at the worm wheel shaft. 9. Remove the ball bearing and worm wheel fitted on the shaft.
  • Page 113 6 Dismantling/Assembly 6.3 Vertical driving device (MS) 10. Lift out the bowl spindle by using the special lifting tool. 11. If a 50 Hz separator, remove the axial buffer from the frame. For 60 Hz separators, the buffer can be removed from the spindle after the worm has been knocked off.
  • Page 114 6.3 Vertical driving device (MS) 6 Dismantling/Assembly 15. Knock off the worm using a hammer and a soft drift. 16. If a 60 Hz separator, remove the axial buffer. 17. Remove the screw plugs, springs and buffers. Then remove the spring casing. 18.

  • Page 115: Assembly

    6 Dismantling/Assembly 6.3 Vertical driving device (MS) 6.3.3 Assembly When mounting ball bearings on the spindle as described below, the bearings must be heated in oil to max 125 °C. WARNING Burn hazards Use protective gloves when handling the heated bearings. NOTE If any doubt how to mount roller bearings in a correct way, see the detailed description in...
  • Page 116 6.3 Vertical driving device (MS) 6 Dismantling/Assembly 5. Finally fit the lock washer (11) and tighten the round nut (12). 6. For 50 Hz separators, fit the axial buffer in the frame. 7. Carefully lower the spindle into the frame. Guide the bearing into the bottom bushing.
  • Page 117 6 Dismantling/Assembly 6.3 Vertical driving device (MS) 9. Tighten the buffer plugs. 10. Screw the protecting collar onto the spindle. Left-hand thread! Fit its O-ring, guard and protecting plate. 11. Fit the worm wheel with ball bearing onto the shaft. Match the worm wheel with the teeth in the worm of the bowl spindle.
  • Page 118 6.3 Vertical driving device (MS) 6 Dismantling/Assembly 13. Fit the revolution counter. 14. Fit the bearing shield/built-on pump. Separator with no built-on pump a. Fit the gasket and bearing shield. The parts can be fitted only in one position because of the asymmetrical positioned screw holes.
  • Page 119 6 Dismantling/Assembly 6.3 Vertical driving device (MS) 15. Pour oil into worm gear housing. The oil level should be slightly above the middle of the sight glass. For correct oil volume and recommended oil brands, see chapter ‘‘8.7 Lubricants” on page 161.

  • Page 120: Horizontal Driving Device (Ms)

    6.4 Horizontal driving device (MS) 6 Dismantling/Assembly Horizontal driving device (MS) 6.4.1 Exploded view ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe whatsapp:959440045...
  • Page 121 6 Dismantling/Assembly 6.4 Horizontal driving device (MS) 1. Screw 2. Coupling nave 3. Coupling disc 4. Elastic plate 5. Coupling disc 6. Friction block 7. Friction pad 8. O-ring 9. Round nut 10. Lock washer 11. Ball bearing 12. Spacing ring 13.

  • Page 122: Dismantling

    6.4 Horizontal driving device (MS) 6 Dismantling/Assembly 6.4.2 Dismantling DANGER Entrapment hazards 1. Make sure that rotating parts have come to a complete standstill before starting any dismantling work. The revolution counter and the motor fan indicates if separator parts are rotating or not.
  • Page 123 6 Dismantling/Assembly 6.4 Horizontal driving device (MS) Separator with built-on pump a. Remove the pump assembly. See the dismantling instruction for the vertical driving device on page 109 for a detailed description. 3. Remove the revolution counter (1). Apply the brake (2). 4.
  • Page 124 6.4 Horizontal driving device (MS) 6 Dismantling/Assembly 6. Pull off the ball bearing from the worm wheel. Use a washer as a support for the puller. 7. Remove: − the electric motor (1) − the elastic plate (2) − the friction blocks (3). If disconnecting the motor cables, note the positions of cables in the terminal box to reconnect correctly (for correct direction of...
  • Page 125 6 Dismantling/Assembly 6.4 Horizontal driving device (MS) 9. Dismantle the nave in the following way: − remove the screws (1) and then the coupling disc (2) − unscrew the round nut (3) and remove the lock washer − put the coupling disc in place (4) again and pull off the nave with a 3/8”...

  • Page 126: Assembly

    6.4 Horizontal driving device (MS) 6 Dismantling/Assembly 11. Remove the seal ring by using a drift. 12. Remove deposits and clean all parts thoroughly in a suitable cleaning agent. See chapter ‘‘5.5 Cleaning” on page 80. 6.4.3 Assembly 1. Lubricate the O-ring on the sealing washer periphery and the sealing ring with silicone grease.
  • Page 127 6 Dismantling/Assembly 6.4 Horizontal driving device (MS) ✔ Check point ‘‘5.3.8 Worm wheel and worm; wear of teeth” on page 67. 6. Heat the ball bearing and fit it on the worm wheel. When mounting the ball bearings on the worm wheel and shaft, the bearings must be heated in oil to max.
  • Page 128 6.4 Horizontal driving device (MS) 6 Dismantling/Assembly 9. Fit the revolution counter. 10. Fit the bearing shield/built-on pump. Separator with no built-on pump a. Fit the gasket and bearing shield. The parts can be fitted only in one position because of the asymmetrical positioned screw holes.
  • Page 129 6 Dismantling/Assembly 6.4 Horizontal driving device (MS) 12. Fit the elastic plate. ✔ Check point ‘‘5.4.11 Flexible plate in coupling” on page 74. 13. Fit the electric motor. DANGER Disintegration hazards When power cables have been connected, always check direction of rotation. If incorrect, vital rotating parts could unscrew causing disintegration of the machine.

  • Page 130: Feed Pump (Option)

    6.5 Feed pump (option) 6 Dismantling/Assembly Feed pump (option) 6.5.1 Exploded view ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe whatsapp:959440045...
  • Page 131 6 Dismantling/Assembly 6.5 Feed pump (option) Plate 20. Bearing Drive screw 21. Wear gasket Snap ring 22. Impeller Washer 23. Wear gasket Seal ring 24. Bearing O-ring 25. Pump housing Sleeve 26. O-ring 27. Valve cone Flexible coupling 28. Guide pole 9A.

  • Page 132: Dismantling

    6.5 Feed pump (option) 6 Dismantling/Assembly 6.5.2 Dismantling 1. Drain the oil from the worm gear housing. CAUTION Burn hazards Lubricating oil and various machine surfaces can be hot and cause burns. 2. Remove the pipe connections from the pump. 3.
  • Page 133 6 Dismantling/Assembly 6.5 Feed pump (option) 6. Undo the four screws holding the pump shield and remove the shield. 7. Insert two screws (3/8”-16 UNC) into the centre hole of the impeller shafts. Use the screws as a handle to withdraw the impellers. 8.

  • Page 134: Cleaning And Inspection

    6.5 Feed pump (option) 6 Dismantling/Assembly 6.5.3 Cleaning and inspection 1. Remove deposits and clean all parts thoroughly in a suitable cleaning agent. See chapter ‘‘5.5.2 Cleaning agents” on page 81. 2. Examine following parts: Bushings (2) Renew the bushings if they are scratched or there is a play between any impeller shaft and a bushing.

  • Page 135: Assembly

    6 Dismantling/Assembly 6.5 Feed pump (option) Lipseal rings (4) Renew the lipseal rings at MS-service. Note: Turn the rings the right way round, see pos. A in the illustration. 6.5.4 Assembly 1. Check that the lipseal rings are correctly mounted, see description in the “Cleaning and inspection”-section above.
  • Page 136 6.5 Feed pump (option) 6 Dismantling/Assembly 5. Refit the impellers. Check that the hole for the tubular pin is exactly opposite the corresponding hole in the coupling. 6. Drive in the tubular spring pin. 7. Check the axial play with a liner (B). The total axial play (A) must be 0,1 - 0,3 mm.
  • Page 137 6 Dismantling/Assembly 6.5 Feed pump (option) 9. Fit the pump shield. (Four screws, four washers and four nuts.) 10. Check that the clearance on each side of the coupling flexible element is 2 mm. Tighten the stop screw in the coupling half nearest the separator frame with a hexagon wrench.
  • Page 138 6.5 Feed pump (option) 6 Dismantling/Assembly ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe whatsapp:959440045...

  • Page 139: Trouble-Tracing

    7 Trouble-tracing Contents 7.1 Mechanical function 7.1.1 The separator does not start Trouble-tracing 7.1.2 Start-up time too long 7.1.3 Starting power too low 7.1.4 Starting power too high Study the 7.1.5 Separator vibrates System Manual’s 7.1.6 Smell Trouble-tracing chapter first. 7.1.7 Noise (if applicable)

  • Page 140: Mechanical Function

    Mechanical function 7 Trouble-tracing Mechanical function 7.1.1 The separator does not start Cause Corrective actions Page No power supply to the motor Check the power supply Bowl lock screws stops the rotation Release the lock screws 7.1.2 Start-up time too long Cause Corrective actions Page...

  • Page 141: Starting Power Too Low

    Incorrect transmission (50 Hz gear and DANGER: Disintegration hazard 60 Hz power supply) STOP immediately! Install correct transmission. Contact your local Alfa Laval representative, the bowl must be inspected. Incorrect coupling friction blocks (50 Hz DANGER: Disintegration hazard blocks for 60 Hz power supply) STOP immediately and change the friction blocks to suit the power supply frequency.

  • Page 142: Separator Vibrates

    Mechanical function 7 Trouble-tracing 7.1.5 Separator vibrates NOTE Some vibration is normal during the starting and stopping sequences when the separator passes through its critical speed. DANGER Disintegration hazards If excessive vibration occurs, stop separator and keep bowl filled with liquid during rundown. The cause of the vibration must be identified and corrected before the separator is restarted.

  • Page 143: Smell

    7 Trouble-tracing Mechanical function 7.1.6 Smell Cause Corrective actions Page Normal occurrence during start as the None (new) friction blocks slip Brake is applied Release the brake Overheated bearing Renew the bearings Oil level in gear housing is too high or too Check the oil level and remedy if necessary 7.1.7 Noise...

  • Page 144: Speed Too Low

    Mechanical function 7 Trouble-tracing 7.1.8 Speed too low Cause Corrective actions Page Brake is applied Release the brake Coupling friction pads are oily or worn Clean or renew the friction pads Motor failure Repair the motor Damaged or worn bearing Renew the bearings Incorrect gear transmission (60 Hz gear Stop and change the gear transmission to...

  • Page 145: Liquid Flows Through Bowl Casing Drain

    7 Trouble-tracing Mechanical function 7.1.11 Liquid flows through bowl casing drain Cause Corrective actions Page Broken water seal Stop the feed and feed water to create a new water seal Too high throughput Reduce the feed The supply of liquid seal water is not Straighten the hose or clean the strainer sufficient due to clogged strainer, kinked hose or low water pressure...

  • Page 146: Purification Faults

    7.2 Purification faults 7 Trouble-tracing Purification faults 7.2.1 Unsatisfactory separation result Cause Corrective actions Page Gravity disc hole is too small Use a gravity disc with a larger hole Incorrect separating temperature Adjust the temperature Throughput too high Reduce the throughput Sludge space in the bowl is filled Empty the sludge basket in the bowl Disc stack is clogged...

  • Page 147: Broken Water Seal

    7 Trouble-tracing 7.2 Purification faults 7.2.3 Broken water seal Cause Corrective actions Page Gravity disc is too large Use a gravity disc with a smaller hole Separation temperature is too low Increase the temperature Throughput too high Reduce the throughput Sealing water volume is too small Supply more sealing water Seal ring under the gravity disc is...

  • Page 148: Clarification Faults

    7.3 Clarification faults 7 Trouble-tracing Clarification faults 7.3.1 Unsatisfactory separation result Cause Corrective actions Page Separating temperature is too low Adjust the temperature Throughput is too high Reduce the throughput Feed oil contains water Re-assemble and operate the separator as a purifier Disc stack is clogged Clean the bowl discs...

  • Page 149: Technical Reference

    8 Technical Reference Contents 8.1 Technical data 8.9 Machine plates and safety labels 8.2 Basic size drawing, without pump 8.10 Storage and installation 8.10.1 Storage and transport of goods 8.3 Connection list, without pump 8.10.2 Planning and installation 8.10.3 Foundations 8.4 Basic size drawing, with pump 8.5 Connection list, with pump 8.6 Interface description...

  • Page 150: Technical Data

    8.1 Technical data 8 Technical Reference Technical data Alfa Laval ref. 557968 rev. 1 Units according to ISO Standard. The manufacturer reserves the right to change specifications without notice. Product number 881240-22-12 Separator type MAB 206S-24 Purpose Continuous purification of lubricating oils or low viscosity fuel oils...
  • Page 151 8 Technical Reference 8.1 Technical data Feed temperature Minimum0°C Maximum +100 °C Ambient temperature Minimum+5°C Maximum +55 °C Motor (without pump) 4-pole 5,5 kW standard motor, 50 or 60 Hz, 3-phase. Direct on-line start. If Y/D-start is used maximum 5 seconds in Y position. Motor (with pump) 4-pole 12 kW standard motor, 50 or 60 Hz, 3-phase.
  • Page 152 8.1 Technical data 8 Technical Reference Lubricating oil volume 4 litres Weight Separator without motor Net weight approx. 334 kg. Motor 5,5 kW Approx. 40 kg. Motor 12 kW Approx. 72 kg. Complete bowl Approx. 65 kg. Shipping data According to “Basic equipment” Weight 520 kg (Net 400 kg) Volume...
  • Page 153 8 Technical Reference 8.1 Technical data Power consumption at startup, power input vs time. ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe whatsapp:959440045...
  • Page 154 8.1 Technical data 8 Technical Reference Paring disc pressure characteristics. Back pressure vs flow. ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe whatsapp:959440045...
  • Page 155 8 Technical Reference 8.1 Technical data ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe whatsapp:959440045...

  • Page 156: Basic Size Drawing, Without Pump

    8.2 Basic size drawing, without pump 8 Technical Reference Basic size drawing, without pump Alfa Laval ref. 557915 rev. 0 1. Screw 5/8-11 UNC 2. Tightening torque 20 Nm locked with Vertical force not exceeding 12 kN/foot. lock nut 3. Deviation from centre of outer connection of flexible tube = 12 mm Data for connections see ‘‘8.3 Connection...

  • Page 157: Connection List, Without Pump

    8 Technical Reference 8.3 Connection list, without pump Connection list, without pump Alfa Laval ref. 558002 rev. 0 Connection No. Description Requirements/limit Inlet for process liquid - Allowed temperatures Max. 100 °C, min. 0 °C Inlet for liquid seal Fresh water, approx 5,8...

  • Page 158: Basic Size Drawing, With Pump

    8.4 Basic size drawing, with pump 8 Technical Reference Basic size drawing, with pump Alfa Laval ref. 557913 rev. 0 1. Screw 5/8-11 UNC 2. Tightening torque 20 Nm locked with Vertical force not exceeding 12 kN/foot. lock nut 3. Deviation from centre of outer connection of flexible tube = 12 mm Data for connections see ‘‘8.5 Connection...

  • Page 159: Connection List, With Pump

    8 Technical Reference 8.5 Connection list, with pump Connection list, with pump Alfa Laval ref. 558003 rev. 0 Connection No. Description Requirements/limit 201.1 Inlet for process liquid (to pump) - Allowed temperatures Max. 100 °C, min. 0 °C 201.2 Outlet for process liquid (from pump to heater) 201.3...

  • Page 160: Interface Description

    8.6 Interface description 8 Technical Reference Interface description Alfa Laval ref. 557988 rev. 0 8.6.1 General In addition to the Connection List this description informs about limitations and conditions for safe control, monitoring and reliable operation. At the end of the document a function graph and running limitations are to be found.

  • Page 161: Component Description And Signal Processing

    8 Technical Reference 8.6 Interface description • The bowl must be kept filled. • The machine must not be restarted before the reason for the Safety stop has been investigated and action has been taken. In case of emergency condition in the plant, the machine must be stopped in a way that is described in EN 418.

  • Page 162: Function Graph And Running Limitations

    8.6 Interface description 8 Technical Reference 8.6.4 Function graph and running limitations Stand still Starting mode Running mode Stop mode Safety stop mode ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe whatsapp:959440045...

  • Page 163: Lubricants

    8 Technical Reference 8.7 Lubricants Lubricants 8.7.1 Lubrication chart, general Alfa Laval ref. 553216-01 rev. 7 Lubricating points Lubricants Interval The oil bath Lubricating oil as specified in Oil Change: Bowl spindle bearings are ‘‘8.7.2 Recommended 1. Continuous operation:2000h lubricated by oil splash from the lubricating oils”...
  • Page 164 8.7 Lubricants 8 Technical Reference Alfa Laval Lubricating Oil Groups: • Group A oil: a high quality gear oil on paraffin base with stable AW (anti wear) additives. • Group B oil: a high quality gear oil on paraffin base with stable EP (extreme pressure) additives.
  • Page 165 8 Technical Reference 8.7 Lubricants NOTE Check the oil level before start. Top up when necessary. Oil volume see ‘‘4.1.1 Before first start” on page 30. It is of utmost importance to use the lubricants recommended in our documentation. This does not exclude, however, the use of other brands, provided they have equivalently high quality properties as the brands recommended.

  • Page 166: Recommended Lubricating Oils

    Type of frame: B 207 with motor < 12 kW. Three different groups of lubricating oils are approved for this separator. They are designated as Alfa Laval lubricating oil groups A, B and D. The numerical value after the letter states the viscosity grade.

  • Page 167: Recommended Oil Brands

    The following is a list of recommended oil brands. Trade names and designations might vary from country to country, Please contact your local supplier for more information. Alfa Laval lubrication oil group A Viscosity grade VG (ISO 3448/3104) VG 220 Viscosity index VI (ISO 2909) VI >90...
  • Page 168 8.7 Lubricants 8 Technical Reference Standard Designation ISO 12925-1, (ISO 6743/6) ISO-L-CKC or CKE 220 ISO 11158, (ISO 6743/4) ISO-L-HM or HV 220 DIN 51517 part 3 DIN 51517 - CLP 220 DIN 51524 part 2 or 3 (German standard) DIN 51524 - HLP or HVLP 220 ventas@fdm.com.pe fdmsac@gmail.com...
  • Page 169 8 Technical Reference 8.7 Lubricants Paraffinic mineral lubricating oil, category (ISO-L-) CKE 220 Alfa Laval ref. 553218-02 rev. 4 NOTE The following is a list of recommended oil brands. Trade names and designations might vary from country to country, Please contact your local supplier for more information.
  • Page 170 8.7 Lubricants 8 Technical Reference Other oil brands may be used as long as they have equivalently quality as the brands recommended. The oil must have the same viscosity class and shall follow the requirements in one of the standards below. The oil must also be endorsed for worm gear with brass worm wheel.
  • Page 171 Trade names and designations might vary from country to country, Please contact your local supplier for more information. NOTE Brands with Alfa Laval article number are approved and recommended for use. Alfa Laval lubrication oil group D Manufacturer Designation...
  • Page 172 8.7 Lubricants 8 Technical Reference Other oil brands may be used as long as they have equivalently quality as the brands recommended. The oil must have the same viscosity class and ought to follow the ISO standard 12925-1, category ISO-L-CKC, CKD, CKE or CKT (ISO 6743-6) or DIN 51517, part 3 CLP, but shall have a synthetic base oil of polyalphaolefin type (PAO) instead of mineral...

  • Page 173: Recommended Lubricants

    The following is a list of recommended oil brands. Trade names and designations might vary from country to country, Please contact your local supplier for more information. NOTE Brands with Alfa Laval article number are approved and recommended for use. Pastes Manufacturer Designation...
  • Page 174 8.7 Lubricants 8 Technical Reference Pastes for hygienic applications (NSF registered H1 is prefered) Manufacturer Designation Hygienic Comment Alfa Laval No Dow Corning Molykote P1900 NSF Registered H1 (7 Jan 2004) Molykote TP 42 Molykote D Bremer & Geralyn F.L.A...
  • Page 175 8 Technical Reference 8.7 Lubricants Silicone grease for rubber rings Manufacturer Designation Follows according. to Alfa Laval No Manufacturer Dow Corning Molykote 111 Conform to the FDA 539474-02 (100 g) (Compound) regulations (21 CFR 178.3570) for occasional 539474-03 (25 g) food contact.
  • Page 176 8.7 Lubricants 8 Technical Reference Greases for ball and roller bearings NOTE Always follow the specific recommendation for lubrication as advised by the manufacturer. Manufacturer Designation Hygienic comment Energrease MP-MG2 Energrease LS2 Energrease LS-EP2 Castrol APS 2 Spheerol EPL 2 Chevron Chevron Dura-Lith Grease EP2 Texaco Multifak AFB 2...
  • Page 177 8 Technical Reference 8.7 Lubricants ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe whatsapp:959440045...

  • Page 178: Electric Components

    8 Technical Reference Electric components 8.8.1 Electric motor, 5,5 kW Alfa Laval ref. 552811 rev. 4 A = Shaft dimension B = Knock out openings for M25 + M20 cable glands on both sides C = Metal fan cover D = Casted lifting lugs on both sides E = 4 holes Ø...
  • Page 179 200V - 240V acc to variant code +451. Connection to separate terminal board in the main terminal box acc. to attached connection diagram. NOTE For complete information about motor variants, please contact your Alfa Laval representative. ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe whatsapp:959440045...

  • Page 180: Electric Motor, 12 Kw

    8.8 Electric components 8 Technical Reference 8.8.2 Electric motor, 12 kW Alfa Laval ref. 552813 rev. 5 A = Shaft dimension B = Knock out openings for cable glands on both sides C = Casted lifting lugs on both sides D = 4 holes Ø...
  • Page 181 The motors can be provided with element for 200V - 240V acc. to variant code +451. Connection to separate terminal board in the main terminal box acc. to attached connection diagram. NOTE For complete information about motor variants, please contact your Alfa Laval representative. ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe whatsapp:959440045...
  • Page 182 8.8 Electric components 8 Technical Reference ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe whatsapp:959440045...

  • Page 183: Cover Interlocking Switch (Option)

    8 Technical Reference 8.8 Electric components 8.8.3 Cover interlocking switch (option) Alfa Laval ref. 557822 rev. 0 Switch rating, voltage: Max. 500 V current: Max. 3 A For other technical information see chapter ‘‘8.3 Connection list, without pump” on page 155 and ‘‘8.6 Interface description”...

  • Page 184: Machine Plates And Safety Labels

    8.8 Machine plates and safety labels 8 Technical Reference Machine plates and safety labels Alfa Laval ref. 557975 rev. 0 1. Machine plate Separator MAB 206S-24 Manufacturing serial No / Year XXXX Product No 881240-22-12 Frame 549884-01/02/03/04 (50/60 Hz/ with...
  • Page 185 8 Technical Reference 8.8 Machine plates and safety labels 2. Name plate 3. Safety label Text on label: DANGER Read the instruction manuals before installation, operation and maintenance. Consider inspection intervals. Failure to strictly follow instructions can lead to fatal injury. If excessive vibration occur, stop separator and keep bowl filled with liquid during rundown.

  • Page 186: Storage And Installation

    8.10 Storage and installation 8 Technical Reference 8.10 Storage and installation 8.10.1 Storage and transport of goods Storage Specification Upon arrival to the store, check all components and keep them: 1. Well stored and protected from mechanical damage and theft. 2.
  • Page 187 8 Technical Reference 8.10 Storage and installation A separator can be delivered with different types of protection as described below. The illustrations show an other separator type than this book is intended for. • Fixed on a pallet. The separator must be stored in a storage room well protected from mechanical damage and theft and also dry and protected from rain and humidity.

  • Page 188: Planning And Installation

    8.10 Storage and installation 8 Technical Reference Transport Specification • During transport of the separator, the frame hood and bowl must always be removed from the machine. • When lifting a separator it must always be hung securely. See chapter ‘‘5.8 Lifting instructions”...
  • Page 189 8 Technical Reference 8.10 Storage and installation Important measurements Important measurements are the minimum lifting height for lifting tackle, shortest distance between driving motor and wall, free passage for dismantling and assembly, maintenance and operation. Plan your installation with sufficient room for the controls and operation so that instruments are easily visible.

  • Page 190: Foundations

    8.10 Storage and installation 8 Technical Reference 8.10.3 Foundations Specification • The separator should be installed at floor level, see ‘‘8.2 Basic size drawing, without pump” on page 154 or ‘‘8.4 Basic size drawing, with pump” on page 156. • The separator must be installed on a strong and rigid foundation to reduce the influence of vibrations from adjacent machinery.
  • Page 191 You can do this by copying this page and sending it by fax, or you could mail it, or hand it over to your local Alfa Laval representative. Alfa Laval Tumba AB, Separator Manuals, dept. PPDM, SE-147 80 Tumba, Sweden. Fax: +46 8 530 310 40.
  • Page 192 ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe whatsapp:959440045...
  • Page 193 If you wish to order extra copies of this manual, please copy this page and give it to your local Alfa Laval representative, who will advise you of current prices. Your local Alfa Laval representative will also be able to help you with information regarding any other manuals.
  • Page 194 ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe whatsapp:959440045...

  • Page 195: Index

    Index Worm wheel and worm, wear of teeth Clarification Assembly Oil discharge through water outlet Bowl Start procedure Feed pump Unsatisfactory separation result General directions Clarifier Horizontal driving device Definition Inlet/outlet Clarifier bowl Tools (special) Characteristic parts Vertical driving device Cleaning Bowl discs External cleaning...
  • Page 196 Recommended oil brands Recommended pastes and bonded coatings 171 Electric motor Volume of lubricating oil Emergency stop. See Safety stop Lubricating oil volume Erosion Lubrication Check points Oil change procedure Maintenace logs Excessive vibration during starting sequence Exploded views Bowl Machine plates and safety labels Horizontal driving device Main parts...
  • Page 197 Oil discharge through water outlet Separator does not start Oil. See also Lubrication Separator vibration level Operation Service instructions. See Check points Outgoing water contaminated by oil Service kits Shutdowns Sludge and water space volume Smell Power consumption Speed Power transmission Speed too low Description Start...
  • Page 198 Vibration level Warning signs Water in oil sump Weight Worm gear Function Number of teeth Wear of teeth ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe whatsapp:959440045...

Table of Contents

Save PDF
