Alfa Laval MAB 104B-14/24 Instruction Book

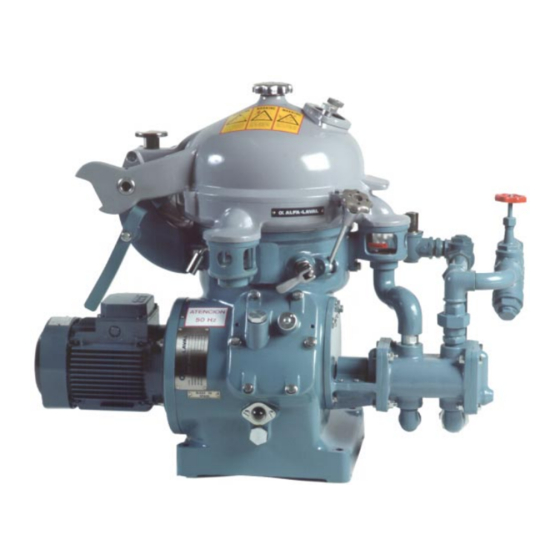

High speed separator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Instruction book
High Speed Separator
MAB 104B-14/24
ventas@fdm.com.pe
Product No.
fdmsac@gmail.com
Book No.
whatsapp:959440045
881241-08-14/3
1270276-02 Rev. 8 www.fdm.com.pe

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAB 104B-14/24 and is the answer not in the manual?

Questions and answers

Related Manuals for Alfa Laval MAB 104B-14/24

Summary of Contents for Alfa Laval MAB 104B-14/24

  • Page 1 Instruction book High Speed Separator MAB 104B-14/24 ventas@fdm.com.pe Product No. 881241-08-14/3 fdmsac@gmail.com 1270276-02 Rev. 8 www.fdm.com.pe Book No. whatsapp:959440045...
  • Page 2 Telephone: +46 8 530 650 00 Telefax: +46 8 530 310 40 © Alfa Laval Tumba AB 20 June 2006 This publication or any part there of may not be reproduced or transmitted by any process or means without prior written permission of Alfa Laval Tumba AB.

  • Page 3: Table Of Contents

    Contents Read this first Safety Instructions 2.1 Warning signs in text 2.2 Environmental issues 2.3 Requirements of personnel Separator Basics 3.1 Basic principles of separation 3.2 Overview 3.3 Separating function 3.4 Mechanical function 3.5 Definitions Operating Instructions 4.1 Operating routine 4.2 Cleaning the bowl Service Instructions 5.1 Periodic maintenance...
  • Page 4 Dismantling/Assembly 6.1 General 6.2 Dismantling 6.3 Assembly 6.4 Feed and discharge pumps 6.5 Frame feet Trouble-tracing 7.1 Trouble tracing procedure 7.2 Mechanical function 7.3 Purification faults 7.4 Clarification faults Technical Reference 8.1 Product description 8.2 Technical data 8.3 Basic size drawing, separator without pump 8.4 Basic size drawing, separator with pump and no heater...
  • Page 5 Read and understand instruction manuals and observe the warnings before installation, operation, service and maintenance. Not following the instructions can result in serious accidents. In order to make the information clear only foreseeable conditions have been considered. No warnings are given, therefore, for situations arising from the unintended usage of the machine and its tools.
  • Page 6 ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe whatsapp:959440045...

  • Page 7: Read This First

    ‘‘4 Operating Instructions” on page If the separator has been delivered and installed by Alfa Laval as part of a processing system, this manual is a part of the System Manual. In this case, study carefully all the instructions in the System Manual.
  • Page 8 1 Read this first Service Instructions This chapter gives instructions for daily checks, cleaning, oil changes, servicing and check points. Dismantling / Assembly This chapter contains step-by-step instructions for dismantling and assembly of the separator for service and repair. Trouble-tracing Refer to this chapter if the separator functions abnormally.

  • Page 9: Safety Instructions

    • Ensure that personnel are competent and have sufficient knowledge of maintenance and operation, especially concerning emergency stopping procedures. • Use only Alfa Laval genuine spare parts and the special tools supplied. ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe whatsapp:959440045...
  • Page 10 • Use the separator only for the purpose and parameter range specified by Alfa Laval. • Check that the gear ratio is correct for power frequency used. If incorrect, subsequent overspeed may result in a serious break down.
  • Page 11 1 Safety Instructions Entrapment hazards • Make sure that rotating parts have come to a complete standstill before starting any dismantling work. • To avoid accidental start, switch off and lock power supply before starting any dismantling work. Assemble the machine completely before start.
  • Page 12 1 Safety Instructions Noise hazards • Use ear protection in noisy environments. Burn hazards • Lubrication oil and various machine surfaces can be hot and cause burns. Skin irritation hazards • When using chemical cleaning agents, make sure you follow the general rules and suppliers recommendation regarding ventilation, personnel protection etc.
  • Page 13 1 Safety Instructions Cut hazards • Sharp edges on bowl discs and threads can cause cuts. Flying objects • Risk for accidental release of snap rings and springs when dismantling and assembly. Health hazard • Risk for unhealthy dust when handling friction blocks/pads.

  • Page 14: Warning Signs In Text

    1 Safety Instructions Warning signs in text Pay attention to the safety instructions in this manual. Below are definitions of the three grades of warning signs used in the text where there is a risk for injury to personnel. DANGER Type of hazard DANGER indicates an imminently hazardous situation which, if not avoided,...

  • Page 15: Environmental Issues

    1 Safety Instructions Environmental issues Unpacking Packing material consists of wood, plastics, cardboard boxes and in some cases metal straps. Wood and cardboard boxes can be reused, recycled or used for energy recovery. Plastics should be recycled or burnt at a licensed waste incineration plant.

  • Page 16: Requirements Of Personnel

    1 Safety Instructions Requirements of personnel Only skilled or instructed persons are allowed to operate the machine, e.g. operating and maintenance staff. • Skilled person: A person with technical knowledge or sufficient experience to enable him or her to perceive risks and to avoid hazards which electricity/mechanics can create.

  • Page 17: Basic Principles Of Separation

    3 Separator Basics Contents 3.1 Basic principles of separation 3.1.1 Factors influencing the separation result 3.2 Overview 3.3 Separating function 3.3.1 Purification 3.3.2 Purifier bowl 3.3.3 Liquid seal 3.3.4 Position of interface - gravity disc 3.3.5 Clarification 3.4 Mechanical function 3.4.1 Main parts 3.4.2...

  • Page 18: Basic Principles Of Separation

    3.1 Basic principles of separation 3 Separator Basics Basic principles of separation The purpose of separation can be: • to free a liquid of solid particles, • to separate two mutually insoluble liquids with different densities while removing any solids presents at the same time, •...

  • Page 19: Factors Influencing The Separation Result

    3 Separator Basics 3.1 Basic principles of separation 3.1.1 Factors influencing the separation result Separating temperature For some types of process liquids (e.g. mineral oils) a high separating temperature will normally increase the separation capacity. The temperature influences oil viscosity and density and should be kept constant throughout the separation.
  • Page 20 3.1 Basic principles of separation 3 Separator Basics Phase proportions An increased quantity of water in an oil will influence the separating result through the optimum transporting capacity of the disc stack. An increased water content in the oil can be compensated by reducing the throughput in order to restore the optimum separating efficiency.
  • Page 21 3 Separator Basics 3.1 Basic principles of separation Disc stack A neglected disc stack containing deformed discs or discs coated with deposits will impair the separating result. Gravity disc The position of the interface is adjusted by altering the outlet diameter of the heavy liquid phase, that is by exchanging the gravity disc.

  • Page 22: Overview

    3.2 Overview 3 Separator Basics Overview The separator comprises a processing part and a driving part. It is driven by an electric motor. Mechanically, the separator machine frame is composed of a bottom part and a collecting cover. The motor is flanged to the frame. The frame feet have vibration damping.

  • Page 23: Separating Function

    3 Separator Basics 3.3 Separating function Separating function Unseparated process liquid is fed into the bowl through the inlet pipe and is pumped via the distributor towards the periphery of the bowl. When the process liquid reaches holes of the distributor, it will rise through the channels formed by the disc stack where it is evenly distributed.

  • Page 24: Purification

    3.3 Separating function 3 Separator Basics 3.3.1 Purification Centrifugal force Bowl parts Process liquid Diameter of inner outlet. Heavy liquid phase Hole diameter of gravity disc. Light liquid phase Diameter of interface. Sediment (solids) ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe whatsapp:959440045...

  • Page 25: Purifier Bowl

    3 Separator Basics 3.3 Separating function This bowl has two liquid outlets. The process liquid flows through the centre and out under the distributor. The liquid flows up and is divided among the interspaces between the bowl discs, where the liquid phases are separated from each other by action of the centrifugal force.

  • Page 26: Liquid Seal

    3.3 Separating function 3 Separator Basics 3.3.3 Liquid seal In a purifier bowl the liquid seal prevents the light liquid phase from passing the outer edge of the top disc, thus eliminating flow out through the outer path. The bowl must therefore be filled with sealing liquid before the process liquid is admitted.
  • Page 27 3 Separator Basics 3.3 Separating function The gravity disc is located inside the bowl hood. A gravity disc with a larger hole will move the interface towards the bowl periphery, whereas a disc with a smaller hole will place it closer to the bowl centre.

  • Page 28: Clarification

    3.3 Separating function 3 Separator Basics 3.3.5 Clarification Centrifugal force This bowl has one liquid outlet. The process liquid flows through the centre of the distributor. The liquid flows up and is divided among the Process liquid interspaces between the bowl discs, where the sediment is separated from the liquid by action of the centrifugal force.
  • Page 29 3 Separator Basics 3.3 Separating function Clarifier bowl The illustration shows characteristic parts of the clarifier bowl: 1. Discharge collar 2. Bowl disc without caulks (metal strips) Clarifier bowl ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe whatsapp:959440045...

  • Page 30: Mechanical Function

    3.4 Mechanical function 3 Separator Basics Mechanical function 3.4.1 Main parts 1. Separator bowl. 2. Vertical driving device. 3. Horizontal driving device. 4. Double pump. Separator with double pump ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe whatsapp:959440045...

  • Page 31: Inlet And Outlet

    3 Separator Basics 3.4 Mechanical function 3.4.2 Inlet and outlet The inlet and outlets consist of the following parts: • The inlet to pump (201.1). • The outlet from pump to heater (201.2). • The inlet from heater to separator (201.3). •...

  • Page 32: Mechanical Power Transmission

    3.4 Mechanical function 3 Separator Basics 3.4.3 Mechanical power transmission The main parts of the power transmission between motor and bowl are illustrated in the figure. The friction coupling ensures a gentle start and acceleration and at the same time prevents overloading of the worm gear and motor.

  • Page 33: Sensors And Indicators

    3 Separator Basics 3.4 Mechanical function 3.4.5 Sensors and indicators Revolution counter A revolution counter indicates the speed of the separator and is driven from the worm wheel shaft. The correct speed is needed to achieve the best separating results and for reasons of safety. The number of revolutions on the revolution counter for correct speed is shown in chapter ‘‘8...

  • Page 34: Definitions

    3.5 Definitions 3 Separator Basics Definitions Back pressure Pressure in the separator outlet. Clarification Liquid/solids separation with the intention of separating particles, normally solids, from a liquid having a lower density than the particles. Clarifier disc An optional disc, which replaces the gravity disc in the separator bowl, in the case of clarifier operation.

  • Page 35: Operating Instructions

    4 Operating Instructions Contents 4.1 Operating routine 4.1.1 Before first start The operating procedure: 4.1.2 Selection of gravity disc 4.1.3 Before normal start 4.1.4 Starting and running-up Before start procedure 4.1.5 At full speed 4.1.6 During operation 4.1.7 Stopping procedure 4.1.8 Emergency stop Start and run-up...

  • Page 36: Operating Routine

    4.1 Operating routine 4 Operating Instructions Operating routine These instructions are related only to the separator itself. NOTE If there is a system manual, always follow the operating instructions of the system manual. If there is no system manual the instructions below are to be followed 4.1.1 Before first start...

  • Page 37: Selection Of Gravity Disc

    4 Operating Instructions 4.1 Operating routine 4.1.2 Selection of gravity disc The separator is delivered with a set of gravity discs. The diameter (d) of the gravity disc (2) sets the position of the interface in the separator. The separation efficiency can be optimized by selection of the correct diameter for each process.
  • Page 38 4.1 Operating routine 4 Operating Instructions 3. Check that the hooks and screws for the collecting cover are fully tightened. Hook bolts for collecting cover 4. Read the oil level. The middle of the sight glass indicates the minimum level. Refill if necessary.

  • Page 39: Starting And Running-Up Procedure

    4 Operating Instructions 4.1 Operating routine 4.1.4 Starting and running-up procedure 1. After starting the separator, visually check to be sure that the motor and separator have started to rotate. 2. Check the direction of rotation. The revolution counter should run counter-clockwise. Direction of rotation 3.

  • Page 40: At Full Speed

    4.1 Operating routine 4 Operating Instructions 5. Motor current indicates when the separator has come to full speed. Current increases when the coupling engages... 6. During start the current reaches a peak and then slowly drops to a low and stable value. For normal length of the start-up period see ‘‘8.2 Technical data”...

  • Page 41: During Operation

    4 Operating Instructions 4.1 Operating routine 4.1.6 During operation Do regular checks on: • feed inlet temperature (if applicable) • collecting tank level • sound/vibration of the separator • motor current. 4.1.7 Stopping procedure 1. If running the separator as a purifier, feed sealing water.

  • Page 42: Emergency Stop

    NOTE After an emergency stop the cause of the fault must be identified. If all parts have been checked and the cause remains unclear, contact Alfa Laval for advice. ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe whatsapp:959440045...

  • Page 43: Cleaning The Bowl

    4 Operating Instructions 4.2 Cleaning the bowl Cleaning the bowl The separated sludge is accumulating on the inside surface of the separator bowl. How often the separator needs to be cleaned, depends on the amount of sediment entering the separator. High solids content or high throughput has the consequence that the cleaning needs to be done more often.

  • Page 44: Disc Stack

    4.2 Cleaning the bowl 4 Operating Instructions 4.2.2 Disc stack When the sediment is not sticky, the disc stack can be cleaned by “hurling”. 1. Clean the other bowl parts. 2. Assemble the bowl. 3. Close and lock the collecting cover. 4.
  • Page 45 4 Operating Instructions 4.2 Cleaning the bowl Purifier and clarifier bowl Purifier bowl Clarifier bowl The arrows indicate position of guides in the bowl. Lubrication needed Molykote 1000 The assembly procedure is described in ‘‘6.3.3 Bowl” on page 103. ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe whatsapp:959440045...
  • Page 46 4.2 Cleaning the bowl 4 Operating Instructions ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe whatsapp:959440045...

  • Page 47: Service Instructions

    5 Service Instructions Contents 5.1 Periodic maintenance 5.1.1 Introduction 5.1.2 Maintenance intervals 5.1.3 Maintenance procedure 5.1.4 Service kits 5.2 Maintenance Logs 5.2.1 Daily checks 5.2.2 Oil change 5.2.3 IS - Intermediate Service 5.2.4 MS-Major Service 5.3 MS - Check points 5.3.1 Corrosion 5.3.2...
  • Page 48 5 Service Instructions 5.4 Cleaning 5.4.1 External cleaning 5.4.2 Cleaning agents 5.4.3 Cleaning of bowl discs 5.5 When changing oil 5.5.1 Oil change procedure 5.6 Common maintenance directions 5.6.1 Vibration 5.6.2 Ball and roller bearings 5.6.3 Friction coupling 5.6.4 Shutdowns 5.7 Lifting instructions ventas@fdm.com.pe fdmsac@gmail.com...

  • Page 49: Periodic Maintenance

    5 Service Instructions 5.1 Periodic maintenance Periodic maintenance 5.1.1 Introduction Periodic, preventive maintenance reduces the risk of unexpected stoppages and breakdowns. Maintenance logs are shown on the following pages in order to facilitate periodic maintenance. WARNING Disintegration hazards Separator parts that are worn beyond their safe limits or incorrectly assembled may Periodic maintenance prevents stoppages cause severe damage or fatal injury.
  • Page 50 5.1 Periodic maintenance 5 Service Instructions MS - Major Service consists of an overhaul of the complete separator every 12 months or 8000 operating hours. An Intermediate Service is performed, and the flat belt, friction elements, seals and bearings in the bottom part are renewed.

  • Page 51: Maintenance Procedure

    Major Service the Spare Parts Catalogue. NOTE Always use Alfa Laval genuine parts as otherwise the warranty will become invalid. Alfa Laval takes no responsibility for the safe operation of the equipment if non-genuine spare parts are used. ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe...

  • Page 52: Maintenance Logs

    Discuss your problems with an Alfa Laval representative and, when necessary, request a visit by an Alfa Laval Service engineer. Rate of corrosion and erosion and notification of cracks should also be a part of this log. Note the extent of damage and date the log entries so that the rate of deterioration can be observed.

  • Page 53: Oil Change

    5 Service Instructions 5.2 Maintenance Logs 5.2.2 Oil change The oil change and check of worm gear should be carried out every 1500 * hours of operation. Main component and activity Part Page Notes Worm wheel shaft and gear housing Check Worm wheel and worm Renew...

  • Page 54: Is - Intermediate Service

    5.2 Maintenance Logs 5 Service Instructions 5.2.3 IS - Intermediate Service Name of plant: Local identification: Separator: MAB 104B-14/24 Manufacture No./Year: Total running hours: Product No.: 881241-08-14/3 Date: Signature: Renew all parts included in the Intermediate Service kit (IS) and do the following activities.

  • Page 55: Ms-Major Service

    5 Service Instructions 5.2 Maintenance Logs 5.2.4 MS-Major Service Name of plant: Local identification: Separator: MAB 104B-14/24 Manufacture No./Year: Total running hours: Product No.: 881241-08-14/3 Date: Signature: Main component and activity Part Page Notes Inlet and outlet Clean and inspect Threads of inlet –...
  • Page 56 5.2 Maintenance Logs 5 Service Instructions Main component and activity Part Page Notes Vertical driving device Clean and check Bowl spindle Buffers – Ball bearing housing indentations Radial wobble of bowl spindle Renew Ball bearings and top bearing springs Brake Clean and check Spring and brake shoe Renew...

  • Page 57: Ms - Check Points

    Disintegration hazard Inspect regularly for corrosion damage. Inspect frequently if the process liquid is corrosive. Always contact your Alfa Laval representative if you suspect that the largest depth of the corrosion damage exceeds 1,0 mm or if cracks Main bowl parts have been found.
  • Page 58 5.3 MS - Check points 5 Service Instructions • Exposed to a stationary solution. • In a crevice. • Covered by deposits. • Exposed to a solution that has a low pH value. Corrosion damage caused by chlorides on stainless steel begins as small dark spots that can be difficult to detect.
  • Page 59 5 Service Instructions 5.3 MS - Check points ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe whatsapp:959440045...

  • Page 60: Erosion

    Disintegration hazard Inspect regularly for erosion damage. Inspect frequently if the process liquid is erosive. Always contact your Alfa Laval representative if the largest depth of any erosion damage exceeds 1.0 mm. Valuable information as to the nature of the damage can be recorded using photographs, plaster impressions or hammered-in lead.

  • Page 61: Cracks

    Always renew a part if cracks are present. It is particularly important to inspect for cracks in rotating parts. Always contact your Alfa Laval representative if you suspect that the largest depth of the damage exceeds 1.0 mm. Do not continue to use the separator until it has been inspected and cleared for operation by Alfa Laval.
  • Page 62 5.3 MS - Check points 5 Service Instructions NOTE Insufficient pressure in disc stack can cause out of balance vibration and reduced lifetime of ball bearings. Compress the disc stack by tightening the lock ring, see chapter ‘‘6.3.3 Bowl” on page 103.

  • Page 63: Lock Ring; Wear And Damage

    If thread wear is observed, mark the bowl hood at the new position of the alignment mark on the lock ring by punching in a new alignment mark. Contact Your Alfa Laval representative • If the original mark on the lock ring passes the corresponding mark on the bowl hood by more than 25°...

  • Page 64: Radial Wobble Of Bowl Spindle

    If wobble is too large, renew all the ball bearings on the spindle. Measure wobble after assembly. If it is still Rotate spindle by hand excessive, the spindle is probably damaged and must be renewed, contact your Alfa Laval representative. ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe...

  • Page 65: Height Position Of Bowl / Bowl Spindle

    34-36 mm. Alfa Laval ref. 537541, rev. 0 Adjustment is made with adjustment rings (1) under the thrust bearing at the bottom of the spindle.

  • Page 66: Bowl Spindle Cone And Bowl Body Nave

    5.3 MS - Check points 5 Service Instructions 5.3.8 Bowl spindle cone and bowl body nave Impact marks on the spindle cone or in the bowl body nave may cause poor fit and out-of-balance vibrations. The bowl spindle and the nave should also be checked if the bowl spindle has been dismantled or if the bowl runs roughly.

  • Page 67: Coupling Disc Of Motor

    5 Service Instructions 5.3 MS - Check points 5.3.9 Coupling disc of motor The position of the coupling disc on the motor shaft is establishing the location of the friction pads inside the coupling. If the coupling disc is loosened without first marking its position on the motor shaft, the correct position must be determined again.

  • Page 68: Friction Pads

    5.3 MS - Check points 5 Service Instructions 5.3.10 Friction pads Worn or oily pads will cause a long running-up period. Renew all the pads even when only one of them is worn. If the pads are oily: • Clean the pads as well as the inside of the coupling drum with a suitable degreasing agent.

  • Page 69: Brake

    5 Service Instructions 5.3 MS - Check points 5.3.11 Brake A worn or oily brake lining will lengthen the stopping time. Remove the bracket with the brake. Examine the friction element. • Renew the lining when the friction material is worn down.

  • Page 70: Top Bearing Springs

    5.3 MS - Check points 5 Service Instructions 5.3.12 Top bearing springs Weakened or broken buffer springs (2) may give rise to machine vibration (rough bowl running). The condition (stiffness) of a spring can hardly be determined without using special testing equipment.

  • Page 71: Worm Wheel And Worm; Wear Of Teeth

    5 Service Instructions 5.3 MS - Check points 5.3.14 Worm wheel and worm; wear of teeth Check the teeth of worm wheel and worm for wear, see ‘‘ Tooth appearance examples” on page Examine the contact surfaces and compare the tooth profiles.
  • Page 72 5.3 MS - Check points 5 Service Instructions Tooth appearance examples Satisfactory teeth Uniform wear of contact surfaces. Surfaces are smooth. Good contact surfaces will form on the teeth when the gear is subjected to only moderate load during its running-in period. Satisfactory teeth Worn teeth Permissible wear is as a rule 1/3 of the thickness...

  • Page 73: Cover Interlocking Switch (Option)

    5 Service Instructions 5.3 MS - Check points 5.3.15 Cover interlocking switch (option) Alfa Laval ref. 535868, rev. 2 / 557237, rev. 1 Switch rating, voltage: Max. 500 V current : Max. 3 A For other technical information see chapter ‘‘8.6...

  • Page 74: Cleaning

    5.4 Cleaning 5 Service Instructions Cleaning 5.4.1 External cleaning The external cleaning of the frame and motor should be restricted to brushing, sponging or wiping while the motor is running or is still hot. Use a sponge or cloth and a brush when cleaning Never wash down a separator with a direct water stream.

  • Page 75: Cleaning Agents

    Alfa Laval cleaning liquid for lube and fuel oil sludge. It should also act as a dispersant and separators is available in 25 litres plastic containers emulsifier for oil.
  • Page 76 5.4 Cleaning 5 Service Instructions For parts of the driving devices Use white spirit, cleaning-grade kerosene or diesel oil. 1. Worm wheel 2. Worm Oiling (protect surfaces against corrosion) Protect cleaned carbon steel parts against corrosion by oiling. Separator parts that are not assembled after cleaning must be wiped and coated with a thin layer of clean oil and protected from dust and dirt.

  • Page 77: Cleaning Of Bowl Discs

    5 Service Instructions 5.4 Cleaning 5.4.3 Cleaning of bowl discs Bowl discs Handle the bowl discs carefully so as to avoid damage to the surfaces during cleaning. NOTE Mechanical cleaning is likely to scratch the disc surfaces causing deposits to form quicker and adhere more firmly.

  • Page 78: When Changing Oil

    5.5 When changing oil 5 Service Instructions When changing oil Check at each oil change Check the teeth of both the worm wheel and worm for wear, see ‘‘5.3.14 Worm wheel and worm; wear of teeth” on page 5.5.1 Oil change procedure NOTE Before adding or renewing lubricating oil in the worm gear housing, the information...

  • Page 79: Common Maintenance Directions

    5 Service Instructions 5.6 Common maintenance directions Common maintenance directions 5.6.1 Vibration Vibration or noise often indicates that something is incorrect. Use vibration analysis instrument to periodically check and record the level of vibration. See the illustration where to take measurements. The level of vibration should not exceed 9.0 mm/s (RMS).

  • Page 80: Ball And Roller Bearings

    The bearings used for the bowl spindle are special to withstand the speed, vibration, temperature and load characteristics of high- speed separators. Only Alfa Laval genuine spare parts should be used. Outer race A bearing that in appearance looks equivalent to...
  • Page 81 5 Service Instructions 5.6 Common maintenance directions Cleaning and inspection Check shaft (spindle) end and/or bearing seat in the housing for damage indicating that the bearing has rotated on the shaft (spindle) and/or in the housing respectively. Renew the damaged part(s), if the faults cannot be remedied by polishing.

  • Page 82: Friction Coupling

    5.6 Common maintenance directions 5 Service Instructions • There are several basic rules for assembling cylindrical bore bearings: − Never directly strike a bearing’s rings, cage or rolling elements while assembling. A ring may crack or metal fragments break off. −...

  • Page 83: Shutdowns

    5 Service Instructions 5.6 Common maintenance directions 5.6.4 Shutdowns If the separator is shut down for a period of time, the following must be carried out: • Remove the bowl, according to instructions in chapter ‘‘6 Dismantling/Assembly” on page NOTE The bowl must not be left on the spindle during standstill for more than one week.

  • Page 84: Lifting Instructions

    5.7 Lifting instructions 5 Service Instructions Lifting instructions Alfa Laval ref. 558102, rev. 0 For lifting parts and assemblies of parts use lifting slings, working load limit (WLL): 300 kg. Lifting the separator 1. Remove the separator bowl, see dismantling instructions in ‘‘6.2.1 Bowl”...

  • Page 85: Dismantling/Assembly

    6 Dismantling/Assembly Contents 6.1 General 6.1.1 References to check points 6.1.2 Tools 6.1.3 Tightening of screws 6.2 Dismantling 6.2.1 Bowl 6.2.2 Vertical driving device 6.2.3 Horizontal driving device 6.3 Assembly 6.3.1 Horizontal driving device 6.3.2 Vertical driving device 6.3.3 Bowl 6.4 Feed and discharge pumps 6.4.1 General description...

  • Page 86: General

    6.1 General 6 Dismantling/Assembly General The parts must be handled carefully. Don’t place parts directly on the floor, but on a clean rubber mat, fibreboard or a suitable pallet. 6.1.1 References to check points In the text you will find references to the check point instructions in Chapter 5.

  • Page 87: Dismantling

    6 Dismantling/Assembly 6.2 Dismantling Dismantling • To avoid accidental start, switch off and lock power supply. WARNING Entrapment hazards Lock power supply Make sure that rotating parts have come to a complete standstill before starting any dismantling work. The revolution counter indicates if separator parts are rotating or not.
  • Page 88 6.2 Dismantling 6 Dismantling/Assembly 2. Loosen the hook bolts and remove the collecting cover. Hook bolts 3. Tighten both lock screws. The bowl parts can remain hot for a considerable time after the separator has come to a standstill. Tighten both lock screws 4.
  • Page 89 6 Dismantling/Assembly 6.2 Dismantling 5. Unscrew the large lock ring by using the special tool; “Spanner for lock ring” and a tin hammer. Left-hand thread! Large lock ring 6. Lift off gravity disc. Note! If the gravity disc has to be replaced owing to changed operating conditions.

  • Page 90: Vertical Driving Device

    6.2 Dismantling 6 Dismantling/Assembly 8. Soak and clean all parts thoroughly in suitable cleaning agent, see ‘‘5.4 Cleaning” on page Remove O-rings and renew them with spares from the Major Service kit. ✔ Check point ‘‘5.3.1 Corrosion” on page ‘‘5.3.2 Erosion” on page ‘‘5.3.3 Cracks”...
  • Page 91 6 Dismantling/Assembly 6.2 Dismantling 2. Push worm wheel aside. 3. Loosen the spring casing. Fit the cap nut to shaft top and lift out the vertical driving device. 4. Loosen the buffers and remove housing. ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe whatsapp:959440045...
  • Page 92 6.2 Dismantling 6 Dismantling/Assembly 5. Remove the collar. Left-hand thread! 6. Use the puller tool to dismantle the upper ball bearing. 7. Remove the snap ring. WARNING Risk for eye injury by flying snap ring Use the correct pliers for dismantling and assembly of snap ring to avoid accidental release.

  • Page 93: Horizontal Driving Device

    6 Dismantling/Assembly 6.2 Dismantling 8. Remove the ball bearing sleeve together with thrust ball bearing and height adjusting ring(s). 9. Pull off lower ball bearing gently. 6.2.3 Horizontal driving device 1. Drain gear housing from oil see ‘‘5.5.1 Oil change procedure” on page 78.
  • Page 94 6.2 Dismantling 6 Dismantling/Assembly 2. Remove lock ring, sight glass and seal ring (valid for machine with feed and discharge pump). For machine without pump go to point 5. 3. Loosen screws of inspection box. 4. Remove coupling guard and force out the tubular pin in coupling half on horizontal driving shaft.
  • Page 95 6 Dismantling/Assembly 6.2 Dismantling 5. Loosen end shield. Remove pump together with inspection box. For machine without pump: Loosen and remove guard. Force out the pin at shaft end and remove space sleeve. 6. Remove the motor. CAUTION Inhalation hazard When handling friction blocks/pads use a dust mask to make sure not to inhalate any dust.
  • Page 96 6.2 Dismantling 6 Dismantling/Assembly 8. Loosen the three screws holding the sealing washer. 9. Knock gently on shaft end to get the bearings out of their seats. Then use the worm wheel to knock off bearing from shaft. Remove bearing and worm wheel. 10.

  • Page 97: Assembly

    6 Dismantling/Assembly 6.3 Assembly Assembly Clean all parts in a degreasing agent and renew parts supplied in the Spare parts kits. ✔ Check point ‘‘5.3.1 Corrosion” on page ‘‘5.3.2 Erosion” on page ‘‘5.3.3 Cracks” on page ‘‘5.3.12 Top bearing springs” on page ‘‘5.3.13 Ball bearing housing”...
  • Page 98 6.3 Assembly 6 Dismantling/Assembly 3. Enter the worm wheel on shaft and force the worm wheel shaft to its position in the frame, so that the ball bearing enters correctly into its seat. Observe that largest ends of the holes for conical pin in shaft and worm wheel should point in same direction.
  • Page 99 6 Dismantling/Assembly 6.3 Assembly 5. Lift the motor in position and tighten the motor bolts. If the coupling disc has been loosened without first marking its position on the motor shaft, the correct position for position of coupling disc must be determined again. ✔...

  • Page 100: Vertical Driving Device

    6.3 Assembly 6 Dismantling/Assembly 6.3.2 Vertical driving device Before assembling the bowl spindle, make sure the relevant checks have been carried out. Wipe off and oil the bearing seat before fitting the ball bearing. Inspect the tapered end of the bowl spindle and assemble ball bearings.
  • Page 101 6 Dismantling/Assembly 6.3 Assembly 2. Fit ball bearing housing and throw-off collar. Left-hand thread! 3. Fit the ball bearing sleeve together with thrust bearing and height adjusting ring. 4. Secure the assembly with the snap ring. WARNING Risk for eye injury by flying snap ring Use the correct pliers for dismantling and assembly of snap ring to avoid accidental...
  • Page 102 6.3 Assembly 6 Dismantling/Assembly 5. Place spring casing to rest on shoulder of upper ball bearing housing. Fit buffers and springs into casing. Tighten the caps. 6. Place the gasket in the right position at the bottom of the separator frame. 7.

  • Page 103: Bowl

    6 Dismantling/Assembly 6.3 Assembly 6.3.3 Bowl Make sure that the check points are carried out before and during assembly of the separator bowl. ✔ Check points ‘‘5.3.8 Bowl spindle cone and bowl body nave” on page 1. Wipe off spindle top and nave bore in the bowl body.
  • Page 104 6.3 Assembly 6 Dismantling/Assembly both 4. Secure the bowl from rotating. Screw in lock screws. 5. Degrease lock ring threads, contact and locating faces (see arrows above). Apply Molykote 1000 paste to the threads and faces stated. Brush in the paste according to the manufacturer’s direction.
  • Page 105 6 Dismantling/Assembly 6.3 Assembly 7. Release both lock screws and tighten clamp bolts. NOTE The two lock screws must be fully released to prevent risk of damage to bowl body. 8. Fit the connecting hoses if they have been removed. Make sure to fit their gasket rings ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe...

  • Page 106: Feed And Discharge Pumps

    6.4 Feed and discharge pumps 6 Dismantling/Assembly Feed and discharge pumps 6.4.1 General description 1. Relief/safety valve: Examine valve cone and valve seat. 2. Bushings: Renew the bushings if they are scratched or there is a play between shaft and bushing. 3.

  • Page 107: Dismantling

    6 Dismantling/Assembly 6.4 Feed and discharge pumps 8. Axial play: The total axial play (1) must be 0.1 - 0.3 mm. If the play is too large even though the wearing seals have been renewed, it can be compensated by adding a brass leaf liner. Insert the liner at (2).
  • Page 108 6.4 Feed and discharge pumps 6 Dismantling/Assembly 2. Remove the guard over the flexible coupling. 3. Drive out the tubular pins from the worm wheel shaft and impeller shaft. Turn the bowl by hand until the pins are in a convenient position.
  • Page 109 6 Dismantling/Assembly 6.4 Feed and discharge pumps 5. Insert two screws into the centre hole of the impellers. Use the screws as a handle to withdraw the impellers. 6. Remove the impellers for inlet pump. 7. Repeat step 5 and 6 for the outlet pump impellers.
  • Page 110 6.4 Feed and discharge pumps 6 Dismantling/Assembly 8. Undo the four screws holding the pump housing. Remove housing, do not lose valve cone and spring. 9. Check that the lipseal rings are in good condition. If the seal rings are worn or damaged: Remove the pump shield from the separator frame, knock out the old sealring(s) and replace them.

  • Page 111: Assembly

    6 Dismantling/Assembly 6.4 Feed and discharge pumps 6.4.3 Assembly 1. Fit new lipseal rings. Be sure to turn it the right way around, the closed side should point outwards to air. Start with the one at pumpside of the shield. 2.
  • Page 112 6.4 Feed and discharge pumps 6 Dismantling/Assembly 4. Place the O-ring in pump housing. Put the spring and valve cone in place in the pump shield. 5. Place the bushing with shoulder in pump shield (flat side vertical pointing to center). Enter the other bushing into pump housing with flat side to center.
  • Page 113 6 Dismantling/Assembly 6.4 Feed and discharge pumps 7. Repeat point 6 for inlet impellers. Note that the tongue on impeller shaft should fit in the slot of outlet impeller shaft. Press gently until the impeller shaft is visible at the coupling side. Enter the coupling half on shaft and press the package in place.
  • Page 114 6.4 Feed and discharge pumps 6 Dismantling/Assembly 11. Fasten the guard over the flexible coupling. 12. Fit control housing and its pipes. 13. Connect all pipings. ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe whatsapp:959440045...

  • Page 115: Frame Feet

    6 Dismantling/Assembly 6.5 Frame feet Frame feet When renewing the frame feet, the separator must be lifted. ‘‘5.7 Lifting instructions” on page NOTE Always remove the bowl before lifting the separator. When lifting and moving the separator, follow normal safety precautions for lifting large heavy objects.
  • Page 116 6.5 Frame feet 6 Dismantling/Assembly ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe whatsapp:959440045...

  • Page 117: Trouble-Tracing

    7 Trouble-tracing 7.1 Trouble tracing procedure 7.2 Mechanical function 7.2.1 The separator does not start 7.2.2 Start-up time too long 7.2.3 Starting power too low 7.2.4 Starting power too high 7.2.5 Separator vibrates excessively during starting sequence 7.2.6 Separator vibrates excessively during normal running 7.2.7 Smell...
  • Page 118 7 Trouble-tracing Trouble-tracing Study the System Manual’s Trouble-tracing chapter first. (if applicable) If the problem is not solved in the System Manual’s Trouble-tracing, continue with this chapter. ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe whatsapp:959440045...

  • Page 119: Trouble Tracing Procedure

    Always start with trouble-tracing instructions in the System Manual, and if required, continue with the instructions below. If the problem still is not solved, contact your Alfa Laval representative. Mechanical function 7.2.1 The separator does not start...

  • Page 120: Starting Power Too Low

    Install new bearings. Incorrect transmission (50 Hz gear and WARNING: Disintegration hazard 60 Hz power supply). STOP immediately! Install correct transmission. Contact your local Alfa Laval representative. The bowl must be inspected. Wrong direction of rotation. STOP. Adjust motor power connection. ventas@fdm.com.pe fdmsac@gmail.com...

  • Page 121: Separator Vibrates Excessively During Starting Sequence

    7 Trouble-tracing 7.2 Mechanical function 7.2.5 Separator vibrates excessively during starting sequence NOTE Some vibration is normal during starting sequence when the separator passes through its critical speeds. Possible cause Action Bowl out of balance due to: poor cleaning incorrect assembly WARNING: Disintegration hazar too few discs insufficiently tightened bowl hood...

  • Page 122: Smell

    Action Incorrect transmission (50 Hz gear WARNING: Disintegration hazard running on 60 Hz power supply). STOP immediately! Install correct transmission. Contact your local Alfa Laval representative. The bowl must be inspected. Frequency of power supply too high. Check. ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe...

  • Page 123: Speed Too Low

    7 Trouble-tracing 7.2 Mechanical function 7.2.10 Speed too low Possible cause Action Brake is on. Release the brake. Friction pads worn or oily. Fit new friction pads or clean the old ones if they are oily. Motor failure. Repair the motor. Top/bottom bearings damaged or worn.

  • Page 124: Liquid Flows Through Bowl Casing Drain

    7.2 Mechanical function 7 Trouble-tracing 7.2.13 Liquid flows through bowl casing drain Possible cause Action Broken water seal. Stop feed and feed water to create water seal. Too high throughput Reduce the feed. The supply of displacement/sealing water Straighten the hose or clean the strainer. Make sure is not sufficient due to clogged strainer, the water pressure is 200-600 kPa (2-6 bar).

  • Page 125: Purification Faults

    7 Trouble-tracing 7.3 Purification faults Purification faults 7.3.1 Unsatisfactory separation result Possible cause Action Gravity disc hole too small. Use a gravity disc with a larger hole. Incorrect separating temperature. Adjust temperature. Throughput too high. Reduce throughput. Sludge space in bowl is filled. Empty the sludge basket in the bowl.

  • Page 126: Broken Water Seal

    7.3 Purification faults 7 Trouble-tracing 7.3.3 Broken water seal Possible cause Action Gravity disc too large. Use a gravity disc with a smaller hole. Separation temperature too low. Increase temperature. Throughput too high. Reduce throughput. Sealing water volume too small. Supply more water.

  • Page 127: Clarification Faults

    7 Trouble-tracing 7.4 Clarification faults Clarification faults 7.4.1 Unsatisfactory separation result Possible cause Action Separating temperature too low. Adjust. Throughput too high. Reduce throughput. Feed oil contains water. Re-assemble and operate the separator as a purifier. Disc stack clogged. Clean the bowl discs. Sludge space in bowl filled.
  • Page 128 7.4 Clarification faults 7 Trouble-tracing ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe whatsapp:959440045...
  • Page 129 8 Technical Reference Contents 8.1 Product description 8.2 Technical data 8.2.1 Selection of gravity disc with the nomograph 8.3 Basic size drawing, separator without pump 8.4 Basic size drawing, separator with pump and no heater 8.5 Basic size drawing, separator with pump and heater 8.6 Connection list, (pump and no...
  • Page 130 8 Technical Reference 8.10 Drawings 8.10.1 Cross-section, complete separator 8.10.2 Cross-section, horizontal driving device 8.10.3 Cross-section, purifier bowl 8.10.4 Cross-section, clarifier bowl 8.10.5 Cross-section, pump 8.10.6 Cross-section, water inlet device 8.10.7 Electric motor, 1.1 kW 8.10.8 Electric motor, 1.5 kW 8.10.9 Machine plates and safety labels 8.11 Storage and installation...

  • Page 131: Product Description

    8 Technical Reference 8.1 Product description Product description Alfa Laval ref. 558154, rev 2 Units according to ISO Standard. The manufacturer reserves the right to change specifications without notice. Product number 881241-08-14/3 Separator type MAB 104B-14/24 Application Continuous purification of mineral oil from solid particles and water.

  • Page 132: Technical Data

    8.2 Technical data 8 Technical Reference Technical data Alfa Laval ref. 558168, rev 0 Bowl speed max. 7500 / 7350 rev/min. 50Hz/60Hz Speed motor shaft max. 1500 / 1800 rev/min. 50Hz/60Hz Gear ratio 50:10 / 49:12 50Hz/60Hz Hydraulic capacity m³/h Max.

  • Page 133: Selection Of Gravity Disc With The Nomograph

    8 Technical Reference 8.2 Technical data 8.2.1 Selection of gravity disc with the nomograph The best separating results are obtained by using a gravity disc with large hole as possible, one which will not cause a broken water seal in the bowl or an emulsification in the water outlet.
  • Page 134 8.2 Technical data 8 Technical Reference Gravity disc nomograph Ø 1,00 57,5 0,95 0,90 73,5 0,85 0,80 93,5 0,75 15 20 80 - 100 C - 100 C 90 100 110 120 130 150 160 170 180- 210 F - 210 F X = Separating temperature in °C and °F Y = The light phase specific weight ø...

  • Page 135: Basic Size Drawing, Separator Without Pump

    8 Technical Reference 8.3 Basic size drawing, separator without pump Basic size drawing, separator without pump Alfa Laval ref. 558163, rev. 0 Screw 1/2-13UNC Vertical force not exceeding 8 Tightening torque 16 Nm, locked with lock nut kN/foot ‘‘8.6 Connection list, (pump and Data for connections see no heater / without pump)”...

  • Page 136: Basic Size Drawing, Separator With Pump And No Heater

    8.4 Basic size drawing, separator with pump and no heater 8 Technical Reference Basic size drawing, separator with pump and no heater Alfa Laval ref. 566281, rev. 0 R 3/4", BSP 3/4 Vertical force not exceeding 8 R 1 1/4", BSP 1 1/4 kN/foot C, D.

  • Page 137: Basic Size Drawing, Separator With Pump And Heater

    8 Technical Reference 8.5 Basic size drawing, separator with pump and heater Basic size drawing, separator with pump and heater Alfa Laval ref. 558164, rev. 0 Screw 1/2-13UNC Vertical force not exceeding 8 Tightening torque 16 Nm, locked with lock nut kN/foot ‘‘8.7 Connection list, (pump and...

  • Page 138: Connection List, (Pump And No Heater / Without Pump)

    8.6 Connection list, (pump and no heater / without pump) 8 Technical Reference Connection list, (pump and no heater / without pump) Alfa Laval ref. 558165, rev. 0 Connection No. Description Requirements/limit Inlet for process liquid - Allowed temperatures Min. 0 °C, max. 100 °C Inlet for water seal Fresh water, approx.

  • Page 139: Connection List, (Pump And Heater)

    8 Technical Reference 8.7 Connection list, (pump and heater) Connection list, (pump and heater) Alfa Laval ref. 558166, rev 0 Connection No. Description Requirements/limit 201.1 Inlet for process liquid, (to pump) - Allowed temperatures Min. 0 °C, max. 100 °C 201.2...

  • Page 140: Interface Description

    8.8 Interface description 8 Technical Reference Interface description Alfa Laval ref. 557119, rev 2 In addition to the Connection List this document describes limitations and conditions for safe control, monitoring and reliable operation. At the end of the document a function graph and running limitations are to be found.

  • Page 141: Component Description And Signal Processing

    8 Technical Reference 8.8 Interface description Safety stop means: The machine must be stopped in the quickest and safest way due to vibrations or process reasons. Comply with following conditions: • The bowl must be kept filled. • The machine must not be restarted before the reason for the Safety stop has been investigated and action has been taken.

  • Page 142: Function Graph And Running Limitations

    8.8 Interface description 8 Technical Reference 8.8.3 Function graph and running limitations A. Stand still B. Starting mode C. Running mode D. Stop mode E. Safety stop mode ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe whatsapp:959440045...

  • Page 143: Lubricants

    8 Technical Reference 8.9 Lubricants Lubricants 8.9.1 Lubrication chart, general Alfa Laval ref. 553216-01, rev. 6 Lubricating points Lubricants Bowl spindle ball bearings and buffers are Lubricating oil as specified in ‘‘8.9.2 lubricated by oil mist Recommended lubricating oils” on page 145...
  • Page 144 8.9 Lubricants 8 Technical Reference Great attention must be paid not to contaminate the lubricating oil. Of particular importance is to avoid mixing of different types of oil. Even a few drops of motor oil mixed into a synthetic oil may result in severe foaming.

  • Page 145: Recommended Lubricating Oils

    A,B and D. The numerical value after the letter states the viscosity grade. The corresponding commercial oil brands according to ‘‘ Alfa Laval lubrication oil group A” on page 152, ‘‘ Alfa Laval lubricating oil group B/ 220” on page 146 ‘‘8.9.3 Recommended oil...
  • Page 146 8.9 Lubricants 8 Technical Reference Alfa Laval lubricating oil group B/220 Alfa Laval ref. 553218-02, rev. 3 Alfa Laval lubrication oil group B Viscosity grade VG (ISO 3448/3104) Viscosity index VI (ISO 2909) >92 Manufacturer Designation Bel-Ray 06-220 Energol GR-XP 220...
  • Page 147 8 Technical Reference 8.9 Lubricants ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe whatsapp:959440045...

  • Page 148: Recommended Oil Brand

    The following are lists of recommended oil brands. Trade names and designations might vary from country to country, contact your local oil supplier for more information. Brands with Alfa Laval article number are approved and recommended for use. Alfa Laval lubrication oil group D...

  • Page 149: Recommended Lubricants

    The data in below tables is based on supplier information in regards to lubrication properties. Trade names and designations might vary from country to country, contact your local supplier for more information. Brands with Alfa Laval article number are approved and recommended for use. Pastes for non-food applications: Manufacturer...
  • Page 150 8.9 Lubricants 8 Technical Reference Pastes for food applications Manufacturer Designation Comment Alfa Laval No Fuchs Lubritech Gleitmo 805 Geralyn 2 USDA H1 561764-01 (50 g) Dow Corning Molykote TP 42 Molykote D Molykote Foodslip EP-2 USDA H1 537086-07 (50 g)
  • Page 151 8.9 Lubricants Greases for ball and roller bearings: NOTE Always follow the specific recommendation for lubrication as advised by the manufacturer. Manufacturer Designation Alfa Laval No Energrease MM-EP2 Energrease LS2 Castrol APS 2 Grease EPL 2 Chevron Dura-Lith Grease EP2...

  • Page 152: Recommended Oil Brands

    The data in below tables is based on supplier information in regards to lubrication properties. Trade names and designations might vary from country to country, contact your local supplier for more information. Brands with Alfa Laval article number are approved and recommended for use. Alfa Laval lubrication oil group A...

  • Page 153: Drawings

    8 Technical Reference 8.10 Drawings 8.10 Drawings 8.10.1 Cross-section, complete separator Complete separator ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe whatsapp:959440045...

  • Page 154: Cross-Section, Horizontal Driving Device

    8.10 Drawings 8 Technical Reference 8.10.2 Cross-section, horizontal driving device Horizontal driving device ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe whatsapp:959440045...

  • Page 155: Cross-Section, Purifier Bowl

    8 Technical Reference 8.10 Drawings 8.10.3 Cross-section, purifier bowl Purifier bowl ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe whatsapp:959440045...

  • Page 156: Cross-Section, Clarifier Bowl

    8.10 Drawings 8 Technical Reference 8.10.4 Cross-section, clarifier bowl Clarifier bowl ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe whatsapp:959440045...

  • Page 157: Cross-Section, Pump

    8 Technical Reference 8.10 Drawings 8.10.5 Cross-section, pump Sealing ring Coupling Retaining ring Sealing ring Pump impeller Pump impeller Shield Slotted tubular spring pin Slotted tubular spring pin ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe whatsapp:959440045...
  • Page 158 8.10 Drawings 8 Technical Reference Coupling guard ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe whatsapp:959440045...

  • Page 159: Cross-Section, Water Inlet Device

    8 Technical Reference 8.10 Drawings 8.10.6 Cross-section, water inlet device Hose nipple Packing Sight glass Packing ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe whatsapp:959440045...

  • Page 160: Electric Motor, 1.1 Kw

    8.10 Drawings 8 Technical Reference 8.10.7 Electric motor, 1.1 kW Alfa Laval ref. 551590, rev. 4 A. Knockout openings for cable glands on both sides, 2 x ø23 B. Sheet-steel fan hood C. 4 holes ø12 Manufacturer ABB Motors Manufacturers drawing Cat. BA/Marine motors GB 08-2001...
  • Page 161 110V or 220V 25W. State supply voltage when ordering. Connection to separate terminal board in the main terminal box acc. to attached connection diagram. NOTE For complete information about motor variants, please contact your Alfa Laval representative. ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe...

  • Page 162: Electric Motor, 1.5 Kw

    8.10 Drawings 8 Technical Reference 8.10.8 Electric motor, 1.5 kW Alfa Laval ref. 551614, rev. 4 A. Knockout openings for cable glands on both sides, 2 x ø23 B. Sheet-steel fan hood C. 4 holes ø12 Manufacturer ABB Motors Manufacturers drawing CAT. BA/Marine motors GB 08-2001...
  • Page 163 110V or 220V 25W. State supply voltage when ordering. Connection to separate terminal board in the main terminal box acc. to attached connection diagram. NOTE For complete information about motor variants, please contact your Alfa Laval representative. ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe...

  • Page 164: Machine Plates And Safety Labels

    8.10 Drawings 8 Technical Reference 8.10.9 Machine plates and safety labels Alfa Laval ref. 558097, rev. 1 1. Machine plate Separator Manufacturing serial No / Year Product No Bowl Max. speed (bowl) Direction of rotation (bowl) Speed motor shaft Frame El.
  • Page 165 8 Technical Reference 8.10 Drawings 3. Safety label W A R N I N G Text on label: XXXXXXXXXXXXXXXXX Warning XXXX XXXX XXXX XXXXXXXXXXXX XXX XXX XXX X XXX XX XXXX XXXX XX X X XXXXX XXX XXXXXXX XXXXX XX XX X XXXXX XX X XXXX X XXX XXXX XXX XX XX X XXXXX XXXXXXX...

  • Page 166: Storage And Installation

    8.11 Storage and installation 8 Technical Reference 8.11 Storage and installation 8.11.1 Storage and transport of goods Storage Specification Upon arrival to the store, check all components and keep them: 1. Well stored and protected from mechanical damage. 2. Dry and protected from rain and humidity. 3.

  • Page 167: Planning And Installation

    8 Technical Reference 8.11 Storage and installation Transport Specification • During transport of the separator, the frame hood and bowl must always be removed from the machine. • When lifting a separator it must always be hung securely. See chapter ‘‘5.7 Lifting instructions”...
  • Page 168 8.11 Storage and installation 8 Technical Reference Important measurements Important measurements are the minimum lifting height for lifting tackle, shortest distance between driving motor and wall, free passage for dismantling and assembly, maintenance and operation. Plan your installation with sufficient room for the controls and operation so that instruments are easily visible.
  • Page 169 8 Technical Reference 8.11 Storage and installation Lifting height for transport of bowl Specification • A minimum height is required to lift the bowl, bowl parts and the bowl spindle. Recommendation • When two or more separators are installed, the lifting height may have to be increased to enable parts from one separator to be lifted and moved over an adjoining assembled separator.

  • Page 170: Foundations

    8.11 Storage and installation 8 Technical Reference 8.11.3 Foundations Specification • The separator should be installed at floor level, see the "Basic size drawings" on page 137, and 135. • The separator must be installed on a strong and rigid foundation to reduce the influence of vibrations from adjacent machinery.
  • Page 171 You can do this by copying this page and sending it by fax, or you could mail it, or hand it over to your local Alfa Laval representative. Alfa Laval Tumba AB, Separator Manuals, dept. PPDM, SE-147 80 Tumba, Sweden. Fax: +46 8 530 310 40.
