INSTALLATION

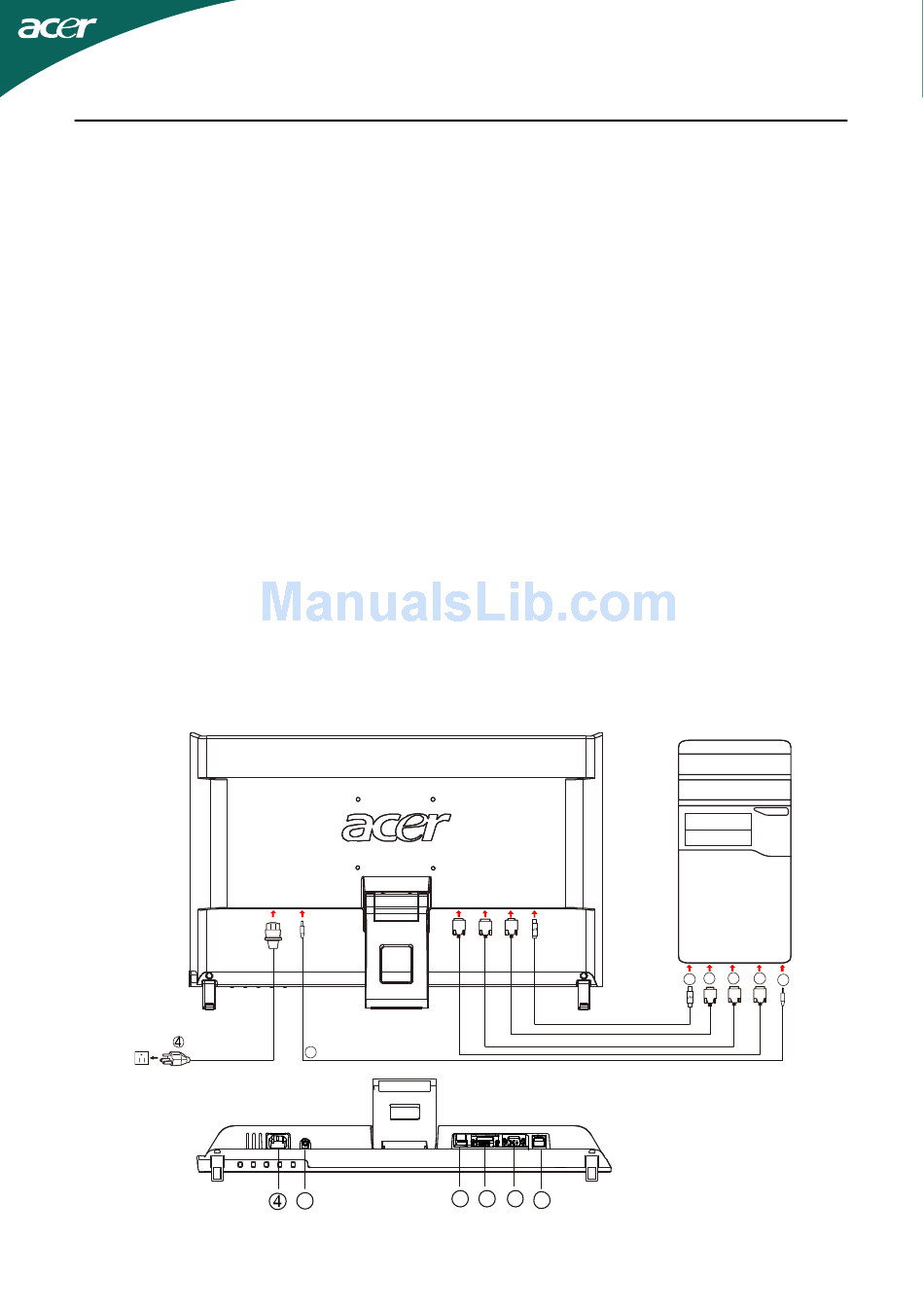

To install the monitor to your host system, please follow the steps as given
below:
Steps
1. 1-1
Connect Video Cable
a. Make sure both the monitor and computer are powered-OFF.
b. Connect the VGA video cable to the computer.
1-2
Connect Digital Cable (Only Dual-Input Model)
a. Make sure both the monitor and computer are powered-OFF.
b. Connect one end of the 24-pin DVI cable to the back of the
monitor and connect the other end to the computer's port.
1-3
Connect HDMI Cable (Only HDMI-Input Model)
a. Make sure both the monitor and computer are powered-OFF.
b. Connect the HDMI cable to the computer.
2. Connect the USB Cable(Optional)
3.Connect the Audio Cable(Only Audio-Input Model)(Optional)
4. Connect power cord
Connect the power cord to the monitor, then to a properly grounded AC
outlet.
5. Power-ON Monitor and Computer
Power-ON the monitor first, then power-ON the computer.
This sequence is very important.
6. If the monitor still does not function properly, please refer to the
troubleshooting section to diagnose the problem.
AC IN
AUDIO IN
3
3
EN-12
HDMI DVI-D IN
VGA IN
USB
V GA
H D MI
D VI
1-3
1-2
1-1
2
2
1-1
1-2
1-3
3
VGA
D V I
H D M I
