"G" Series – By Pass Valve Replacement Instructions
This manual is intended to assist in replacing the by-pass valve in the SEBO
"G" series machines.
Remove the entire bag housing from the machine. Remove the two screws
holding the power head cover from the motor unit.
Refer to the Schematic and parts list for location of parts on the machine.

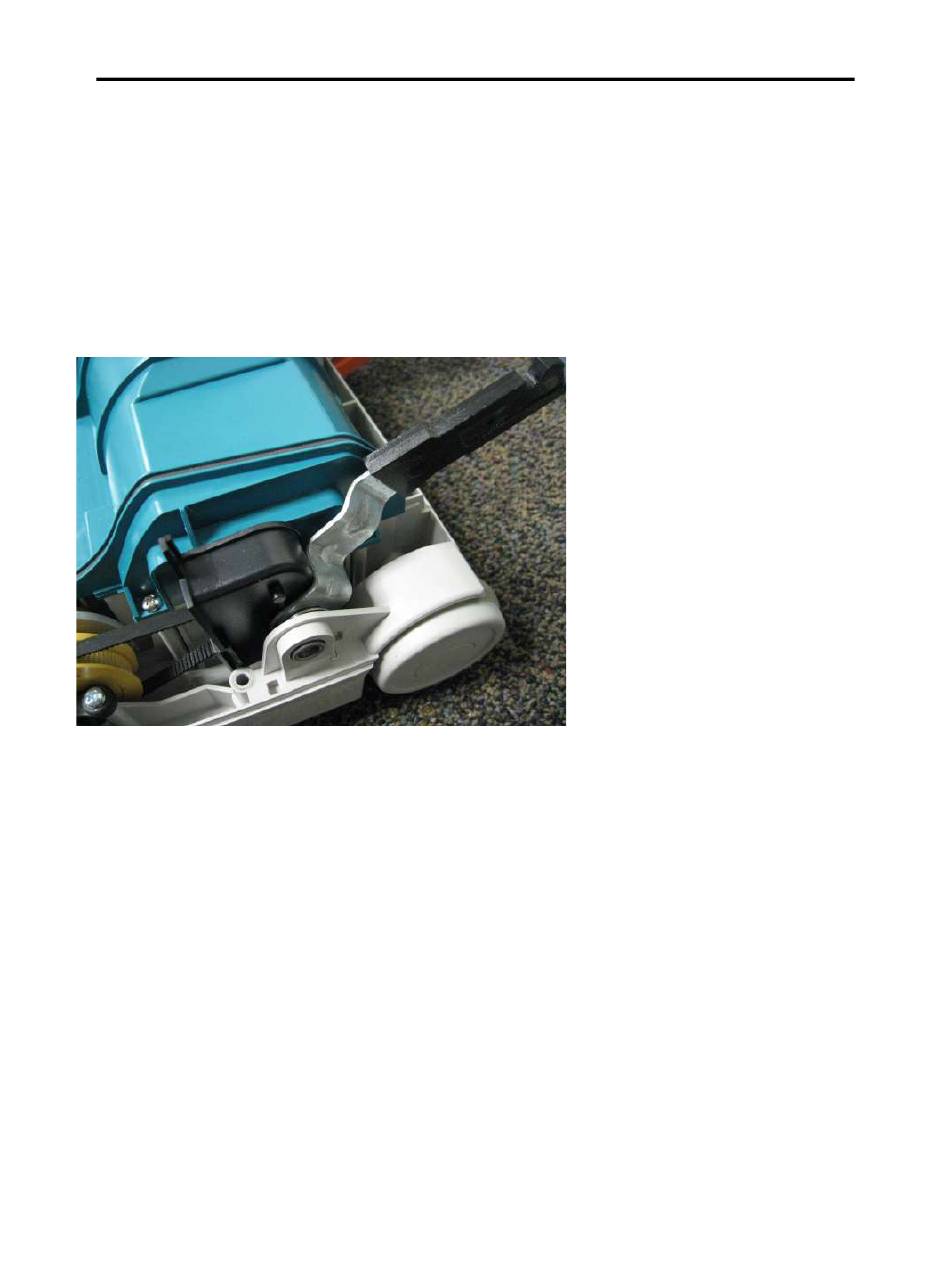

Locate the support lever and spring (5129 & 5107-1) See photo.
Support Lever – Motor pulley cover
Pull the lever back towards the rear wheels and lift up on the black motor
pulley cover (5115SW) to remove it. Release the support lever spring and
slide the support lever and spring out of its bushing in the chassis. Slide the
5463 belt off the motor pulley.
Remove the (4) screws holding the turquoise motor cover (2826TK). Set the
cover aside.
