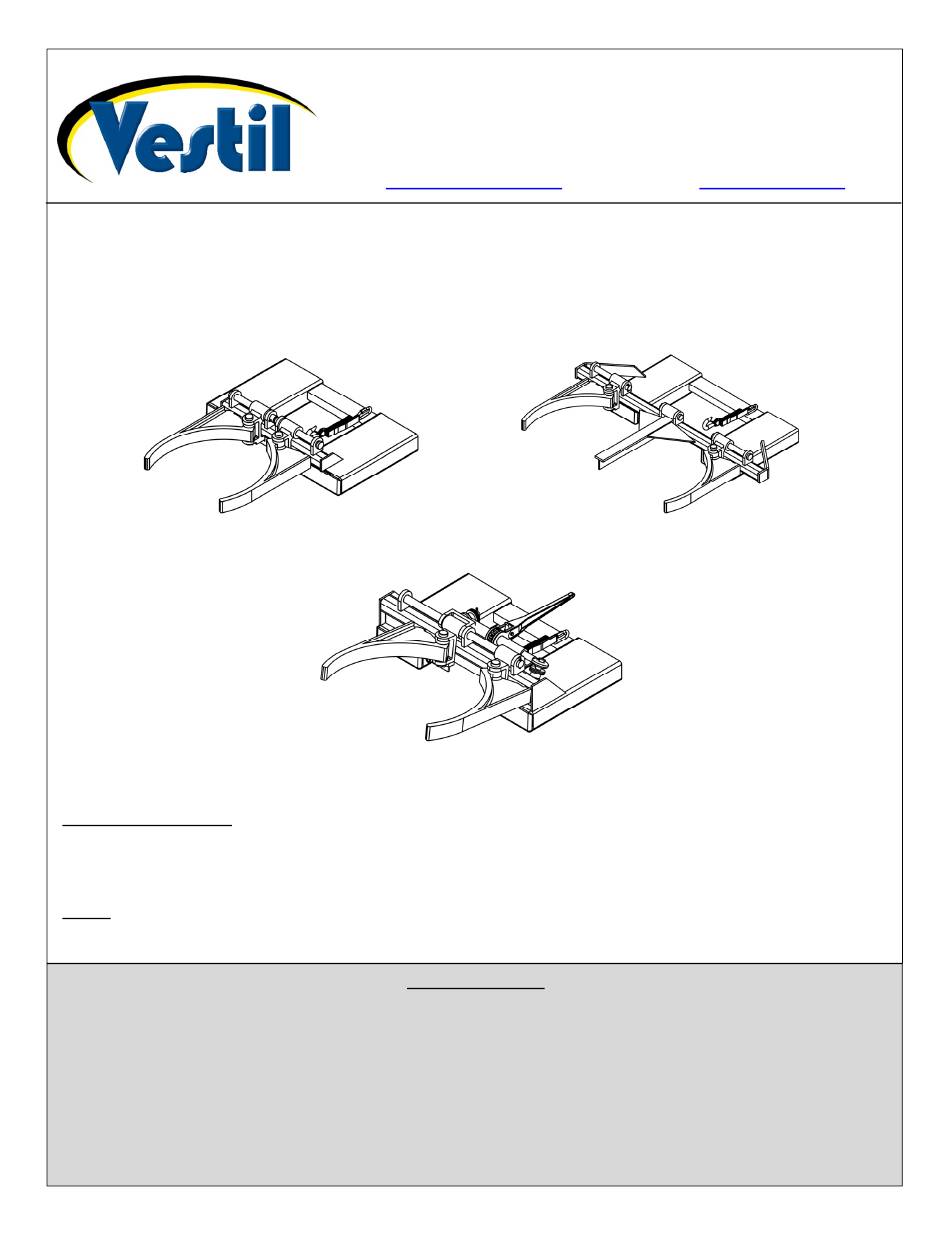

DGS-A, DGD-A, & DGS-AG Fork-Mounted Drum Lifters
Receiving instructions:
After delivery, remove the packaging from the product. Inspect the product closely to determine whether
it sustained damage during transport. If damage is discovered, record a complete description of it on the
bill of lading. If the product is undamaged, discard the packaging.
NOTE:
The end-user is solely responsible for confirming that product design, installation, use, and maintenance
comply with laws, regulations, codes, and mandatory standards applied where the product is used.
Signal Words............................................................................................................................................. 2
Hazards of Improper Use.............................................................................................................................. 2
DGS-A Parts Diagram, Bill of Materials, and Specifications............................................................... 3
DGS-AG Parts Diagram, Bill of Materials, and Specifications............................................................. 4
DGD-A Parts Diagram, Bill of Materials, and Specifications............................................................... 5
Using the Drum Carrier............................................................................................................... 6
Inspections & Maintenance.................................................................................................... 6 - 7
Labeling Diagram..................................................................................................................... 7
Limited Warranty...................................................................................................................... 8
Copyright 2018 Vestil Manufacturing Corp.
Rev. 2/7/2018
Vestil Manufacturing Corp.
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586 -or- Toll Free (800) 348-0868
www.vestilmfg.com
Use and Maintenance Manual
DGS-A
DGS-AG

Table of Contents

Fax: (260) 665-1339
Email:
info@vestil.com
DGD-A
DGS-A, MANUAL
Page 1 of 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DGS-A and is the answer not in the manual?

Questions and answers

Related Manuals for Vestil DGS-A

Summary of Contents for Vestil DGS-A

  • Page 1: Table Of Contents

    Table of Contents Signal Words…………………………....................... 2 Hazards of Improper Use…………........................2 DGS-A Parts Diagram, Bill of Materials, and Specifications……………………………………………………… 3 DGS-AG Parts Diagram, Bill of Materials, and Specifications……………………………………………………. 4 DGD-A Parts Diagram, Bill of Materials, and Specifications……………………………………………………… 5 Using the Drum Carrier………………………………………...……………………………………………………... 6 Inspections &...

  • Page 2: Signal Words

    Hazards of Improper Use: Vestil strives to identify all hazards that could arise while using its products. However, material handling is dangerous. No manual can address every conceivable risk. Ultimately, the most effective way to avoid injury is to apply sound judgment whenever using this device.

  • Page 3: Dgs-A Parts Diagram, Bill Of Materials, And Specifications

    08/2010 Rev. 2/7/2018 DGS-A, MANUAL DGS-A parts diagram and bill of materials Item Part No. Description Qty. 09-514-087 Weldment, frame 40-514-016 Frame, casting, arm 40-112-001 Pin, main, clevis 15-112-014 Pin, clevis, 1” x 4 ” 65125 Cotter pin, zinc plated, ”...

  • Page 4: Dgs-Ag Parts Diagram, Bill Of Materials, And Specifications

    Arm spacing adjustable from 18” to 28” Arms pivot about a horizontal axis to fold onto the frame for storage Distance between fork tube centers = 19 ” Usable fork tube dimensions ”W x 1 ”H Copyright 2018 Vestil Manufacturing Corp. Page 4 of 8...

  • Page 5: Dgd-A Parts Diagram, Bill Of Materials, And Specifications

    Drums may be open or closed head. Open head the frame for storage. drums must have lids properly and securely Distance between fork tube centers = 24” fastened. Usable fork tube dimensions = 7 ”W x 1 ”H Copyright 2018 Vestil Manufacturing Corp. Page 5 of 8...

  • Page 6: Using The Drum Carrier

    Step 6: Release the drum. a) DGS-A & DGD-A: Tilt the mast forward. Slowly lower the forks until the entire bottom drum rim rests on the ground. Carefully back away from the drum until the gripper arms are completely free of the drum.

  • Page 7: Labeling Diagram

    3. Labels: all labels should be readable and located as shown in “Labeling diagram” (below). If a label is unreadable or missing, contact Vestil to order a replacement. 4. Fasteners (hardware): examine all bolts, nuts, washers, pins, and cotter pins.

  • Page 8: Limited Warranty

    The warranty period for original dynamic components is 90 days. For wearing parts, the warranty period is 90 days. The warranty periods begin on the date when Vestil ships the product to the warrantee. If the product was purchased from an authorized distributor, the periods begin when the distributor ships the product.
