Vestil TM SERIES Owner's Manual

VESTIL MANUFACTURING CORPORATION
P.O. Box 507., Angola, IN 46703 USA
Phone (260) 665-7586 • Fax (260) 665-1339
E-mail: sales@vestil.com • www.vestil.com
Ergonomic Solutions
Contents
Warnings & Safety Instructions ....................... 1
Replacement Parts .......................................... 1
Receiving Instructions ..................................... 1
Operation Instructions .................................. 2-3
Routine Maintenance & Safety Checks ........... 4
TM Exploded Structural Parts ......................... 5
TM, TMS Bill of Materials ................................ 6
TMS Exploded Structural Parts ........................... 7
WARNINGS & SAFETY INSTRUCTIONS
Ensure that all employees understand and follow the
following.
• Read and understand the owner's manual before using or
servicing the Tilt Master.
• For battery powered units, review the additional warnings
included in the "Operation Instructions" section of the
manual.
• Watch the container carefully when the tilter is in opera-
tion.
• Have the caster lock engaged solidly when the tilter is in
operation.
• Verify the container (not just the pallet) is fully back
against the fork carriage before tilting.
• Be alert of the possibility of parts falling from the container
when it is being tilted.
• Before transporting the container, raise the forks slightly.
• The load must be removed and the forks fully lowered
before any work is performed on the hydraulic system.
• Do not use the Tilt Master if damage or unusual noise is
observed.
• Do not perform any modifications to the Tilt Master without
the manufacturer's approval. Failure to receive authoriza-
tion for changes to the equipment could void the warranty.
• Maintenance and repairs are to be done only by personnel
qualified to perform the required work.
• Do not use brake fluid or jack oils in the hydraulic system.
If oil is needed, use an anti-wear hydraulic oil with a
viscosity grade of 150 SUS at 100° F, (ISO 32 cSt @ 40° ),
or Dexron transmission fluid.
• Ensure that safety and warning labels stay in place and
are legible.
• Use only replacement parts either supplied or
approved by the manufacturer.
Revised 05-05
A company dedicated to solving ergonomic and material
handling problems since 1955 .
OWNER'S
MANUAL
TILT MASTER & TILT MASTER STRADDLE
MODELS TM / TMS
Electrical Diagrams .......................................... 8
Motor & Transformer Diagrams ........................ 9
Hydraulic Diagrams ........................................ 10
Power Unit's Operation .................................. 11
Modular Power Unit Breakdown - DC ....... 12-13
Modular Power Unit Breakdown - AC ........ 14-15
Troubleshooting ............................................. 16
Safety Label Identification ......................... 17-18
Warranty ......................................................... 19
WHEN ORDERING REPLACEMENT PARTS
We take pride in using quality parts on the equipment we
manufacture. We are not responsible for equipment problems
resulting from the use of unapproved replacement parts.
To order replacement or spare parts for this equipment,
contact the factory.
In any communication with the factory please be prepared to
provide the machine's serial number, which is indicated on the
machine dataplate.
RECEIVING INSTRUCTIONS
Every unit is thoroughly tested and inspected prior to
shipment. However, it is possible that the unit could incur
damage during transit.
Inspect the unit closely when it arrives. If you see evidence
of damage or rough handling to either the packaging or to the
product when it is being unloaded, immediately make a note of
it on the Bill Of Lading!
It is important that you remove the product's packaging upon
its arrival to ensure that there is no concealed damage or to
enable a timely claim with the carrier for freight damage.
Also verify that the product and its specifications are as
ordered.

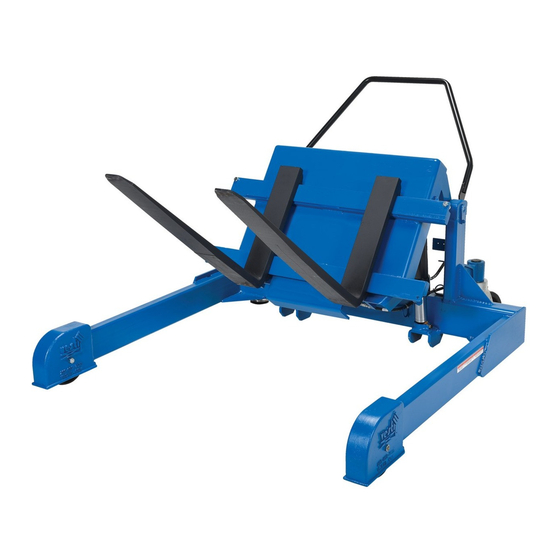

TM-SERIES Tilt Master
TMS-SERIES Tilt Master
STRADDLE
15-126-121
E
N
G
L
I
S
H
E
S
P
A
N
O
L
F
R
A
N
Ç
A
I
S
1
