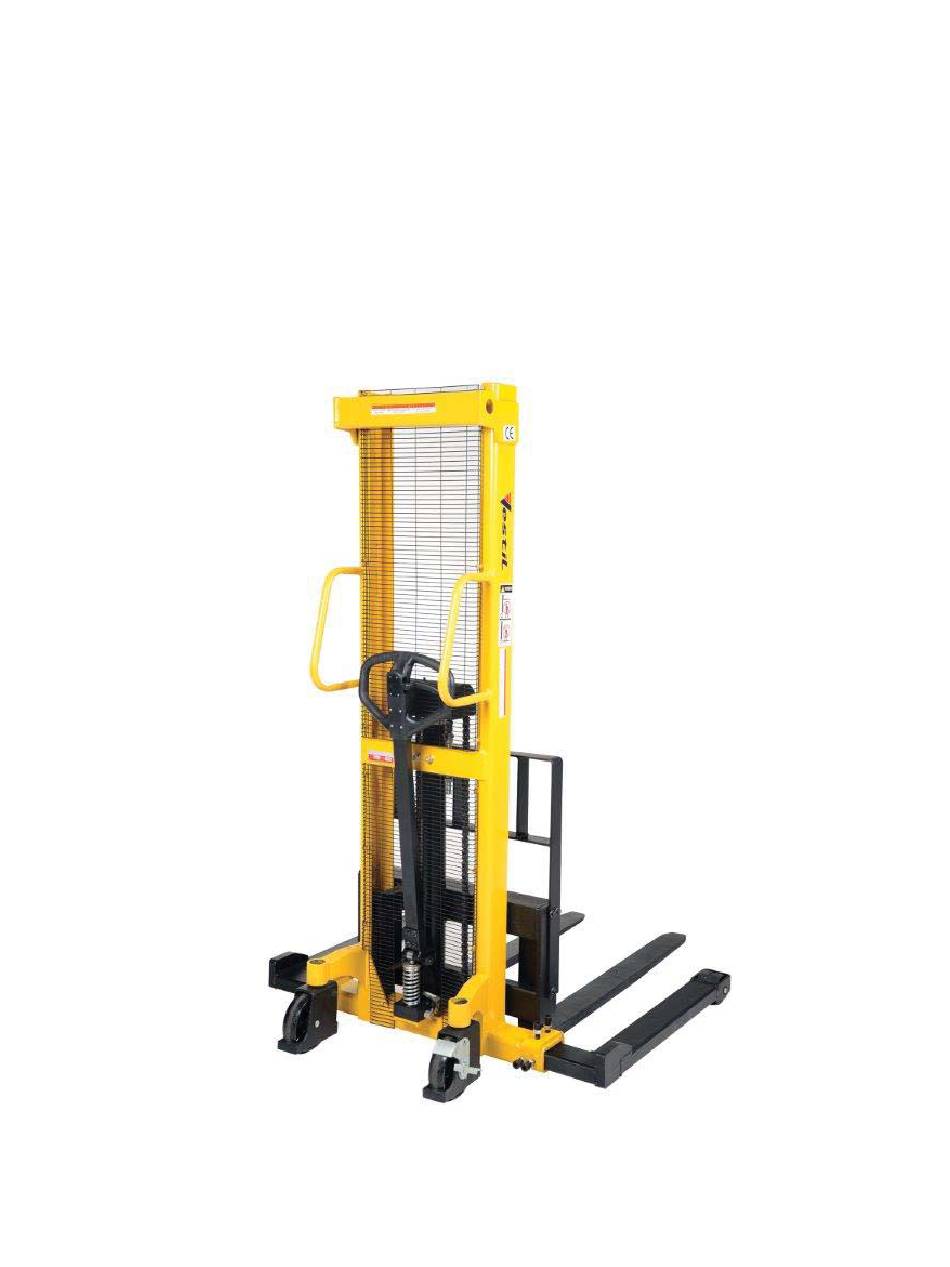

- Page 1 OPERATION & SERVICE MANUAL MANUAL HAND PUMP STACKER : VHPS-2000-AA & VHPS-2000-FF ODEL...
-
Page 2: General
General Read and follow the instructions contained in this operating manual without fail! Only trained, well-informed personnel, who have been instructed in accordance with this operation manual, may use or work on the machine. Liability or guarantee is waived if: The instructions in this operating manual are not observed. -
Page 3: Specification
SPECIFICATION Model Number VHPS 2000 AA VHPS 2000 FF Capacity 2,000 lbs 2,000 lbs Raised Height 62” 62” Lowered Height 1 ” 3¾” Fork Dimensions (LxWxH) 42x5.9x2 ” 42x5.9x2 ” Overall Fokr Width 27” 27” Ground Clearance 1” 1” Overall Mast Height 78”... -
Page 4: Table Of Contents
General ………………………………………………………………………………… EC Declaration of Conformity …………………………………………………… Specification ………………………………………………………………………… Contents ………………………………………………………………………………… Safety Notes …………………………………………………………………………… Safety instructions ………………………………………………………………… Symbols and pictograms used …………………………………………………… Routines, personnel, skills ………………………………………………………… General principles ………………………………………………………………… Product description ………………………………………………………………… Designated use ……………………………………………………………………… Signs on the truck …………………………………………………………………… Taking into operation/ Trouble shooting ……………………………………... -
Page 5: Safety Notes
Safety notes Safety instructions This chapter informs the user about residual dangers relating to the correct use of the products. It contains generally valid safety instructions which must be observed. Safety instructions relating to specific actions or situations are listed prior to the respective action and/or description of the situation in the chapter. -
Page 6: Symbols And Pictograms Used
Safety notes Symbols and pictograms used In addition to the text and illustrations, this operating manual contains various symbols which should draw attention to the safety requirements. They generally have the following appearance: Signal wording Explanation Warning of an imminent danger! DANGER Non-observance cause death or serious injury Warning of a possibly incoming dangerous situation. -
Page 7: Routines, Personnel, Skills
Safety notes Routines, personnel, skills What must be done? Who is responsible? - Initial operation - Selection and instruction of personnel - Allocation of authorizations - Instructing and controlling - Analysis of dangers when in operation - Appointing of working areas - Appointment and release of driving areas - Sign-posting dangerous points on driving area - Head of this responsibility area... -
Page 8: General Principles
Safety notes General principles: It is not permitted: – To stand under the raised - whether the truck is loaded or unloaded. – To stand on the and to use the lifting truck as a lifting platform. It is forbidden: –... -
Page 9: Product Description
Product description Designated use The stacker is designated for the lifting, lowering and transportation of loads according to the specifications of the identification plate. The stacker is to be used on level surfaces. To move the stacker between buildings, warehouses etc The gradient of the slope must not be more than 10% The stacker must be free from load. - Page 10 Operation the load CAUTION! Before load to be transported, ensure that the load does not exceed the capacity of the truck. The nominal capacity and lifting heights can be viewed in the load Ensure that the load up in a compact and stable manner.
- Page 11 Operation...
- Page 12 Operation To release the parking brake, press down on the brake pedal...
-
Page 13: Maintenance And Repair
Maintenance and repair Maintenance Maintenance Fig. Assembly/ component Action interval Complete fork lift truck Check status, clean if necessary Hydraulic system Check for leaks(oil under the truck) General Tight Before use Load chain Check for mechanical damage Daily Check for play (slack chain), see also “Maintenance and care of load chains”... -
Page 14: Maintenance And Care Of The Load Chains
Maintenance and repair Maintenance and care of the load chains In normal use the load chains should be re-lubricated every 250 operating hours; in the event of heavy soiling, moisture and very high prolonged loading, re-lubrication should be effected after 100 operating hours. If subject to corrosive media the chain should be cleaned and lubricated immediately. -
Page 15: Chain Inspections
Maintenance and repair Chain inspections Chains used in lift trucks should be inspected at least once a year or every three months if exposed to severe contamination or high continuous loading stress. Inspection notes-we recommend that attention be paid to the following points: 1. -
Page 16: Temporary Lay-Up
Maintenance and repair Temporary lay-up or operating reasons, more than two months, the following instructions are to be carried out: Clean the thoroughly. It may be necessary to support the lifting gear in a suitable manner, so as to relieve any stress on the load chains. - Page 22 Angola, Indiana. Who may request service? Only the warrantee may request service. You are a warrantee if you purchased the product from Vestil or from an authorized distributor AND Vestil has been fully paid. What is covered under the warranty? The warranty covers the following original drive and lift components: drive motors and lift motors, hydraulic pumps, electronic controllers, switches and cylinders.
