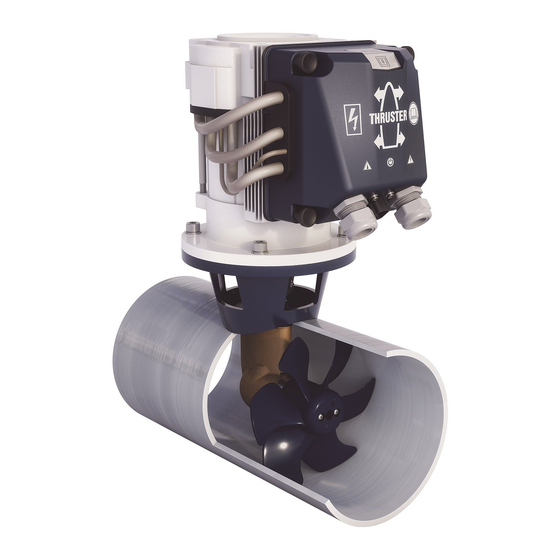

BOW PRO 'A' Series Thrusters
BOWA0571
57 kgf - ø 150 mm - 12 V
Copyright © 2019 Vetus b.v. Schiedam Holland
NEDERLANDS
ENGLISH
DEUTSCH
FRANÇAIS
ESPAÑOL
ITALIANO
DANSK
SVENSKA
NORSK
SUOMEKSI
POLSKI
Installasjonsinstrukser
Asennusohje
Instrukcja instalacji
9
21
33
45
57
69
81
93
105
117
129
020804.01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BOW PRO A Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vetus BOW PRO A Series

Summary of Contents for Vetus BOW PRO A Series

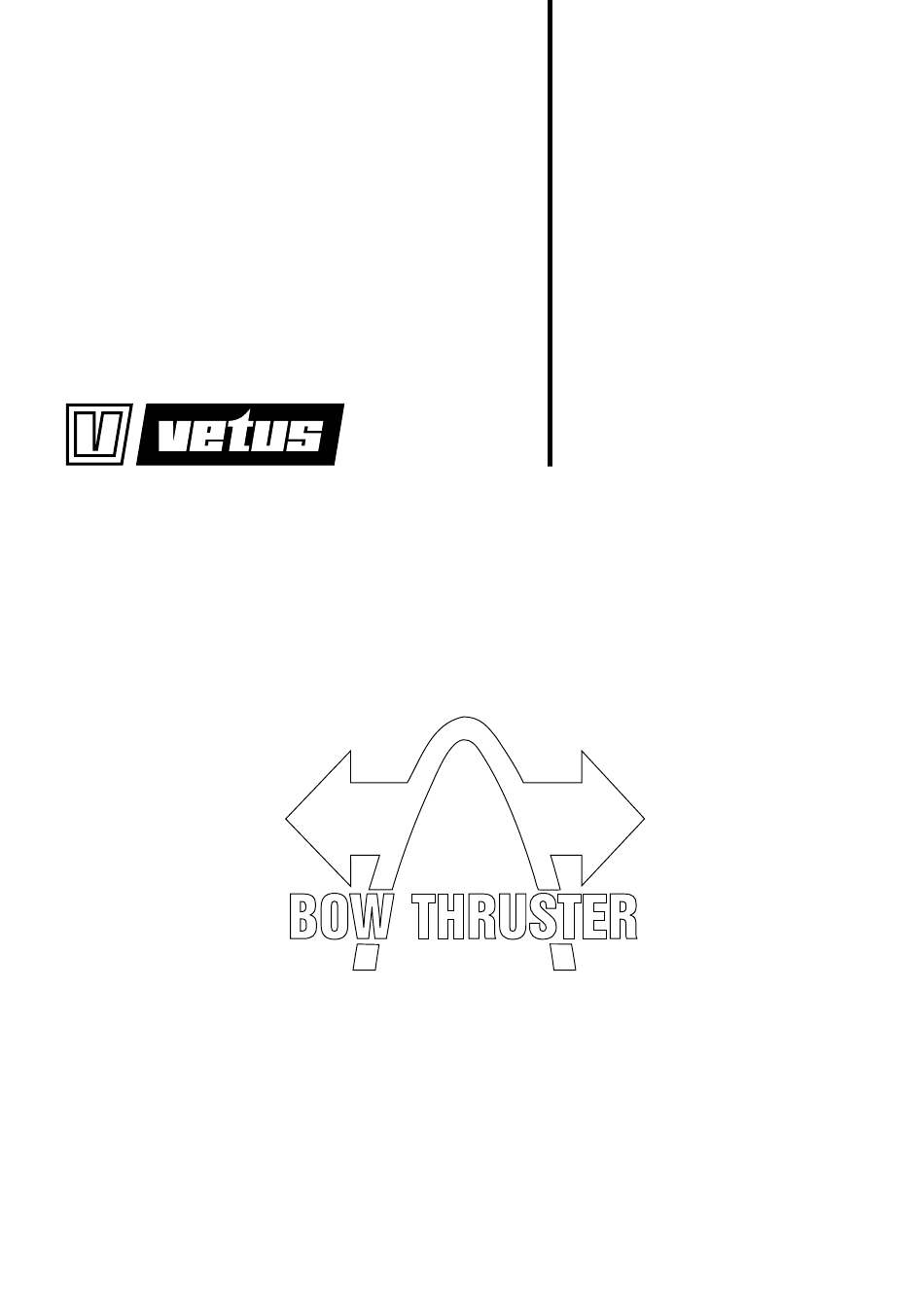

  • Page 1 Istruzioni per l’installazione Installasjonsinstrukser Einbauanleitung Installations instruktioner Asennusohje Instructions d’installation Monteringsinstruktioner Instrukcja instalacji Instrucciones de instalación Installation instructions BOW PRO 'A' Series Thrusters BOWA0571 57 kgf - ø 150 mm - 12 V Copyright © 2019 Vetus b.v. Schiedam Holland 020804.01...
  • Page 2 BOWA0571 - 57 kgf - ø 150 mm - 12 Volt vetus® Installation instructions BOW PRO Series Thrusters: BOWA0571 020804.01...
  • Page 3 Consult the ‘Owner’s Manual’ for Operation, Faults and Technical en Technische gegevens . ’ Data . Raadpleeg het 'Onderhouds- en garantieboek' voor Onderhoud . Consult the ‘Maintenance and Warranty Book’ for Maintenance . vetus® Installation instructions BOW PRO Series Thruster: BOWA0571 020804.01...

  • Page 4: Warning Indications

    ENGLISH Safety Introduction This manual give guidelines for installing a Vetus bow and/or stern Warning indications thruster from the BOW PRO series, model ‘BOWA0571. ’ The following warning indications are used in this manual in the con- text of safety: The quality of installation will determine how reliably the bow and/or stern thruster performs.

  • Page 5: Installation Recommendations

    - The electric motor must be positioned in such a way that it is al- We do not advise fitting 2 bow thrusters into one tunnel; this does ways well clear from the maximum bilge water level. not result in doubling the thrust! vetus® Installation instructions BOW PRO Series Thrusters: BOWA0571 020804.01...

  • Page 6: Connection Of Thrust Tunnel To Ship's Hull

    - The bars must be installed so they are perpendicular to the ex- pected waveform. vetus® Installation instructions BOW PRO Series Thruster: BOWA0571 020804.01...

  • Page 7: Installation Of The Thrust Tunnel

    • Then apply anti-fouling treatment if NOTE: The gaskets supplied are al- required. ready electrically insulated. However the bolts and the shaft need to be fit- ted with insulation material, for exam- ple nylon bushes. vetus® Installation instructions BOW PRO Series Thrusters: BOWA0571 020804.01...

  • Page 8: Installation Tailpiece And Intermediate Flange

    (9 - 11 ft.lbf ) Grease Check for any leaks immediately the vessel returns to the wa- ter . *) A suitable grease is VETUS ‘Shipping Grease’ , Art. code: VSG. vetus® Installation instructions BOW PRO Series Thruster: BOWA0571 020804.01...

  • Page 9: Final Assembly

    20 - 25 Nm (15 - 18 ft.lbf ) Molykote® G-n plus *) A suitable grease is VETUS ‘Shipping Grease’ , Art. code: VSG. vetus® Installation instructions BOW PRO Series Thrusters: BOWA0571 020804.01...

  • Page 10: Electrical Installation

    This fuse protects the on-board po- wer cabling from short circuits. We recommend Vetus maintenance free marine batteries; these can be supplied in the following sizes: 55 Ah, 70 Ah, 90 Ah, 108 Ah, 120 For all fuses we can suppy a fuse Ah, 143 Ah, 165 Ah, 200 Ah and 225 Ah.
  • Page 11 At one end of the chain, the power supply (5) must be connected - BPPJA - BPPPA and the terminator (8) must be connected at the other end! vetus® Installation instructions BOW PRO Series Thrusters: BOWA0571 020804.01...

  • Page 12: Checking/Test Running And Configuring The Control Panels

    • If during test running it emerges that the movement of the boat is opposite to the direction the joystick is moved in, this can be modified as indicated in 6.7. The illustrated operations must be performed on EACH panel in- stalled . vetus® Installation instructions BOW PRO Series Thruster: BOWA0571 020804.01...

  • Page 13: Configuring A Panel For Operating A Bow Thrust- Er Or A Stern Thruster

    Settings are retained even if the supply voltage is switched With a bow and stern thruster panel, together at the same helm off! station, the helm station number entered must be the same . vetus® Installation instructions BOW PRO Series Thrusters: BOWA0571 020804.01...
  • Page 14 Settings are retained even if the supply voltage is switched With a bow and stern thruster panel, together at the same helm off! station, the helm station number entered must be the same . vetus® Installation instructions BOW PRO Series Thruster: BOWA0571 020804.01...

  • Page 15: Changing The Thrust Direction

    Push the joystick ton once to confirm the to the right once. The red LED setting. at the upper left will now go on and the thrust force direction is changed. vetus® Installation instructions BOW PRO Series Thrusters: BOWA0571 020804.01...
  • Page 16 111 ( 4 ” ) 0.5 - 22 ( ” ) BPPPA 85 ( 3 ” ) 55 ( 2 ” ) 111 ( 4 ” ) 0.5 - 22 ( ” ) vetus® Installation instructions BOW PRO Series Thruster: BOWA0571 020804.01...

  • Page 17: Accucapaciteit, Accukabels

    Nr kat. Vetus 0 - 19 m 95 mm BOWA0571 355 A ZE355 57 kgf - 12 V 145 Ah - 12 V BCI 4D-950 0 - 71 ft AWG 4/0 vetus® Installation instructions BOW PRO Series Thrusters: BOWA0571 020804.01...
  • Page 18 Magistrala CAN to łańcuch, do którego dołączony jest ster strumie- niowy i panele. Na jednym końcu łańcucha musi być podłączony zasilacz (5), a ter- minator (8) musi być podłączony na drugim końcu! vetus® Installation instructions BOW PRO Series Thruster: BOWA0571 020804.01...
  • Page 19 5 CAN-bus supply Alimentation CAN-bus Alimentazione CAN-bus 6 Control voltage fuse Fusible régulateur de tension Fusibile della tensione di comando 7 Connection cable Câble de raccordement Cavo di collegamento 8 Terminator Terminateur Terminatore vetus® Installation instructions BOW PRO Series Thrusters: BOWA0571 020804.01...
  • Page 20 3 Keulapotkurin ohjauspaneeli Panel sterowania pędnik dziobowy 4 Peräpotkurin ohjauspaneeli Panel sterowania pędnik rufowy 5 CAN-väylän syöttö Zasilanie magistrali CAN 6 Ohjausjännitteen sulake Bezpiecznik sterowania 7 Kytkentäkaapeli Kabel przyłączeniowy 8 Terminaattori Terminator vetus® Installation instructions BOW PRO Series Thruster: BOWA0571 020804.01...
  • Page 21 5 CAN-bus supply Alimentation CAN-bus Alimentazione CAN-bus 6 Control voltage fuse Fusible régulateur de tension Fusibile della tensione di comando 7 Connection cable Câble de raccordement Cavo di collegamento 8 Terminator Terminateur Terminatore vetus® Installation instructions BOW PRO Series Thrusters: BOWA0571 020804.01...
  • Page 22 3 Keulapotkurin ohjauspaneeli Panel sterowania pędnik dziobowy 4 Peräpotkurin ohjauspaneeli Panel sterowania pędnik rufowy 5 CAN-väylän syöttö Zasilanie magistrali CAN 6 Ohjausjännitteen sulake Bezpiecznik sterowania 7 Kytkentäkaapeli Kabel przyłączeniowy 8 Terminaattori Terminator vetus® Installation instructions BOW PRO Series Thruster: BOWA0571 020804.01...
  • Page 23 Fusible principal Fusibile principale 4 Interrupteur principal Interruptor principal Interruttore principale 5 Dynamo Dínamo Dinamo 6 Démarreur Motor de arranque Motorino di avviamento 7 Pont à diodes Puente de diodo Ponticello diodo vetus® Installation instructions BOW PRO Series Thrusters: BOWA0571 020804.01...
  • Page 24 1 Potkurin (tai peräpotkurin) liitäntärasia Skrzynka przyłączeniowa pędnika dziobowego (lub pędnik rufowy) 2 Akku Bateria 3 Pääsulake Główny bezpiecznik 4 Pääkatkaisin Główny przełącznik 5 Dynamo Dynamo 6 Käynnistysmoottori Rozrusznik 7 Diodisilta Most diodowy vetus® Installation instructions BOW PRO Series Thruster: BOWA0571 020804.01...
  • Page 25 Installation instructions BOW PRO Series Thrusters: BOWA0571 020804.01...
  • Page 26 Installation instructions BOW PRO Series Thruster: BOWA0571 020804.01...
  • Page 27 FOKKERSTRAAT 571 - 3125 BD SCHIEDAM - HOLLAND b.v. TEL.: +31 0(0)88 4884700 - sales@vetus.nl - www.vetus.com Printed in the Netherlands 020804.01 2019-08...
