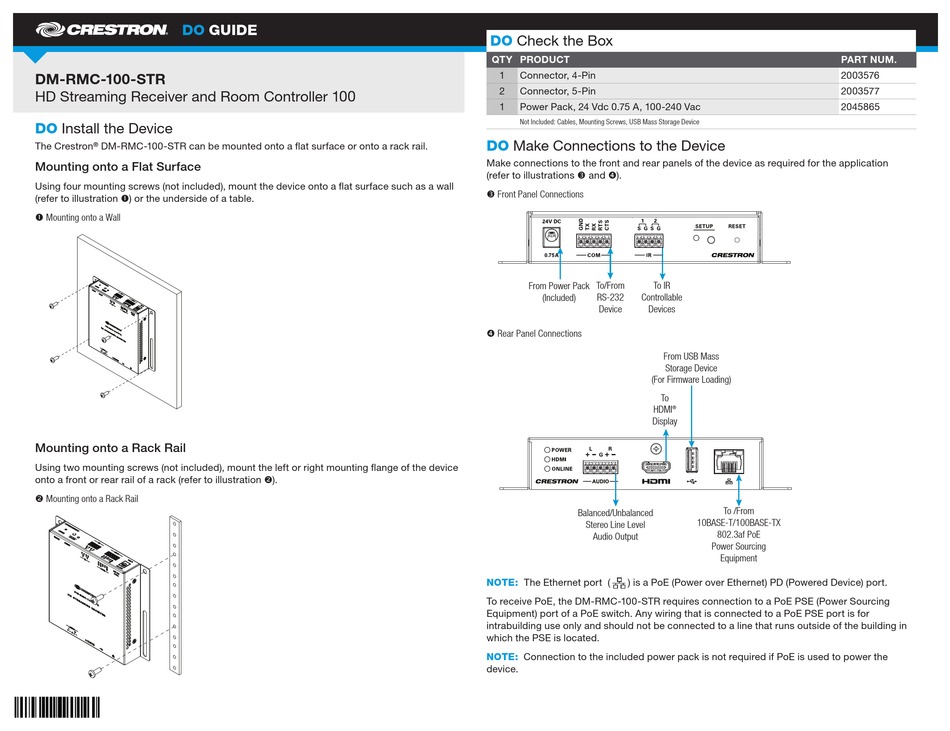

DO
GUIDE
DM-RMC-100-STR
HD Streaming Receiver and Room Controller 100
DO
Install the Device
The Crestron
DM-RMC-100-STR can be mounted onto a flat surface or onto a rack rail.
®
Mounting onto a Flat Surface
Using four mounting screws (not included), mount the device onto a flat surface such as a wall
(refer to illustration ) or the underside of a table.
Mounting onto a Wall
Mounting onto a Rack Rail
Using two mounting screws (not included), mount the left or right mounting flange of the device
onto a front or rear rail of a rack (refer to illustration ).
Mounting onto a Rack Rail
DO
Check the Box
QTY PRODUCT
1
Connector, 4-Pin
2
Connector, 5-Pin
1
Power Pack, 24 Vdc 0.75 A, 100-240 Vac
Not Included: Cables, Mounting Screws, USB Mass Storage Device
DO
Make Connections to the Device
Make connections to the front and rear panels of the device as required for the application
(refer to illustrations and ).
Front Panel Connections
To/From
To IR
From Power Pack
RS-232
Controllable
(Included)
Device
Devices
Rear Panel Connections
From USB Mass
Storage Device
(For Firmware Loading)
To
HDMI
Display
Balanced/Unbalanced
Stereo Line Level
Audio Output
NOTE:
The Ethernet port (
) is a PoE (Power over Ethernet) PD (Powered Device) port.
To receive PoE, the DM-RMC-100-STR requires connection to a PoE PSE (Power Sourcing
Equipment) port of a PoE switch. Any wiring that is connected to a PoE PSE port is for
intrabuilding use only and should not be connected to a line that runs outside of the building in
which the PSE is located.
NOTE:
Connection to the included power pack is not required if PoE is used to power the
device.
PART NUM.
2003576
2003577
2045865
®
To /From
10BASE-T/100BASE-TX
802.3af PoE
Power Sourcing
Equipment
