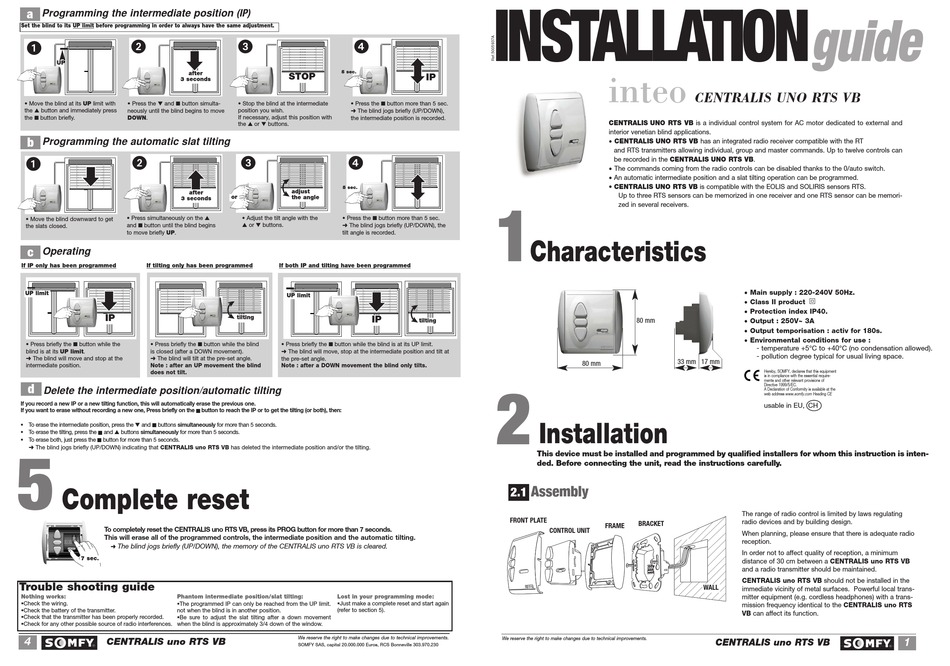

SOMFY inteo CENTRALIS UNO RTS VB Installation Manual

a Programming the intermediate position (IP)
Set the blind to its UP limit before programming in order to always have the same adjustment.
2
1
UP
after
3 seconds
• Move the blind at its UP limit with • Press the and button simulta-
the button and immediately press neously until the blind begins to move
the button briefly. DOWN.
b Programming the automatic slat tilting
2
1
after
3 seconds
• Press simultaneously on the
• Move the blind downward to get
the slats closed. and button until the blind begins
to move briefly UP.
c Operating
If IP only has been programmed If tilting only has been programmed
UP limit
IP
• Press briefly the button while the • Press briefly the
blind is at its UP limit. is closed (after a DOWN movement).
The blind will move and stop at the The blind will tilt at the pre-set angle.
intermediate position. Note : after an UP movement the blind
does not tilt.
d
Delete the intermediate position/automatic tilting
If you record a new IP or a new tilting function, this will automatically erase the previous one.
If you want to erase without recording a new one, Press briefly on the
To erase the intermediate position, press the and buttons simultaneously for more than 5 seconds.
To erase the tilting, press the and buttons simultaneously for more than 5 seconds.
To erase both, just press the button for more than 5 seconds.
The blind jogs briefly (UP/DOWN) indicating that CENTRALIS uno RTS VB has deleted the intermediate position and/or the tilting.
5
Complete reset
To completely reset the CENTRALIS uno RTS VB, press its PROG button for more than 7 seconds.
This will erase all of the programmed controls, the intermediate position and the automatic tilting.
P
R
O
G
The blind jogs briefly (UP/DOWN), the memory of the CENTRALIS uno RTS VB is cleared.
7 sec.
Trouble shooting guide
Nothing works: Phantom intermediate position/slat tilting:
Check the wiring. The programmed IP can only be reached from the UP limit.
Check the battery of the transmitter. not when the blind is in another position.
Check that the transmitter has been properly recorded. Be sure to adjust the slat tilting after a down movement
Check for any other possible source of radio interferences. when the blind is approximately 3/4 down of the window.
4
CENTRALIS uno RTS VB
3 4
5 sec.
STOP
• Stop the blind at the intermediate • Press the
position you wish. The blind jogs briefly (UP/DOWN),
If necessary, adjust this position with
the intermediate position is recorded.
the or buttons.
3 4
5 sec.
adjust
or the angle
• Adjust the tilt angle with the • Press the
or buttons.
The blind jogs briefly (UP/DOWN), the
tilt angle is recorded.
If both IP and tilting have been programmed
UP limit
tilting
IP
button while the blind • Press briefly the button while the blind is at its UP limit.
The blind will move, stop at the intermediate position and tilt at
the pre-set angle.
Note : after a DOWN movement the blind only tilts.
button to reach the IP or to get the tilting (or both), then:
Lost in your programming mode:
Just make a complete reset and start again
(refer to section 5).
We reserve the right to make changes due to technical improvements.
SOMFY SAS, capital 20.000.000 Euros, RCS Bonneville 303.970.230
INSTALLATION
IP
button more than 5 sec.
1
button more than 5 sec.
Characteristics
tilting
2
Installation
This device must be installed and programmed by qualified installers for whom this instruction is inten-
ded. Before connecting the unit, read the instructions carefully.
Assembly
2.1
FRONT PLATE
CONTROL UNIT
We reserve the right to make changes due to technical improvements.
inteo
CENTRALIS UNO RTS VB
CENTRALIS UNO RTS VB is a individual control system for AC motor dedicated to external and
interior venetian blind applications.
• CENTRALIS UNO RTS VB has an integrated radio receiver compatible with the RT
and RTS transmitters allowing individual, group and master commands. Up to twelve controls can
be recorded in the CENTRALIS UNO RTS VB.
• The commands coming from the radio controls can be disabled thanks to the 0/auto switch.
• An automatic intermediate position and a slat tilting operation can be programmed.
• CENTRALIS UNO RTS VB is compatible with the EOLIS and SOLIRIS sensors RTS.
Up to three RTS sensors can be memorized in one receiver and one RTS sensor can be memori-
zed in several receivers.
• Main supply : 220-240V 50Hz.
• Class II product
• Protection index IP40.
80 mm • Output : 250V~ 3A
• Output temporisation : activ for 180s.
• Environmental conditions for use :
- temperature +5°C to +40°C (no condensation allowed).
- pollution degree typical for usual living space.
33 mm 17 mm
80 mm
The range of radio control is limited by laws regulating
radio devices and by building design.
BRACKET
FRAME
When planning, please ensure that there is adequate radio
reception.
In order not to affect quality of reception, a minimum
distance of 30 cm between a CENTRALIS uno RTS VB
and a radio transmitter should be maintained.
CENTRALIS uno RTS VB should not be installed in the
WALL
immediate vicinity of metal surfaces. Powerful local trans-
mitter equipment (e.g. cordless headphones) with a trans-
mission frequency identical to the CENTRALIS uno RTS
VB can affect its function.
CENTRALIS uno RTS VB
guide
Hereby, SOMFY, declares that this equipment
is in compliance with the essential require-
ments and other relevant provisions of
Directive 1999/5/EC.
A Declaration of Conformity is available at the
web address www.somfy.com Heading CE
usable in EU, CH
