SOMFY Inteo SOLIRIS IB Installation Manual

INSTALLATION
1
Characteristics:
80 mm
2
Installation:
!
We reserve the right to make changes due to technical improvements.
inteo

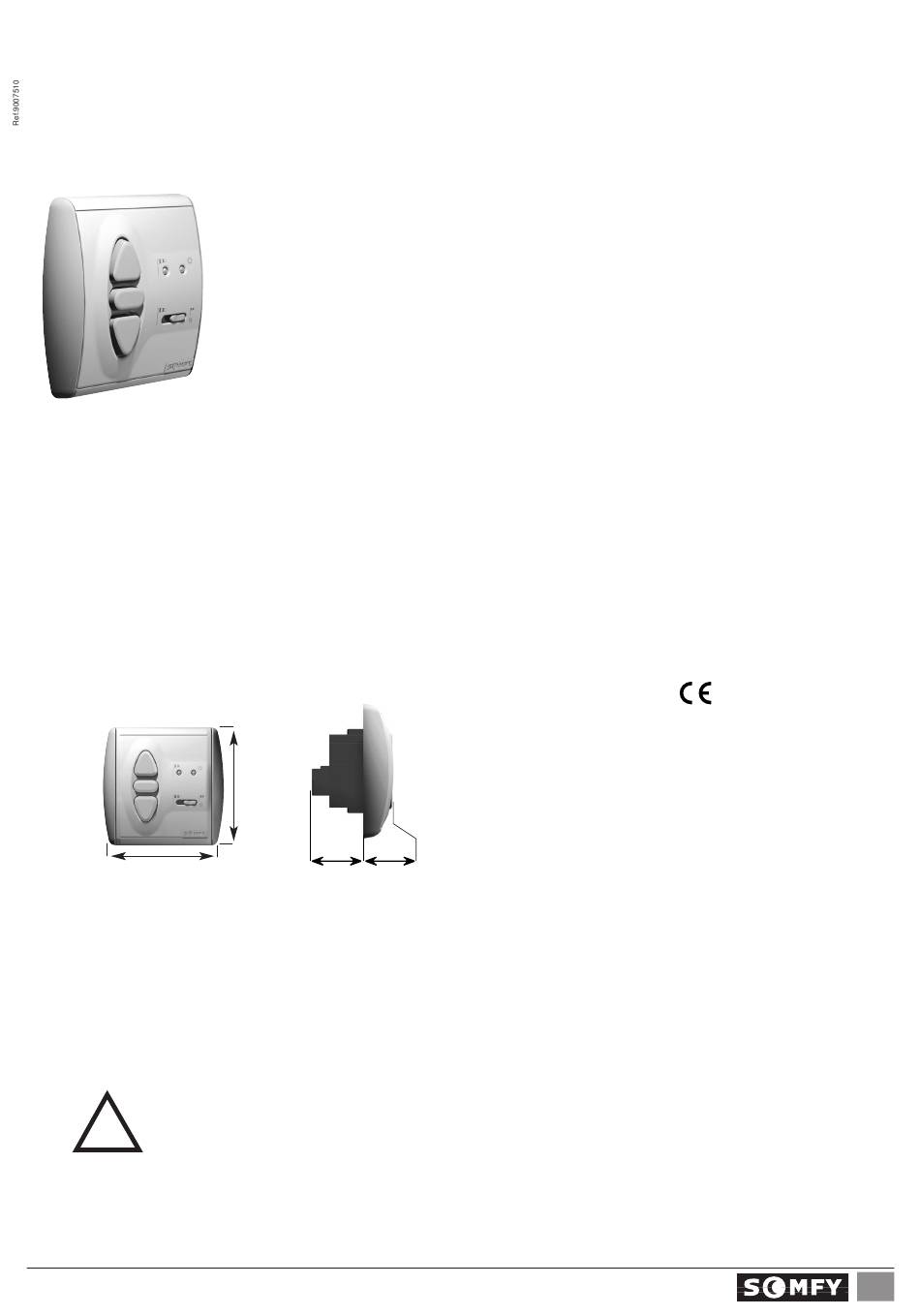

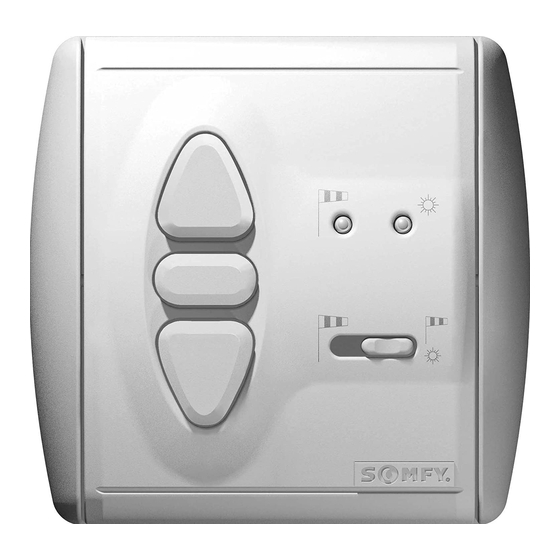

SOLIRIS IB is a wind and sun automatic control system for an Inteo BUS line (IB Bus).
The wind speed and amount of sunshine are measured by a combined sensor.
A rain sensor can also be connected.
When the sun shines, the awning/blind is activated automatically, either fully or to an indi-
vidually programmed intermediate position.
A dynamic retraction delay avoids frequent activation commands caused by varying light
conditions. Manual operation is also possible and the sun function can be switched off.
If the wind is too strong the awning/blind is automatically retracted and manual operation
is blocked. The wind function is a safety function and is always activated.
80 mm
33 mm 17 mm
Setting up, testing, commissioning and troubleshooting for this equipment should only be car-
ried out by a trained electrician. Before starting work, disconnect the power to all connecting
wires, and take steps to prevent their accidental reconnection. Correct operation is only guar-
anteed when professionally installed and power supply is adequate.
SOLIRIS IB
Supply:
Degree of protection:
Class:
Operating temperature:
Environmental conditions:
Relay contacts load:
SOLIRIS IB
guide
EN60669
EN50081-1
EN50082-1
220 – 240V ~ 50/60Hz
IP 40
II
+5°C to +40°C
dry living areas.
500 mA / 50V DC
1
