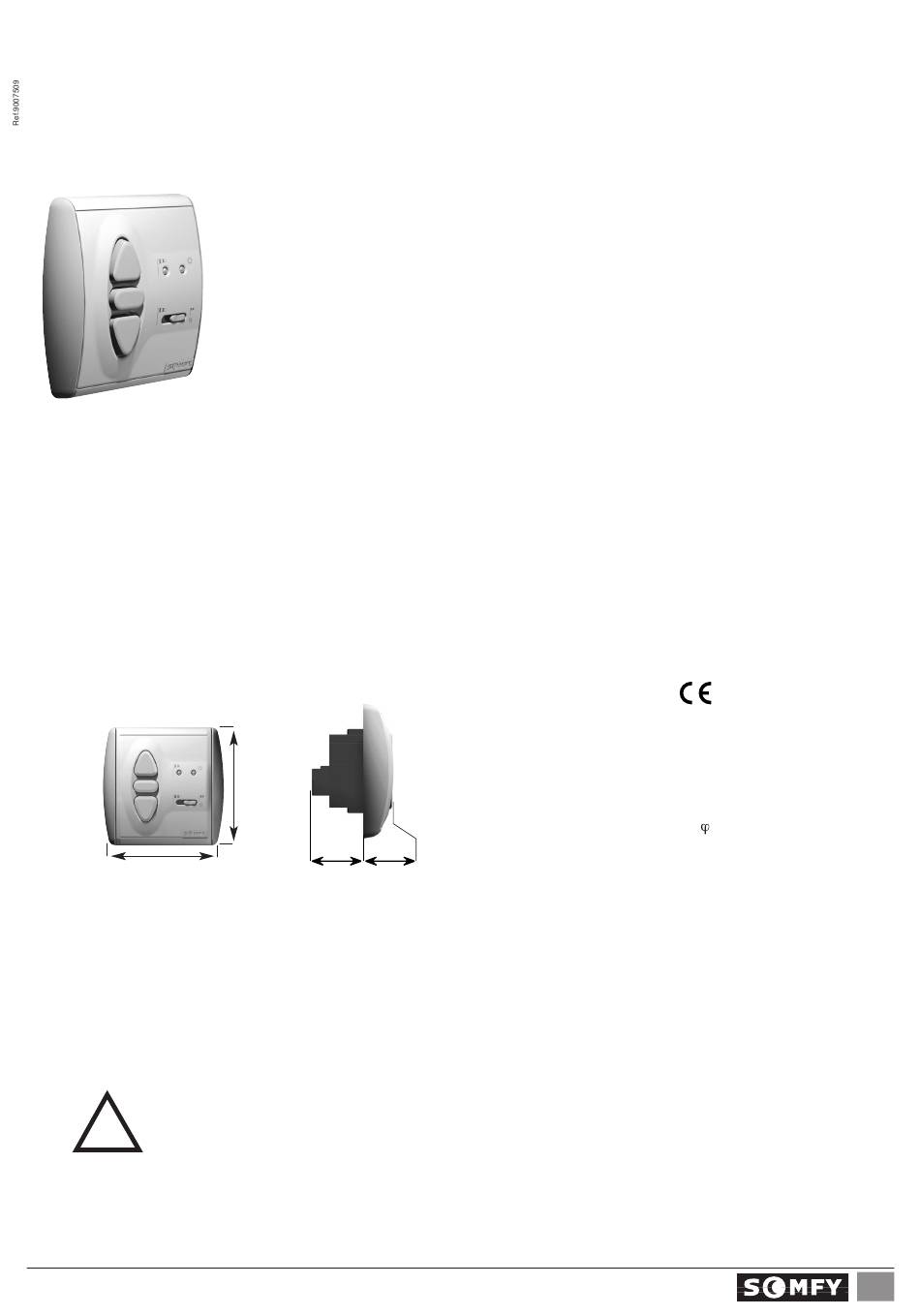

INSTALLATION
1
Characteristics:
80 mm
2
Installation:
!
We reserve the right to make changes due to technical improvements.
inteo

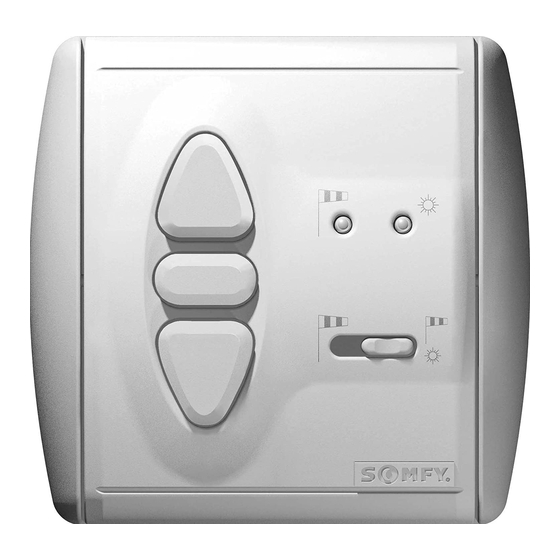

SOLIRIS Uno is a wind and sun automatic control system for an AC motor.
The wind speed and amount of sunshine are measured by a combined sensor.
A rain sensor can also be connected.
When the sun shines, the awning/blind is activated automatically, either fully or to an indi-
vidually programmed intermediate position.
A dynamic retraction delay avoids frequent activation commands caused by varying light
conditions. Manual operation is also possible and the sun function can be switched off.
If the wind is too strong the awning/blind is automatically retracted and manual operation
is blocked. The wind function is a safety function and is always activated.
80 mm
33 mm 17 mm
Setting up, testing, commissioning and troubleshooting for this equipment should only be car-
ried out by a trained electrician. Before starting work, disconnect the power to all connecting
wires, and take steps to prevent their accidental reconnection. Correct operation is only guar-
anteed when professionally installed and power supply is adequate.
SOLIRIS Uno
Supply:
Degree of protection:
Class:
Operating temperature:
Environmental conditions:
Relay contacts load:
SOLIRIS Uno
guide
EN60669
EN50081-1
EN50082-1
220 – 240V ~ 50/60Hz
IP 40
II
+5°C to +40°C
dry living areas.
cos > 0,8 / 3A / 230V / 50Hz
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SOMFY SOLIRIS Uno
Summary of Contents for SOMFY SOLIRIS Uno
- Page 1 SOLIRIS Uno SOLIRIS Uno is a wind and sun automatic control system for an AC motor. The wind speed and amount of sunshine are measured by a combined sensor. A rain sensor can also be connected. When the sun shines, the awning/blind is activated automatically, either fully or to an indi- vidually programmed intermediate position.
-
Page 2: Terminal Layout
Mounting SOLIRIS Uno is suitable for mounting in a 60 mm Ø concealed connection box or suitable surface mounting cap (Somfy accessories). Connect the wires to the termi- Press the safety cover onto the Plug the SOLIRIS Uno control When setting (chapter 3) and... - Page 3 LED red/green The sun control function can be turned on and off using the sliding switch: Sun control ON : the SOLIRIS Uno reacts in accordance with the wind, the sun and with UP button the manual UP/DOWN/STOP commands. LED yellow...
-
Page 4: Mode Of Operation
Rain control An optional rain sensor with a floating contact can be connected to the SOLIRIS Uno. In case of rain, the blind/awning is retracted automatically. The red LED is illuminated. In this situation all manual commands and sun control commands are inhibited. They are again possible as soon as the rain stops. - Page 5 To cancel the slat tilting operation, press for approx. 10 seconds. As soon as the red LED is illuminated, the slat tilt and intermediate position are cancelled. We reserve the right to make changes due to technical improvements. SOLIRIS Uno...
-
Page 6: Demo Setting
SOLIRIS Uno. SUN appearing : 2 min. 10 sec. To do this, the SOLIRIS Uno can be switched to demo-mode. The SUN disappearing : 15/30 min. 15/30 sec. maximum movement time from highest to lowest end position in WIND appearing : 2 sec.
