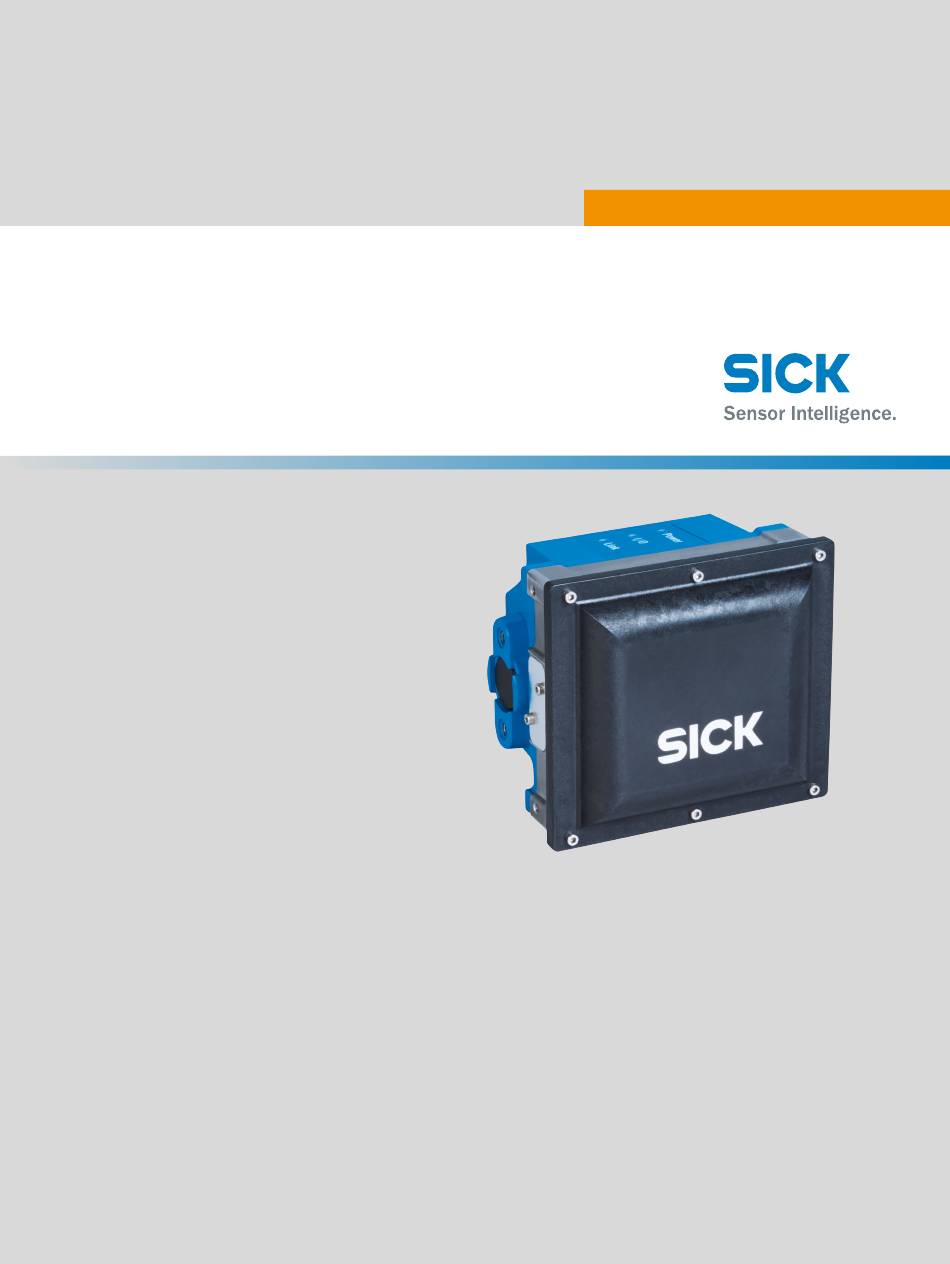

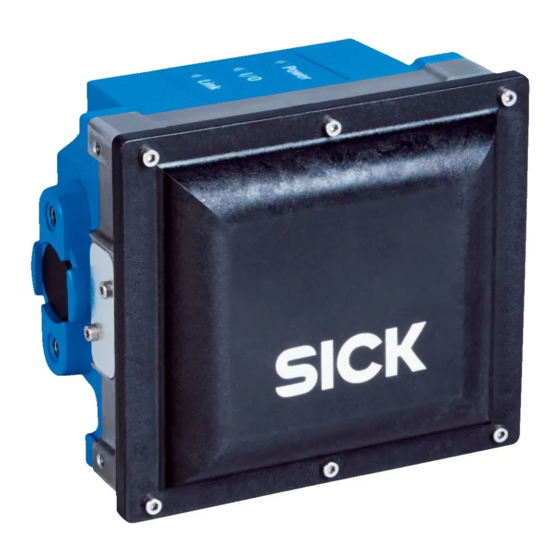

  • Page 1 O P E R A T I N G I N S T R U C T I O N S RMS3xx Radar sensors...
  • Page 2 This work is protected by copyright. Any rights derived from the copyright shall be reserved for SICK AG. Reproduction of this document or parts of this document is only permissible within the limits of the legal determination of Copyright Law. Any modi‐...

  • Page 3: Table Of Contents

    Troubleshooting................. 24 General faults, warnings, and errors............Repairs...................... Returns...................... Disposal..................... 8021530/19JS/2021-02-09 | SICK O P E R A T I N G I N S T R U C T I O N S | RMS3xx Subject to change without notice...
  • Page 4 12.1 EU declaration of conformity/Certificates..........12.2 Licenses....................12.3 Cybersecurity.................... O P E R A T I N G I N S T R U C T I O N S | RMS3xx 8021530/19JS/2021-02-09 | SICK Subject to change without notice...

  • Page 5: About This Document

    … highlights useful tips and recommendations as well as information for efficient and trouble-free operation. 8021530/19JS/2021-02-09 | SICK O P E R A T I N G I N S T R U C T I O N S | RMS3xx...

  • Page 6: Safety Information

    When reselling the device, inform the buyer about the regional approval restric‐ tions. SICK AG assumes no liability for losses or damage arising from the use of the product, either directly or indirectly. This applies in particular to use of the product that does not conform to its intended purpose and is not described in this documentation.

  • Page 7: Limitation Of Liability

    Modifications and conversions to the device may result in unforeseeable dangers. Interrupting or modifying the device or SICK software will invalidate any warranty claims against SICK AG. This applies in particular to opening the housing, even as part of mounting and electrical installation.

  • Page 8: Operational Safety And Particular Hazards

    Safety requirements relating to work on electrical systems must be complied with. ■ O P E R A T I N G I N S T R U C T I O N S | RMS3xx 8021530/19JS/2021-02-09 | SICK Subject to change without notice...
  • Page 9 Install the grounding for the product and the system in accordance with national ■ and regional regulations. 8021530/19JS/2021-02-09 | SICK O P E R A T I N G I N S T R U C T I O N S | RMS3xx Subject to change without notice...

  • Page 10: Product Description

    Ö / violet Ö / green Firmware update complete O P E R A T I N G I N S T R U C T I O N S | RMS3xx 8021530/19JS/2021-02-09 | SICK Subject to change without notice...
  • Page 11 Ö / yellow tion Ö = illuminated; Ö = flashing 8021530/19JS/2021-02-09 | SICK O P E R A T I N G I N S T R U C T I O N S | RMS3xx Subject to change without notice...

  • Page 12: Transport And Storage

    Avoid mechanical shocks. • Storage temperature: see "Technical data", page O P E R A T I N G I N S T R U C T I O N S | RMS3xx 8021530/19JS/2021-02-09 | SICK Subject to change without notice...
  • Page 13 For storage periods of longer than 3 months, check the general condition of all components and packaging on a regular basis. 8021530/19JS/2021-02-09 | SICK O P E R A T I N G I N S T R U C T I O N S | RMS3xx...

  • Page 14: Mounting

    Use of a weather hood and a mounting bracket is recommended for outdoor installations. Information about optional accessories, "Accessories", page O P E R A T I N G I N S T R U C T I O N S | RMS3xx 8021530/19JS/2021-02-09 | SICK Subject to change without notice...

  • Page 15: Electrical Installation

    Receive data positive coded Transmit data negative Receive data negative 8021530/19JS/2021-02-09 | SICK O P E R A T I N G I N S T R U C T I O N S | RMS3xx Subject to change without notice...

  • Page 16: Connection Options

    OUT2 OUT3 OUT4 Figure 2: PNP outputs connection example O P E R A T I N G I N S T R U C T I O N S | RMS3xx 8021530/19JS/2021-02-09 | SICK Subject to change without notice...

  • Page 17: Connecting The Device Electrically

    The initialization phase starts, the Power LED lights up yellow. As soon as the Power LED lights up green, the device is ready for operation. 8021530/19JS/2021-02-09 | SICK O P E R A T I N G I N S T R U C T I O N S | RMS3xx...

  • Page 18: Operation

    Device Description) for this device. You can install this within SOPAS ET using the device catalog. The device description file is saved on the device and can be installed there. Alternatively, installation is possible from the SICK website (Internet connection required).
  • Page 19 Default settings: scans display (left-hand side), selects the device application, enters the device parameters and the mounting location (right-hand side): 8021530/19JS/2021-02-09 | SICK O P E R A T I N G I N S T R U C T I O N S | RMS3xx...
  • Page 20 O P E R A T I N G I N S T R U C T I O N S | RMS3xx 8021530/19JS/2021-02-09 | SICK Subject to change without notice...
  • Page 21 The terminal program is started in the main window of SOPAS via the Tools > Terminal menu. 8021530/19JS/2021-02-09 | SICK O P E R A T I N G I N S T R U C T I O N S | RMS3xx...
  • Page 22 A description of the telegrams can be found in the Technical Information Telegram Listing RMS3xx publication (English, no. 8021531). O P E R A T I N G I N S T R U C T I O N S | RMS3xx 8021530/19JS/2021-02-09 | SICK Subject to change without notice...

  • Page 23: Maintenance

    Recommended: At least every 6 months. 8021530/19JS/2021-02-09 | SICK O P E R A T I N G I N S T R U C T I O N S | RMS3xx Subject to change without notice...

  • Page 24: Troubleshooting

    Possible faults and corrective actions are described in the table below for troubleshoot‐ ing. In the case of faults that cannot be rectified using the information below, please contact SICK Service. To find your agency, see the final page of this document. NOTE Before calling, make a note of all type label data such as type designation, serial number, etc., to ensure faster telephone processing.

  • Page 25: Disposal

    Separate the recyclable materials by type and place them in recycling containers. ■ 8021530/19JS/2021-02-09 | SICK O P E R A T I N G I N S T R U C T I O N S | RMS3xx Subject to change without notice...

  • Page 26: Technical Data

    Distance in meters (feet) Up to 1 m: No detection O P E R A T I N G I N S T R U C T I O N S | RMS3xx 8021530/19JS/2021-02-09 | SICK Subject to change without notice...

  • Page 27: Performance

    In connected state with suitable mating plug or protective cap mounted on the connections 8021530/19JS/2021-02-09 | SICK O P E R A T I N G I N S T R U C T I O N S | RMS3xx...

  • Page 28: Ambient Data

    –40 °C … +85 °C Ambient humidity 0% ... 90%, non-condensing O P E R A T I N G I N S T R U C T I O N S | RMS3xx 8021530/19JS/2021-02-09 | SICK Subject to change without notice...

  • Page 29: Accessories

    Accessories and where applicable mounting information can be found online at: • www.sick.com/RMS3xx 8021530/19JS/2021-02-09 | SICK O P E R A T I N G I N S T R U C T I O N S | RMS3xx Subject to change without notice...

  • Page 30: Annex

    12.2 Licenses SICK uses open source software which is published by the rights holders under a free license. Among others, the following license types are used: GNU General Public License (GPL version 2, GPL version 3), GNU Lesser General Public License (LGPL), MIT license, zlib license and licenses derived from the BSD license.
  • Page 31 ANNEX 8021530/19JS/2021-02-09 | SICK O P E R A T I N G I N S T R U C T I O N S | RMS3xx Subject to change without notice...
  • Page 32 E-Mail office@sick.com.gr E-Mail info@sick.ru Vietnam Hong Kong Singapore Phone +65 6744 3732 Phone +852 2153 6300 Phone +65 6744 3732 E-Mail sales.gsg@sick.com E-Mail ghk@sick.com.hk E-Mail sales.gsg@sick.com Detailed addresses and further locations at www.sick.com SICK AG | Waldkirch | Germany | www.sick.com...
