INSTALLATION

Before commencing work, isolate the existing power supply.
To remove the front cover, undo the two screws on the Receiver, then lift off.
This unit is designed for fixed wiring only. If running surface mount cable, use
cutters to break out the tab underneath and secure cable(s) with the supplied
cable clamp. Surface mount cable should be clipped to the wall or ran in suitable
trunking, 1mm cable is recommended and no bare copper should be visible
2
outside the connector block. All wiring must conform to the current IEEE wiring
regulations.
The Ignite Receiver is a class 2 device and does not require an earth. You may
need to join existing earth leads together using a terminal strip to maintain earth
continuity to the rest of the circuit. Ensure that the circuit is protected by a 3
amp fuse.
COMBI BOILER WITHOUT ROOM THERMOSTAT OR TIMER
(No hot water cylinder, Boiler fires when hot tap is opened)
Installation - Wall Mount
Install the Ignite Receiver as described in on page 11.
We recommend that any internal timers are disconnected if possible.
Please consult your boiler installation manual for guidance on how to wire in
external controls. Usually, there will be a wire link to remove on the boiler terminal
block, then these two terminals are wired to terminals 3 & 4 on the Inspire

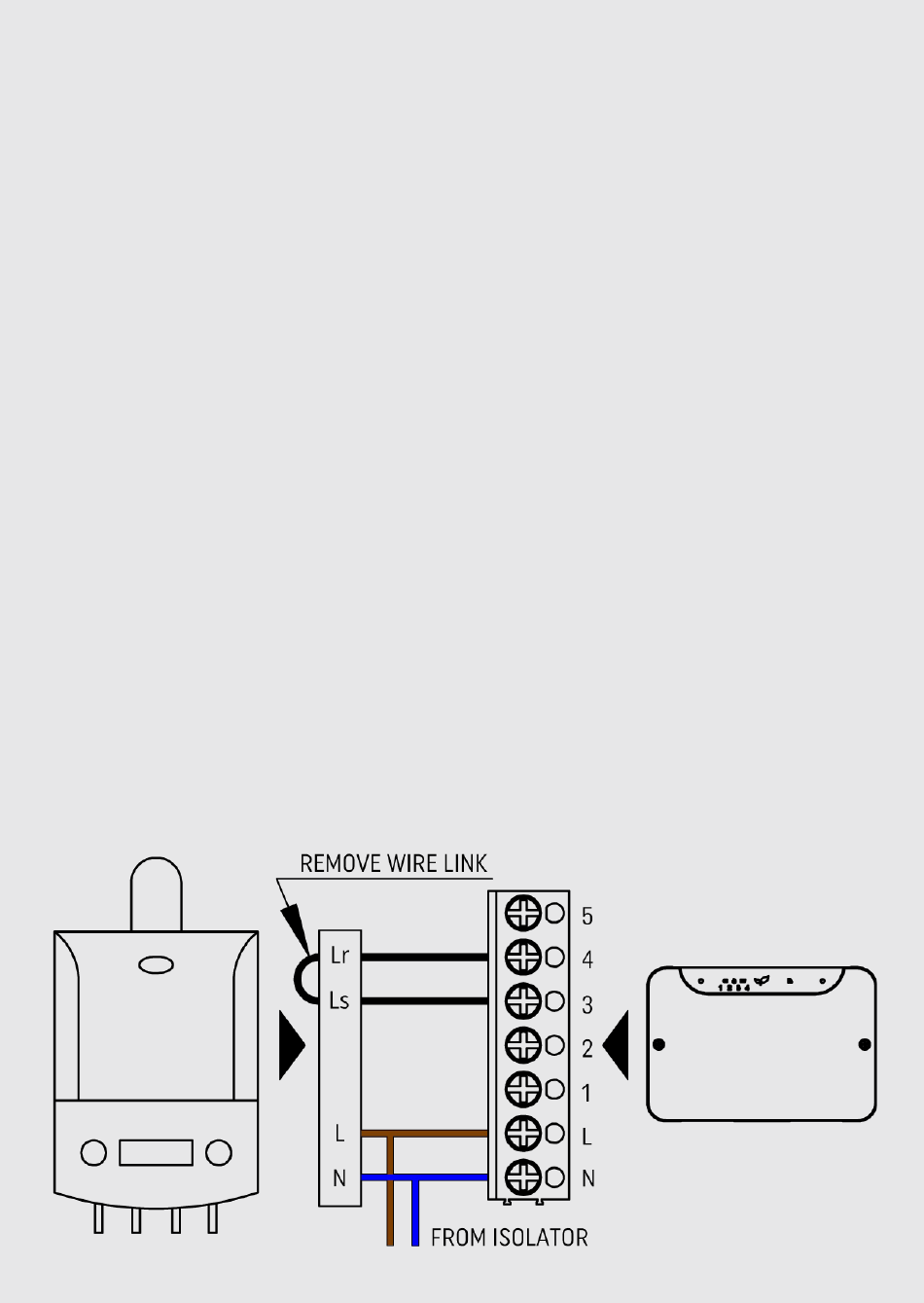

Fig 6
Terminal board as shown in .
Connect the Receiver Live(L) and Neutral(N) to the same fused spur as the boiler.
