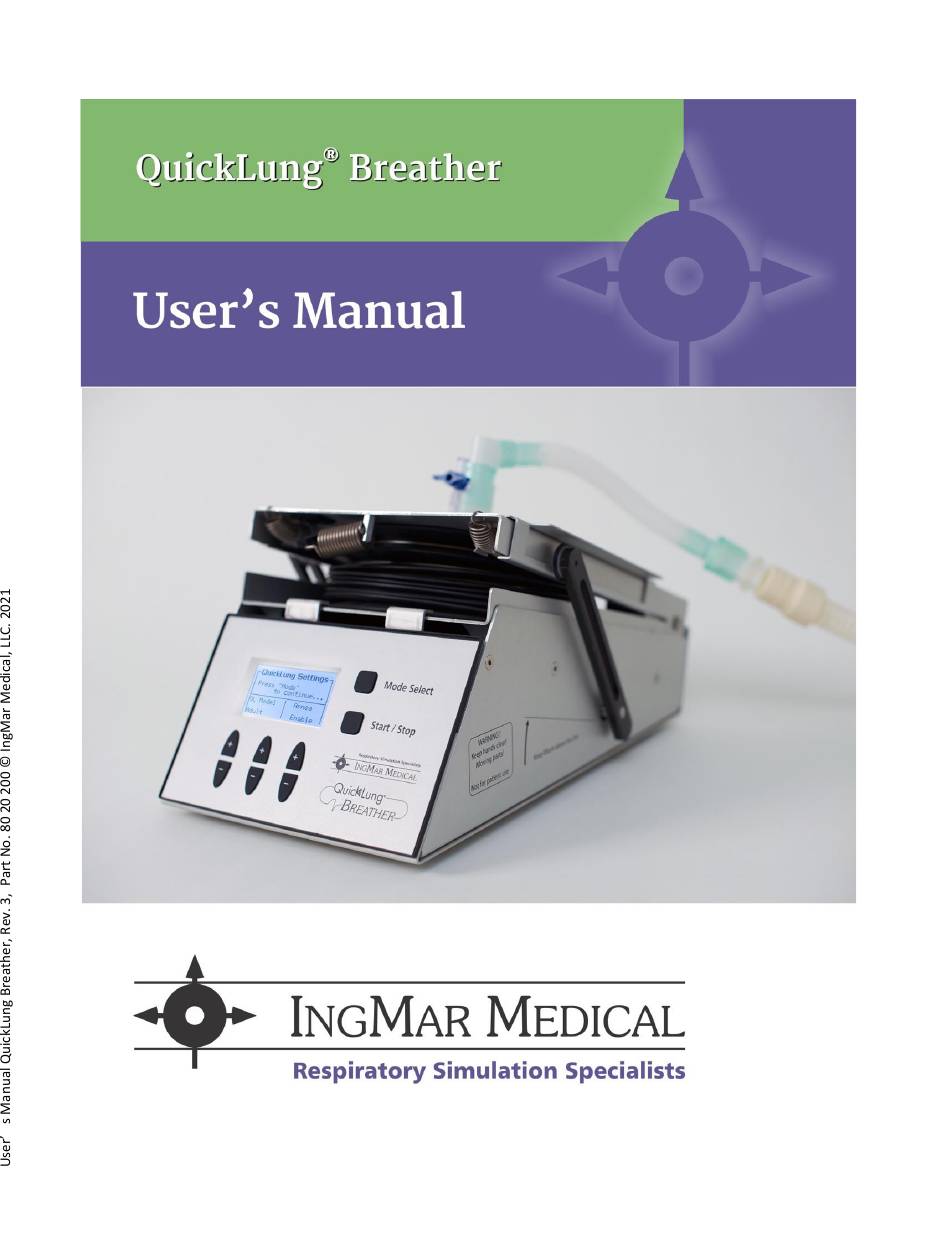

- Page 1 USA Toll Free: 1 (800) 583-9910 | International:+1 (412) 441-8228 | support@ingmarmed.com...
- Page 2 Document History Revision History Date Authors Rev. 1 6/20/2017 Stefan Frembgen/Michael Bails Rev. 2 9/24/2018 Samantha Schadwinkel Rev. 3 2/24/2021 Michael Bails...
-
Page 3: Legal Information
IngMar Medical from any further warranty obligations. The above is the sole warranty provided by IngMar Medical, LLC. No other warranty, expressed or implied, is intended. Representatives of IngMar Medical are not authorized to modify the terms of this warranty. - Page 4 IMPLIED, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY, FITNESS FOR ANY PARTICULAR PURPOSE, OR NONINFRINGEMENT. IngMar Medical, LLC. shall not be liable for, nor shall buyer be entitled to recover, any special incidental or consequential damages or for any liability incurred by buyer to any third party in any way arising out of or relating to the goods.
-
Page 5: Table Of Contents
......................7 PERATOR AFETY 2.1.1 Intended Use ..........................7 ................9 UMMARY OF ENERAL RECAUTIONS An Introduction to the QuickLung Breather ............... 10 ..................... 10 YSTEM VERVIEW ..................10 YSTEM EATURES AND PTIONS ⎯ Eupnea ® (shallow breathing) ..................10 ⎯... - Page 6 ..................... 24 HYSICAL PECIFICATIONS ................... 24 NVIRONMENTAL PECIFICATIONS Index ......................... 25 List of Figures ......................26...
-
Page 7: About The User's Manual
2.1.1 Intended Use The QuickLung Breather is the spontaneous breathing option for the IngMar Medical QuickLung. It may be used in ventilator management training where the need for a spontaneously breathing respiratory simulator is essential while addressing topics of synchrony, patient support, and weaning. - Page 8 Do not allow aerosols to contaminate the bellows of the QuickLung. Contamination with aerosols may, over time, result in material degradation. ARNING Use of the QuickLung Breather in the presence of flammable anesthetics may present an explosion hazard. ARNING Electromagnetic Interference: Do not use the QuickLung Breather in patient rooms or other...
-
Page 9: Summary Of General Precautions
Electrical Supply: Connect the power supply provided only to a properly grounded wall outlet providing 100 – 240 V AC, 50 – 60 Hz. CAUTION Do not operate QuickLung Breather when it is wet due to spills or condensation. Never sterilize or immerse the device in liquids. CAUTION Always use dry air or oxygen with the QuickLung. -
Page 10: An Introduction To The Quicklung Breather
Figure 3-1: QuickLung Breather with Accessories 3.2 System Features and Options The QuickLung Breather offers features and options for the basic as well as the advanced user. Standard features of the QuickLung Breather include: • The ability to breathe spontaneously, making a small or large contribution to overall minute ventilation •... -
Page 11: Asl Quicklung Breather Setup
If you already own a QuickLung that does not have the side rails or the “wing” panel installed, please contact IngMar Medical to obtain the correct part. On the rear of the Breather, there is a spring-loaded pin used to secure the QuickLung test lung into place. -
Page 12: Electrical Connections
• Connect the DC power output cord of the power supply to the DC input jack in the back of the QuickLung Breather. • Connect the QuickLung Breather power adapter to line power supplying 100 - 240 V AC, 50/60 Hz with the power cord for your specific country supplied in the package. -
Page 13: Running A Simulation
To begin, turn on the system: 1. Flip the power switch at the back of the QuickLung Breather to the ON ( | )position. Figure 5-1: Turning On the Device On the front panel, the LCD display will light up and show the QuickLung Settings window. - Page 14 CAUTION If the QuickLung Breather is set to take excessive breaths (considering the compliance and/or resistance present), the motor drive will slip and could potentially be damaged. 1. Use the left <+/-> to match Res. to the resistance setting of the QuickLung.
- Page 15 4. Press Start/Stop. This places the lift-arms at the “absolute” zero position. 5. Use center <+> to increase the Offset value, and then press Start/Stop again to verify position of the lift-arms. Repeat as necessary until the lift-arms are just touching the QuickLung wing. Figure 5-4: Offset Not Adjusted (Left) and Properly Adjusted (Right) 6.
-
Page 16: Using Different Modes Of Spontaneous Breathing
PONTANEOUS REATHING The following section describes the different breathing patterns available in the QuickLung Breather, together with the respective ranges of breath rate, inhalation time (Ti), flow rate, and the maximum spontaneous tidal volume possible. The values in brackets represent default values for each breath pattern. -
Page 17: Eupnea
For the QuickLung Junior, the respective values are: R = 5 cmH R = 20 cmH R = 50 cmH C = 15 mL/cmH C = 6 mL/cmH C = 3 mL/cmH Max. Flow 80 L/min 40 L/min 20 L/min Max. -
Page 18: Biot's
6.3 Biot’s “Biot's respiration is an abnormal pattern of breathing characterized by groups of quick, shallow inspirations followed by regular or irregular periods of apnea.” The range of parameters that are available is depicted in the table below: Rate [BPM] Volume [mL] Ti [%] MV [L]... -
Page 19: Using The Apnea Feature
Seed value. Numbers between 1 and 999 are allowed. Setting the Seed value to zero (0) forces the QuickLung Breather to use the set Breaths and NoBr as fixed values, without any random fluctuations. -
Page 20: Support
UPPORT 7.1 Support Resources Recognizing that the QuickLung Breather has users from a large number of specialties, IngMar Medical is dedicated to support its users in many different ways. We encourage you to visit our website at www.ingmarmed.com as the entry point for up-to-date information on support options. -
Page 21: Troubleshooting
Here are a few conditions (with their solutions) that you can easily identify and troubleshoot: • Lift arms are moving in the wrong direction Solution: while QuickLung Breather is not operating, position the lift arms so that they are above the line marked on the sides of the device. -
Page 22: Maintenance
CAUTION The QuickLung Breather does not contain user-serviceable components or parts. Unauthorized opening of the device will void the warranty. For details about available service subscriptions or extended warranty plans, please contact IngMar Medical Client Success at 1 (800) 683-9910, or +1 (412) 441-8228 Option 1... -
Page 23: Technical Data
ECHNICAL 9.1 Performance Specifications Volumes Total Volume (QuickLung) 3.1 1.2 L (400mL for Junior) Spontaneous Tidal Volume 0 to 720 mL (0 to 215 mL for Junior) Frequencies Spontaneous Breath Rate 4 to 60 BPM based on breath pattern Flows Peak Flow 80 L/min Lung Settings... - Page 24 11” x 8.5” x 2.25” (276.4 x 215.9 x 57.2 mm) QuickLung with Breather 14” X 8.5” x 6.5” (355.6 x 215.9 x 165.1 mm) Weight QuickLung Breather Approx. 22 lbs. (10 kg) QuickLung 3.5 lbs. (1.6 kg) Materials Used...
- Page 25 10 I NDEX Anesthetics ................. 8 Maintenance ................22 Apnea ..................19 Apneusis ................... 18 Overview system ................. 10 Biot’s ..................18 Oxygen, use with ................ 9 Cheyne-Stokes ................17 Patents ..................4 Connection Patient ..................7 Electrical ................12 Patient rooms ................
- Page 26 11 L IST OF IGURES Figure 3-1: QuickLung Breather with Accessories ........................10 Figure 4-1: QuickLung Locking Pin in the Released and Locked Positions .................. 11 Figure 4-2: Electrical Connections .............................. 12 Figure 5-1: Turning On the Device ............................. 13 Figure 5-2: QuickLung Settings Menu ............................
