Summary of Contents for IngMar Medical ASL 5000

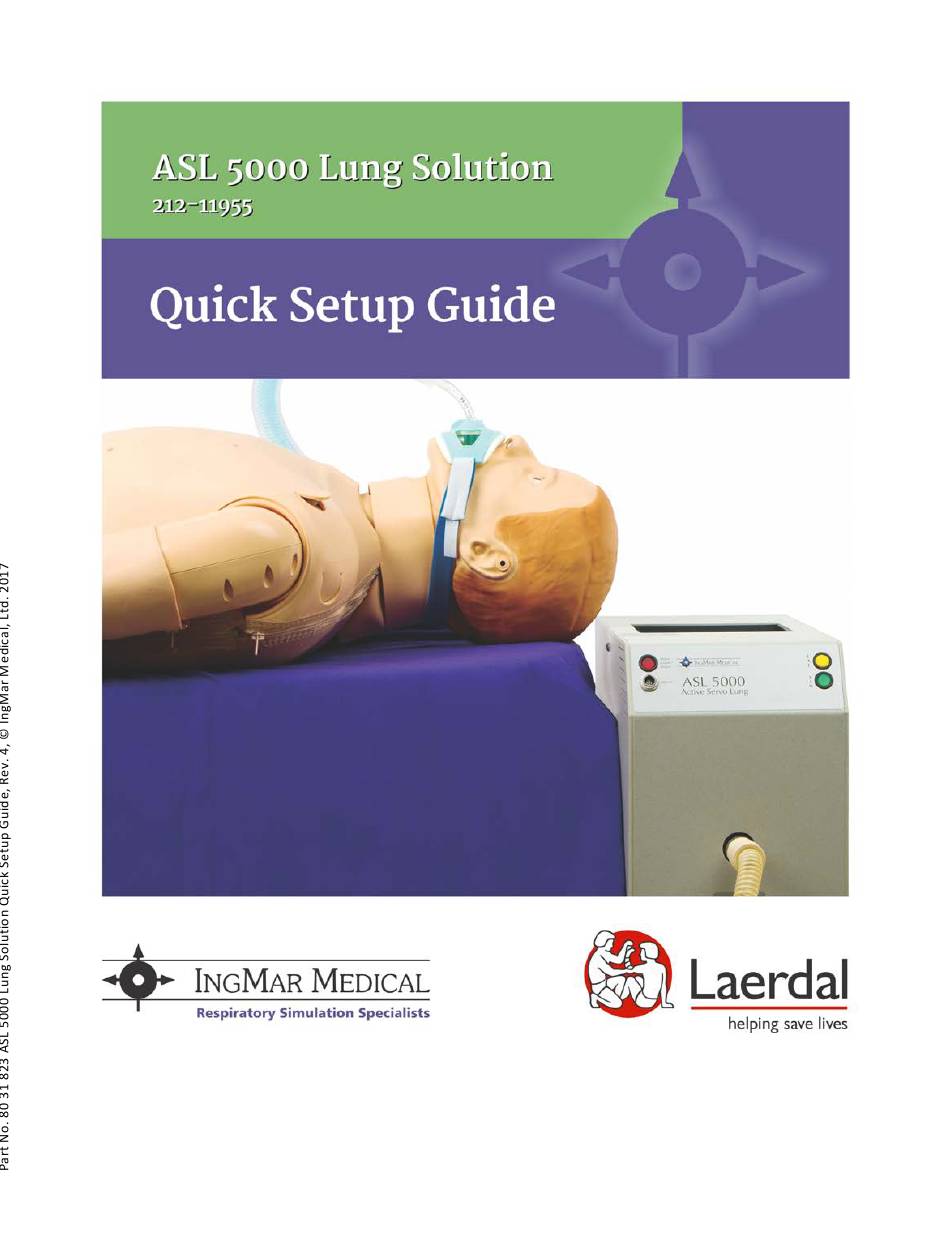

- Page 1 USA Toll Free: 1-800-583-9910 | International: +1 (412) 441-8228 | service@ingmarmed.com...
- Page 2 Document History Revision History Date Authors Rev. 1 July 12, 2017 Michael Bails Rev. 2 July 14, 2017 Michael Bails Rev. 3 Sept. 11, 2017 Michael Bails Rev. 4 Dec. 13, 2017 Michael Bails...
- Page 3 Hardware setup...
- Page 4 Open manikin External port to ASL 5000...
- Page 5 Release stomach line from chest plate Locate SimMan® 3G lung components Airway / trachea lines Pressure lines Internal port to ASL 5000 Right lung Left lung...
- Page 6 Prepare right lung Discard or keep tube and plastic elbow...
- Page 7 Prepare left lung Discard or keep tube and plastic elbow...
- Page 8 SimMan® 3G ready for Lung Adapter installation Airway / trachea lines Pressure lines Lung Adapter...
- Page 9 Left lung flexible tubing (labeled “To Left Trachea”) Tube to SimMan® 3G left lung pressure port (pre-connected) Tubing to ASL 5000 connection (labeled “To SimMan Port”) Connector for SimMan® 3G right lung pressure sensor tube (labeled “R”) Connector for SimMan® 3G left lung pressure sensor tube (labeled “L”)
- Page 10 Connect SimMan® 3G pressure sensor lines Connect SimMan® 3G left lung pressure sensor line to connector marked “L” Connect SimMan® 3G right lung pressure sensor line to connector marked “R” Press-fit Lung Manifolds onto SimMan® 3G Lung Ports...
- Page 11 Left lung manifold Right lung manifold...
- Page 12 Insert lines labeled “To Left Sensor” and “To Right Sensor” “To Left Sensor” line “To Right Sensor” line Insert flexible tubing into right trachea lines...
- Page 13 Insert tubing to ASL 5000 connection port and secure with zip-tie Insert flexible tubing for left trachea line Completed Lung Adapter installation...
- Page 15 Selector Control: 1. Hold bottom of selector plate with thumb and finger 2. Pull top of selector plate up (do not unscrew knob) 3. Rotate top selector plate to SIM or ASL...
- Page 16 Close SimMan® 3G and prepare for simulation Replace stomach line onto chest plate To ASL 5000...
- Page 17 Software setup ***NOTE: LLEAP 6.3 OR GREATER MUST FIRST BE INSTALLED*** Insert USB Drive Drag ASL 5000 LLEAP Plugin.exe to desktop Double-click icon and follow prompts:...
- Page 18 Hardware setup To SimMan To ASL 5000 Power ASL, wait for red light to turn OFF Configure the system Option1 – Individual Windows Option2 – Theme Views Configure volume conversions...
- Page 19 Configure Connection Type ASL serial number (rear of unit) Press Connect to ASL Session Control establish connection...
