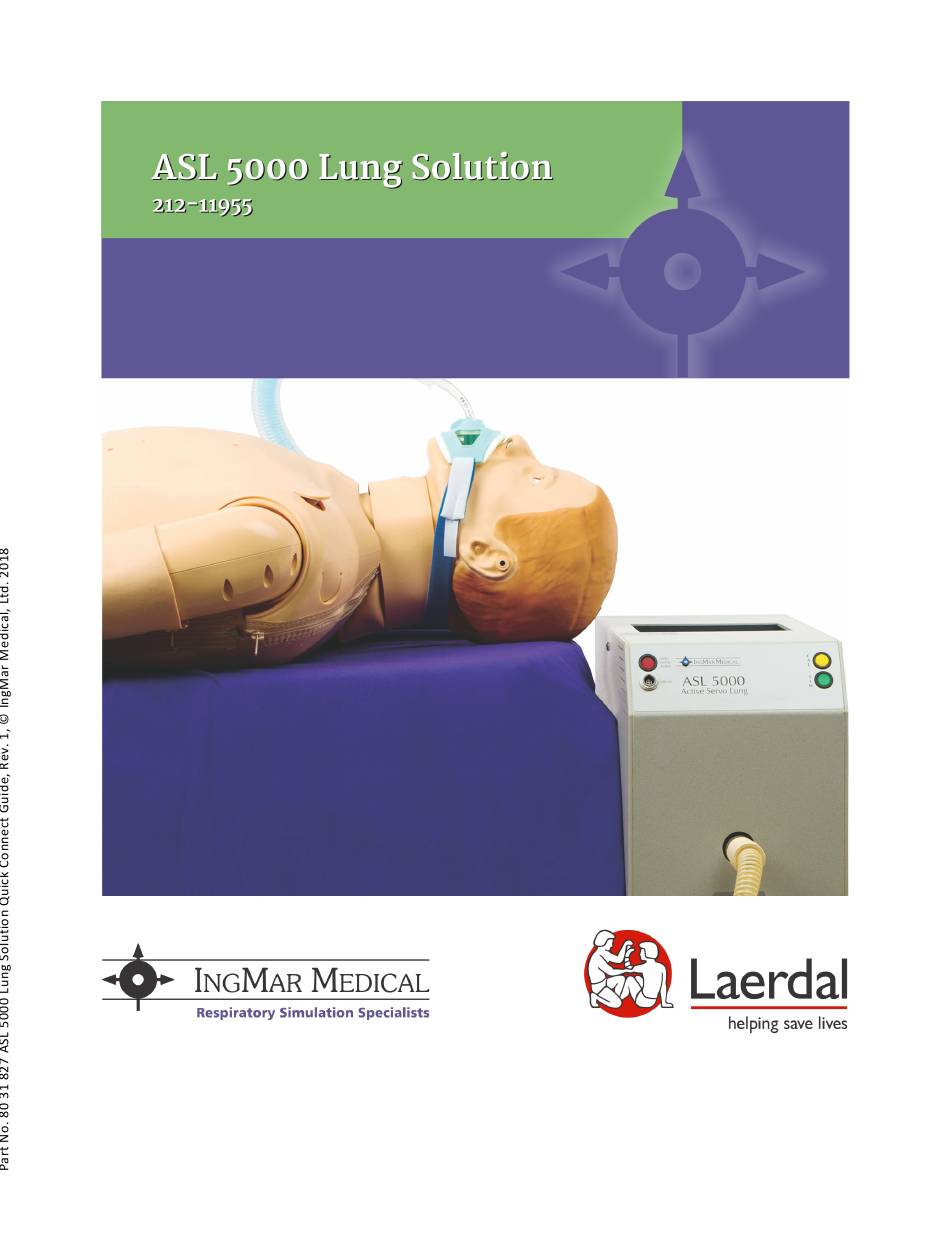

Quick Connect Guide
USA Toll Free: 1-800-583-9910 | International: +1 (412) 441-8228 | support@ingmarmed.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the ASL 5000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IngMar Medical ASL 5000

Summary of Contents for IngMar Medical ASL 5000

  • Page 1 Quick Connect Guide USA Toll Free: 1-800-583-9910 | International: +1 (412) 441-8228 | support@ingmarmed.com...
  • Page 2 Document History Revision History Date Authors Rev. 1 3/22/2018 Michael Bails...

  • Page 3: Hardware Setup

    Hardware setup Selector Control: 1. Hold bottom of selector plate with thumb and finger 2. Pull top of selector plate up (do not unscrew knob) 3. Rotate top selector plate to ASL...

  • Page 4: System Power

    System Configuration – SimMan as router • SimMan internal router set to “AP” or “Client” mode – wireless configuration • Connect Ethernet cable from LAN port of SimMan to Ethernet Port of ASL 5000 To ASL 5000 To SimMan System Configuration – External / Network router • Configure SimMan connection to external / network router (wireless or hard-wired) • Connect Ethernet cable from ASL 5000 to a numbered port on an external router OR • Connect Ethernet cable from ASL 5000 to a network (via wall jack or switch) To ASL 5000 To Router or switch System Power • Power SimMan until system is ready – eyes blinking and breathing • AFTER SimMan is ready, Power ASL 5000 Wait for red light to turn OFF for system ready ASL Power switch (rear of system)
  • Page 5 Connection – Start LLEAP using Manual Mode 1. Open IngMarDefault layout to access the ASL Session Control window ASL Session Control 2. Configure Volume Conversions (default is As Measured)
  • Page 6 3. Configure Connection Settings 4. Connection Type a. Connect using ASL Serial Number (recommended) Type ASL serial number (rear of unit)
  • Page 7 b. Connect using IP Address Type IP address 5. Complete connection Press Connect to establish connection Unconnected Connecting Connected NOTE: Once settings are complete, they are stored in memory and do not need to be reconfigured.
