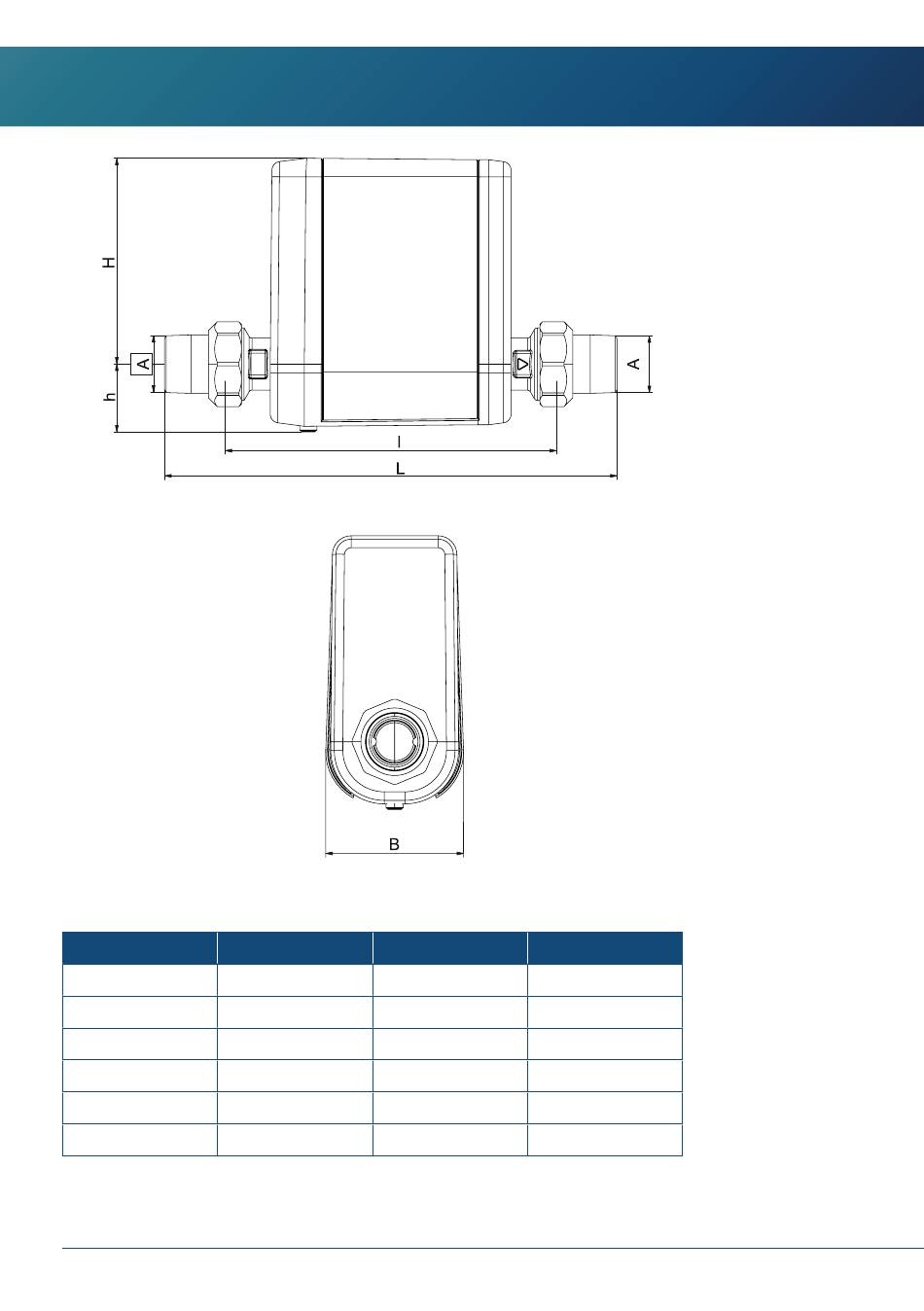

13. Dimensions

13. Dimensions
Nominal size
A
H
h
L
l
B
Operation and Maintenance Smart Command Intelligent Eco Valve
DN 20 DN 25
¾"
118.8 mm 118.8 mm
39 mm 39 mm
265.2 mm 261.2 mm
191.2 mm 191.2 mm
79.5 mm 79.5 mm
DN 32
1" 1¼"
118.8 mm
39 mm
285.2 mm
191.2 mm
79.5 mm
