2. CoLinkEx_LPC11C14 EVB Kit Introduction

2.1

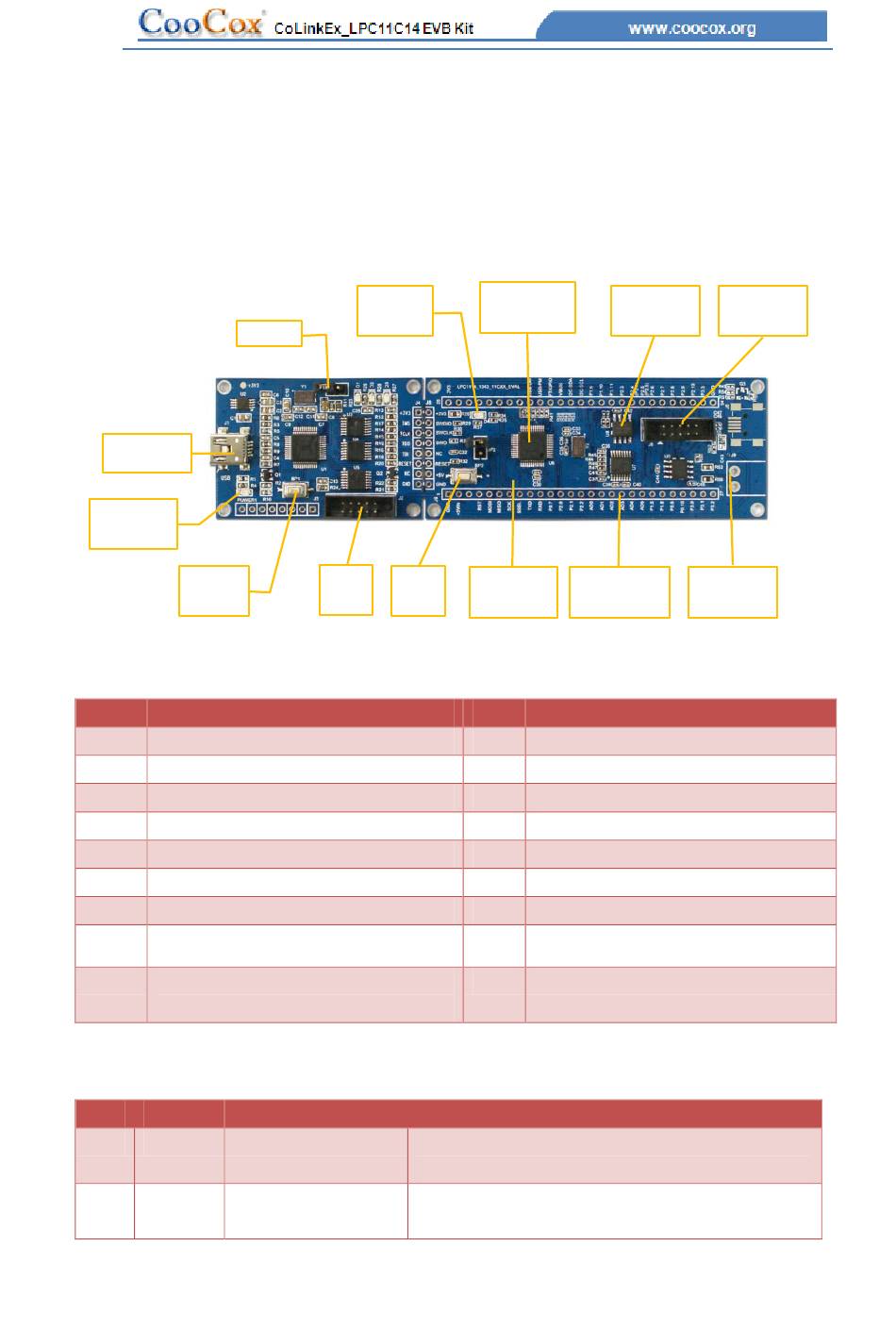

Board Interface Overview

Micro
USB
Power
Led
RESET
ID Description
BP1 CoLinkEx Reset Button
BP2 LPC11C14 Board Reset Button
D1 Red LED, CoLinkEx Error status
D2 Yellow LED, CoLinkEx Connection
D3 Blue LED, CoLinkEx Busy status
D4 LPC11C14 Board LED
J1 CoLinkEx Micro-USB Interface
J2 CoLinkEx SWD Interface
J4 CoLinkEx Debug Interface, connect
with LPC11C14

2.2 Jumpers settings

ID Name Default Settings
JP1 UPDATE Open
JP2 ISP Open
LED1
JP1
SWD
JP2
Note
Allow user to update the firmware of CoLinkEx
when this jumper is closed.
Allow user to download the code using ISP
software when this jumper is closed.
LPC11C14
Temp
FBD48
Sensor
RESET GPIO
ID Description
J6 GPIO IO Extension Interface
J8 UART232 Serial Socket
J9 CAN Interface
JP1 CoLinkEx Update Pin
JP2 LPC11C14board ISP Pin
U6 LPC11C14x301FBD48
U7 RS232 Transceiver
U8 Temperature Sensor (Though I2C)
U9 CAN Controller
UART
Interface
CAN
Interface
