INSTALLATION
AND
OPERATING
INSTRUCTIONS
Models:

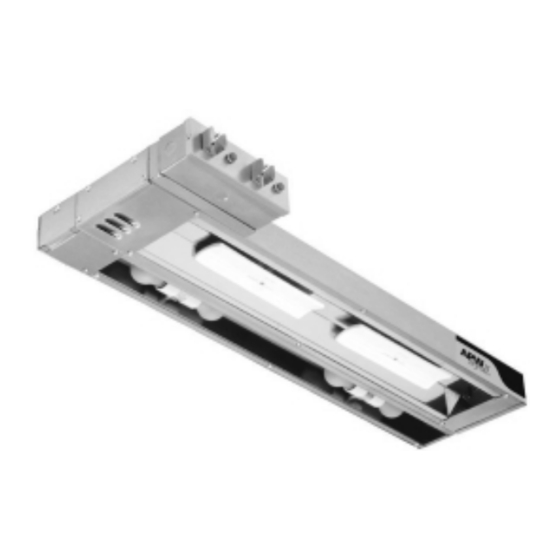

CERAMIC OVERHEAD FOODWARMERS
UNIT MUST BE KEPT CLEAR OF COMBUSTIBLES AT ALL TIMES
FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors and
!
liquids in the vicinity of this or any other appliance.
WARNING: Improper installation, adjustment, alteration, service or maintenance can
!
cause property damage, injury or death. Read the Installation, Operating and
Maintenance Instructions thoroughly before installing or servicing this equipment.
Initial heating of unit may generate smoke or fumes and must be done in a well ventilated area.
Overexposure to smoke or fumes may cause nausea or dizziness.
This equipment has been engineered to provide you with year-round dependable service when used
according to the instructions in this manual and standard commercial kitchen practices.
*
R
FDC, FDDC, FDLC & FDDLC
INTENDED FOR OTHER THAN HOUSEHOLD USE
RETAIN THIS MANUAL FOR FUTURE REFERENCE
*
!
!
APW WYOTT
Advertisement
Table of Contents
Related Manuals for APW Wyott FDC-18H
Summary of Contents for APW Wyott FDC-18H
- Page 1 Initial heating of unit may generate smoke or fumes and must be done in a well ventilated area. Overexposure to smoke or fumes may cause nausea or dizziness. This equipment has been engineered to provide you with year-round dependable service when used according to the instructions in this manual and standard commercial kitchen practices. APW WYOTT...
-
Page 2: General Information
TABLE OF CONTENTS 1. GENERAL INFORMATION 2. ELECTRICAL REQUIREMENTS... -
Page 3: Electrical Specifications
3. ELECTRICAL SPECIFICATIONS STANDARD CERAMIC OVERHEADS ROCKER SWITCH CONTROL WATTS MODEL CIR-1 CIR-2 FDC-18 FDC-18 FDLC-18 FDLC-18 FDDC-18 FDDC-18 FDDLC-18 FDDLC-18 FDC-24 FDC-24 FDLC-24 FDLC-24 FDDC-24 FDDC-24 FDDLC-24 FDDLC-24 FDC-30 FDC-30 1150 FDLC-30 FDLC-30 1230 FDDC-30 FDDC-30 1150 1150 FDDLC-30 FDDLC-30 1150 1230... - Page 4 STANDARD CERAMIC OVERHEADS ROCKER SWITCH CONTROL WATTS MODEL CIR-1 CIR-2 FDC-48 1500 FDC-48 2000 FDLC-48 1660 FDLC-48 2160 FDDC-48 1500 1500 FDDC-48 2000 2000 1660 FDDLC-48 1500 FDDLC-48 2000 2160 FDC-54 1500 FDC-54 2200 FDLC-54 1660 FDLC-54 2360 FDDC-54 1500 1500 FDDC-54 2200...
-
Page 5: Overall Dimensions
NOTE: TO AVOID BURNING OR CHARRING OF MATERIALS IN THE SURFACE BELOW THE FOODWARMER USE ONLY ABOVE AN ALL-METAL STRUCTURE SUCH AS ATABLE OR COUNTERTOP. SEE MINIMUM CLEARANCE CHARTABOVE. REMOTE SWITCHES ARE RECOMMENDED FOR UNDER SHELF MOUNTING. LONGER SWITCH LIFE WILL RESULT FROM COOLER SWITCH MOUNTING LOCATIONS. - Page 6 5. INSTALLATION 6. OPERATION WARNING: DO NOT TOUCH CERAMIC ELEMENTS WHILE UNIT IS ON OR COOLING DOWN. 7. CLEANING 8. TROUBLESHOOTING...
-
Page 7: Wiring Diagrams
ELEMENT(S) - SEE ELEMENT CONFIG. CHART A FDC-120V NOTE: WIRE#'S 4, 5, AND 6 - 10GA. 450°C. WIRE# 1 - 12GA. 105°C . ALL OTHER - 12GA. 200 OR 250°C. FDC-208/240V WIRING DIAGRAM ELEMENT(S) - SEE ELEMENT CONFIG. CHART A FDC-208/240V NOTE: WIRE#'S 4, 5, AND 6 - 10GA. - Page 8 ONE LAMPHOLDER TWO LAMPHOLDERS 18,24,30 MODELS 36,42,48,54 MODELS ELEMENT(S) - SEE ELEMENT CONFIG. CHART A FDLC-120V NOTE: WIRE#'S 4, 5, AND 6 - 10GA. 450°C. WIRE# 1 - 12GA. 105°C ALL OTHER - 12GA. 250°C. FDLC-208/240V WIRING DIAGRAM ONE LAMPHOLDER ONE LAMPHOLDER TWO LAMPHOLDERS TWO LAMPHOLDERS...
- Page 9 FDLC-208V w/FUSE WIRING DIAGRAM ONE LAMPHOLDER ONE LAMPHOLDER TWO LAMPHOLDERS TWO LAMPHOLDERS 18,24,30 MODELS 18,24,30 MODELS 36,42,48,54 MODELS 36,42,48,54 MODELS ELEMENT(S) - SEE ELEMENT CONFIG. CHART A FDLC-208V W/FUSE NOTE: WIRE#'S 5, 6, AND 7 - 10GA. 450°C. WIRE# 1 - 12GA. 105°C ALL OTHER - 12GA.
- Page 10 FDDC-208/240V WIRING DIAGRAM ELEMENT(S) - SEE ELEMENT CONFIG. CHART A ELEMENT(S) - SEE ELEMENT CONFIG. CHART A FDDC-208/240V NOTE: WIRE#'S 6, 7, 8, 9, AND 10 - 10GA. 450°C WIRE# 1 - 12GA. 105°C ALL OTHER - 12GA. 250°C. FDDLC-120V WIRING DIAGRAM ELEMENT(S) - SEE ELEMENT CONFIG.
- Page 11 FDDLC-208/240V WIRING DIAGRAM ELEMENT(S) - SEE ELEMENT CONFIG. CHART ONE LAMPHOLDER TWO LAMPHOLDERS 18,24,30 MODELS 36,42,48,54 MODELS ELEMENT(S) - SEE ELEMENT CONFIG. CHART FDDLC-208/240V NOTE: WIRE#'S 7, 8, 9, 10, AND 11 - 10GA. 450°C WIRE# 1 - 12GA. 105°C ALL OTHER - 12GA.
- Page 12 CHART “A” - ELEMENT CONFIGURATION...
-
Page 13: Parts List & Exploded View
10. PARTS LIST & EXPLODED VIEW FDC / FDLC / FDDC / FDDLC-18 to 72 EXPLODED VIEW... - Page 14 FDC / FDLC / FDDC / FDDLC-18 to 72 PARTS LIST 70476835 HOUSING W/ASS'Y FD-18 70476836 HOUSING W/ASS'Y FD-24 70476837 HOUSING W/ASS'Y FD-30 70476838 HOUSING W/ASS'Y FD-36 70476839 HOUSING W/ASS'Y FD-42 70476840 HOUSING W/ASS'Y FD-48 70476841 HOUSING W/ASS'Y FD-54 70476842 HOUSING W/ASS'Y FD-60 70476843 HOUSING W/ASS'Y FD-66...
-
Page 15: Warranty Procedure
FDC / FDLC / FDDC / FDDLC-18 to 72 PARTS LIST 70403281 LABEL, FDLC CONTROL 70404281 LABEL, FDC CONTROL 55102 LOCKNUT, 1/2 INCH CONDUIT 70400007 PLATE, ACCESS 70401007 PLATE, 12 INCH ACCES 70444700 BLOCK, TERMINAL, 85602 HOLDER, FUSE 85601 FUSE, BUS SC3 AMP 70401011 SHIELD, FTE ELEMENT 70400011...
