Summary of Contents for Beninca THINK-I

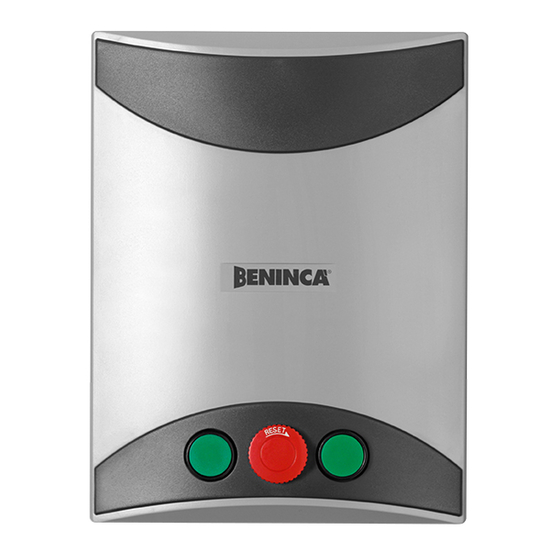

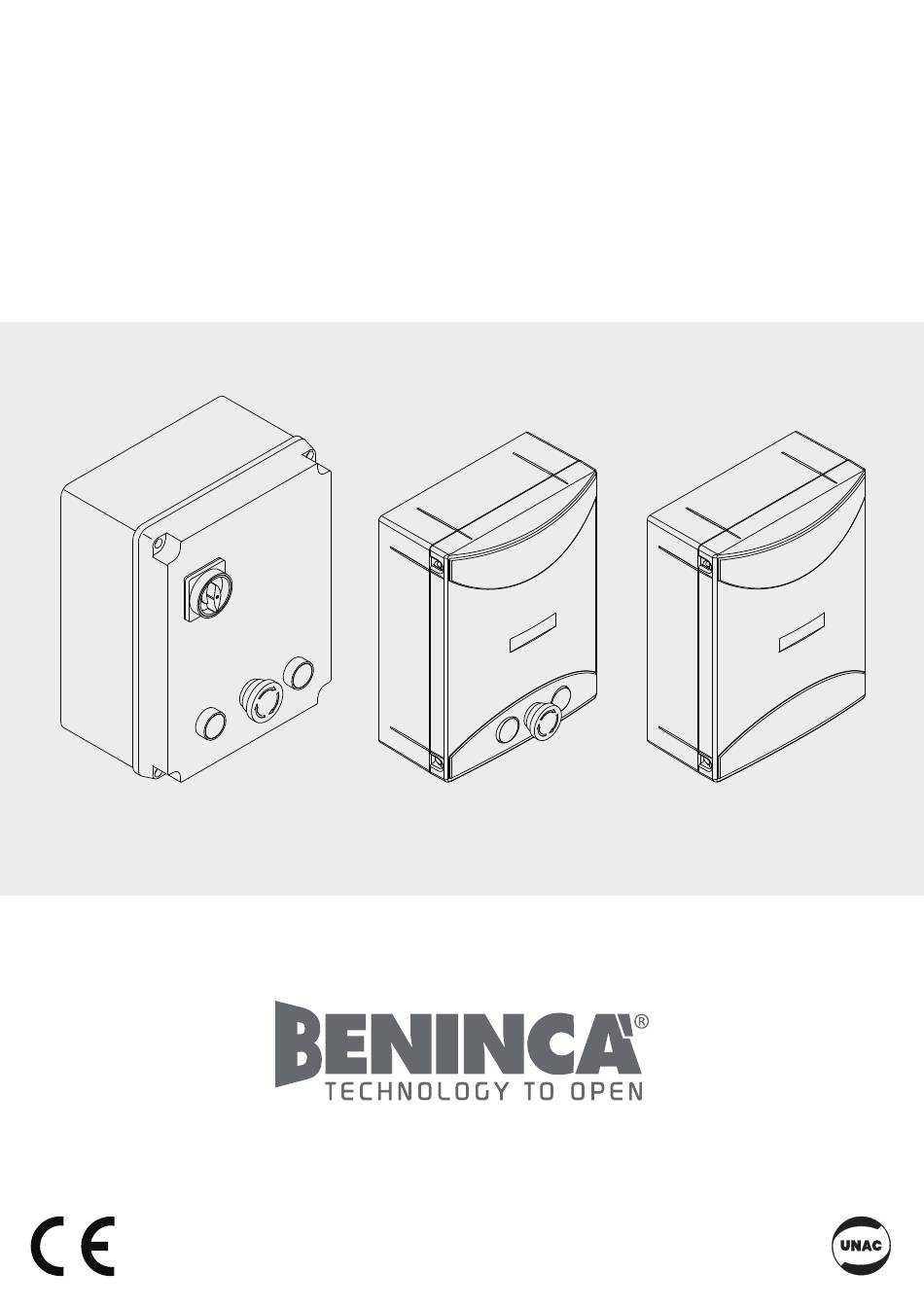

- Page 1 L8542632 03/2012 rev 5 THINK THINK-I THINK-P THINK UNIONE NAZIONALE COSTRUTTORI AUTOMATISMI PER CANCELLI, PORTE SERRANDE ED AFFINI...
- Page 2 THINK 230Vac 50Hz 400Vac 50Hz SAFETY STOP T0,5A T0,125A 230Vac 400Vac 2 CH. Service Light 230V J2 DAS J2 DAS Open Close DAS 8K2 DAS N.C. 21 22 23 24 25 26 27 28 29 1 Phase C AUX 21 22 23 24 25 26 27 28 29 LAMP 230Vac...
- Page 3 Collegamento dispositivi di sicurezza verificati / Connection of tested safety devices Anschluss geprüfter Sicherheitsvorrichtungen / Branchement dispositifs de sécurité vérifiés Conexión de los dispositivos de seguridad verificados / Połączenia sprawdzanych urządzeń bezpieczeństwa 24Vac COM NC 24Vac 24Vac COM NC 24Vac 24Vac COM NC 24Vac...
- Page 4 CE Declaration of Conformity Declaration in accordance with Directives 2004/108/CE (EMC); 2006/95/CE (LVD) The Manufacturer: Automatismi Benincà SpA Address: Via Capitello, 45 - 36066 Sandrigo (VI) - Italy Declares that the product: Control box for 1 230/400V AC motor, ideal for industrial sectional doors and heavy duty sliding doors: THINK - THINK.P - THINK.I conforms with the requirements of the following EC Directives: •...
-
Page 5: Input/Output Functions
THINK Control Unit INPUT/OUTPUT FUNCTIONS THINK Control Unit Terminal No. Function Description Connection, 230Vac motor - single-phase: 1-Movement+capacitor/2-Common/3-Movement+capacitor 1-2-3 Motor Connection, 400Vac motor - three-phase: 1-U/2-V/3-W Check that the voltage selection jumper on terminals 36-37-38 is correctly positioned. Connection of flashing light, 230Vac 40W max. Flashing light Connect a negative electric brake to this output. - Page 6 Programming The various functions of the control unit can be programmed by using the LCD display provided on the side of the unit and by set- ting the desired values on the Programming Menu, as described hereunder. The Parameters Menu allows for the presetting of a digit value to a function, like an adjustment trimmer. The Logic Menu allows for the activation and deactivation of a function, like the setting of a Dip-Switch.
- Page 7 Settable values MENU FUNCTION MEMO ON-OFF-(Default) The automatic closure is enabled or disabled. Off: disabled automatic closure. (ON) On: enabled automatic closure. The multi-flat function is enabled or disabled. Off: disabled multi-flat function. (OFF) On: enabled multi-flat function. The P.P. (Step-by-step) impulse or the impulse of the transmitter has no effect in the opening phase.
- Page 8 Settable values MENU FUNCTION MEMO ON-OFF-(Default) Lack of phase check in case of three-phase power supply is enabled or disabled. 2pha (OFF) On: Check activated. Off: Check deactivated. The movement reversion in the event of triggering of the amperometric sensor or the DAS input is activated or deactivared. On: Reversion activated.
-
Page 9: Technical Data
2 pairs of photocells, active in both opening and closing (PHOT1 e PHOT2) + 1 pair of photocells, active in the closing phase only (PHOT3): Logic PHO 1 Logic PHO 2 Logic PHO 3 Logic PHO 4 JUMPERS 2 pairs of photocells, active only in the closing phase (PHOT1 e PHOT2) + 1 pair of photocells, active in both opening and closing phases (PHOT3): Logic PHO 1 Logic PHO 2...
