1.3.

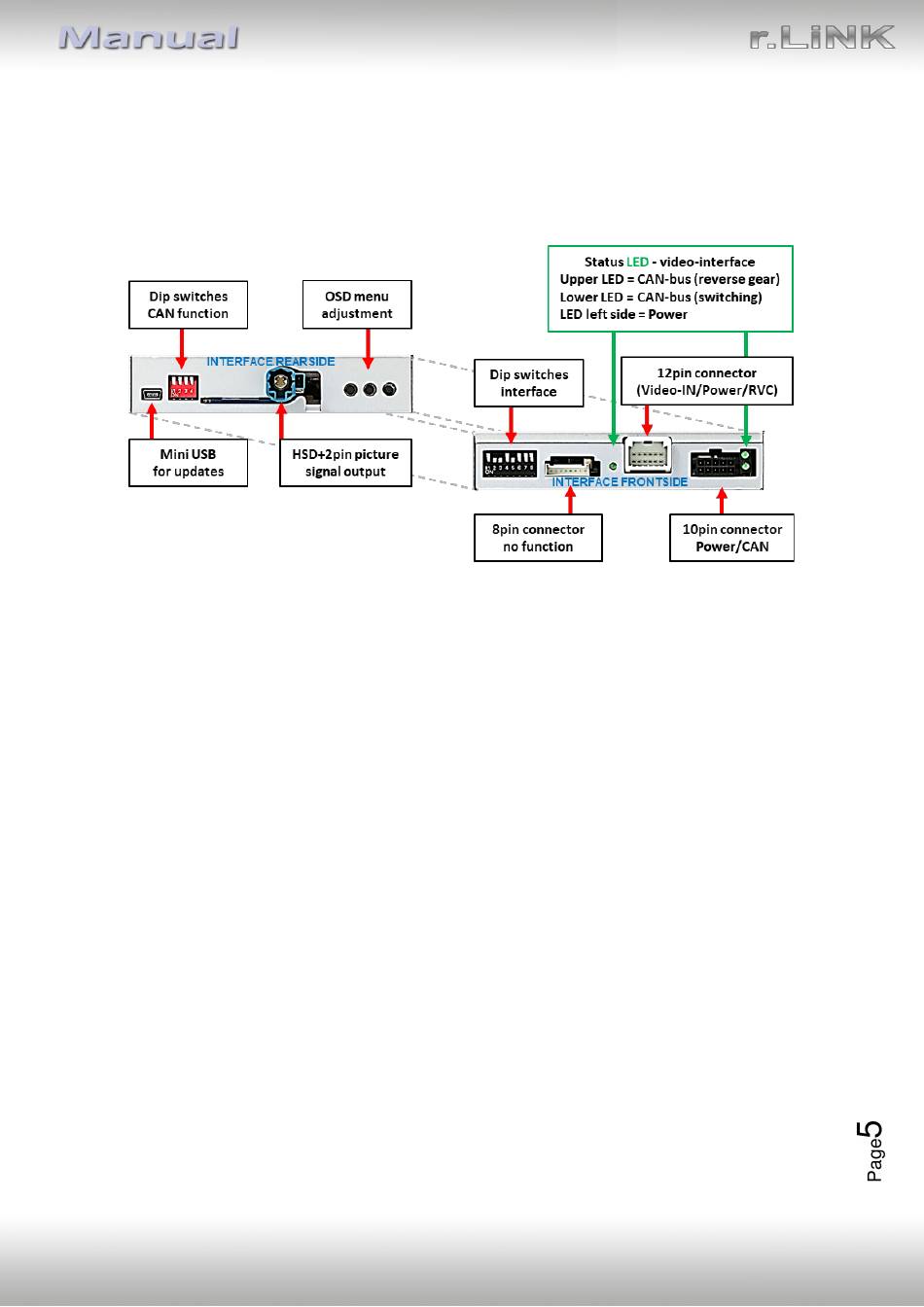

Connectors – video interface
The video-interface converts the video signals of connected after-market sources in a factory
monitor compatible picture signal which is inserted in the factory monitor, by using separate
trigger options. Further it reads the vehicle's digital signals out of the vehicle's CAN-bus and
converts them for the video interface.
Version 09.12.2020
HW: CAM(V100)/(V11+V41)
ab Serien Nr: NZ20NOV694
RL4-SY3-R5
