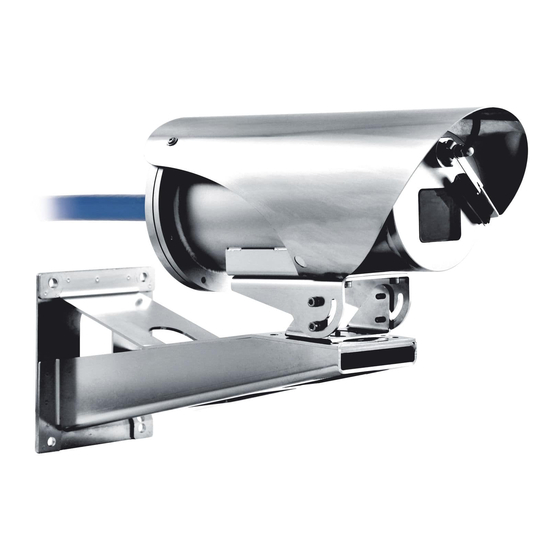

- Page 1 ENGLISH MAXIMUS MVXHD High-spec ex-proof HD camera in a compact design anual English - Instruction manual...
-
Page 3: Table Of Contents
Contents E N G L I S H 1 About this manual ........................5 1.1 Typographical conventions ..............................5 2 Notes on copyright and information on trademarks ............. 5 3 Identification ..........................5 3.1 Product marking ..................................5 4 Installation ..........................6 4.1 Range of use ..................................... - Page 4 MNGCMVXHDCAM_1813_EN...
-
Page 5: About This Manual
1 About this manual 2 Notes on copyright and information on trademarks Read all the documentation supplied carefully before installing and using this unit. Keep the manual in a The mentioned names of products or companies are convenient place for future reference. trademarks or registered trademarks. -
Page 6: Installation
4 Installation 4.2 Connection of the power supply line CAUTION! Device installation and maintaining must be performed by Electrical connections must be performed specialist technical staff only. with the power supply disconnected and the circuit-breaker open. The external multipolar cable shield (armature) must be earthed. -
Page 7: Connection Of The Ethernet Cable
4.3 Connection of the Ethernet 4.4 Signal cable connection cable CAUTION! TNV-1 installation type. The installation is type TNV-1, do not connect it The Ethernet cable shield must always be to SELV circuits. earthed via the connector. Always use a shielded RJ45 connector. -
Page 8: Relays Connection
5.1 Before powering the product 4.4.1.2 Relays connection in an explosive atmosphere The relays are usable with the specifications described below. Working voltage: up to 15Vac or 30Vdc. Current: 1A max. Use Make sure that all parts are fastened down suitable cable sections with the following firmly and safely. -
Page 9: Configuration
6 Configuration 6.2 Web interface 6.1 Default IP address Browsers supported (the latest version): Microsoft Edge, Google Chrome, Mozilla Firefox. The unit is configured to obtain an IP address from a DHCP server. 6.2.1 First access to the web pages The IP address acquired via DHCP is visible in the The first operation in configuring the device consists DHCP server log file. -
Page 10: Maintenance
7 Maintenance 8 Information on disposal and recycling Read the product Manual A before performing any operation. The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE) mandates Please provide the device serial number when that these devices should not be disposed of in the requesting any replacement parts. -
Page 11: Troubleshooting
9 Troubleshooting 10 Technical data 10.1 Cameras Contact an authorized support centre if the problems listed below persist or you have Resolution: Full HD 1080p (1920x1080pixel) any other issues that are not described here. Image Sensor: 1/2.8" Progressive Scan CMOS Focal length: from 4.3mm (wide) up to 129mm (tele) Read the product Manual A before Zoom: 30x... - Page 12 Email: info@videotec.com Tel. +33 1 60491816 - Fax +33 1 69284736 Email: info.fr@videotec.com Asia Pacific Videotec (HK) Ltd Americas Videotec Security, Inc. Flat 8, 19/F. On Dak Industrial Building, No. 2-6 Wah Sing Street Gateway Industrial Park, 35 Gateway Drive, Suite 100 Kwai Chung, New Territories - Hong Kong Plattsburgh, NY 12901 - U.S.A.
