Summary of Contents for AOpen DE2700
- Page 1 Personal Computer User Guide for DE2700 V2.0 2009/06/15...
- Page 2 De genbruge produktet. For yderligere information vedrørende indsamling og genbrug af elektronik-affald (Waste Electrical and Electronic Equipment (WEEE)) er De velkommen til at besøge vores website www.aopen.com og læse nærmere under "Green Products".
- Page 3 Verwijder dit product dan ook alstublieft niet samen met ander huishoudelijk afval. Voor meer informatie over de verzameling en recycling van elektrisch afval en elektronische apparatuur (WEEE), nodigen we u uit om onze homepage te bezoeken www.aopen.com onder "Green Products".
- Page 4 Per ridurre al minimo l'inquinamento ed assicurare la massima protezione dell'ambiente, si prega di riciclare il prodotto. Per maggiori informazioni riguardanti la raccolta ed il riciclaggio delle apparecchiature elettriche ed elettroniche residue (WEEE), siete invitati a visitare la nostra homepage www.aopen.com alla voce "Green Products". Instruksjoner for Resirkulering og Oppsamling (Norweigian) For ĺ...
- Page 5 återvinnas. För vidare information om insamling och återvinning av uttjänta elektriska och elektroniska produkter (Waste Electrical and Electronic Equipment, WEEE), besök avsnittet "Green Products" på vår hemsida, www.aopen.com.
- Page 6 Copyright Copyright of this publication belongs to AOpen Inc. AOpen reserves the right to change the content of this publication without obligation to notify any party of such changes or revisions. No part of this publication may be reproduced, transcribed, transmitted, translated into any language, stored in a retrieval system in any form or by any means electronically, mechanically, optically without the prior written permission of this company.
- Page 7 Safety Instructions 1. Please read these safety instructions carefully. 2. Please keep this User’s Manual for later reference. 3. Please disconnect this equipment from connecter before cleaning. Don’t use liquid or prayed detergent for cleaning. Use moisture sheet or cloth for cleaning. 4.
- Page 8 FCC notice This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 9 Notice: Peripheral devices Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with Class B limits may be attached to this equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception. Caution Changes or modifications not expressly approved by the manufacturer could void the user’s authority, which is granted by the Federal Communications Commission, to operate this computer.
-
Page 11: Table Of Contents
Index 1. Outlook …………..……………………………………………2 2. Product Specification….…………………………...………...4 3. Internal Connectors ………..…………………………………5 4. Packing List……………………………………………………6 5. Chassis and Holder Dimension ……………………………..7... -
Page 12: Outlook

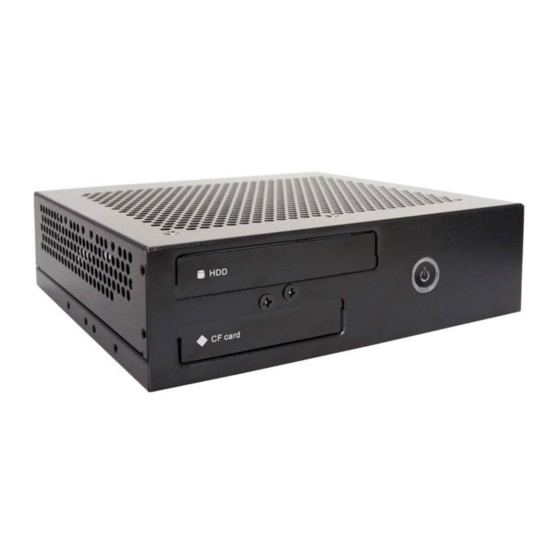

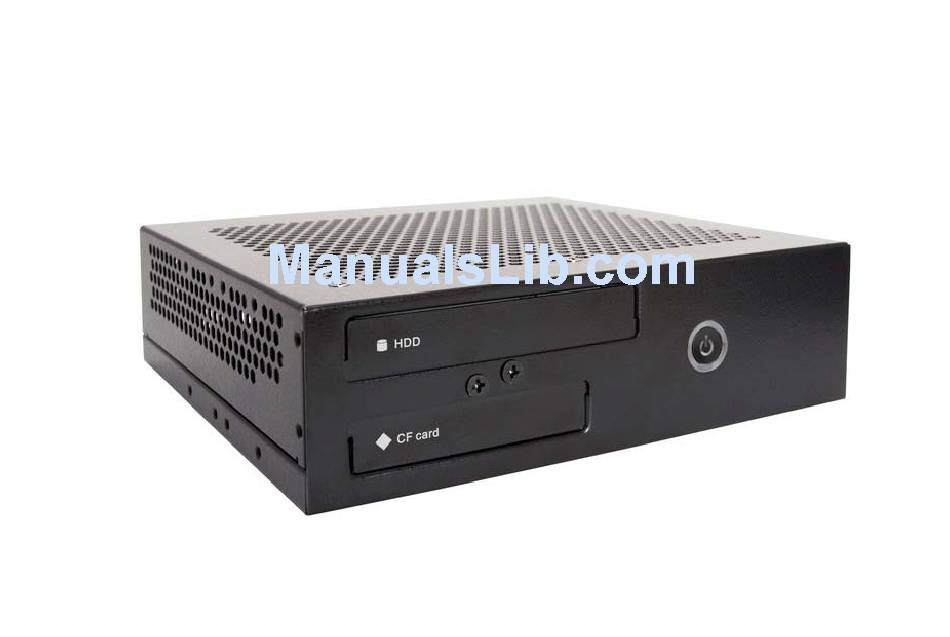

1. Outlook Front IO Door of 2.5” HDD Door of CF card Power Button... - Page 13 Rear IO COM1 COM2 LAN1 LAN2 Antenna Hole Kensington lock hole Mic in DVI-I DC in Line out...
-
Page 14: Product Specification
2. Product Specification Intel ATOM N270 1.6GHz Intel 945GSE + ICH7M Chipset Chipset Memory Single Channel Mode, SO-DIMM DDRII x 1, DDRII 533 Max memory size : 2GB Pre-install SO-DIMM DDRII 1GB x 1 Graphics Integrated VGA Engine in 945GSE chipset Integrated Graphics GMA 950GSE) mini Card Slot x 1 Expansion Slot... -
Page 15: Internal Connectors
3. Internal Connectors DC power connector Mini card slot COM2 connector SATA connector COM1 connector CF card socket CPU N270 North Bridge 945GSE PWR,SW LED HDD LED connector SO-DIMM Socket... -
Page 16: Packing List
4. Packing List 1 x DE2700 system 1 x DVI to VGA adapter 1 x User Guide 1 x Driver CD 1 x 65W Adapter and Power Cord 1 x L type Holder with 4 pcs of M3 screw 4 x M3 screws (for 2.5” H.D.D.) -
Page 17: Chassis And Holder Dimension
5. Chassis and Holder Dimension A. Dimension of DE2700 (unit: mm[inch]) - Page 18 B. LH02 L type Holder(Include 2 piece holder and 4 FPH M3 screws) Dimension of L type Holder. (unit: mm[inch])
- Page 19 C.VM02 Monitor Holder (Include 1 piece holder and 4 FPH M3 and 4 FPH M4 screws) Monitor Holder is base on VESA standard (10cm/7.5cm interval) for you to screw the Digital Engine behind the monitor. You can put on the Holder on monitor VESA mounting hole first, and screw it tightly, then put Digital Engine on VM02 holder and use 4 M3 screws to fix it.
- Page 20 C-2 Dimension of VM02 Monitor Holder (unit: mm[inch])
- Page 21 D. VS01 Vertical Holder (Include 2 piece holder and 8 FPH M3 screws) You can put the Digital Engine Vertical with the holder You can put the stand(s) on right side, and screw it tightly.
- Page 22 D-2 Dimension of Vertical Holder. (unit: mm[inch])
- Page 24 P/N：49.ADE01.0720 S/N：099-066-116...
