- Page 1 Personal Computer User Guide for DE7200 Series...
- Page 2 De genbruge produktet. For yderligere information vedrørende indsamling og genbrug af elektronik-affald (Waste Electrical and Electronic Equipment (WEEE)) er De velkommen til at besøge vores website www.aopen.com og læse nærmere under "Green Products".
- Page 3 Verwijder dit product dan ook alstublieft niet samen met ander huishoudelijk afval. Voor meer informatie over de verzameling en recycling van elektrisch afval en elektronische apparatuur (WEEE), nodigen we u uit om onze homepage te bezoeken www.aopen.com onder "Green Products".
- Page 4 Per ridurre al minimo l'inquinamento ed assicurare la massima protezione dell'ambiente, si prega di riciclare il prodotto. Per maggiori informazioni riguardanti la raccolta ed il riciclaggio delle apparecchiature elettriche ed elettroniche residue (WEEE), siete invitati a visitare la nostra homepage www.aopen.com alla voce "Green Products". Instruksjoner for Resirkulering og Oppsamling (Norweigian) For ĺ...
- Page 5 återvinnas. För vidare information om insamling och återvinning av uttjänta elektriska och elektroniska produkter (Waste Electrical and Electronic Equipment, WEEE), besök avsnittet "Green Products" på vår hemsida, www.aopen.com.
- Page 6 Copyright Copyright of this publication belongs to AOpen Inc. AOpen reserves the right to change the content of this publication without obligation to notify any party of such changes or revisions. No part of this publication may be reproduced, transcribed, transmitted, translated into any language, stored in a retrieval system in any form or by any means electronically, mechanically, optically without the prior written permission of this company.
- Page 7 Safety Instructions 1. Please read these safety instructions carefully. 2. Please keep this User’s Manual for later reference. 3. Please disconnect this equipment from connecter before cleaning. Don’t use liquid or prayed detergent for cleaning. Use moisture sheet or cloth for cleaning. 4.
- Page 8 12. Risk of overheating! • Do not install DE7200 in a closed space. Be sure the ventilation holes in the DE7200 side for at least 1 to 2 inches or 2 to 5 cm of space for ventilation. To ensure that other objects do not cover the ventilation holes on DE7200 In right side and rear side keep space at least 5cm.
- Page 9 FCC notice This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 10 Notice: Peripheral devices Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with Class B limits may be attached to this equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception. Caution Changes or modifications not expressly approved by the manufacturer could void the user’s authority, which is granted by the Federal Communications Commission, to operate this computer.
-
Page 11: Table Of Contents
Index 1. Outlook …………..……………………………………………2 2. Product Specification….…………………………...………...4 3. Internal Connectors ………..…………………………………5 4. Function introduction…………………………………………6 5. Packing List……………………………………………………10 6. Chassis and Holder Dimension ……………………………..11... -
Page 12: Outlook

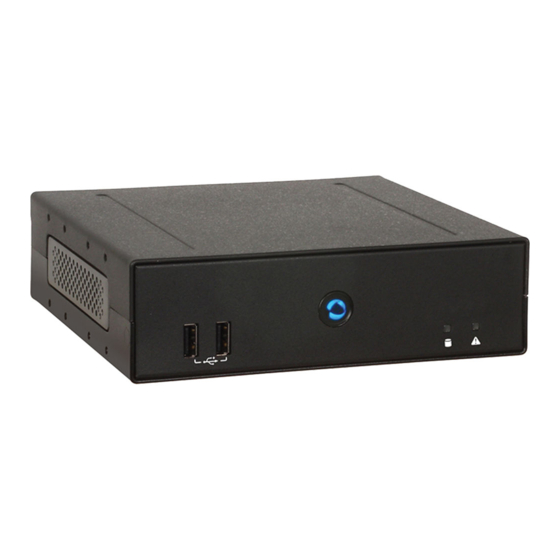

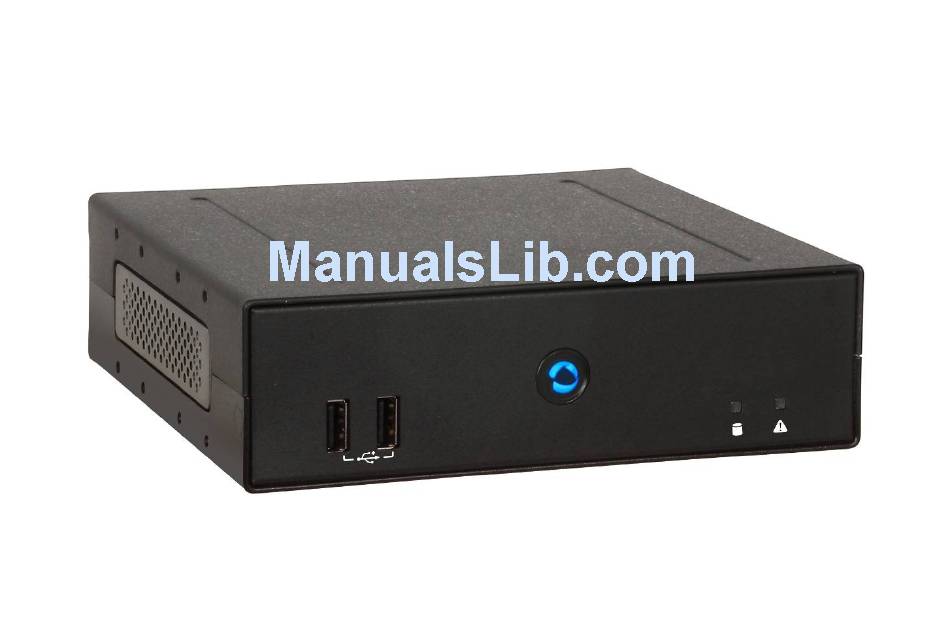

1. Outlook Front IO... - Page 13 Rear IO Antenna hole Antenna hole Kensington lock hole Kensington lock hole RS232 RS232 RJ45 RJ45 Extend Extend HDMI 1 HDMI 1 USB2.0 USB2.0 LAN/ LAN/ Line-out Line-out Power SW Power SW /eSATA /eSATA USB3.0 USB3.0 Mic-in Mic-in HDMI 2 HDMI 2 DC in DC in...
-
Page 14: Product Specification
2. Product Specification ≦ Intel CPU Socket G3 / Intel 4th generation Core i3, i5, i7 mobile processor TDP 37W Chipset Intel QM87 Chipset Dual Channel Mode, SO-DIMM DDRⅢLx 2, 1600/1333 MHz Max memory size : 16GB Memory Graphics Intel® HD Graphics 4600 Full Size mini Card x 1 Expansion Slot... -
Page 15: Internal Connectors
3. Internal Connectors... -
Page 16: Function Introduction
4. Function Introduction 4.1 Dust proof Duct Cover and filter to prevent dust damage CPU Fan, and please check the filter status periodically. Power holder to fix DC plug Dust filter Dust filter cover... - Page 17 4.2 Extend power switch Extend power switch at rear IO of DE7200 can allow customer to extend the power switch by their demand, and customer can decide their own switch specification and cable length just follow the wire gauge and strip length. Button hole Wire strip length 9~10mm...
- Page 18 Step 1 please prepare a pin or rod that hard enough for pushing the button on the terminal block Step 2 push the button in the end and hold it Step 3 insert the wire into the hole and make sure the stripped portion is fully inserted Step 4 release the pin or rod then the wire will clamp by the terminal block step1 step2...
- Page 19 4.3 CPU Fan alert mechanism 1. In POST stage, BIOS can detect FAN status, if CPU FAN out of function, alert LED (red) on front panel will light up, and BIOS will show the alert message as below, system will shutdown after 15 seconds, but you can press<...
-
Page 20: Packing List
5. Packing List 1 x DE7200 system 1 x User Guide 1 x Driver CD 1 x 90W Adapter and Power Cord 1 x L type Holder with 4 pcs of M3 screw 4 x M3 – stepping screws for HDD 1 x power holder 1 x DP to HDMI cable... -
Page 21: Chassis And Holder Dimension
6. Chassis and Holder Dimension A. Dimension of DE7200 (unit: mm[inch]) - Page 22 B. LH02 L type Holder(Include 2 piece holder and 4 FPH M3 screws) Dimension of L type Holder. (unit: mm)
- Page 24 P/N：49.DEC01.0010 S/N：134-112-120...
