  • Page 1 Personal Computer User Guide for DE3100 Series...
  • Page 2 De genbruge produktet. For yderligere information vedrørende indsamling og genbrug af elektronik-affald (Waste Electrical and Electronic Equipment (WEEE)) er De velkommen til at besøge vores website www.aopen.com og læse nærmere under "Green Products".
  • Page 3 Verwijder dit product dan ook alstublieft niet samen met ander huishoudelijk afval. Voor meer informatie over de verzameling en recycling van elektrisch afval en elektronische apparatuur (WEEE), nodigen we u uit om onze homepage te bezoeken www.aopen.com onder "Green Products".
  • Page 4 Per ridurre al minimo l'inquinamento ed assicurare la massima protezione dell'ambiente, si prega di riciclare il prodotto. Per maggiori informazioni riguardanti la raccolta ed il riciclaggio delle apparecchiature elettriche ed elettroniche residue (WEEE), siete invitati a visitare la nostra homepage www.aopen.com alla voce "Green Products". Instruksjoner for Resirkulering og Oppsamling (Norweigian) For ĺ...
  • Page 5 återvinnas. För vidare information om insamling och återvinning av uttjänta elektriska och elektroniska produkter (Waste Electrical and Electronic Equipment, WEEE), besök avsnittet "Green Products" på vår hemsida, www.aopen.com.
  • Page 6 Copyright Copyright of this publication belongs to AOpen Inc. AOpen reserves the right to change the content of this publication without obligation to notify any party of such changes or revisions. No part of this publication may be reproduced, transcribed, transmitted, translated into any language, stored in a retrieval system in any form or by any means electronically, mechanically, optically without the prior written permission of this company.
  • Page 7 Safety Instructions 1. Please read these safety instructions carefully. 2. Please keep this User’s Manual for later reference. 3. Please disconnect this equipment from connecter before cleaning. Don’t use liquid or prayed detergent for cleaning. Use moisture sheet or cloth for cleaning. 4.
  • Page 8 12. Risk of overheating! • Do not install DE3100 in a closed space. Be sure the ventilation holes in the DE3100 side for at least 2 inches or 5 cm of space for ventilation. To ensure that other objects do not cover the ventilation holes on DE3100 In right side and rear side and top side keep space at least Don’t put operating device inside closed space.
  • Page 9 FCC notice This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 10 Notice: Peripheral devices Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with Class B limits may be attached to this equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception. Caution Changes or modifications not expressly approved by the manufacturer could void the user’s authority, which is granted by the Federal Communications Commission, to operate this computer.

  • Page 11: Table Of Contents

    Index 1. Outlook …………..……………………………………………2 2. Product Specification….…………………………...………...4 3. Internal Connectors ………..…………………………………6 4. Packing List……………………………………………………7 5. Chassis and Holder Dimension ……………………………..8...

  • Page 12: Outlook

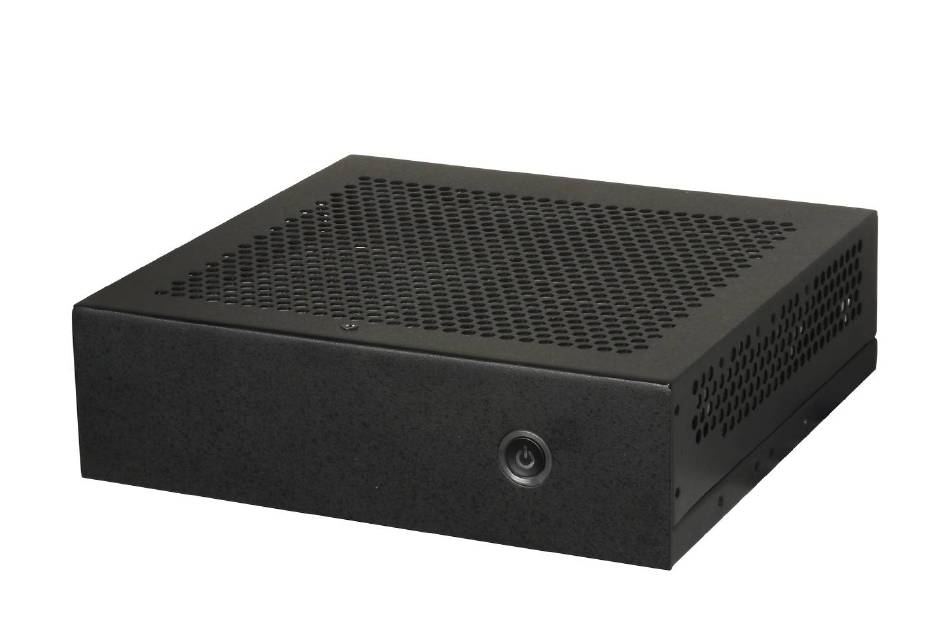

    1. Outlook Front IO Power Button & indicator...
  • Page 13 Rear IO...

  • Page 14: Product Specification

    2. Product Specification Intel CPU ATOM Cedar Trail-D D2550 1.86GHz Intel NM10 Chipset Chipset Single Channel Mode, SO-DIMM DDRⅢx 2, 1066MHz, Max memory size : 4GB Memory Graphics Intel integrated Graphics GMA 3650 Full Size mini Card x 1 Expansion Slot Half Size Mini Card x 1 Audio...
  • Page 15 Note: 1. DE3100 SO-DIMM don’t support RC-D(2Rx16, dual die), RC-E(2Rx16), and no mixed row card support 2. Please install SO-DIMM to DIMM 2 if you only install 1 SO-DIMM at DE3100...

  • Page 16: Internal Connectors

    3. Internal Connectors Half size Half size Half size Mini card Mini card Mini card Full size Full size Full size CPU D2550 CPU D2550 CPU D2550 Mini card Mini card Mini card PCH NM10 PCH NM10 PCH NM10 Internal USB1 Internal USB1 Internal USB1 Internal USB2...

  • Page 17: Packing List

    4. Packing List 1 x DE3100 system 1 x User Guide 1 x Driver CD 1 x 65W Adapter and Power Cord 1 x L type Holder with 4 pcs of M3 screw 4 x M3 – L4 screws 2 x cable clamp 1 x DVI to HDMI cable...

  • Page 18: Chassis And Holder Dimension

    5. Chassis and Holder Dimension A. Dimension of DE3100 (unit: mm[inch])
  • Page 19 B. LH02 L type Holder(Include 2 piece holder and 4 FPH M3 screws) Dimension of L type Holder. (unit: mm)
  • Page 20 P/N：49.DE701.0010 S/N：123-033-108...
