Personal Computer User Guide
for DE6200 series
V1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DE6200 Series and is the answer not in the manual?

Questions and answers

Related Manuals for AOpen DE6200 Series

Summary of Contents for AOpen DE6200 Series

  • Page 1 Personal Computer User Guide for DE6200 series...
  • Page 2 De genbruge produktet. For yderligere information vedrørende indsamling og genbrug af elektronik-affald (Waste Electrical and Electronic Equipment (WEEE)) er De velkommen til at besøge vores website www.aopen.com og læse nærmere under "Green Products".
  • Page 3 Verwijder dit product dan ook alstublieft niet samen met ander huishoudelijk afval. Voor meer informatie over de verzameling en recycling van elektrisch afval en elektronische apparatuur (WEEE), nodigen we u uit om onze homepage te bezoeken www.aopen.com onder "Green Products".
  • Page 4 Per ridurre al minimo l'inquinamento ed assicurare la massima protezione dell'ambiente, si prega di riciclare il prodotto. Per maggiori informazioni riguardanti la raccolta ed il riciclaggio delle apparecchiature elettriche ed elettroniche residue (WEEE), siete invitati a visitare la nostra homepage www.aopen.com alla voce "Green Products". Instruksjoner for Resirkulering og Oppsamling (Norweigian) For ĺ...
  • Page 5 återvinnas. För vidare information om insamling och återvinning av uttjänta elektriska och elektroniska produkter (Waste Electrical and Electronic Equipment, WEEE), besök avsnittet "Green Products" på vår hemsida, www.aopen.com.
  • Page 6 Copyright Copyright of this publication belongs to AOpen Inc. AOpen reserves the right to change the content of this publication without obligation to notify any party of such changes or revisions. No part of this publication may be reproduced, transcribed, transmitted, translated into any language, stored in a retrieval system in any form or by any means electronically, mechanically, optically without the prior written permission of this company.
  • Page 7 Safety Instructions 1. Please read these safety instructions carefully. 2. Please keep this User’s Manual for later reference. 3. Please disconnect this equipment from connecter before cleaning. Don’t use liquid or prayed detergent for cleaning. Use moisture sheet or cloth for cleaning. 4.
  • Page 8 10. Ambient operation temperature: 0 ~ 40 degrees C. 11. Risk of overheating! • Do not install DE6200 in a closed space. Be sure the ventilation holes in the DE6200 side for at least 1 to 2 inches or 2 to 5 cm of space for ventilation.
  • Page 9 FCC notice This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 10 Notice: Peripheral devices Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with Class B limits may be attached to this equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception. Caution Changes or modifications not expressly approved by the manufacturer could void the user’s authority, which is granted by the Federal Communications Commission, to operate this computer.
  • Page 11 Index 1. Outlook …………..………………………………………….…2 2. Product Specification….…………………………...………..4 3. Internal Connectors………...…………………………………5 4. Function introduction……………………………………….…6 5. Packing List……………………………………………………10 6. Chassis and Holder Dimension……………………………..11...

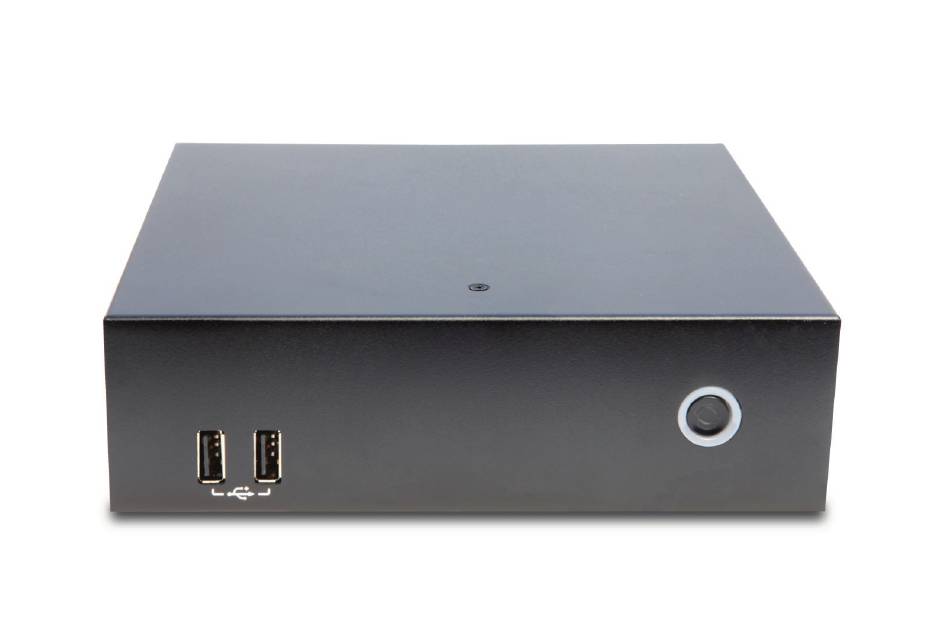

  • Page 12 1. Outlook Front IO USB2.0 x 2 Power button & LED indicator...
  • Page 13 Rear IO RS232 RJ45 USB3.0 x 4 HDMI3 HDMI2 HDMI1 Line-out Mic-in DC 19V Extend Power SW...

  • Page 14: Product Specification

    2. Product Specification AMD Embedded R-Series Merlin Falcon CPU RX-216GD/RX421BD, TDP=15~35W Chipset Memory Dual Channel Mode, SO-DIMM DDR4x 2, 1600MHz, Max memory size : 16GB Graphics AMD Radeon R5 series HD Graphics Expansion M.2 2230 x 1(key E for wifi), M.2 2242 x 2(key B for SSD) Slot Audio Realtek ALC269Q HD Audio CODEC on-Board.

  • Page 15: Internal Connectors

    3. Internal Connectors M.2 2242 key B Battery M.2 2242 key B M.2 2230 key E FFC SATA COM1 BIOS Internal USB2 Internal USB3 DDR4 DIMM2 CPU FAN DIO1 DDR4 DIMM1 AT1 jumper Reset Power switch Front Panel...

  • Page 16: Function Introduction

    4. Function Introduction 4.1 Extend power switch Extend power switch at rear IO of DE6200 can allow customer to extend the power switch by their demand, and customer can decide their own switch specification and cable length just follow the wire gauge and strip length. Button Hole Wire strip length 9~10mm...
  • Page 17 Step 1 please prepare a pin or rod that hard enough for pushing the button on the terminal block Step 2 push the button in the end and hold it Step 3 insert the wire into the hole and make sure the stripped portion is fully inserted Step 4 release the pin or rod then the wire will clamp by the terminal block step1 step2...
  • Page 18 4.2 BIOS flash tool If you like to flash BIOS under Windows 7 OS, please install windows Hot-Fix KB3033929-x64 first, then can use windows BIOS flash tool to flash BIOS under windows 7. https://www.microsoft.com/en-us/download/details.aspx?id=46148 4.3 Windows 7 x64 installation note If you like to install Windows 7 x64 at DE6200, please configure the BIOS to be able to function with Windows 7 first! Please press F2 or Del to enter BIOS menu, and modify the BIOS items setting as below,...
  • Page 19 BIOS menu setting result...

  • Page 20: Packing List

    5. Packing List DE6200 1 x DE6200 system 1 x User Guide 1 x Driver CD 1 x 65W Adapter and Power Cord 1 x L type Holder with 4 pcs of M3 screw 4 x M3 –FH screws for HDD 1 x power holder...

  • Page 21: Chassis And Holder Dimension

    6. Chassis and Holder Dimension A. Dimension of DE6200 (unit: mm[inch])
  • Page 22 B. LH02 L type Holder(Include 2 piece holder and 4 FPH M3 screws) Dimension of L type Holder. (unit: mm) (This L type Holder can only lock on horizontal desktop table...
  • Page 24 P/N：49.DEJ01.0010...
