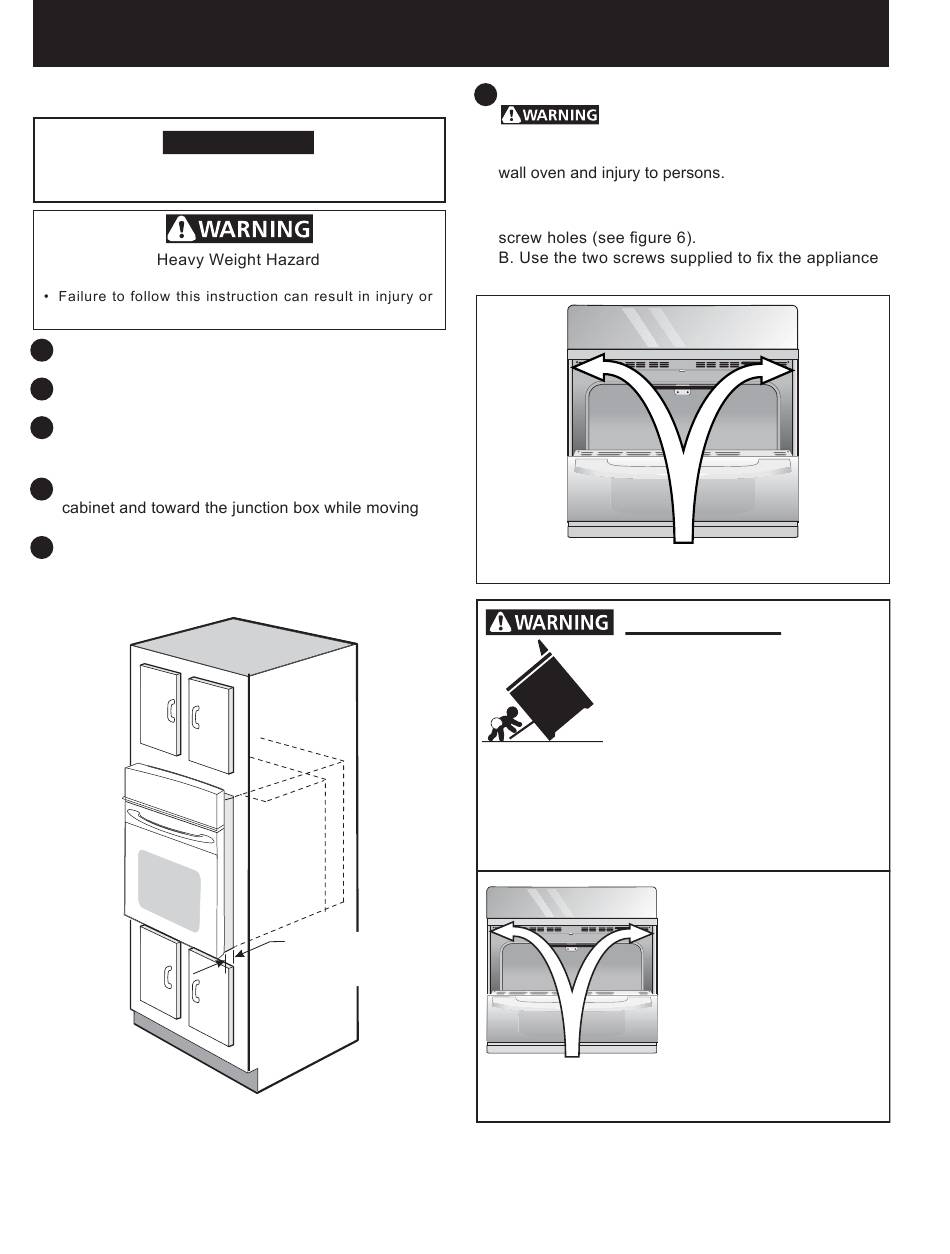

ELECTRIC WALL OVEN INSTALLATION INSTRUCTIONS
5. Cabinet Installation
IMPORTANT!
Do not lift or manipulate the oven by the door handle
or the control panel.
• Use 2 or more people to move and install wall oven.
damage to the unit.
1
Unpack the wall oven. Remove the bottom trim
taped on the oven top panel.
2
Find the 2 anti-tip mounting screws included in the
literature package.
3
Insert the oven into the cabinet opening. Slide oven
inward leaving 1½" (3.8 cm) clearance between the
oven and front of cabinet (see Figure 5).
4
Pull the armored cable through the hole for it in the
the appliance inward.
5
Push the oven in and against the cabinet.
Figure 5
(with side-by-side and cooktop combination specialty installations)
1½" (3.8 cm)
clearance
between unit
6
Install the Anti-tip Mounting Screws
The wall oven can tip when the door is
open. The anti-tip mounting screws supplied with the
wall oven must be installed to prevent tipping of the
A. The mounting holes in the side trims may be
used as a template to locate the appliance mounting
to the cabinet.
Anti-Tip Mounting Holes
Tip Over Hazard
• A child or adult can tip the oven
and be killed.
• Install the anti-tip device to oven
and/or structure per installation
instructions.
• Ensure the anti-tip device is re-engaged when the
oven is moved.
• Do not operate the oven without the anti-tip device
in place and engaged.
• Failure to follow these instructions can result in
death or serious burns to children and adults.
Anti-tip mounting holes
6
Figure 6
Refer to the installation
instructions supplied with your
appliance for proper installa-
tion.
Check for proper installation
with a visual check that the
anti-tip screws are present.
Test the installation with light
downward pressure on the
open oven door. The oven
should not tip forward.
