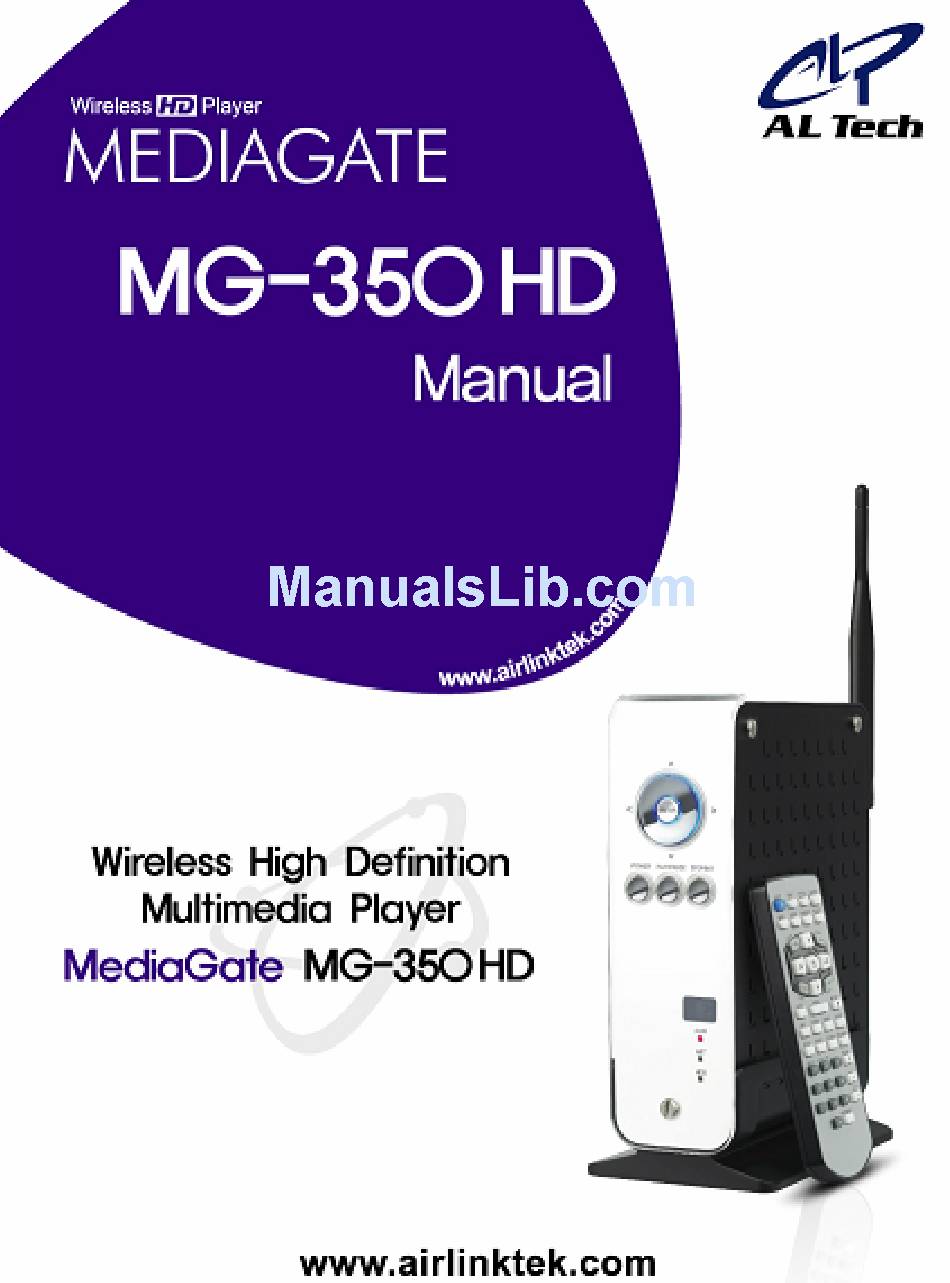

AL Tech MediaGate MG-350HD User Manual

Wireless hd player
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MediaGate MG-350HD and is the answer not in the manual?

Questions and answers

Related Manuals for AL Tech MediaGate MG-350HD

Summary of Contents for AL Tech MediaGate MG-350HD

  • Page 2: Table Of Contents

    Introduction... 4 Technical Support ... 5 Precautions ... 5 Specifications... 7 Package Content... 8 Product Overview ... 9 1. Use as External USB HDD ... 12 1.1 Insert Hard Disk ... 12 1.2 Format Built-in HDD via USB ... 13 1.2.1 Windows 98SE, ME...
  • Page 3 5. Use USB Host ... 48 6. Connect to External AV Device ... 50 6.1 Connect Video Cable ...50 6.2 Connect Audio Cable ...51 7. Basic Setup ... 54 7.1 Video Setup ...54 7.2 Audio Setup ...56 7.3 Network Setup...56 7.4 Wireless Setup ...59 7.5 Wireless Security Setup ...59 7.6 LED Setup ...59...
  • Page 4 9. Firmware Upgrade...106...

  • Page 5: Introduction

    Introduction MediaGate MG-350HD fully supports HD (High Definition) files that are really clear through HDTV (LCDTV, Normal TV) and can stream the contents from a PC through wireless (802.11g) or wired LAN, and also has USB host that you can plug an external USB storage.

  • Page 6: Technical Support

    Technical Support Contact your local distributor in your country or AL Tech, Inc. in Korea www.airlinktek.com Precautions Please read the followings carefully and refer to [Cautions] in the manual for proper use. * We are not responsible for using illegal software, audio sources, video sources, etc and the users should take the legal Copyright responsibility.
  • Page 7 of this port and the defect due to other misusing. * We strongly recommend you to back up the data to another safe media. We are not responsible for data damage or loss in built- Data Backup in HDD. * Make sure to use the supplied car charger (optional) in a car. Don’t use MediaGate during driving.

  • Page 8: Specifications

    Specifications Product Name Power Weight Dimension Available OS USB Device USB Host Wired LAN Wireless LAN HDD Type HDD File System TV Type Video Format Audio Format Photo Format Video Output Audio Output Multi I/O Working Temperature Working Humidity MediaGate MG-350 HD 5V 1.5A /12V 1.5A 564g (without HDD &...

  • Page 9: Package Content

    Package Content ① MG-350 HD - 1ea ② Wireless Antenna -1ea ③ Stand(Cradle) – 1ea ④ Remote controller, battery – each 1ea cable (composite + stereo cable) – 1ea ⑤ cable (for connecting to PC) -1ea ⑥ ⑦ Power adapter – 1ea ⑧...

  • Page 10: Product Overview

    Product Overview ① ENTER ③ POWER ④ PLAY/PAUSE ENTER ① ② △▽◁ ▷ POWER ③ PLAY / PAUSE ④ Front View STOP / INIT ⑤ ⑥ ⑦ ⑧ ⑨ < Front View > ② △▽◁ ▷ ⑤ STOP/INIT ⑥ IR ⑦...
  • Page 11 ⑩ ANT OPTICAL ⑪ CVBS ⑫ STEREO L ⑬ MULTI I/O ① USB DEVICE ② USB HOST ③ ④ ⑤ -VIDEO COAXIAL ⑥ Back View Y, PB, PR ⑦ ⑧ ⑨ ⑩ ANT ⑪ OPTICAL ⑫ CVBS STEREO L ⑬ <...

  • Page 12: Use As External Usb Hdd

    Use as External USB HDD...

  • Page 13: Insert Hard Disk

    1. Use as External USB HDD 1.1 Insert Hard Disk Use 3.5” IDE Hard Disk for Desktop. Hard Disk should be “Master”. However, if the Hard Disk supports “Single” mode, you need to try to set “Single “mode. ① Unscrew 4 spot and open the side cover case with pulling to the arrow direction ③...

  • Page 14: Format Built-In Hdd Via Usb

    If the hard disk drive is al ready formatted, see “1.3 Copy Data via USB”. 1.2.1 Windows 98SE, ME 1) Install Windows 98 Driver. Find the driver at Windows 98 CD>MediaGate MG-350HD>English>Windows 98 Driver Directory. After finishing installation, Connect MG-35 to PC via USB cable, and plug power cable of MG-350HD.
  • Page 15 8) Select “ 1. Create Primary DOS Partition ” and press [Enter]. 9) Wait until finishing verifying the drive integrity. 10) After finishing drive integrity verification, type “Y” at “Do you wish to use the maximum available size for a Primary DOS Partition (Y/N)”.

  • Page 16: Windows 2000

    14) Type “ exit ” command at “ C:\WINDOWS> ” and press [Enter] for returning to windows screen. 15) Unplug the MG-350HDand plug again. New volume will be appeared at [My Computer]. Click mouse right button at the new volume and select [Format]. 1.2.2 Windows 2000 1.2.2 Windows 2000 1) Connect MG-350HD to PC via USB cable, and plug...
  • Page 17 5) Click [Next] at the Create Partition Wizard Windows. 6) Check [Primary Partition] and click [Next]. 7) Type number that you want to use and click [Next]. 8) Assign a drive letter and click [Next]. 9) Choose FAT32 or NTFS at File system to use and click [Next].

  • Page 18: Windows Xp

    1.2.3 Windows XP 1.2.3 Windows XP 1) Connect MG-350HD to PC via USB cable, and plug power cable of MG-350HD. 2) Click [Settings > Control Panel > Administrative Tools > Computer Management>Disk Management] on Windows. If you can not find Administrative Tools at Control Panel, click “...
  • Page 19 9) Choose FAT32 or NTFS at File system to use and click [Next]. FAT 32 system is available on windows 98SE/ME/2000/XP, but NTFS system is available on windows 2000/XP only. If you choose FAT32 system on Windows 2000/XP, one drive letter’s maximum size will be limited to 32GB.

  • Page 20: Copy Data Via Usb

    1.3.1 Windows 98SE First, you have to install Windows 98 Driver before connecting PC. Find the driver at Windows 98 driver CD>MediaGate MG-350HD>English>Windows First, you have to install Windows 98 Driver before connecting PC. Find the driver at Windows 98 driver CD>MediaGate MG-350HD>English>Windows 98 Driver Directory.

  • Page 21: Windows Me

    1.3.2 Windows ME 1) After connecting MG-350HD and plug power cable. Windows itself will install driver automatically. And then, check the driver installation at Windows [Start > Settings > Control Panel > (view all Control Panel options) > System > Device Manager >...

  • Page 22: Windows 2000, Xp

    1.3.3 Windows 2000, XP 1) After connecting MG-350HD and plug power cable, Windows itself will install driver automatically. And then, check the driver installation at Windows [Start > Settings > Control panel > (switch to classic View on Windows XP) > system >...

  • Page 23: Linux

    1.3.4 Linux It can be available on Linux 2.4 higher. [Automatic Mount] After booting, do log-in. Connect MG-350HD -> Power On MG-350HD -> Check the detection with [fdisk] -> make Mount Pointer (ex. mediatest) at Folder Mount(/mnt) -> Edit [/etc/fstab] -> add the following; /dev/sda /mnt/mediatest vfat noauto, user 0 0 /dev/sda /mnt/mediatest ntfs noauto, user 0 0 Do Log-in again.

  • Page 24: Connect To Pc Via Network

    Connect to PC via Network...

  • Page 25: Wired Lan Connection

    2. Connect to PC via Network 2.1 Wired LAN Connection When connecting Computer to MG-35 directly Connect LAN cable to LAN port between MG-350HD and PC. In this case, you have to use Cross LAN cable type generally. [TIP] If the computer’s LAN card was connected to Internet line, you can mount additional LAN card to your PC and connect that additional LAN card to MG- 350HD.

  • Page 26: Wireless Lan Connection

    2.2 Wireless LAN Connection MG-350HD supports two types of wireless structure-Infrastructure mode & Ad-Hoc mode. Ad-Hoc Mode 1:1 wireless LAN connection type between wireless adapter and Mg- 350HD without wireless access point. √ Note Wireless AP (Infrastructure Mode) or Wireless Adapter (Ad-Hoc Mode) is needed for wireless connection. IEEE 802.11g wireless standard is recommended for better wireless environment.
  • Page 27 √ Note: When connecting Ad-Hoc Mode, manual setting of IP Address and Subnet mask will be needed. Manual setting of IP address and Subnet mask of wireless adapter and MG-350HD will be needed. Disable DHCP and enter “IP Address” and “Subnet mask”. IP address must be different between MG-350HD and wireless adapter, and also subnet mask is to be same.
  • Page 28 ⑥ [WIRELESS] icon is activated. Run the icon, and the PC list on the network is displayed. Access to the preferable PC you want. √ Note: When wireless icon is not activated or not connected to wireless station. 1. [Waiting or Rebooting] It might take some time to assign IP address from AP in case of AP Mode. So, wait for a while. Otherwise, reboot AP and MG-350HD together.
  • Page 29 √ Note: When connecting to AP with WEP wireless security If wireless station like AP or Adapter has WEP wireless security, you have to enter WEP key same as AP or wireless adapter. It is possible to enter WEP key at “ Wireless-II” . Enable Security Mode and then enter WEP Key of AP or wireless adapter.

  • Page 30: Shared File Playback (Stream)

    Shared File Playback (Stream)

  • Page 31: Windows 98Se, Me

    3. Shared File Playback (Stream) After connecting LAN cable, you have to set network configurations of both Computer and MG-350HD. *It is possible to assign IP address and Subnet Mask of MG-350HD as dynamic or static. 3.1 Windows 98SE, ME 1) Select a folder which you want to share.
  • Page 32 If you have already been ‘obtained an IP address automatically’ from DHCP Server or IP Router on your local area network, you don’t need to write specific IP address absolutely. Use ‘Obtain an IP address automatically’ or write IP address & Subnet mask that DHCP Server or IP Router provide.

  • Page 33: Windows 2000

    3.2 Windows 2000 1) Select a folder which you want to share. Right-click the folder and click ‘Sharing’ in pop menu. 2) Check ‘Share this folder’ and write ‘share name’. For example, “My Movie” Make sure to write ‘share name’ within 12 characters in English.
  • Page 34 6) Check ‘User cannot change password’ and ‘Password never expires’. 7) Move to [Control Panel>Network and Dial-up Connections], and select Properties of ‘Local Area Connections’ by right click of mouse. If you see two or more ‘Local area connections’, select one that you will use for connecting to MG-350HD.
  • Page 35 6) Set the network configurations of MG-350HD. You have to connect MG-350HD to TV set for this setup. See “6.1 Connect Video Cable”. Press [SETUP] of remote control for moving to setup screen. On that screen, select ‘DHCP Support Off’ and write IP address &...

  • Page 36: Windows Xp

    3.3 Windows XP 3.3 Windows XP 1) Select a folder which you want to share. Right-click the folder and click ‘Sharing and Security’ in pop menu. 2) Check ‘Share this folder on the network’ and write ‘Share name’. For example, “My Movie” Make sure to write ‘share name’...
  • Page 37 6) Move to [Control Panel>Network connections], and select ‘Local area connections’ properties by right click of mouse. If you can’t find ‘Administrative Tools’ at Control Panel, click “Switch to classic view” in left-up corner on screen. If you see two or more ‘Local area connections’, select one that you will use for connecting to MG-350HD.
  • Page 38 If you have already been provided dynamic IP address from DHCP Server or IP Router on your local area network, you don’t need to write static IP address absolutely. Use ‘Obtain an IP address automatically on’ or write IP address & Subnet mask that DHCP Server or IP Router provide.
  • Page 39 After writing, press [SETUP] again for saving configurations. If you have already been provided dynamic IP address from DHCP Server or IP Router on your local area network, you don’t need to write static IP address absolutely. Use ‘DHCP on’ or write IP address & Subnet mask that DHCP Server or IP Router provide.

  • Page 40: Windows Vista

    3.4 Windows Vista Before you do “folder sharing”, you need to set up 3 things for Network sharing. 1. Setup of User Accounts and Family safety a. Click Start > Settings > Control Panel > Users Accounts and Family safety b.
  • Page 41 2. Disable “Firewall” a. Click Start > Setting > Control Panel > Security > Windows Firewall on / off b. Click at ‘Off (not recommended)
  • Page 42 3. Setup of Network and Sharing Center a. Click Start > Setting > Control Panel > Network and Internet > Network and Sharing Center b. Select “Password Protected sharing” and select “Turn off password protected sharing”. c. make a folder you want to share.
  • Page 43 d. You will get a popup “Choose people to share with” then select “Everyone (All users in this list) and press “Add” button. e. After you register the user account, then click “Share” button.

  • Page 44: Use As Network Storage (Ndas)

    Use as Network Storage (NDAS)
  • Page 45 MG-350HD. (In case of using “WIRED”, use Device ID of wired LAN MAC address) ② Install NDAS PC software on your PC. The software is located at “MediaGate MG-350HD> English > NDAS software” on setup CD.
  • Page 46 ③ NDAS icon is created at right-down corner on desktop windows. Right click the icon and select Register New Device” ④ Write NDAS Device ID and Write Key. They are located on the bottom of MG-350HD. Write your preferable name at NDAS Device Name.
  • Page 47 ⑦ Please check ‘My Computer’ if Hard Disk in MG-350HD is conceived as Hard Disk Drive of local network. (HDD in MG-350HD looks like external Hard Disk Drive. C:, D:, E: or F: )If you cannot see Hard Disk Drive, please turn off MG-350HD and turn on again. (Recognition can take some time.) ⑧...

  • Page 48: Use Usb Host

    Use USB Host...
  • Page 49 5. Use USB Host √ Note: How to eject the tray of external USB ODD (Optical Disk Drive) Stop playback and press number [3] button in order to eject the tray of external USB ODD. In addition, original DVD title with CSS Lock should not be played when connecting with USB host, but it is possible to play other format like XviD.

  • Page 50: Connect To External Av Device

    Connect to External AV Device...

  • Page 51: Connect Video Cable

    6. Connect to External AV Device 6.1 Connect Video Cable MG-350HD supports 4 type of video output; “Composite, S-video, Component, DVI”. Use video connection that your TV supports. Normally, TV supports composite video connection, and this package supplies composite video cable. √...

  • Page 52: Connect Audio Cable

    6.2 Connect Audio Cable MG-350HD supports 3 type of audio output; “Stereo, Coaxial, Optical”. Use audio connection that your TV or Audio set supports. Normally, TV supports stereo audio connection, and this package supplies stereo audio cable. When you can not hear sound after connecting Optical or Coaxial Cable, you have to change audio setup of MG-350HD as Encoded Digital. See “7.2 Audio Setup”...

  • Page 54: Basic Setup

    Basic Setup...

  • Page 55: Basic Setup

    7. Basic Setup 7.1 Video Setup This is guide for setting video output of MG-350HD. You have to setup MG-350HD’s video output mode same as TV set’s video input mode. √ When you can not see normal screen after connecting video cable, check followings, 1.
  • Page 56 1080i 1080p NTSC, PAL : Standard of TV Output. Select a proper one for using in your country. ① Turn on MG-350HD and press [SETUP] on Mode Selection screen. < Setup Procedure > Move to ‘ Video Out’ icon and press [OK]. Setup box will be ②...

  • Page 57: Audio Setup

    7.2 Audio Setup This is guide for setting audio output of MG-350HD. You can use Stereo or Digital 5.1 ch. Analogue/DCPM: Select when you connect the supplied audio cables (Red / White) to TV or Audio set directly. Encoded Digital: Select when you want to listen through 5.1Ch / DTS Dolby by connecting receiver (or amplifier) with Optical or Coaxial cable. ①...
  • Page 58 ① Turn on MG-350HD and press [SETUP] on Mode Selection screen. < ‘DHCP Support On’ Setup Procedure > ② Move to ‘Network’ icon and press [OK]. Setup box will be displayed under icon menu. ③ Select ‘DHCP Support-ON’ and press [OK]. ④...
  • Page 59 ① Turn on MG-350HD and press [SETUP] on Mode Selection screen. ② Move to ‘Network’ icon and press [OK]. Setup box will be displayed under icon menu. ③ Select ‘DHCP Support-OFF’ and press [OK]. ④ Move to ‘IP Address’, ‘Subnet’ and press [OK]. Input box will be displayed and enter number with [Direction] button or [Number] button.

  • Page 60: Wireless Setup

    7.4 Wireless Setup Refer to "2. Connect to PC via Network > 2.2 Wireless LAN Connection”. 7.5 Wireless Security Setup Refer to "2. Connect to PC via Network > 2.2 Wireless LAN Connection”. 7.6 LED Setup It is possible to turn on or off a backlight LED of arrow button on the front side. When the LED disturbs you in night, turn off the LED. ①...

  • Page 61: Photo View Setup

    7.7 Photo View Setup When playing photo file, it is possible to enable or disable BGM and set the playback interval time of each photo files. √ BGM, Music Slide Show Make a 'music' folder (in a small letter not a capital letter at root directory) of built-in HDD and save MP3 files at the folder. If the HDD is divided into two or more partitions, make a 'music' folder at first partition.

  • Page 62: Screen Ratio Setup

    7.9 Screen Ratio Setup This is guide for setting TV Type. You can use 4:3 Letter Box, 4:3 Pan Scan, and 16:9. ① Turn on MG-350HD and press [SETUP] on Mode Selection screen. < Setup Procedure > ② Move to ‘Scr. Rate’ icon and press [OK]. Setup box will be displayed under icon menu.

  • Page 63: Auto Play Setup

    7.10 Auto Play Setup When this Auto Play function is On, MG-350HD play the file continuously form the time of being stopped. ① Turn on MG-350HD and press [SETUP] on Mode Selection screen. < Setup Procedure > ② Move to ‘Auto Play’ icon and press [OK]. Setup box will be displayed under icon menu.

  • Page 64: Internet (How To Setup The Internet)

    7.11 Internet (How to setup the Internet) This is for how to connect MG-350HD to the Internet. ① After turn MG-350HD on, press [SETUP] button and go to [SETUP] page. ② Go to the 2 page and select [INTERNET] icon and press [ENTER] button then you will get the above page.

  • Page 65: I-Radio

    7.12 i-RADIO Refer fot the below how to set up the “i-Radio” on MG-350HD. √ [Note] It composes of Shoutcast , Inlive ( live broadcasting list scan ) ① After turn MG-350HD on, press [SETUP] button and go to [SETUP] page. and UserList.
  • Page 66 √ [Note] After you made “iradio” folder at the root directory in the HDD of MG-350HD, it shows only the list saved in pls, m3u file. ◀ ① Press key at the main page, select press [ENTER] button. < In case, select [ Shoutcast / Inlive ] at the server list > ①...

  • Page 67: Skin

    7.13 SKIN With SKIN function, you can make your own GUI of MG-350HD. √ [Note] Save your own GUI or icon images in “skin1” folder at the root directory of MG-350HD. ① After turn MG-350HD on, press [SETUP] button and go to [SETUP] page.
  • Page 68 ① Make “skin1” folder and save “GUI” or “Images” in the folder at the root directory in a HDD of MG-350HD ③ Now, you see the changed GUI. If you can not see the font, then change the font color. (Setup Page =>...

  • Page 69: Others

    7.14 Others You can set up for 1) effect sound, 2) screensaver. ① After turn MG-350HD on, press [SETUP] button and go to [SETUP] page. < How to setup > ② Go to the 2 page and select [ETC] icon and press [ENTER] button then you will get the above page.

  • Page 70: Protocol

    7.15 Protocol [How to set up of Network Protocol] 1. Function Explanation MG-350HD supports 4 types of protocol streaming through network and it can stream the contents (Movie, Audio, Photo) from a server which is located remotely. 1) SAMBA (This is Windows sharing function and Manual setup is added) MG-350HD can access to a SAMBA server that has shared folders and stream the contents through network.
  • Page 71 2. How to setup? 1) SAMBA (Basic mode) Go to [Setup] => Select [Protocol] => Select [SAMBA]. ① ② t [SAMBA Server address], select [Auto] or [Manual]. - Auto : MG-350HD scans all SAMBA servers automatically connected in the network group. - Manual : You can indicate the server address you want to access.
  • Page 72 [SAMBA Server Address] is supposed to be enable when you select [Manual] at [SAMBA Server Address] and put the SAMBA ③ server address in. After you complete [Setup], then press [Setup] button for saving the configuration and go to the ④...
  • Page 73 After you complete [Setup], then press [Setup] button for saving ② [Wireless] then MG-350HD will access a uPNP server which supports uPNP AV protocol and stream the contents from the server. 3) NFS Go to [Setup] => Select [Protocol] => Select [NFS]. ①...
  • Page 74 Put the FTP server address at [FTP Address]. ② Put the user ID of the FTP server at [FTP ID]. ③ Put the user password of the FTP server at [FTP Password]. ④ Put the port number of the FTP server at [FTP Port]. ⑤...
  • Page 75 5) How to access one of them (protocols)? If you select one of them (protocols), then press [Setup] button on the remote control and go to the main menu and select [LAN] or [Wireless] then you can use one of them. Ex) In case, you selected FTP protocol.

  • Page 76: Ftp Client

    7.16 FTP Client 【FTP Client Setup & Download & Upload】 < How to set up of FTP Client & access? > 1. What is FTP Client? : FTP Client function can make MG-350HD access to a PC that has FTP Server program runnig and can download from or upload to the * [Note] : - In order to use FTP function, the PC &...
  • Page 77 2) Select [FTP Client Save-To Path] and indicate the path. -> [FTP Client Save-To Path] is the disk path to save or download the files, so you can indicate the HDD inside or a USB drive. 3) After indicating the Disk path, press [Setup] button on the remote control and go to the main menu. 4) At the main menu, press [ ] button on the remote then you can get the second main menu page and ◀...
  • Page 78 6) At the below pop-up, you can put [FTP site name, FTP address, ID, Password, Port, select Passive]. Webpage N ame : The FTP nick name that MG-350HD accesses to. You can make a nick name as you ☞ want. FTP Address : FTP Server IP address that MG ☞...
  • Page 79 8) If you have any problem to access the FTP server (due to the wrong server configuration, router, the wrong network connection), then the below pop-up will appear.
  • Page 80 [Server lists after you access] Move the cursor to the server lists. 2) Press [Menu] button on the remote control and you can get sub-menu at the bottom side. New Server : Add more server lists. Manage : Modify or delete the server list. Disconnect : Disconnect the current server list connected.
  • Page 81 3) If you press [Add] button, then you can add new server lists. 4) If you press [Manage] button, then you will get a pop-up that shows [Website Name ,FTP Address , Port No.]. The setup menu of the server lists is as below; OK : If you press [OK], then you go back to the server lists.
  • Page 82 9) If you press [Exit], you will go back to the server lists. =================================================================== [How to download / upload the files after access to the server] 1) Select one of the server lists and press [OK]. 2) If you can access successfully, then you will have “Remote” and “Local” page. (Remote means the HDD of the server and Local means, the HDD of MG-350HD.) 3) Each file has icon, so you can know what the type of the file is (Movie, Music, Photo).
  • Page 83 5) Select the files you want to download / upload and press [OK] button, then it will download / upload automatically. While you are downloading / uploading the files, you can use [Menu] button for more options. You can find the menu icons at the bottom side for more option. Stop : Stop downloading / uploading the files.
  • Page 84 Transfer : Start downloading / uploading the files. (Regarding the status of downloading / uploading, there are progress bar, file names, stand- by Queue) Queue : When you download / upload the files at the same time, you can control each file with this function.
  • Page 85 You can select [Apply All] on a file or all files. Resume : The downloading can be continued from the past end part. Overwrite : Overwriting the same file at the Local. Skip : Skip the download / upload and run the next command. 11) After completing the download / upload, the progress bar will disappear and you can go to the next function.
  • Page 86 -> Press [Menu] button on the remote control and select [Connect] at the sub menu. ☞ There are two ways to download / upload the files. -> Press [OK] button on the remote control. -> Press [Menu] button on the remote control and select [Transfer]. ☞...

  • Page 87: Ftp Server

    7.167FTP Server 1. Function Explanation. Make a MG-350HD as FTP Server and then you can access to the MG-350HD from a PC. You can download the files from the MG-350HD to the PC or upload the files from a PC to the MG-350HD. 2.
  • Page 88 2) FTP Sever Save Path : Set up of the root directory (disk) which will be as a FTP server. After you set up FTP server at MG-350HD and run a FTP program at a PC, then you can access to the MG- 350HD and see the files at the indicated directory.
  • Page 89 4) Server Password : Set up the password that you will use when you want to access to the MG-350HD by using FTP program at a PC. The default PASSWORD is [altech] and you can change it as you want. 5) Server Port : Set up the server port that FTP server is using.
  • Page 90 If you use a router or firewall, then you may need to check how you can disable them with the router supplier. 6) FTP ON : After you set up all configurations, then select [On] at FTP server. 7) Save the configurations & run (use) : After you set up the all configuration and press [Setup] button on the remote control then you are ready to use FTP server function.
  • Page 91 * When you press [Info] button two times, then you will get ‘FTP Server Status as below; * When you press [Info] button three times, then you will get ‘Disk Status as below; [Note] It may take time to check Disk Status depending on the HDD capacity.

  • Page 92: How To Play(Remote Control)

    How to Play(Remote Control)

  • Page 93: Basic Screen Menu

    8. How to Play(Remote Control) 8.1 Basic Screen Menu 8.1.1 Mode Selection After turning on MG-350HD, you can see mode selection screen. In this screen, you can select HDD(built-in), USB(external USB device), LAN(wired network), WIRELESS(wireless network) You can select one out of them. √...
  • Page 94 8.1.1.2 Wired & Wireless Network Following example is in case of wired network. Wireless network is same as wired network. ① [Mode Selection] Select ‘LAN’ icon and press [OK]. (In case of wireless network, select ‘WIRELESS’ icon, √ Refresh Network PC Press [STOP].

  • Page 95: File Selection

    8.1.2 File Selection Select a file and press [OK] in order to play. Remote Control MENU ▲▼◀▶ Direction Key PREV I◀◀ Move by page NEXT ▶▶ Move by page SLOW ( ) ↖ Up directory DEVICE Mode Selection ▶ SELECT Register a file (Number 1) at Play-List...
  • Page 96 ALL MEDIA All Media Mode INFO TV OUT Video Out Signal Control luminosity, Brt.CONT color depth, brightness SETUP √ Play All File, Play One File Press [MENU] and move to 'Play Mode' icon. Two Play modes are available, when pressing [OK], change the mode "Play one>Play all". After selecting one, press [MENU] again for saving configurations.

  • Page 97: Play Video Files

    8.2 Play Video Files Select a file and press [OK]. 리모컨 버튼 MENU Tool Box Playback ▶ Pause Playback NEXT ▶▶ Next File Playback PREV I◀◀ Previous File Direction ▶▶▶ Fast Forward Direction ◀◀◀ Rewind When pressing [MENU] while playing a file, “Tool Box Menu” is displayed.
  • Page 98 SLOW Playback Slow Jump to Preferable SEARCH Playback Time VOLUME + Volume Up Direction ▲ VOLUME - Volume Down Direction ▼ MUTE Sound Off Subtitle Move & Size Subtitle Sync. SUBTITLE Subtitle Select or Hide Subtitle Language Select Specific Playback BOOKMARK Time Memory AUDIO...

  • Page 99: Play Dvd File

    8.3 Play DVD File DVD manager function support to play DVD Ripping File same as original DVD. Make a folder and then save all ripping files into the folder. After connecting TV (or Monitor), select VIDEO_TS.IFO file at the folder. Make sure that all the ripping files including VIDEO_TS.IFO from one DVD title will be located at one folder.
  • Page 100 REPEAT Chapter, Title Repeat A-B REPEAT A-B repeat TITLE Go to Title Menu ANGLE Angle INFO Show File Information Jump to Preferable SEARCH Playback Time Control luminosity, Brt. CONT color depth, brightness NEXT Playback ▶▶ Next Chapter PREV Playback I◀◀ Previous Chapter FF ▶▶▶...

  • Page 101: Play Audio File

    8.4 Play Audio File Select a file and press [OK]. Remote Control MENU ▶ NEXT ▶▶ PREV I◀◀ Previous File FF ▶▶▶ Fast Forward REW ◀◀◀ SEARCH Jump to Preferable When pressing [MENU] while playing a file, “Tool Box Menu” is displayed.
  • Page 102 Playback Time VOLUME + Volume Up Direction ▲ VOLUME - Volume Down Direction ▼ MUTE Sound Off INFO Show File Information Control luminosity, Brt. CONT color depth, brightness Enter your preferable playback time with [Number] and press [OK]. Volume Up. *It is not possible to use this button when manual subtitle is displayed while playing audio file.

  • Page 103: Play Photo File

    8.5 Play Photo File Select a file and press [OK]. Remote Control MENU ▶ NEXT ▶▶ PREV I◀◀ Previous File INFO Show File Information Control luminosity, Brt. CONT color depth, brightness When pressing [MENU] while playing a file, “Tool Box Menu” is displayed.
  • Page 104 √ Photo Slide Show When play mode is set on ‘Play all(Default value)’, all photo files will be played continuously. So, It is possible to use as photo slide show. √ Music Slide Show Make a 'music' folder (in a small letter not a capital letter at root directory) of built-in HDD and save MP3 files at the folder. If the HDD is divided into two or more partitions, make a 'music' folder at first partition.

  • Page 105: Make A Play List

    8.6 Make a Play List You can make your preferable play list for registering some files to play list. √ Note After rebooting MG-350HD, registered play list will be clear. ① Select your preferable file for registering with [SELECT] or [SELECT ALL].

  • Page 106: Firmware Upgrade

    Firmware Upgrade...
  • Page 107 9. Firmware Upgrade Download a upgrade file from local distributor in your country or visit at www.airlinktek.com. After connecting TV set, move to the upgrade file and press [OK]. Upgrade is progressed automatically. After finishing upgrade, you can check firmware version on Setup screen. Press [SETUP] button. * Current firmware version is displayed when pressing [INFO] button on file selecting screen.
