HE ISPLAY

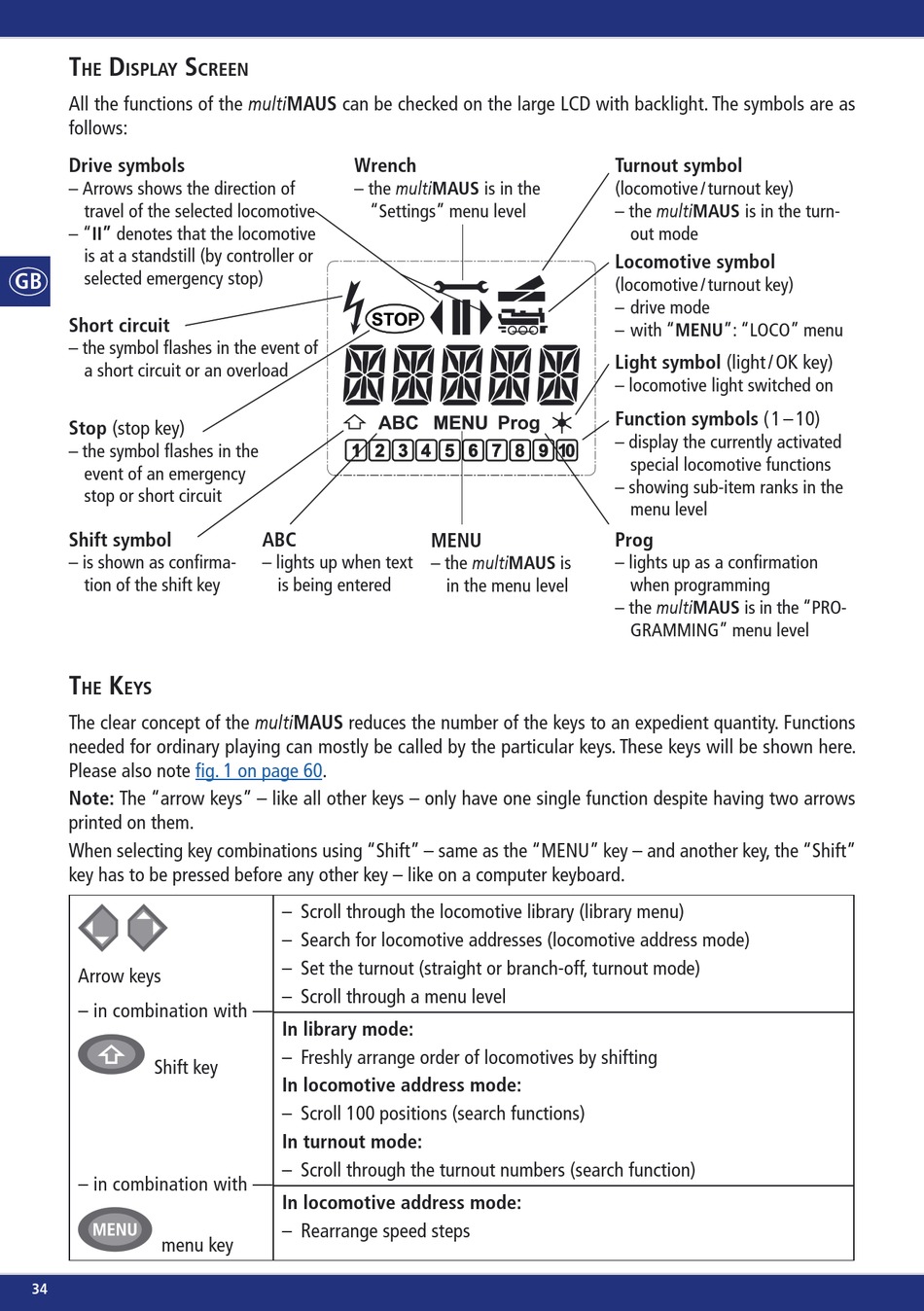

All the functions of the multiMAUS can be checked on the large LCD with backlight. The symbols are as
follows:
Drive symbols
– Arrows shows the direction of
travel of the selected locomotive
– "II" denotes that the locomotive
is at a standstill (by controller or
�� selected emergency stop)
Short circuit
– the symbol flashes in the event of
a short circuit or an overload
Stop (stop key)
– the symbol flashes in the
event of an emergency
stop or short circuit
Shift symbol
– is shown as confirma-
tion of the shift key
T K
HE EYS
The clear concept of the multiMAUS reduces the number of the keys to an expedient quantity. Functions
needed for ordinary playing can mostly be called by the particular keys. These keys will be shown here.
Please also note
Note: The "arrow keys" – like all other keys – only have one single function despite having two arrows
printed on them.
When selecting key combinations using "Shift" – same as the "MENU" key – and another key, the "Shift"
key has to be pressed before any other key – like on a computer keyboard.
Arrow keys
– in combination with —
Shift key
– in combination with —
menu key
34
CREEN
Wrench
– the multiMAUS is in the
ABC
– lights up when text
is being entered
fig. 1 on page 60.
– Scroll through the locomotive library (library menu)
– Search for locomotive addresses (locomotive address mode)
– Set the turnout (straight or branch-off, turnout mode)
– Scroll through a menu level
In library mode:
– Freshly arrange order of locomotives by shifting
In locomotive address mode:
– Scroll 100 positions (search functions)
In turnout mode:
– Scroll through the turnout numbers (search function)
In locomotive address mode:
– Rearrange speed steps
"Settings" menu level
MENU
– the multiMAUS is
in the menu level
Turnout symbol
(locomotive / turnout key)
– the multiMAUS is in the turn-
out mode
Locomotive symbol
(locomotive / turnout key)
– drive mode
– with "MENU": "LOCO" menu
Light symbol (light / OK key)
– locomotive light switched on
Function symbols ( 1 – 10)
– display the currently activated
special locomotive functions
– showing sub-item ranks in the
menu level
Prog
– lights up as a confirmation
when programming
– the multiMAUS is in the "PRO-
GRAMMING" menu level
