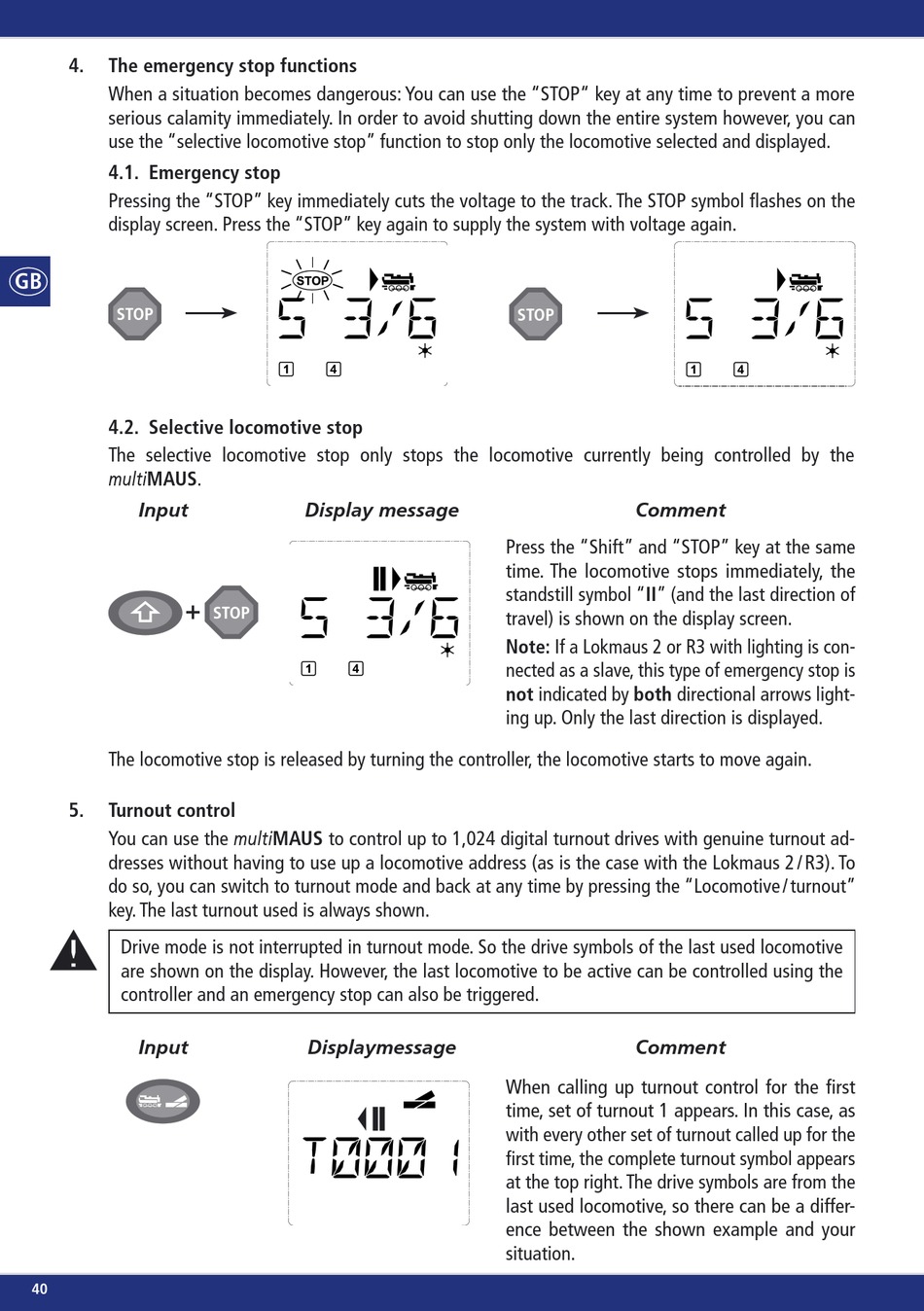

4.

The emergency stop functions

When a situation becomes dangerous: You can use the "STOP" key at any time to prevent a more
serious calamity immediately. In order to avoid shutting down the entire system however, you can
use the "selective locomotive stop" function to stop only the locomotive selected and displayed.
4.1. Emergency stop
Pressing the "STOP" key immediately cuts the voltage to the track. The STOP symbol flashes on the
display screen. Press the "STOP" key again to supply the system with voltage again.
��
STOP
4.2. Selective locomotive stop
The selective locomotive stop only stops the locomotive currently being controlled by the
multiMAUS.
Input
�
The locomotive stop is released by turning the controller, the locomotive starts to move again.
5.

Turnout control

You can use the multiMAUS to control up to 1,024 digital turnout drives with genuine turnout ad-
dresses without having to use up a locomotive address (as is the case with the Lokmaus 2 / R3). To
do so, you can switch to turnout mode and back at any time by pressing the "Locomotive / turnout"
key. The last turnout used is always shown.
Drive mode is not interrupted in turnout mode. So the drive symbols of the last used locomotive
are shown on the display. However, the last locomotive to be active can be controlled using the
controller and an emergency stop can also be triggered.
Input
40
Display message
STOP
Displaymessage
STOP
Comment
Press the "Shift" and "STOP" key at the same
time. The locomotive stops immediately, the
standstill symbol "II" (and the last direction of
travel) is shown on the display screen.
Note: If a Lokmaus 2 or R3 with lighting is con-
nected as a slave, this type of emergency stop is
not indicated by both directional arrows light-
ing up. Only the last direction is displayed.
Comment
When calling up turnout control for the first
time, set of turnout 1 appears. In this case, as
with every other set of turnout called up for the
first time, the complete turnout symbol appears
at the top right. The drive symbols are from the
last used locomotive, so there can be a differ-
ence between the shown example and your
situation.
