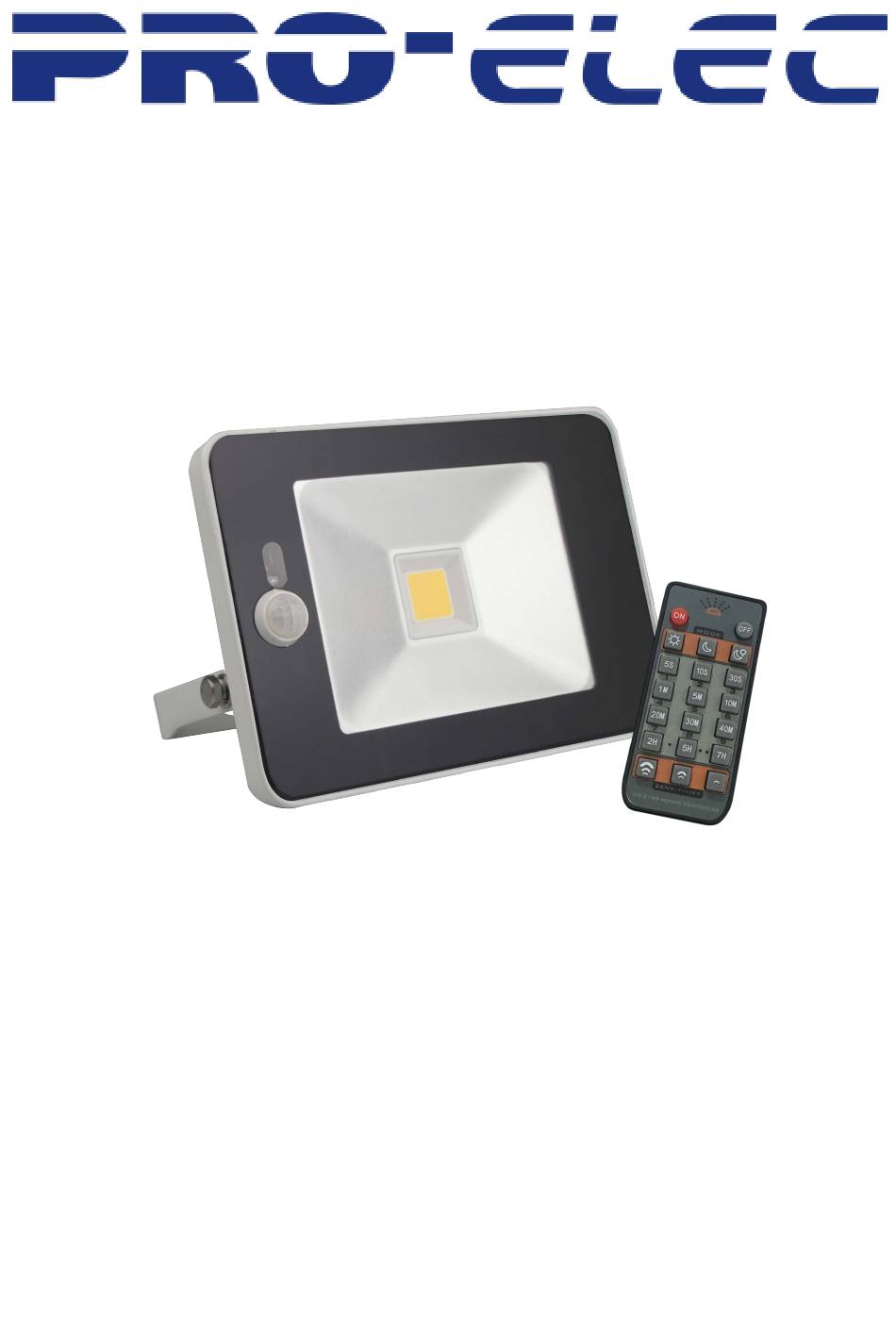

- Page 1 LED Floodlight with PIR Models: PEL00500, PEL00501, PEL00502 & PEL00503...
-
Page 2: Important Safety Information
Please read these instructions carefully before use and retain for future reference. This floodlight must be installed by a qualified electrician in accordance with current building and IET wiring regulations (BS7671). IMPORTANT SAFETY INFORMATION • This product must be connected to Earth. •... -
Page 3: Installation
• The floodlight has a beam angle of 120°. It can be tilted at an angle of approximately 60° and downwards at an angle of approximately 90°. Note: The angle of adjustment will vary slightly between models. INSTALLATION The floodlight is suitable for connection to a 220-240V, 50Hz earthed supply. It is designed for permanent connection to fixed wiring, which must be a suitable circuit protected by an RCD and an MCB or fuse of the correct rating. -
Page 4: Remote Control
REMOTE CONTROL • The distance between two luminaries should be more than 50cm, while there should be no large metal obstructions in front of the floodlight. • The default settings are: Mode: Daylight Duration time: 5 seconds Sensitivity: 100% Mode Daylight mode: the sensor will work both in the daytime and at night. -
Page 5: Specification
SPECIFICATION PEL00284 PEL00285 PEL00286 PEL00287 PEL00500 PEL00502 PEL00501 PEL00503 220-240V, 220-240V, 220-240V, 220-240V, Input voltage 50Hz 50Hz 50Hz 50Hz Lumens 680lm 1400lm 2100lm 3500lm Wattage Beam angle 120° 120° 120° 120° Dimmable Nominal lifetime 30,000h 30,000h 30,000h 30,000h of lamp...
