Advanced RPS Chassis — Front View Detail

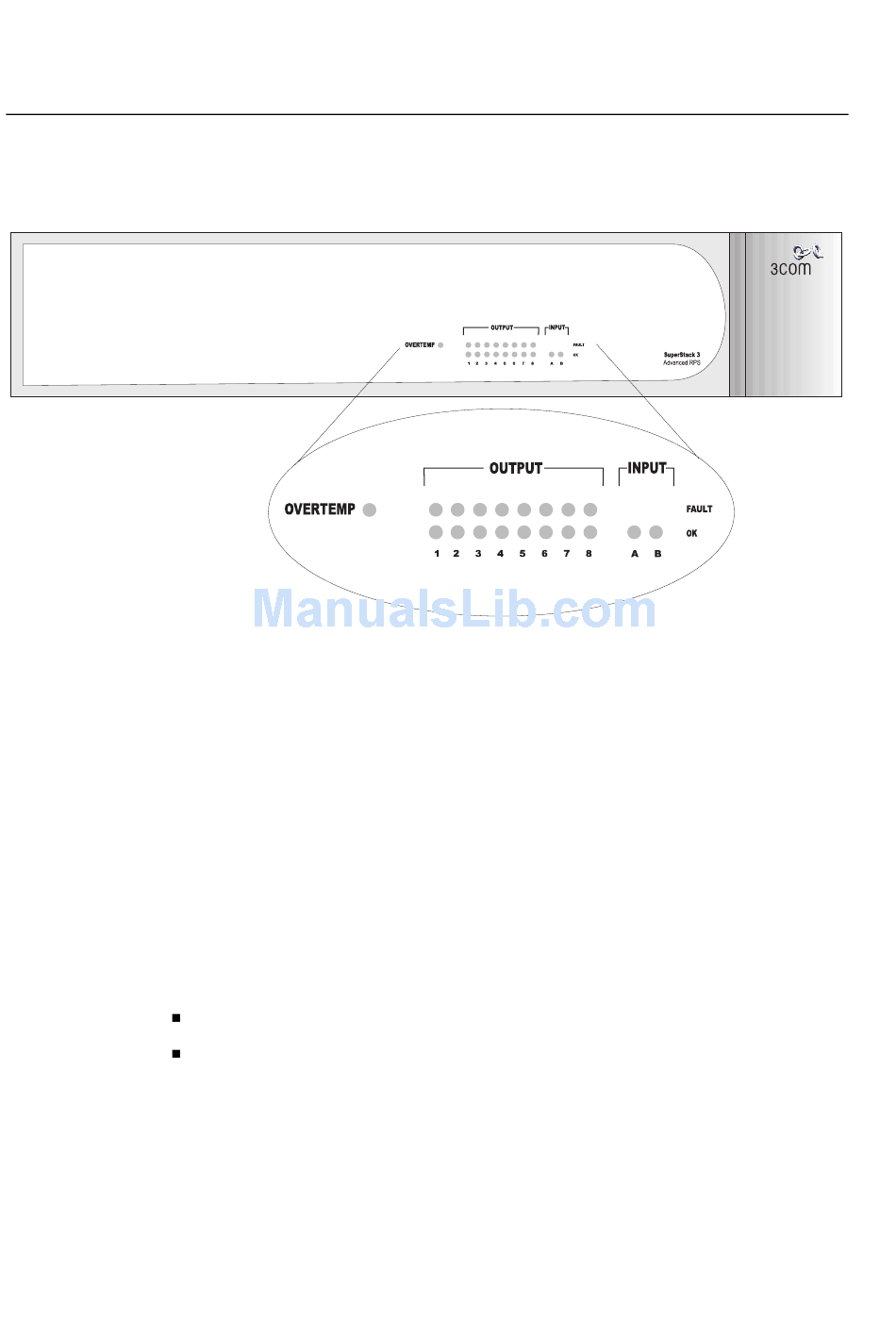

Figure 1 Front View of the Advanced RPS Chassis

LEDs

The Advanced RPS chassis has LEDs visible on the front panel that
indicate the status of the AC power inputs, the power modules, and
the temperature of the chassis itself.
One INPUT LED is allocated to each AC power input socket. Socket A
is the right-hand one of the two sockets (labelled Primary Pwr A)
when looking at the rear of the unit.
Two OUTPUT LEDs, arranged vertically, are allocated to each power
module slot on the rear of the Advanced RPS. The numbering of the
slots, when looking at the rear of the unit, is:
The OVERTEMP LED provides an indication of the chassis
temperature status.
Table 1 lists the LEDs visible on the front of the Advanced RPS chassis
and their status according to color. For information on using the LEDs
for troubleshooting, see Appendix D.
A
NTRODUCING THE DVANCED
Top row (left to right) — 7, 5, 3, 1
Bottom row (left to right) — 8, 6, 4, 2
RPS
