Leds - SAGEMCOM Swan F5366s User Manual

Long press (more than 10 seconds) resets the gateway to the factory configuration.
Reset Note: The long press deletes the entire personalized configuration of the gateway:
password, configuration, etc.
DSL RJ11 connector used to connect to an ADSL2+ or VDSL2 line (WAN interface).
Phone RJ11 connector to connect a phone
USB "Master" USB type A female connector (USB Interface) used for "File Sharing"
RJ45 connectors (10/100/1000BASE-T Ethernet Interface).
Eth x
These connectors are identified by the yellow color.
(1 to 4)
They are used to connect to a computer or a television set (via a TV/Video Decoder).
WAN Eth FTTH WAN dedicated port.
Miniature jack fixed connector. This connector enables the gateway to be supplied
Power
with direct current from a power supply unit (PSU).

2.1.2 LEDs

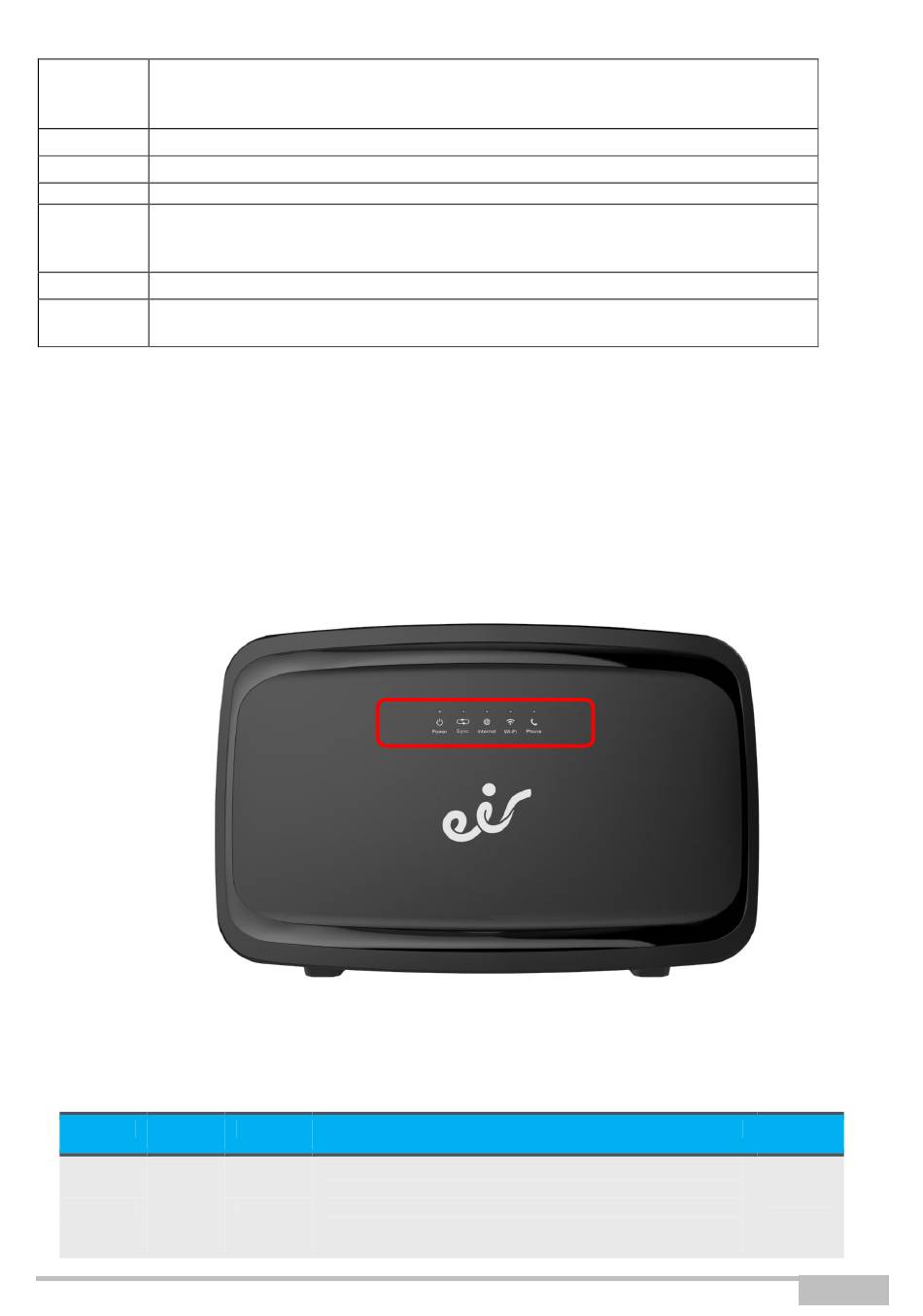

The following table describes the meaning of the LEDs on the front and back panel of the gateway:
item Icon
1- Power
eir fibre box User Manual
Text
Solid green: Device is powered on and has booted up
successfully
Power Off: Power off
Blinking red: Device is booting
Solid Red: Device failed to power up properly
Sagemcom Broadband SAS document. Reproduction and disclosure prohibited
Spec Colour
Green /
Red
